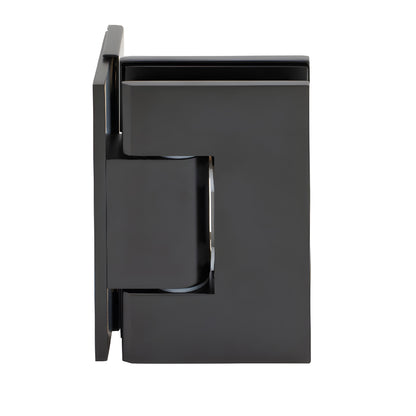

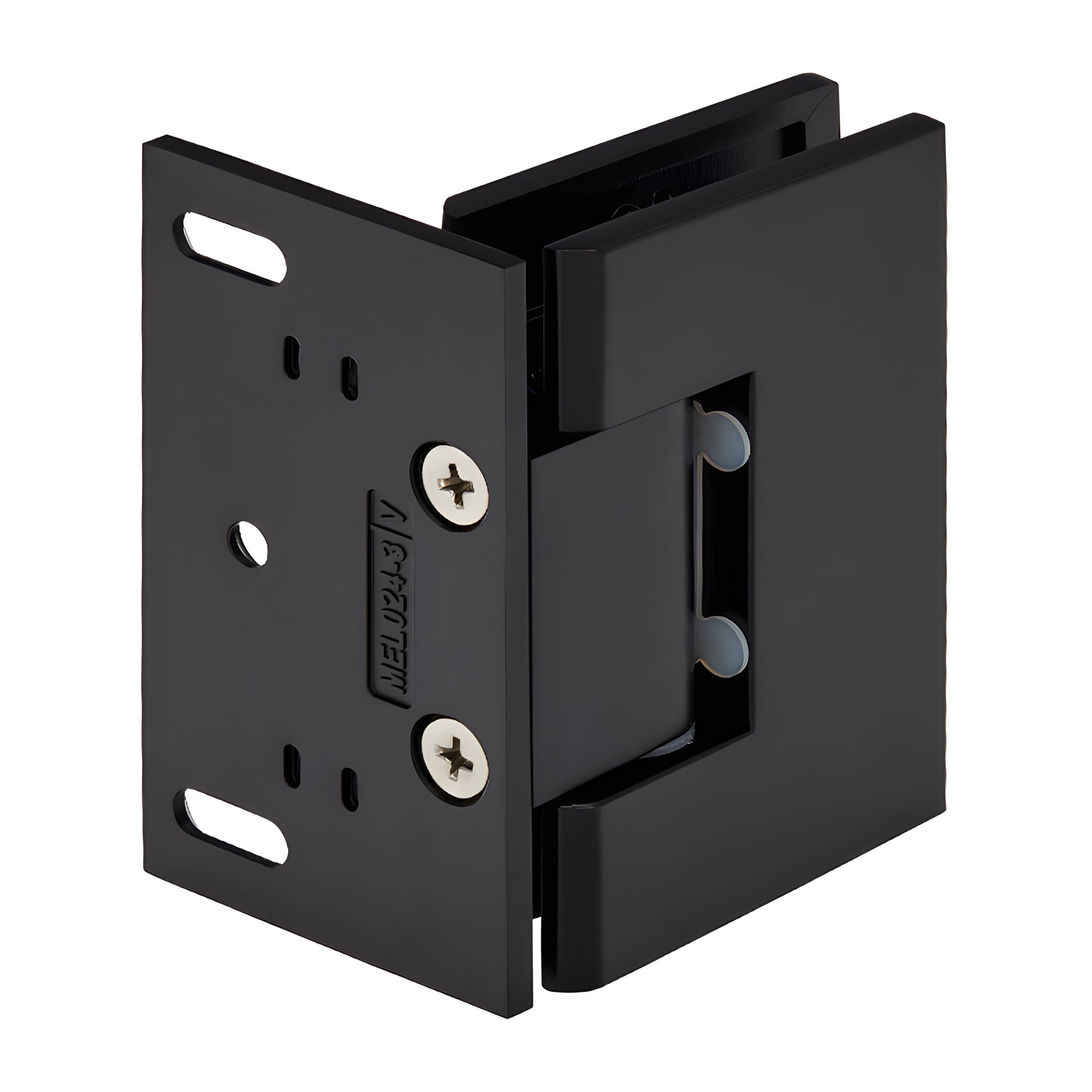

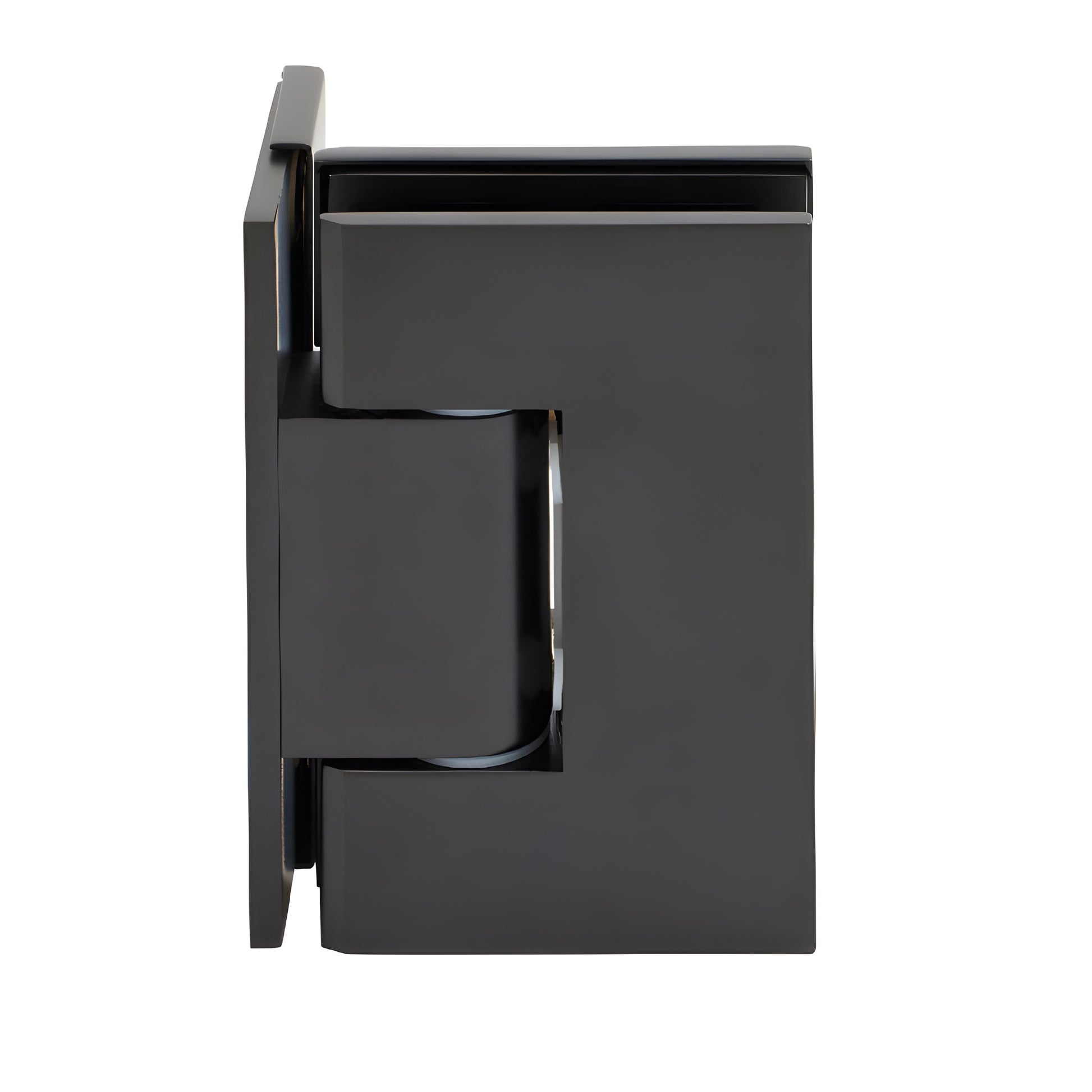

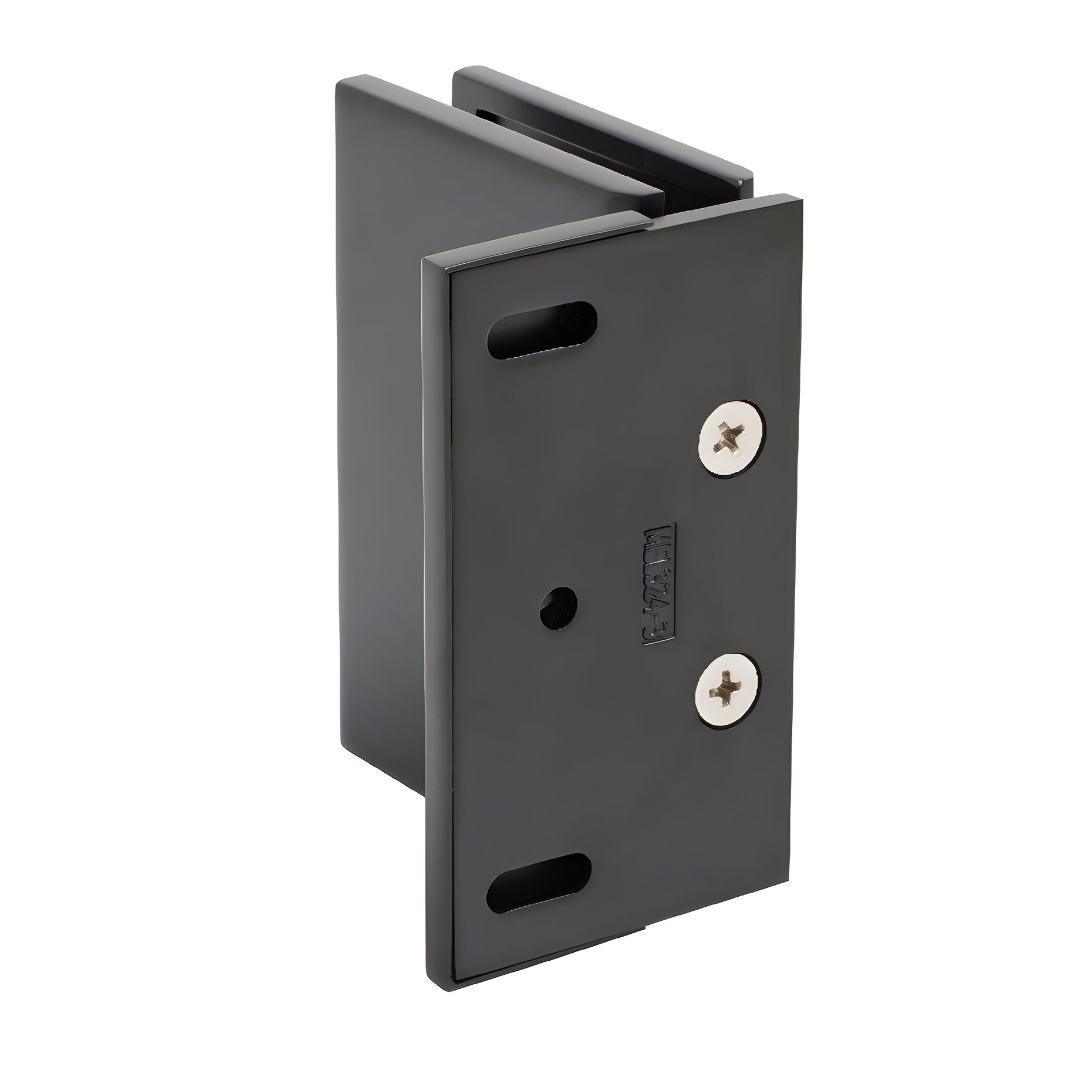

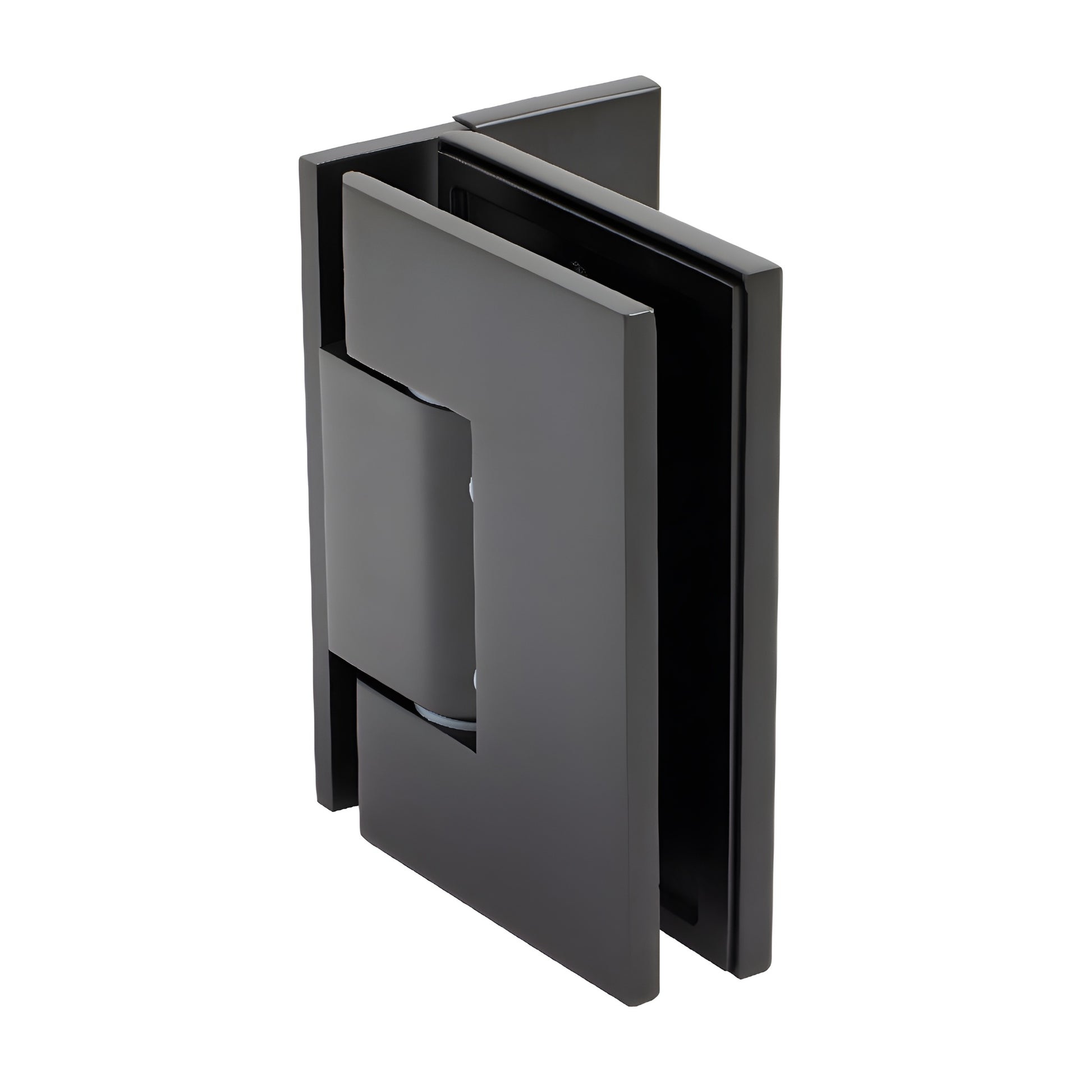

CRL Melbourne Matte Black Offset Wall Mount Hinge with Cover Plate

• Large hinge plates provide increased clamping force
• Simple rectangular cut-out for easy glass fabrication
• Compatible with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
• Stocked in three popular finishes; custom finishes available

CRL Melbourne Series Hinges (SKU: MEL024MBL) are forged solid brass shower door hinges engineered for secure, long-lasting performance. The large hinge plates deliver more clamping force, while the simple rectangular cut-out speeds glass fabrication for tempered glass shower doors. Available in multiple wall-mount and 180° glass-to-glass configurations, plus replacement cover plates to conceal hinge screws. Stocked in three popular finishes with custom finishes available.

Load Capacity
Using two hinges with 1/2", 3/8", or 5/16" (12, 10, 8 mm) glass: holds up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with the same glass thicknesses: holds up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

For more information contact CRL Shower Door Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.


Order MEL024MBL today for reliable, solid-brass shower door hinges—contact us to request templates, custom finishes, or technical support
