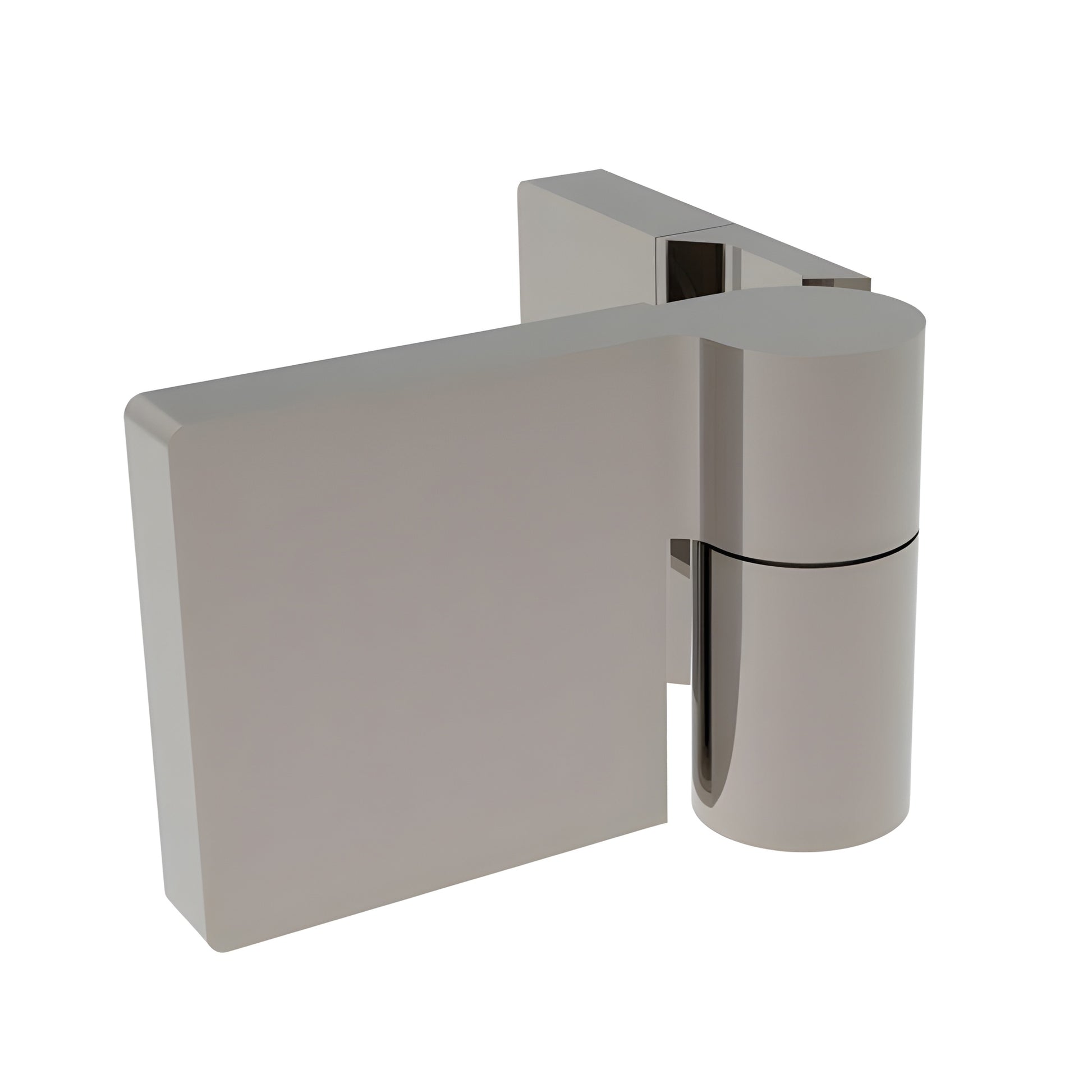

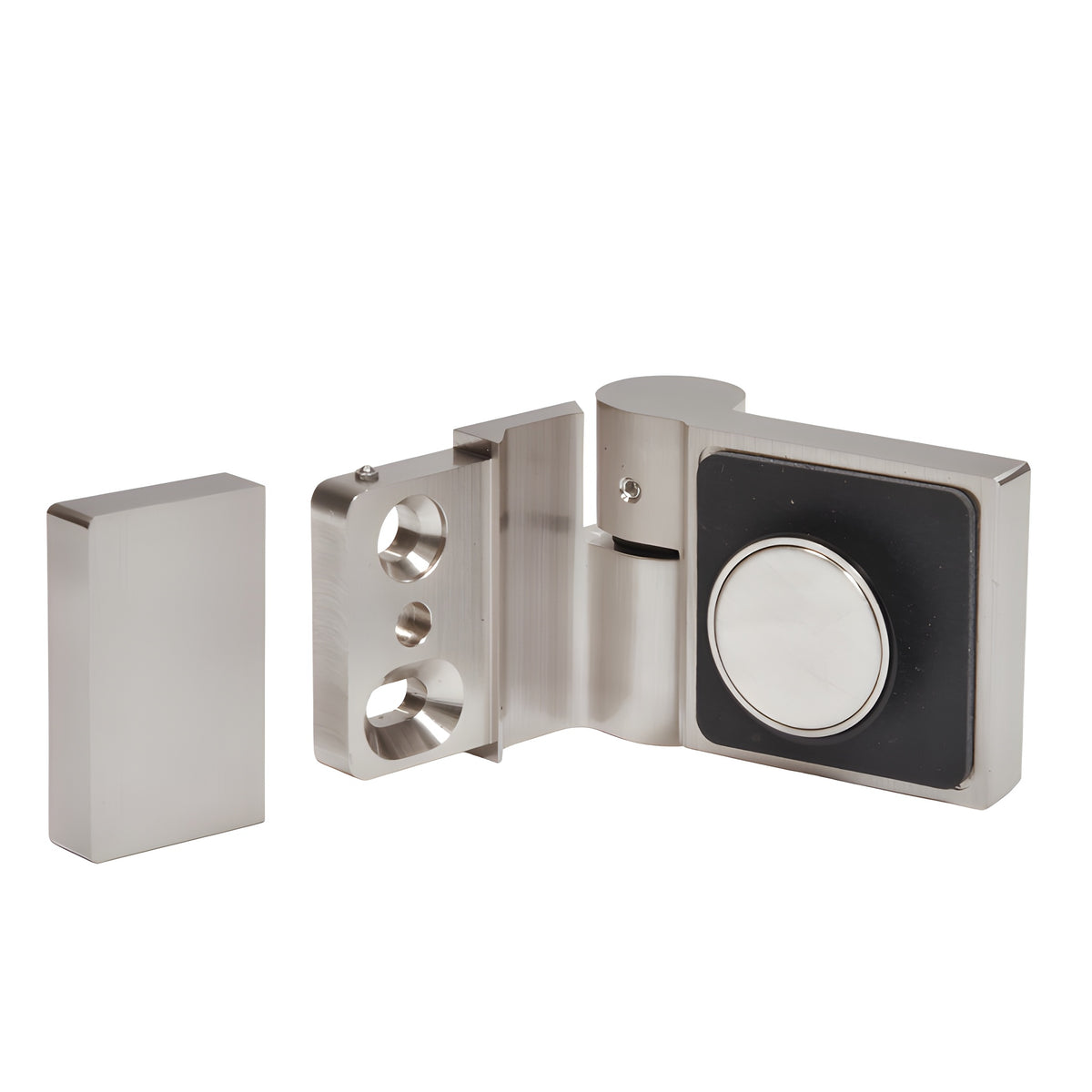

CRL Brushed Nickel Lugano Series Wall Mount Hinge - For Left Hand Door

Finish (5)

Handing (2)

Left Hand
Right Hand

Mounting Type (2)

Wall Mount
Glass To Glass

Series (11)

Overview

SKU	LUG044RBN
Sold as	1 Each
Back Plate	Offset
Design Style	Concealed/Premium
Edge Profile	Square
Enclosure Type	Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color:	Brushed Nickel
Glazing Thickness	5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing	Left Hand
Height	1-31/32 in. (50 mm)
Material	Brass
Maximum Door Weight	99 lbs. (44.9 kg)
Maximum Door Width	35 in. (889 mm)
Mounting Type	Wall Mount
Opening Style	Swing(side)
Series	Lugano
Width	1-31/32 in. (50 mm)

Description

Product Details

Rise and Fall action - 3/16 (5mm)
Sleek New Design
Works with 5/16 to 3/8 (8 to 10 mm) glass
Perfect for a Pitched Curb
Use with No Ledge for Wheelchair Accessibility
Flush Mount Inside - Easy to Clean Glass

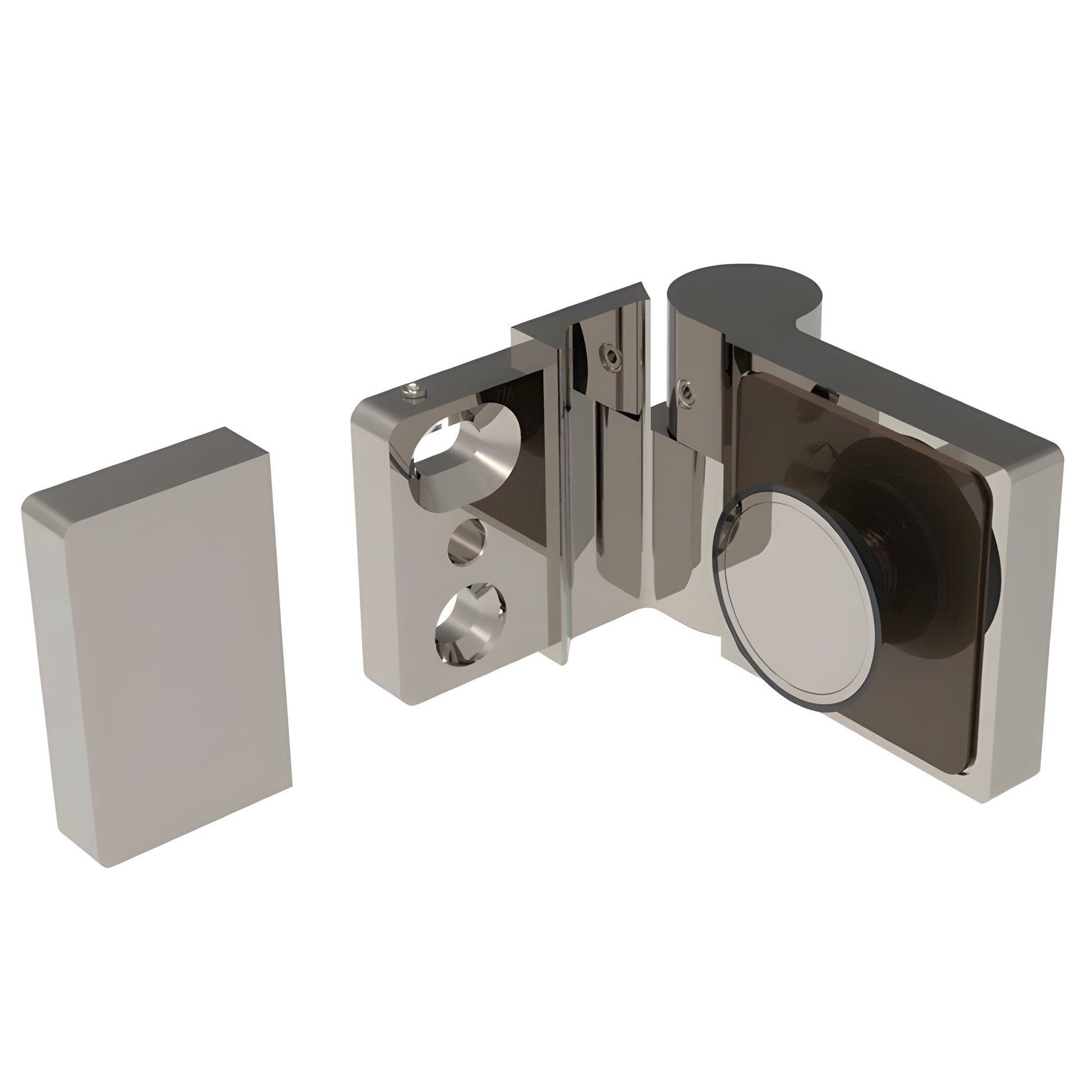

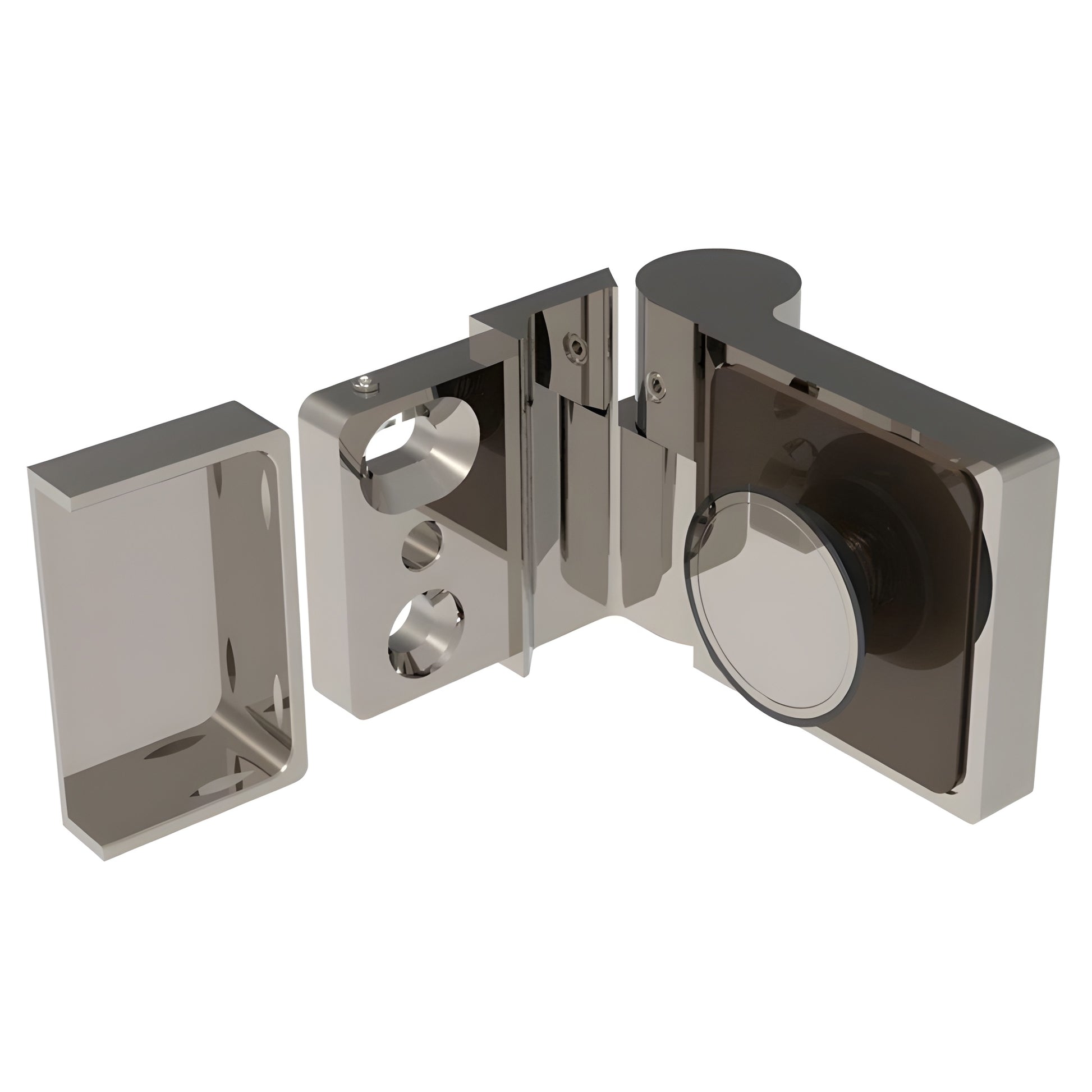

Snap-on Covers Conceal Screws
Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
