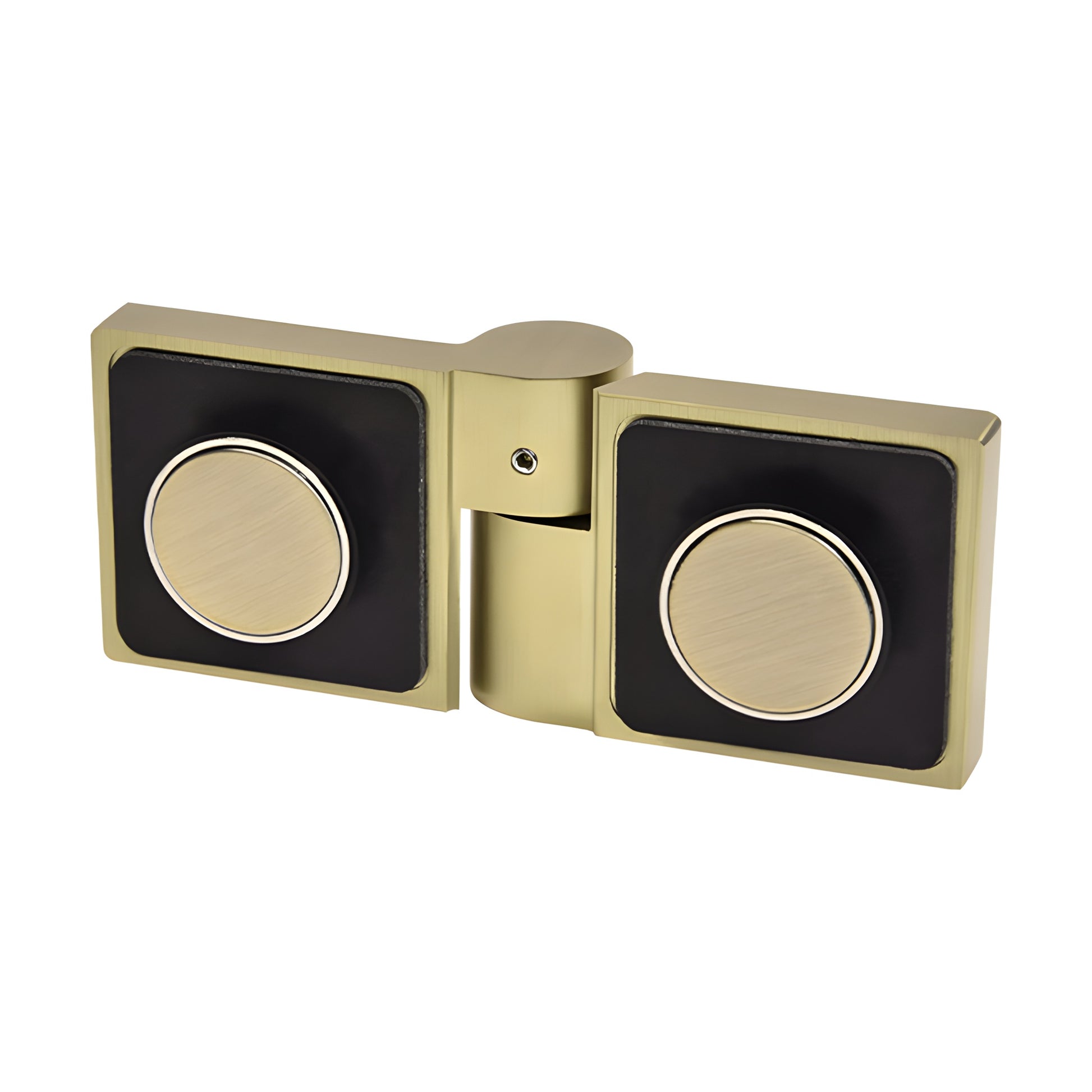

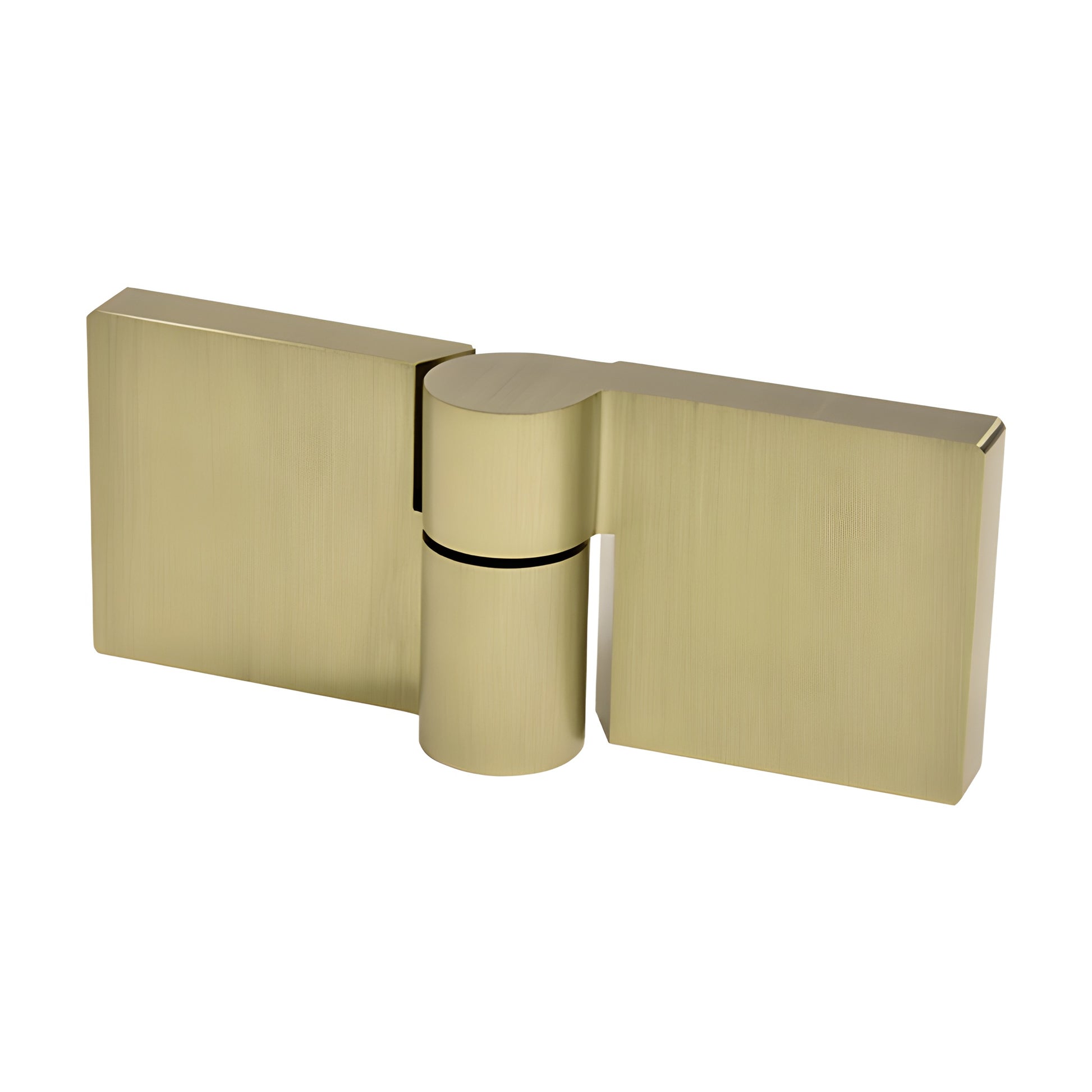

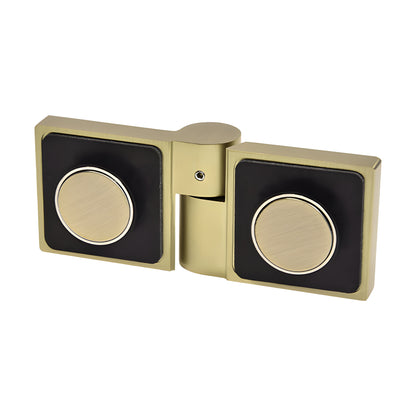

CRL Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door

Finish (5)

Handing (2)

Left Hand
Right Hand

Mounting Type (2)

Glass To Glass
Wall Mount

Series (7)

Overview

SKU	LUG180LBBRZ
Sold as	1 Each
Design Style	Concealed/Premium
Edge Profile	Square
Enclosure Type	Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color:	Brushed Bronze
Glass To Glass Angle	180
Glazing Thickness	5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing	Right Hand

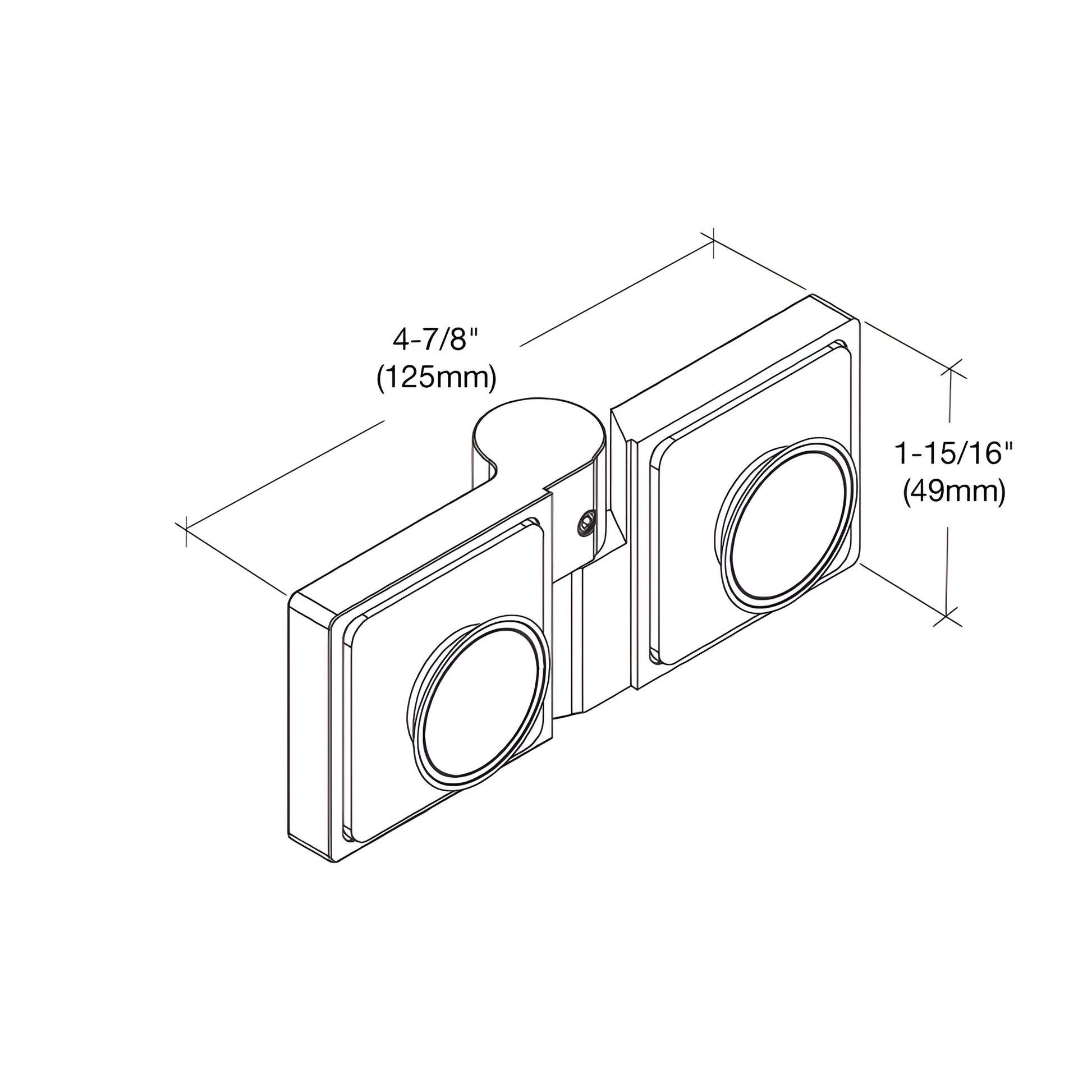

Height	1-31/32 in. (50 mm)
Material	Brass
Maximum Door Weight	99 lbs. (44.9 kg)
Maximum Door Width	35 in. (889 mm)
Mounting Type	Glass To Glass
Opening Style	Swing(side)
Series	Lugano
Width	1-31/32 in. (50 mm)

Description

Product Details

Rise and Fall action - 3/16 (5mm)
Sleek New Design
For 5/16 to 3/8 (8 to 10 mm) tempered glass
Handles up to a 35" wide door using two hinges

The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
