CRL Lugano Satin Brass 180° Glass-to-Glass Shower Door Hinge, Left
Item# LUG180RSB
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Left Hand

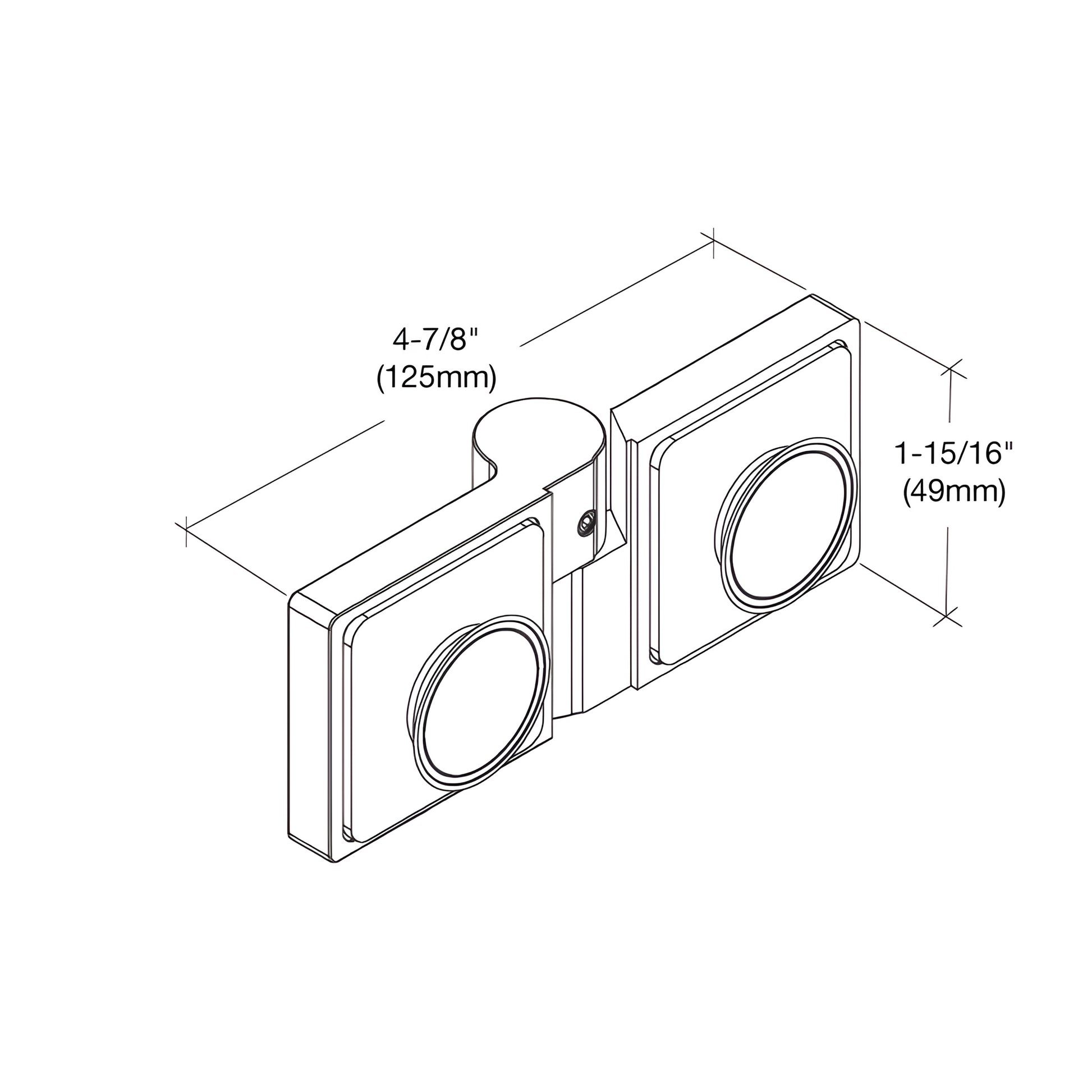

Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
- Rise-and-fall action: 3/16" (5 mm)
- Sleek new Lugano Series design
- Fits 5/16" to 3/8" (8 to 10 mm) tempered glass
- Ideal for pitched curb installations
- Use with no ledge for wheelchair-accessible doors
- Flush mount inside for easy-to-clean glass
- Snap-on covers conceal screws for a clean look
- Rigorously tested to 100,000 cycles — 5× industry standard

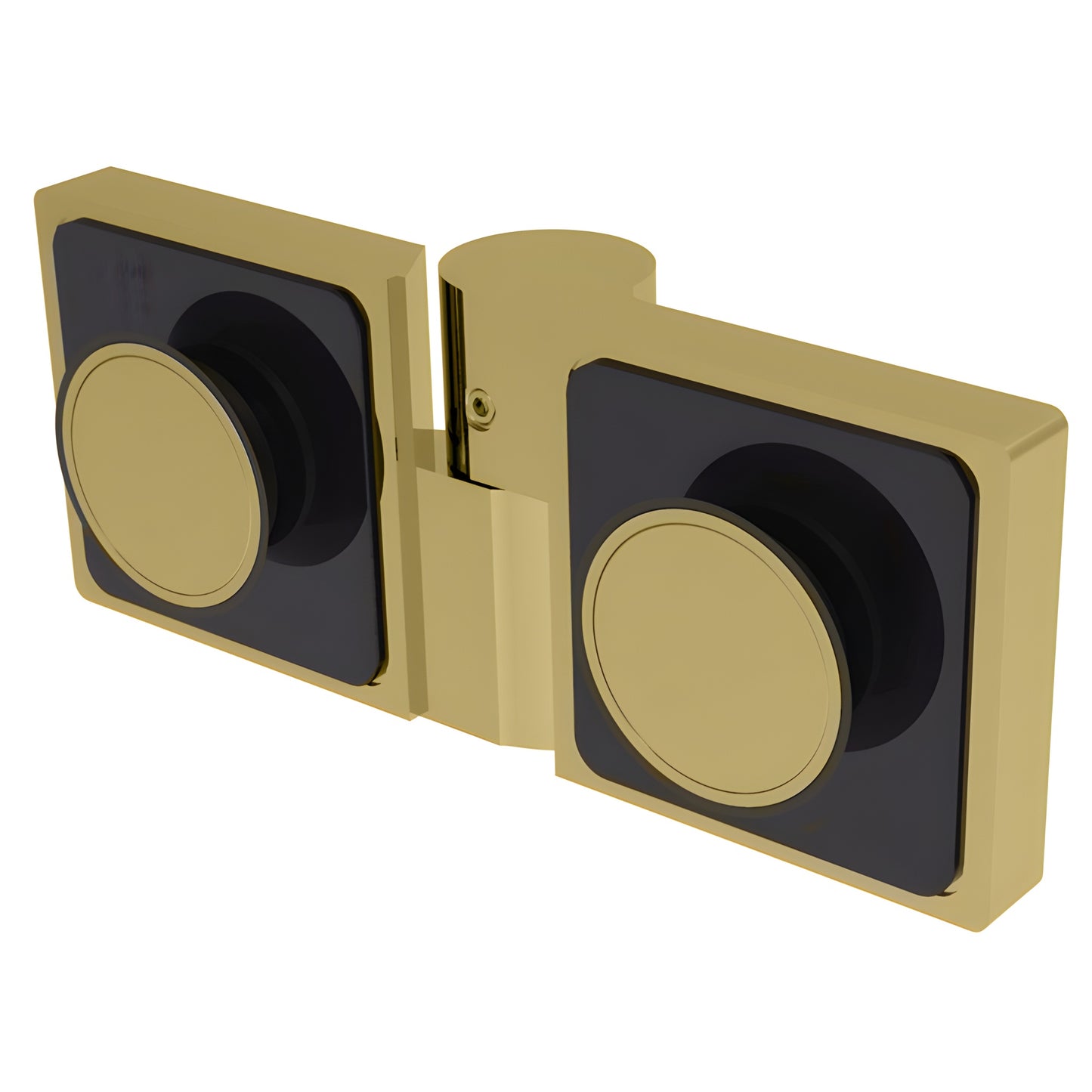

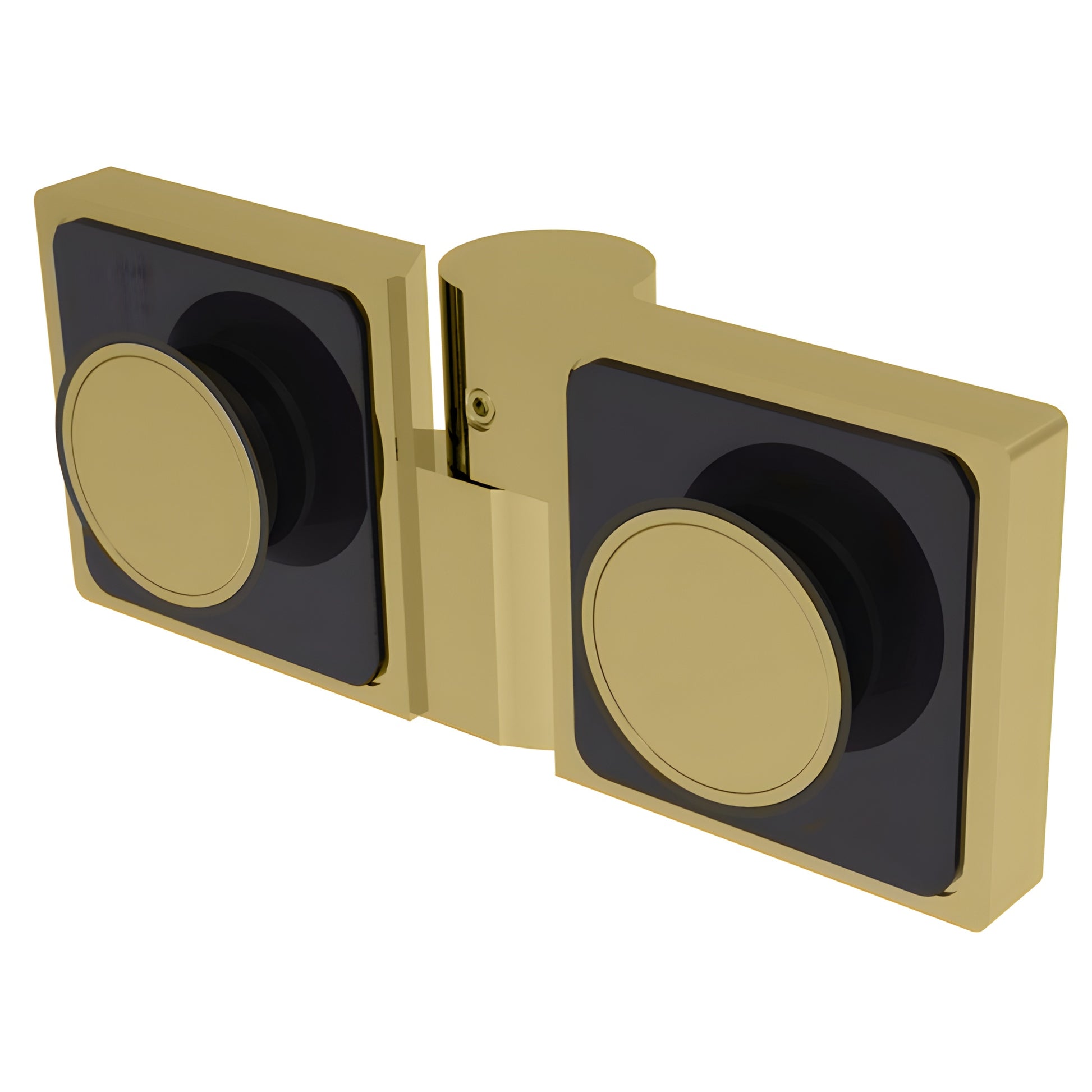

The Lugano Series hinge (SKU: LUG180RSB) is a sleek, modern hinge engineered for tempered glass shower and commercial glass doors. All fasteners are concealed. Hinges are self-centering within 60° of the closed position. Using two hinges, achieve a maximum door width of 35" and a maximum door weight of 99 lb (44 kg).
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in the Technical References section for care and maintenance guidance.
Order the Lugano glass door hinge (LUG180RSB) for a durable, low-maintenance, wheelchair-accessible hinge solution — contact us to buy or request a quote.
