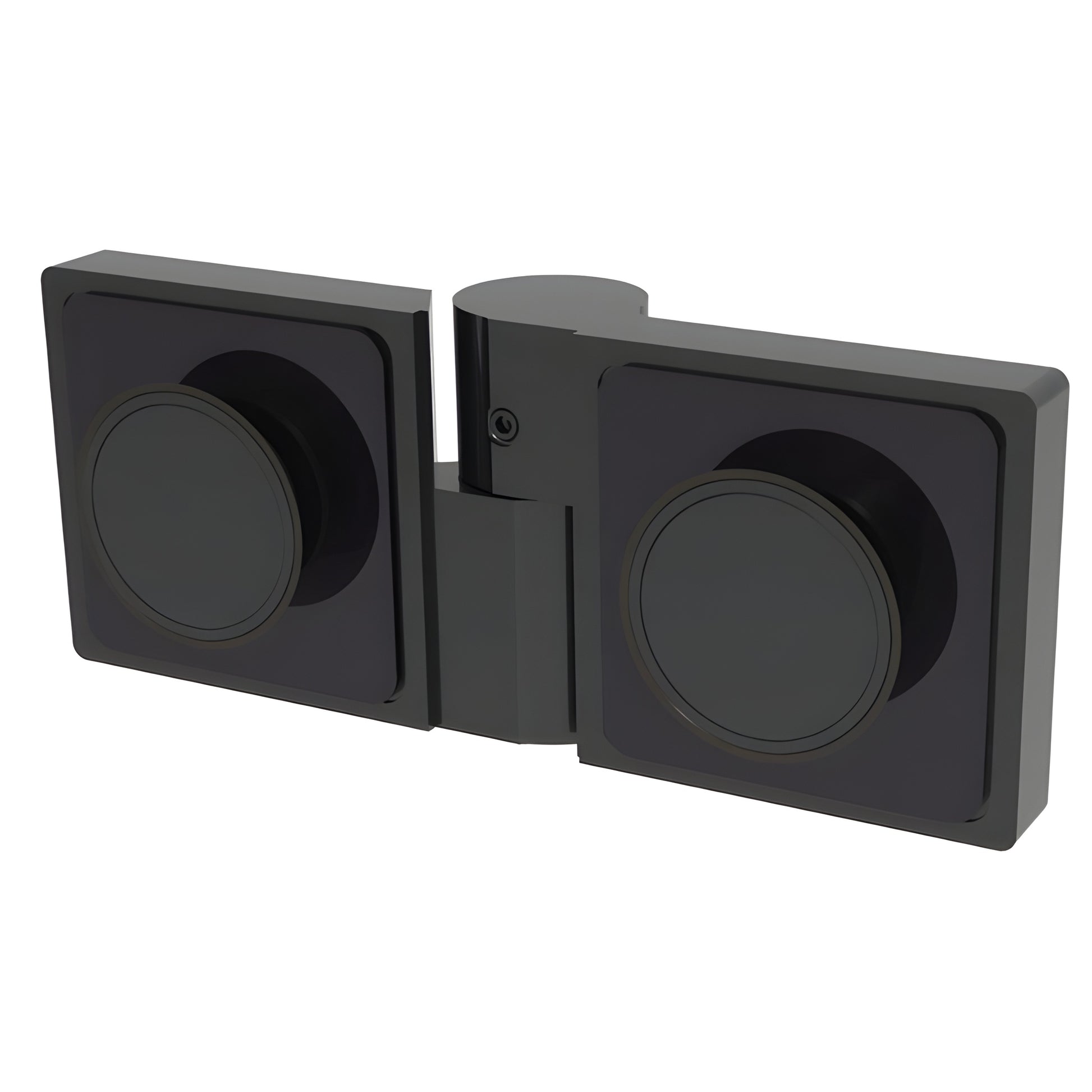

CRL Lugano Matte Black 180° Glass-to-Glass Shower Door Hinge Left
CRL Lugano Matte Black 180° Glass-to-Glass Shower Door Hinge Left
Regular price
$229.07 CAD
Regular price
Sale price
$229.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LUG180RMBL
Shipping Weight: 1.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Matte Black
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Left Hand
Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
Overview
- Rise-and-fall action: 3/16" (5 mm)
- Sleek new Lugano Series design
- For 5/16" to 3/8" (8 to 10 mm) tempered glass
- Ideal for pitched curb installations
- Use with no-ledge threshold for wheelchair accessibility (ADA-friendly)
- Flush-mount inside for easy-to-clean glass
- Snap-on covers conceal screws for a seamless appearance
- Self-centering within 60° of the closed position
- Rigorous durability: tested to 100,000 cycles — ~5× industry standard
- With two hinges: supports up to 35" door width and 99 lb (44 kg) door weight
The Lugano Series hinge (SKU: LUG180RMBL) is a modern, low-profile tempered glass door hinge engineered for frameless shower and commercial glass door applications. Designed specifically for 8–10 mm glass, it features a 3/16" rise-and-fall adjustment for smooth operation, concealed fasteners with snap-on covers for a clean aesthetic, and a flush interior mount that simplifies glass cleaning. Its robust construction and 100,000-cycle testing make it a durable choice for high-use environments.
Order the Lugano Series glass door hinge (LUG180RMBL) for a durable, ADA-friendly, easy-to-clean hinge solution. Contact us to buy or request a quote.
