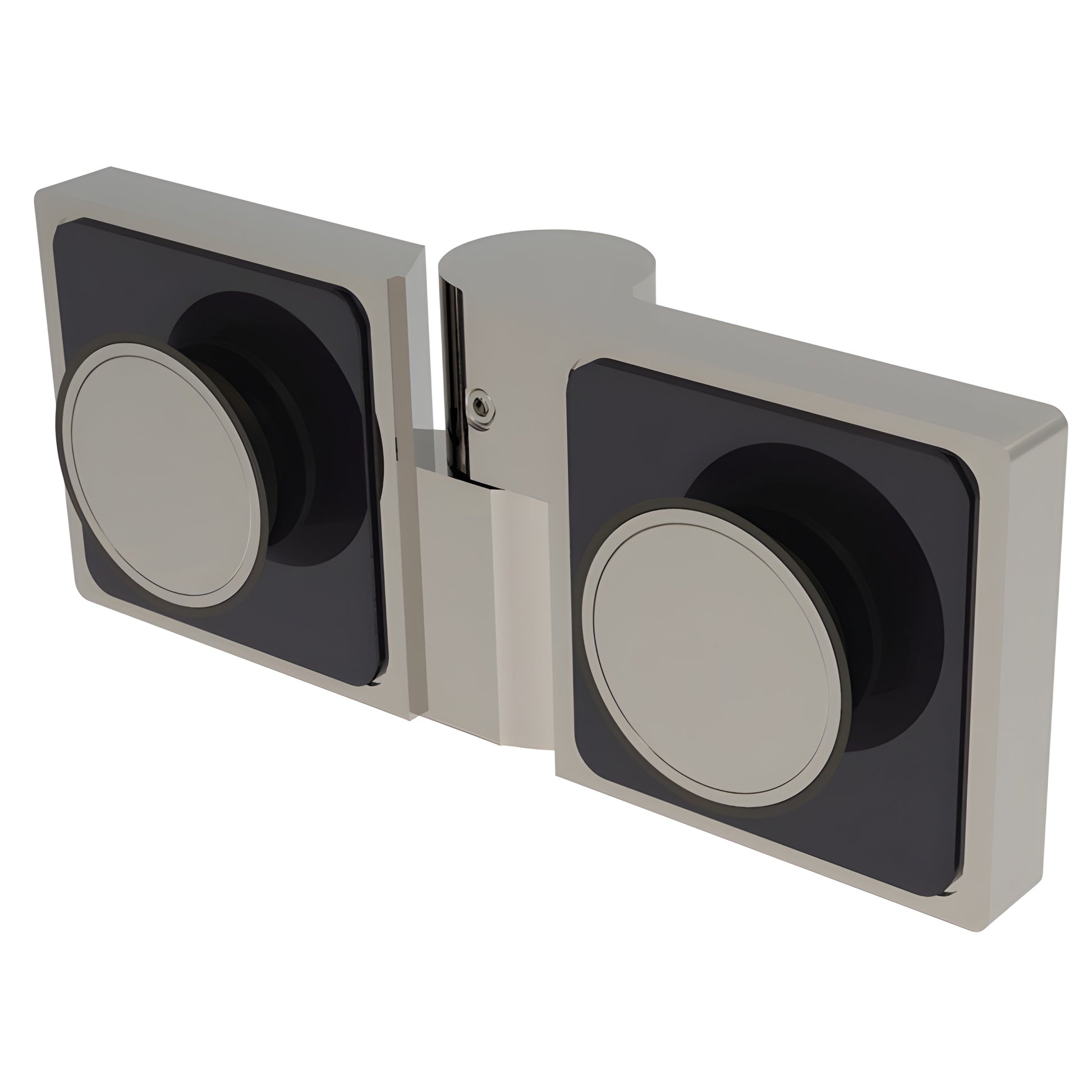

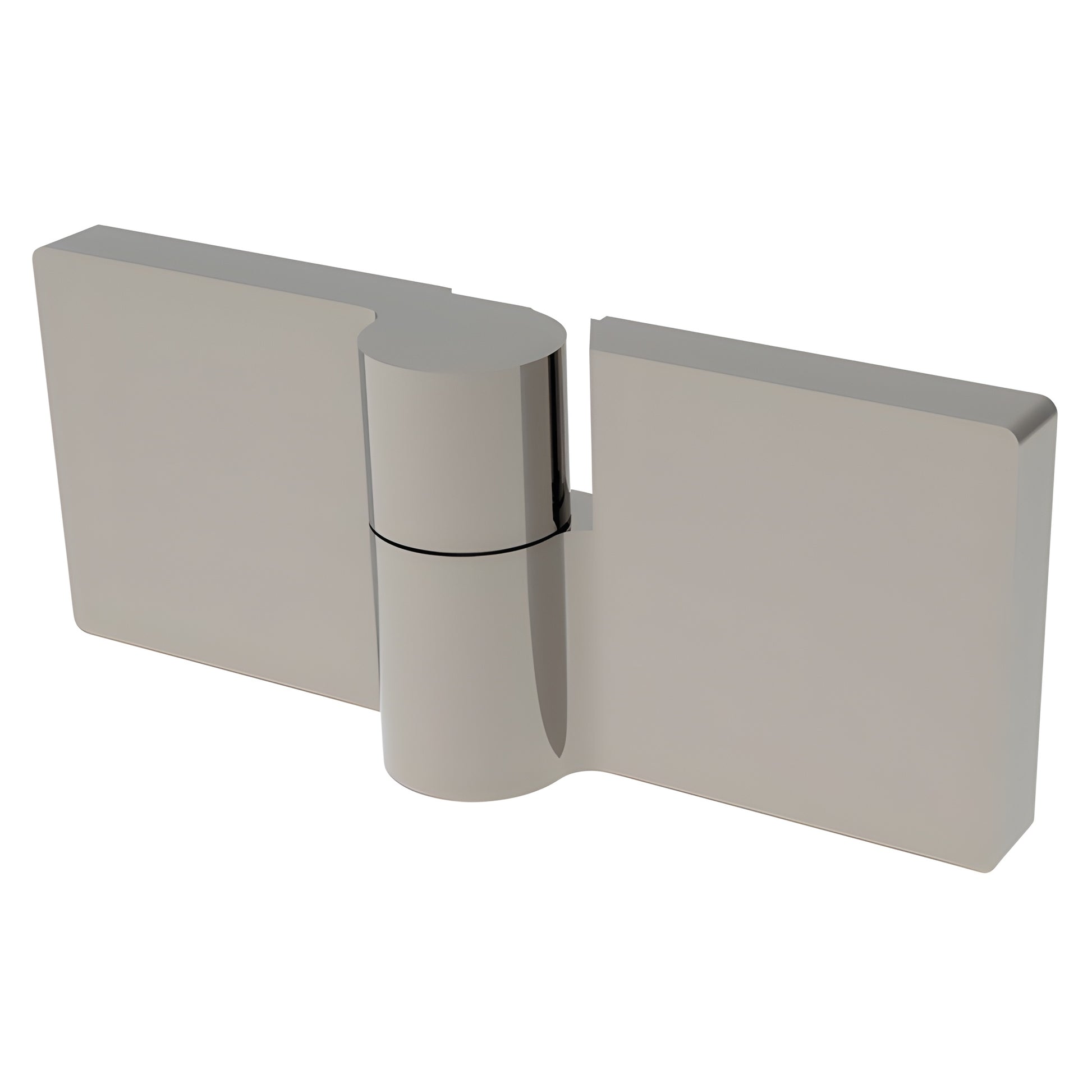

CRL Lugano Brushed Nickel 180° Glass-to-Glass Shower Door Hinge Left
CRL Lugano Brushed Nickel 180° Glass-to-Glass Shower Door Hinge Left
Regular price
$235.59 CAD
Regular price
Sale price
$235.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LUG180RBN
Shipping Weight: 1.21 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.21 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Nickel
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Left Hand
Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
Overview
- Rise-and-fall action: 3/16" (5 mm)
- Sleek new design for modern glass doors
- Fits 5/16" to 3/8" (8 to 10 mm) tempered glass
- Engineered for pitched curb installations
- Use with no ledge for wheelchair-accessible openings
- Flush-mount inside for easy-to-clean glass
- Snap-on covers conceal screws for a clean look
- Rigorously tested to 100,000 cycles — 5× industry standard

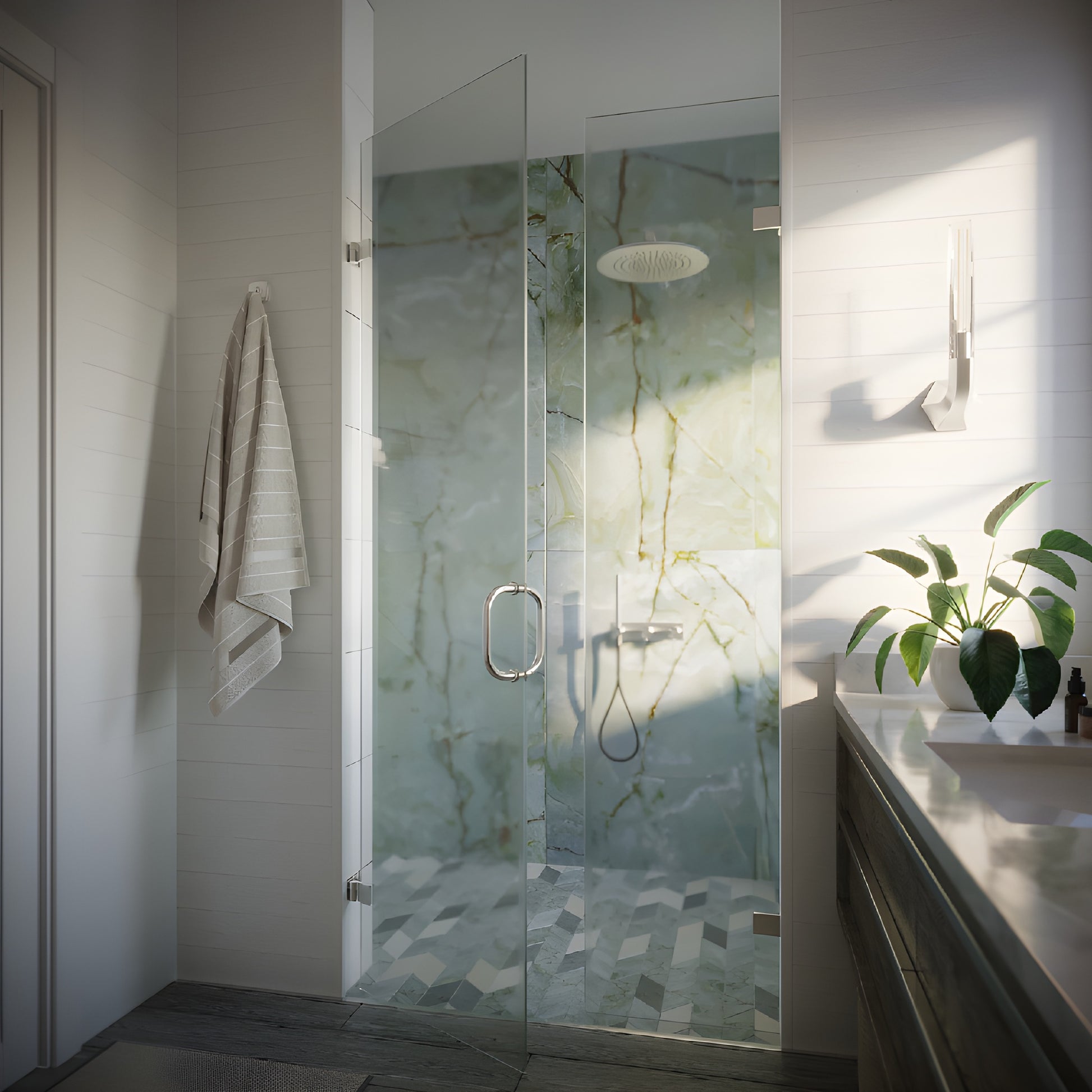

The Lugano Series hinge (SKU LUG180RBN) is a sleek, modern hinge designed specifically for 5/16"–3/8" tempered glass shower doors. All fasteners are concealed and the hinge self-centers within 60° of the closed position. Two hinges support a maximum door width of 35" and a maximum weight of 99 lb (44 kg). Ideal for tempered glass shower doors, wheelchair-accessible showers, and pitched-curb installations where a low-profile, easy-to-clean flush mount is required.
Order the Lugano Series hinge (LUG180RBN) for a durable, low-profile tempered glass shower door solution — add to cart or contact us for custom guidance.
