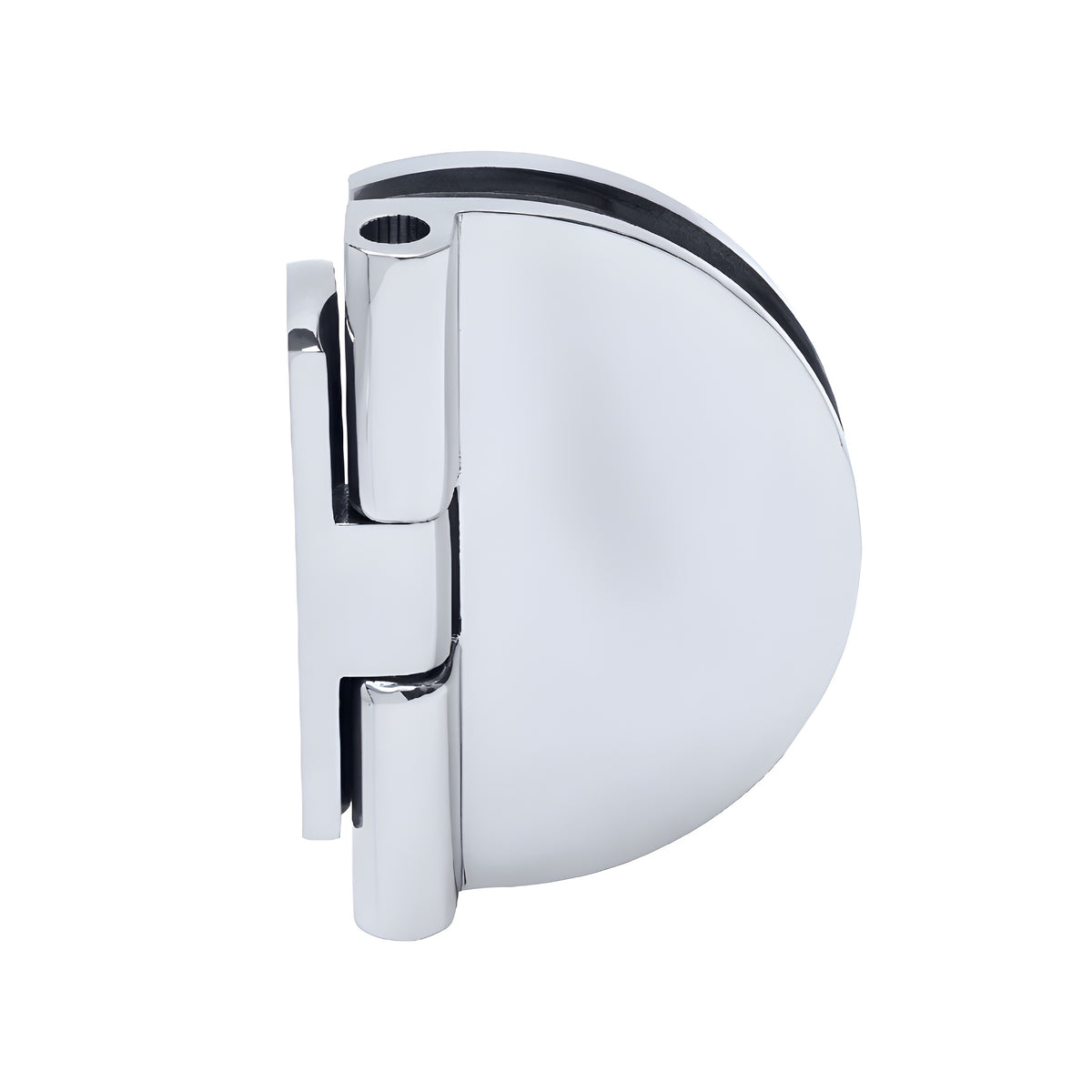

CRL Polished Chrome Half-Round Light-Duty Frameless Glass Hinge
CRL Polished Chrome Half-Round Light-Duty Frameless Glass Hinge
Regular price
$98.91 CAD
Regular price
Sale price
$98.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH184
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Edge Profile
Square
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6 mm To 8 mm)
Height
2-3/16 in. (56 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
50 lbs. (22.7 kg)
Maximum Door Weight - 3 Hinges
75 lbs. (34 kg)
Maximum Door Width
24 in. (610 mm)
Mounting Type
Wall Mount
Width
1-1/2 in. (38 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- One 1/2" (12 mm) hole required for installation
- Two per package
- Three-year warranty
- Use monolithic tempered glass

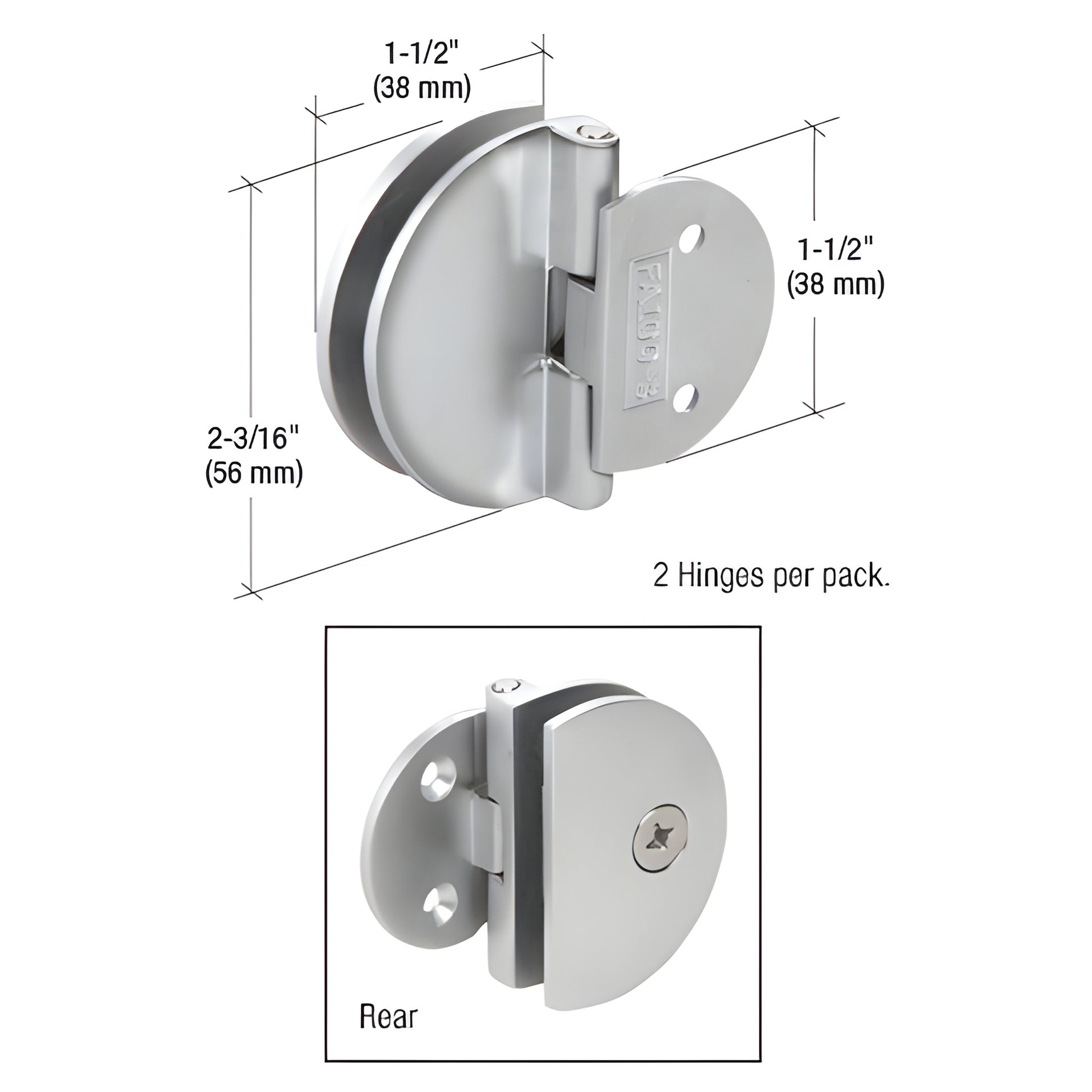

CRL Half Round Hinges (SKU: EH184) are a reliable half round glass hinge designed for shower doors and showcase applications that use 1/4"–5/16" (6–8 mm) monolithic tempered glass. Requires a 1/2" (12 mm) diameter hole. Recommended maximum door width 24" (610 mm) and maximum weight 50 lbs. (23 kg). These hinges ship two per package and include the installation template for accurate cut-outs.
Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For applications outside this intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—cut-out dimensions for CRL hinges may differ from other brands.
Shop EH184 half round glass hinges for durable, template‑included shower door hardware—order now.
Specifications
Templates
