CRL Satin Chrome Half-Round Light-Duty Frameless Shower Door Hinge
CRL Satin Chrome Half-Round Light-Duty Frameless Shower Door Hinge
Regular price
$145.78 CAD
Regular price
Sale price
$145.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH185
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Edge Profile
Square
Finish/Color
Satin Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6 mm To 8 mm)
Height
2-3/16 in. (56 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
50 lbs. (22.7 kg)
Maximum Door Weight - 3 Hinges
75 lbs. (34 kg)
Maximum Door Width
24 in. (610 mm)
Mounting Type
Wall Mount
Width
1-1/2 in. (38 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Requires one 1/2" (12 mm) hole
- Two per package
- Three-year warranty
- Use monolithic tempered glass

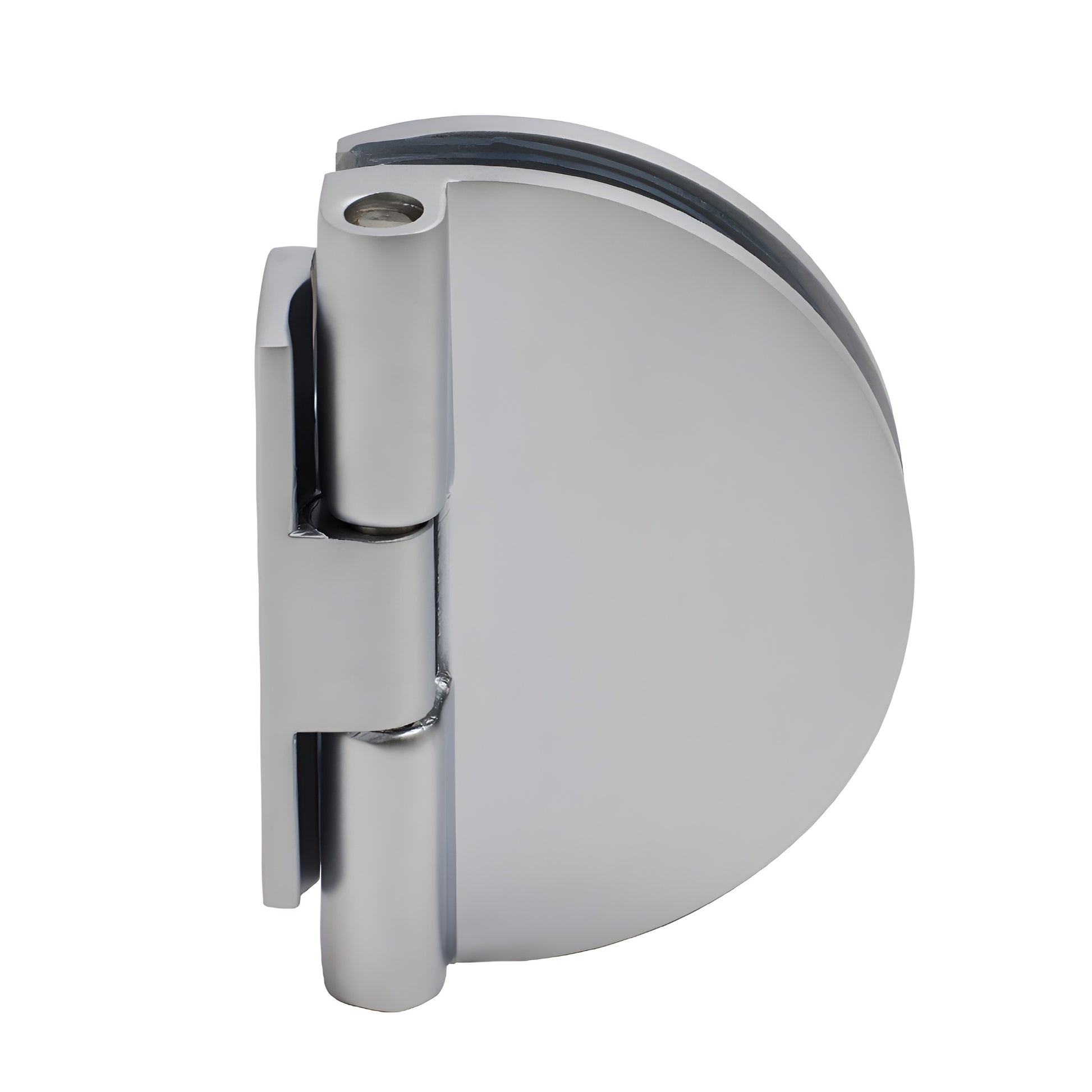

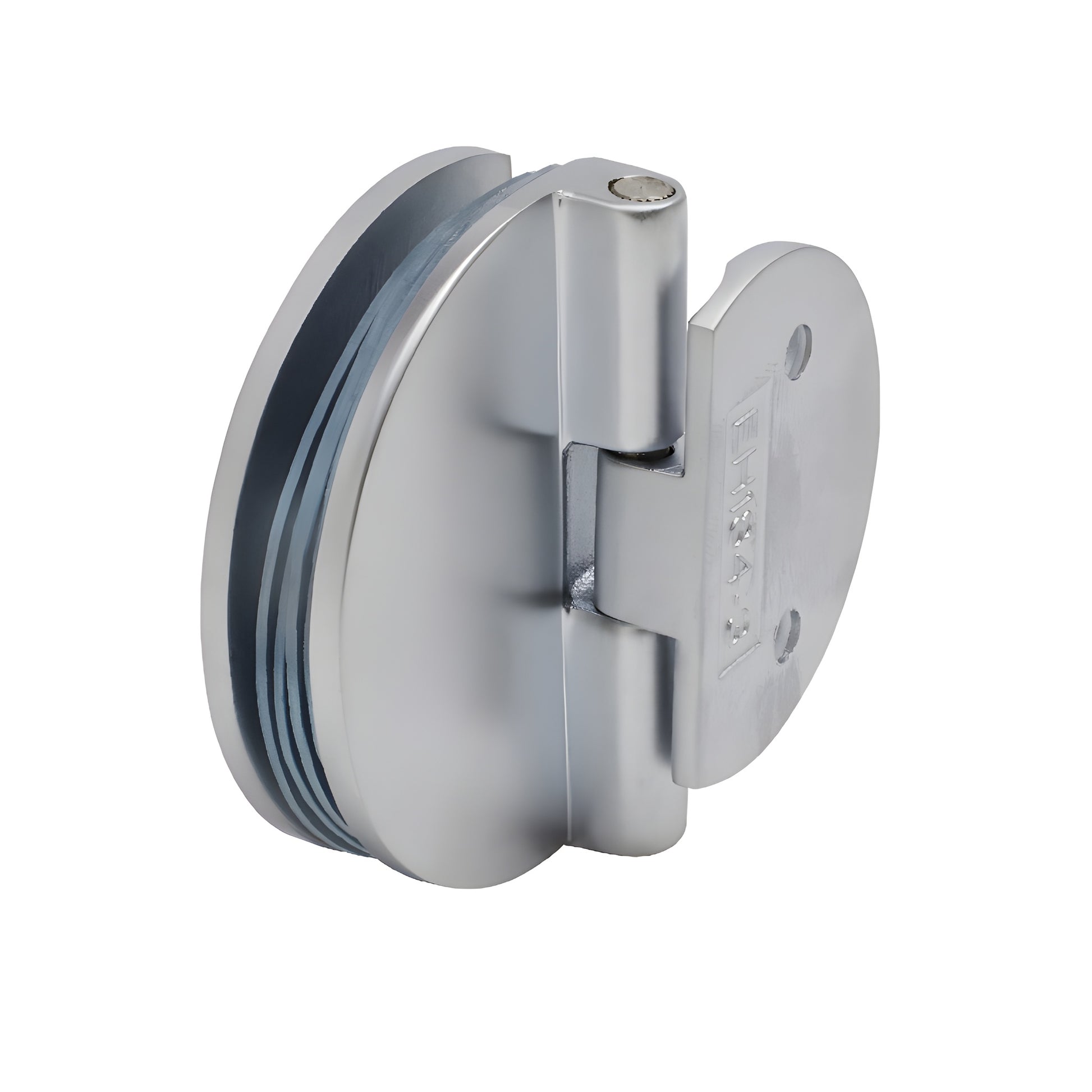

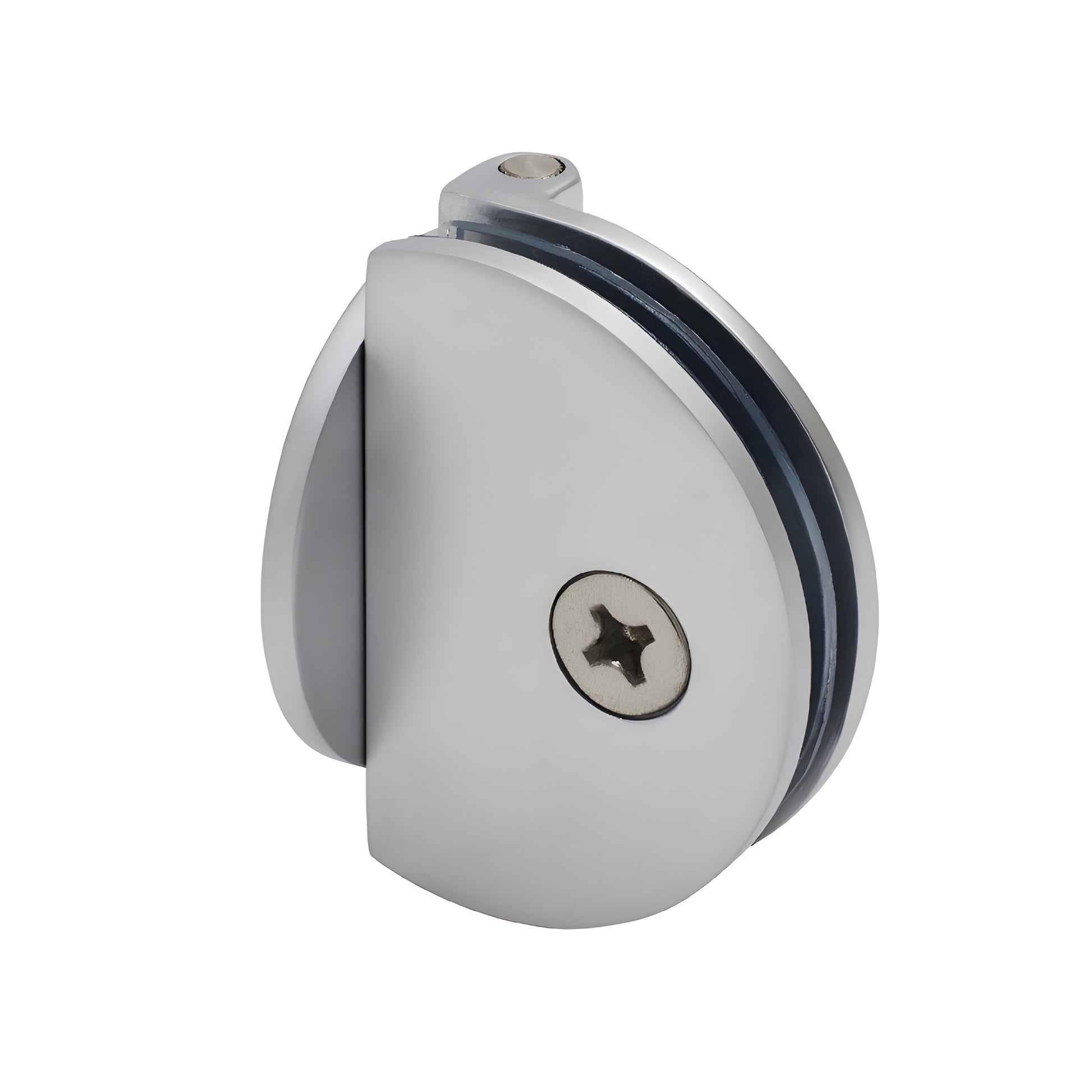

These CRL Half Round Hinges (SKU: EH185) are a durable choice for showcase and shower applications requiring a compact, low-profile hinge. Installation requires a 1/2" (12 mm) diameter hole. Recommended maximum door width is 24" (610 mm) and maximum weight is 50 lbs (23 kg). These hinges work best with monolithic tempered glass and are optimized for residential and hotel shower doors as well as commercial showcase glass doors.
Product Warning:
CRL shower door hinges are intended for residential or hotel shower use. For any other application, obtain approval from CRL Shower Door Technical Sales. Use only the included installation template; cut-out dimensions differ from other brands.
Highlights: compact half-round glass door hinge, easy template installation, 3-year warranty, 2 hinges per pack.
