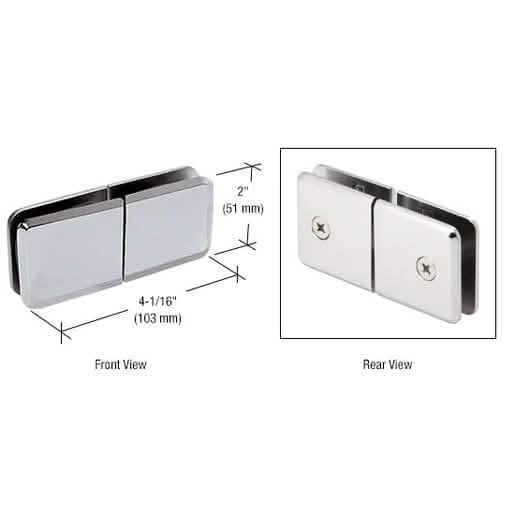

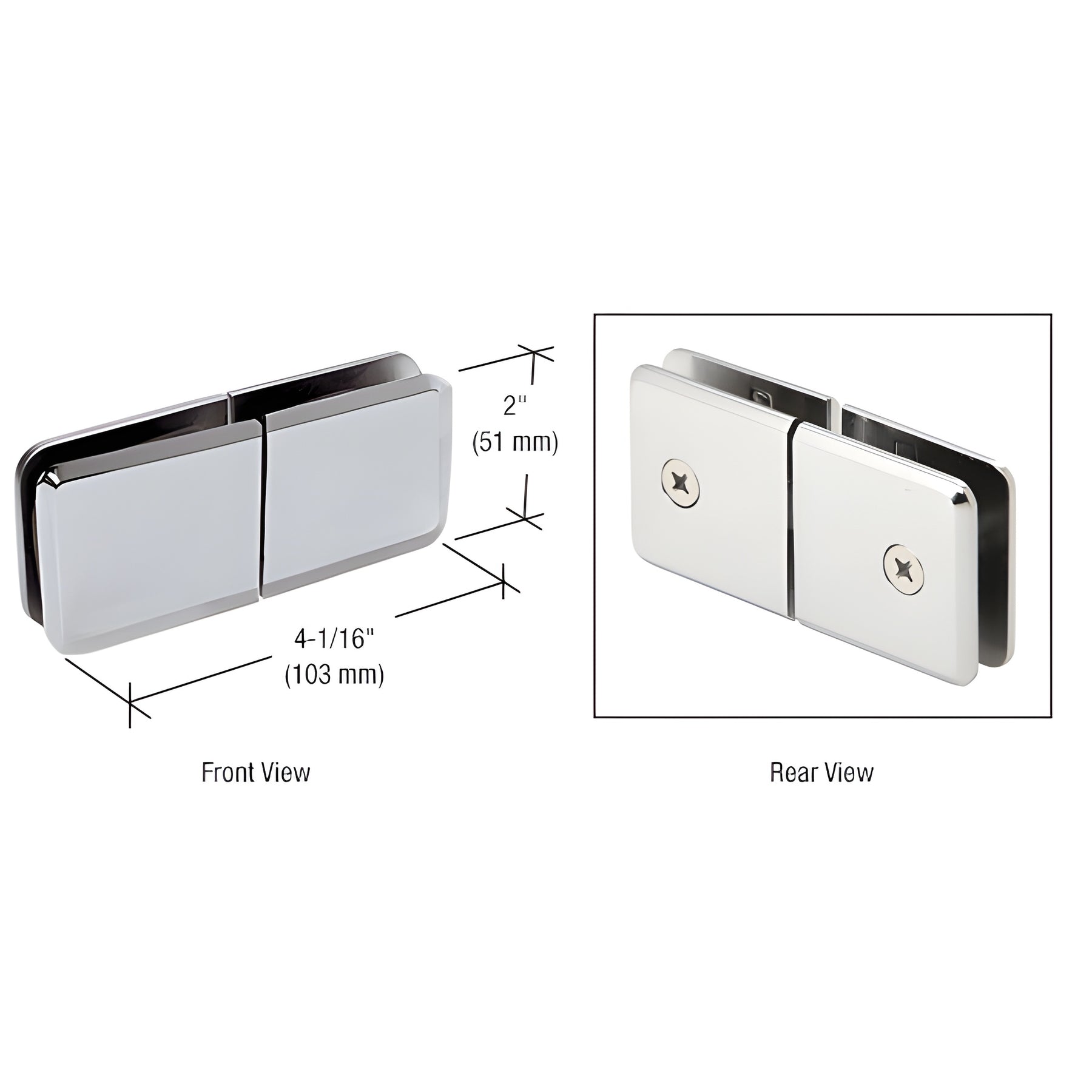

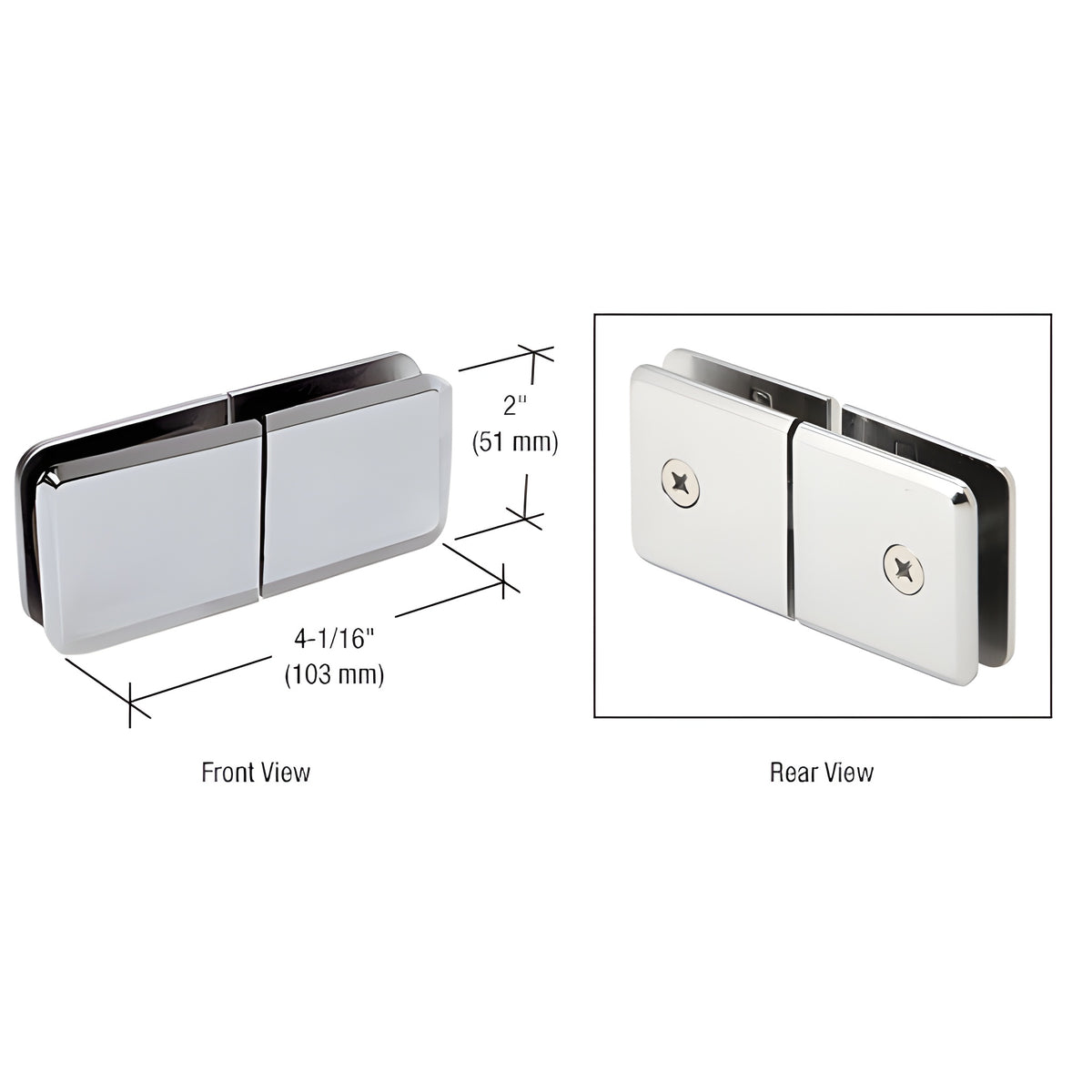

CRL Polished Chrome Square Beveled 180º Glass-to-Glass Movable Transom Clamp

Item # BGC188CH

$39.71 CAD

Overview

SKUBGC188CH
Sold As1 Each
Design StyleBeveled
Enclosure TypeNiche, Tailor Made Solutions
Finish/ColorPolished Chrome
Glazing Thickness3/8 in. To 1/2 in. (10 mm To 12 mm)
MaterialBrass
Mounting TypeGlass To Glass

Description

  • For 3/8" to 1/2" (10 to 12 mm) Thick Glass
  • Glass Transom Swivels to Allow Release of Steam
  • Wall Mount, and 180º Models Available
  • Solid Brass Material
  • Use Monolithic Tempered Glass

CRL Beveled 180º Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement.


Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
