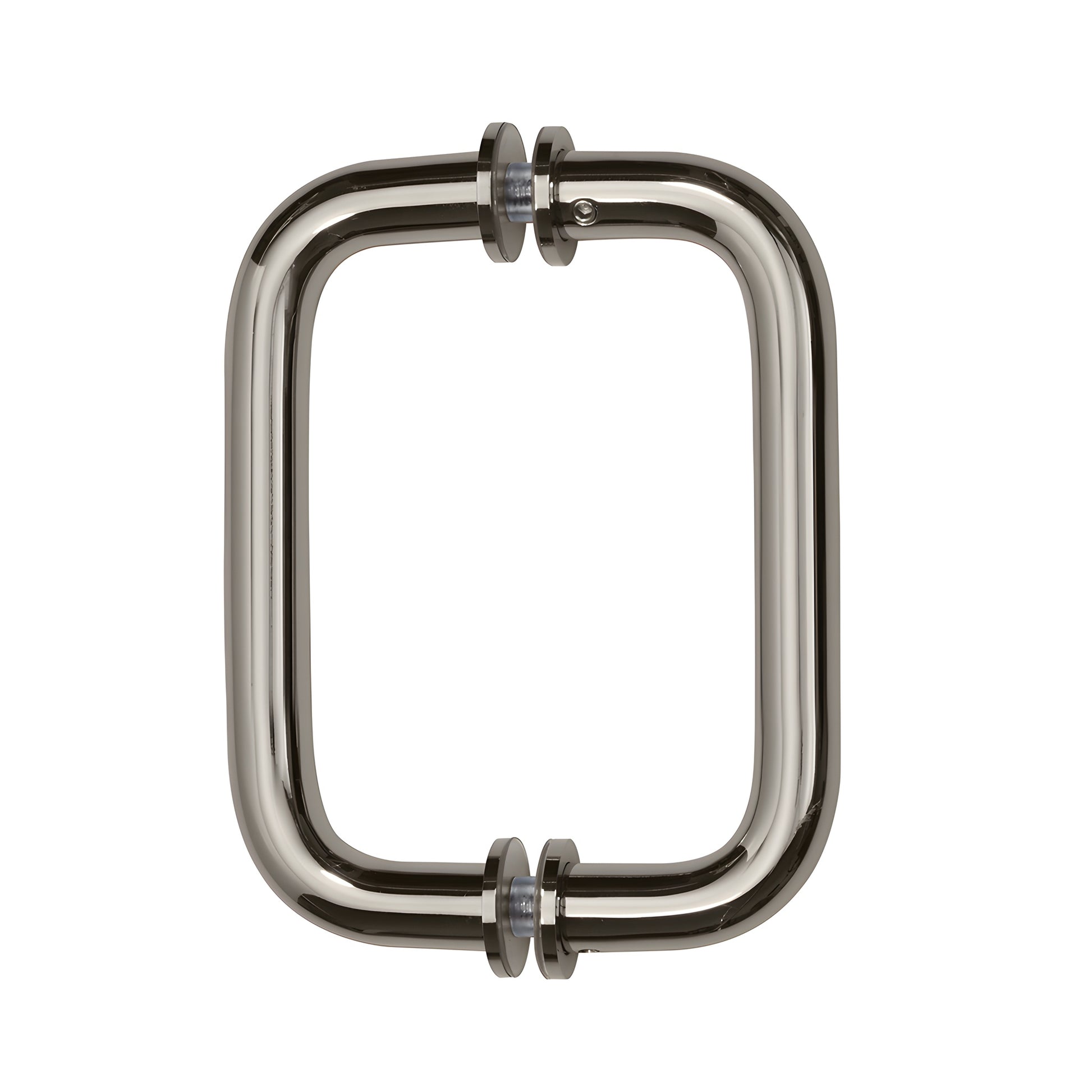

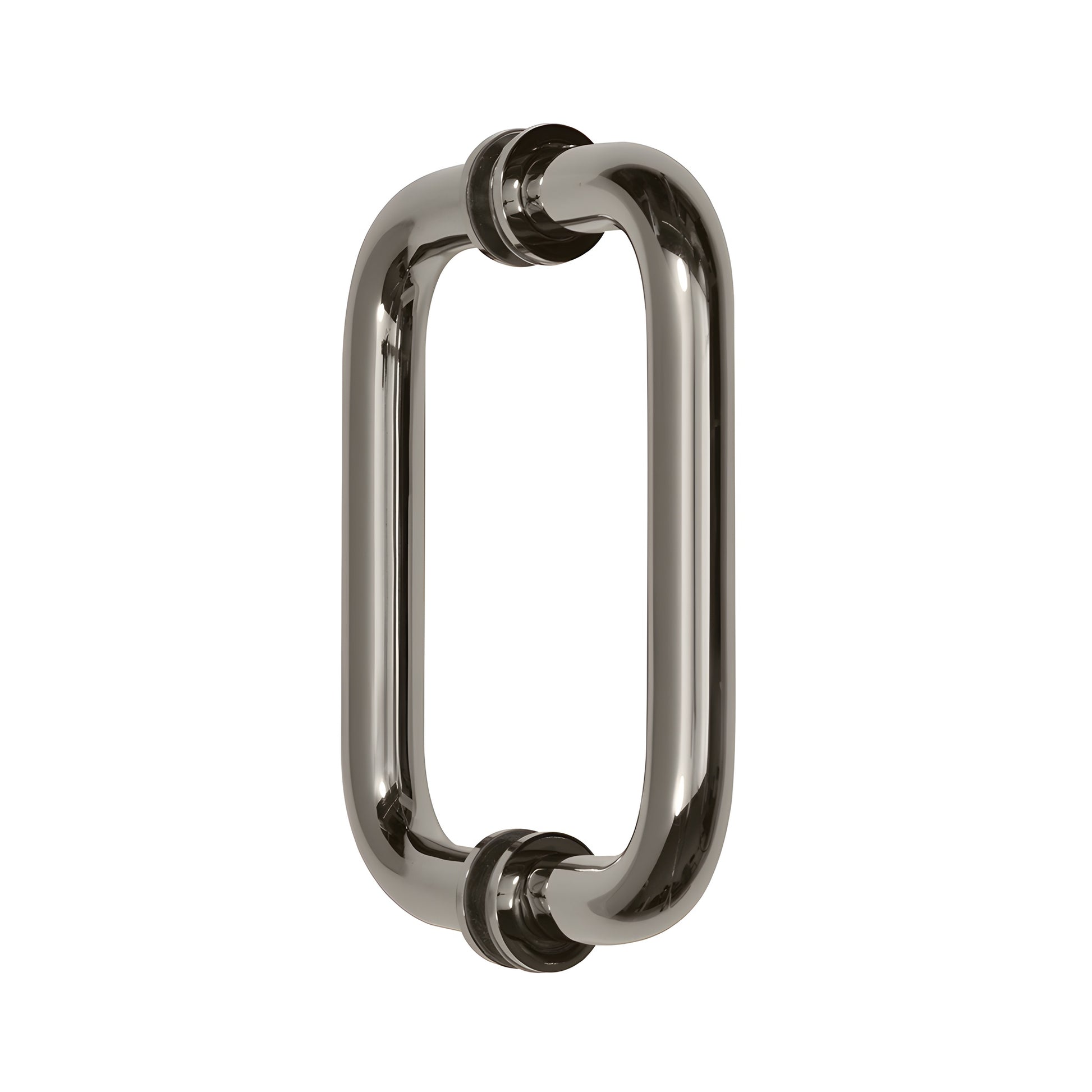

CRL Polished Nickel 6" BM Series Tubular Back-to-Back Pull Handle
Item # BM6X6PN
$61.53
CAD
Finish (11)
Mounting Type (3)
- Glass Mount - Back To Back
- Glass Mount - Single Sided
- Glass Mount -Towel Bar / Pull
Overview
| SKU | BM6X6PN |
|---|---|
| Sold As | 1 Each |
| Construction | Tubular |
| Diameter | 3/4 in. (19 mm) |
| Finish/Color | Polished Nickel |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
| Material | Brass |
| Mounting Center To Center | 6 in. (152 mm) |
| Mounting Type | Glass Mount - Back To Back |
| Projection From Surface | 2-1/2 in. (64 mm) |
| Series | BM |
| Style Washer Diameter | 1-1/4 in. (32 mm) |
| Style Washers | Yes |
| Thread Size | 14-20 |
Description
- Our Most Popular Handle
- Decorative Metal Washers Also Serve to Cover Any Hole Defects in Glass
- Numerous Finish Choices in 6" and 8" (152 and 203 mm)
- Custom Finishes Available
- Heavy 3/4" (19 mm) Diameter Tubular Construction (1.5 mil Thick)
- Use Monolithic Tempered Glass
The CRL BM Series of Back-to-Back Tubular Pull Handles with Metal Washers are constructed of 1.5 mil thick heavy brass tubing. Decorative metal back-up washers are included, as well as plastic washers to protect against glass-to-metal contact. Consists of one pull for each side of the door (back-to-back), and come in 6" and 8" sizes.
Our offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There's a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Washers
Glass Thickness Range: 1/4" (6 mm) to 1/2" (12 mm)
Hole Diameter Required: 1/2" (12 mm)

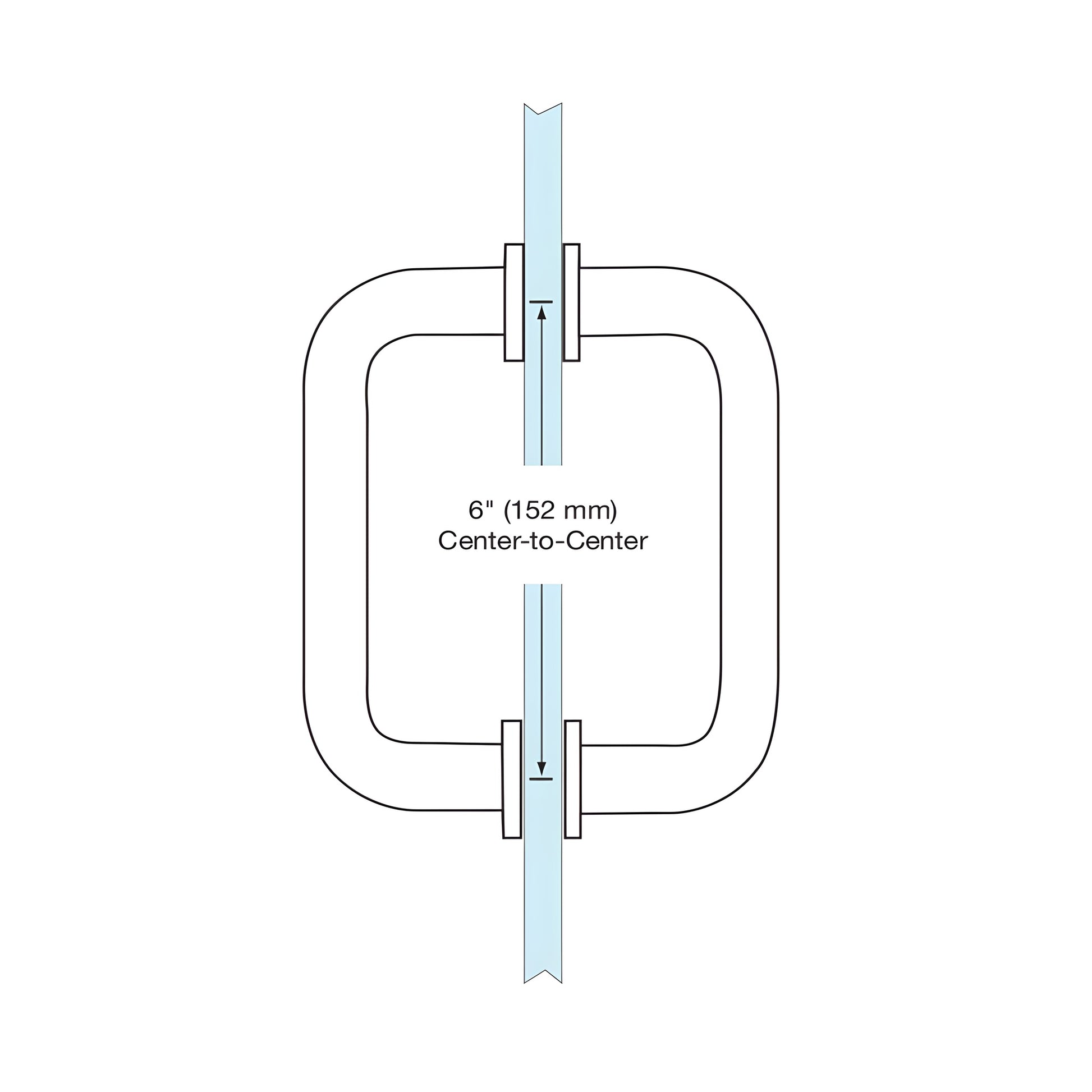

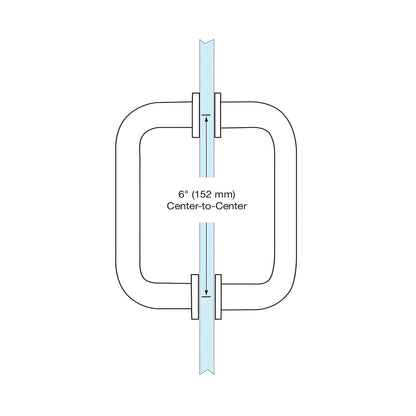

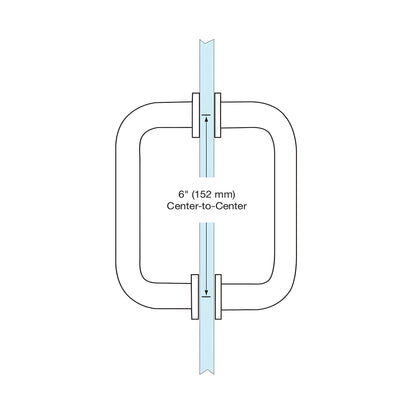

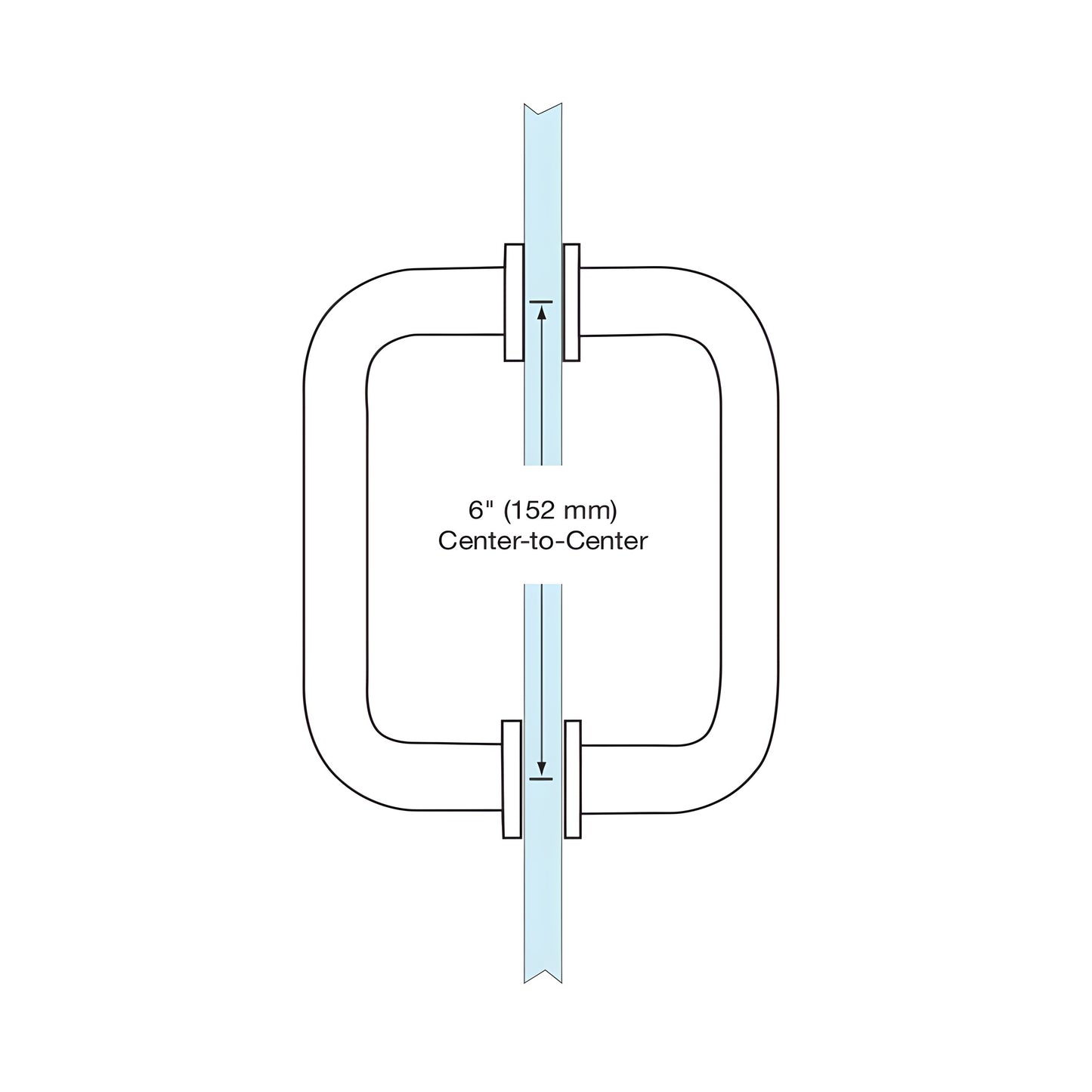

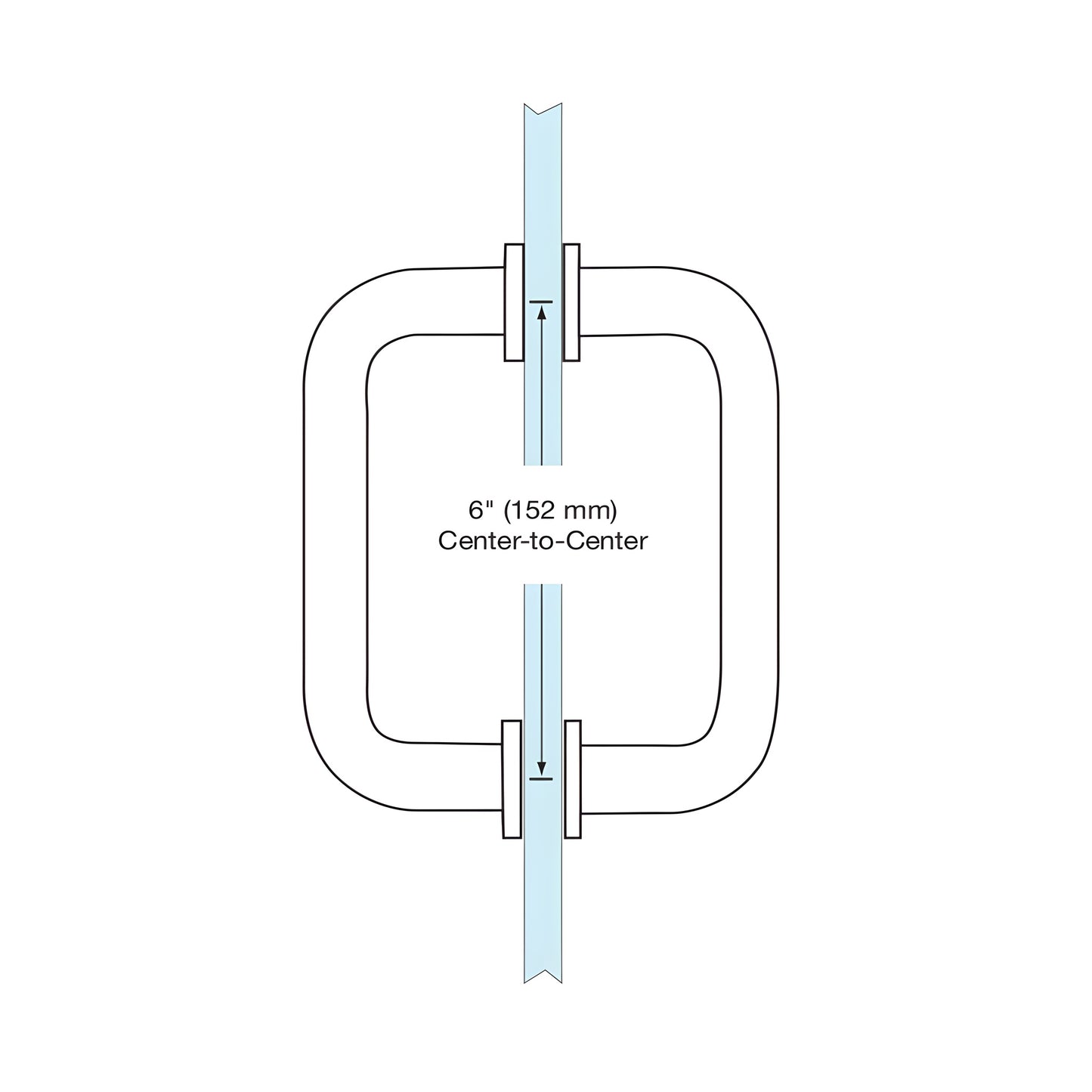

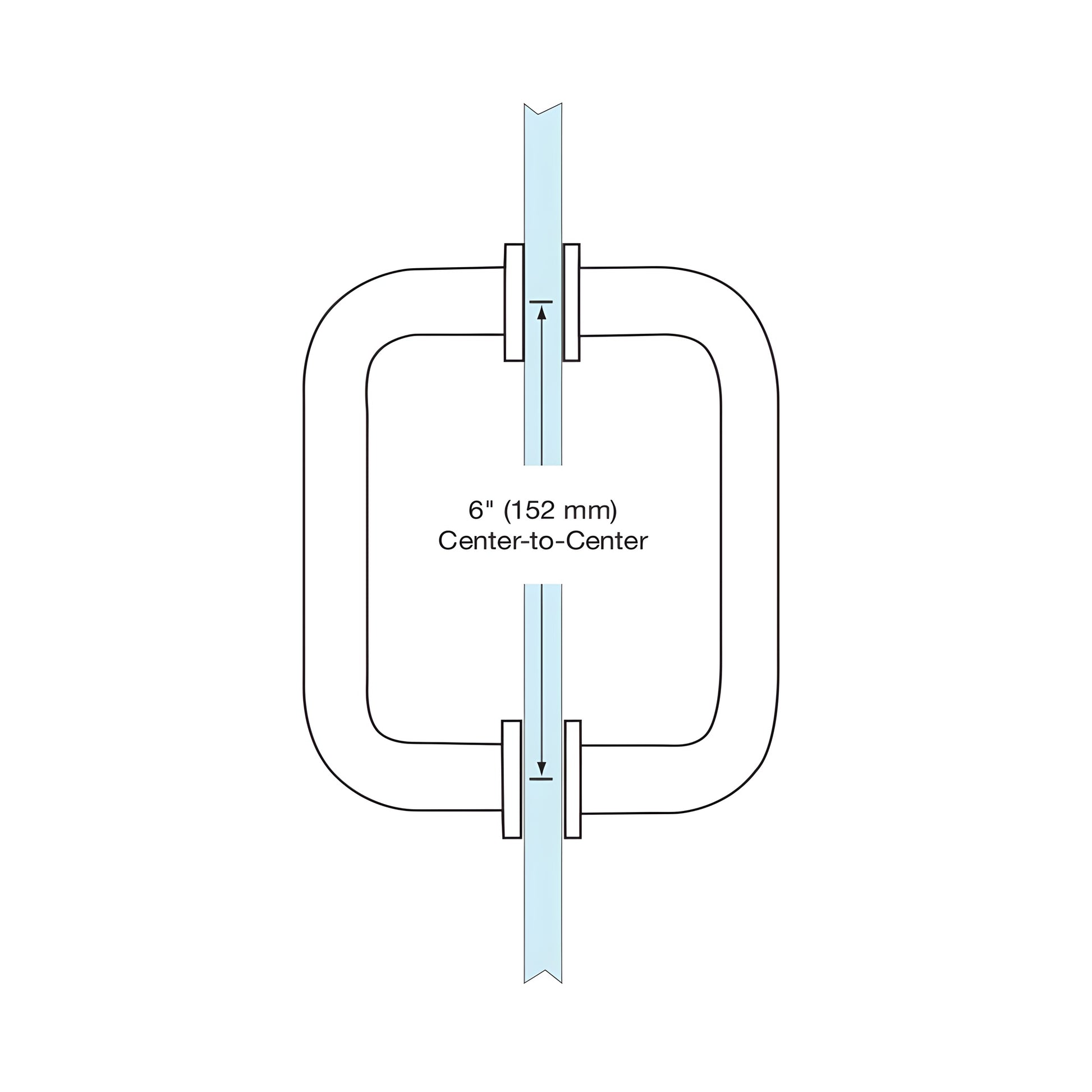

Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Thread Size: 1/4"-20
