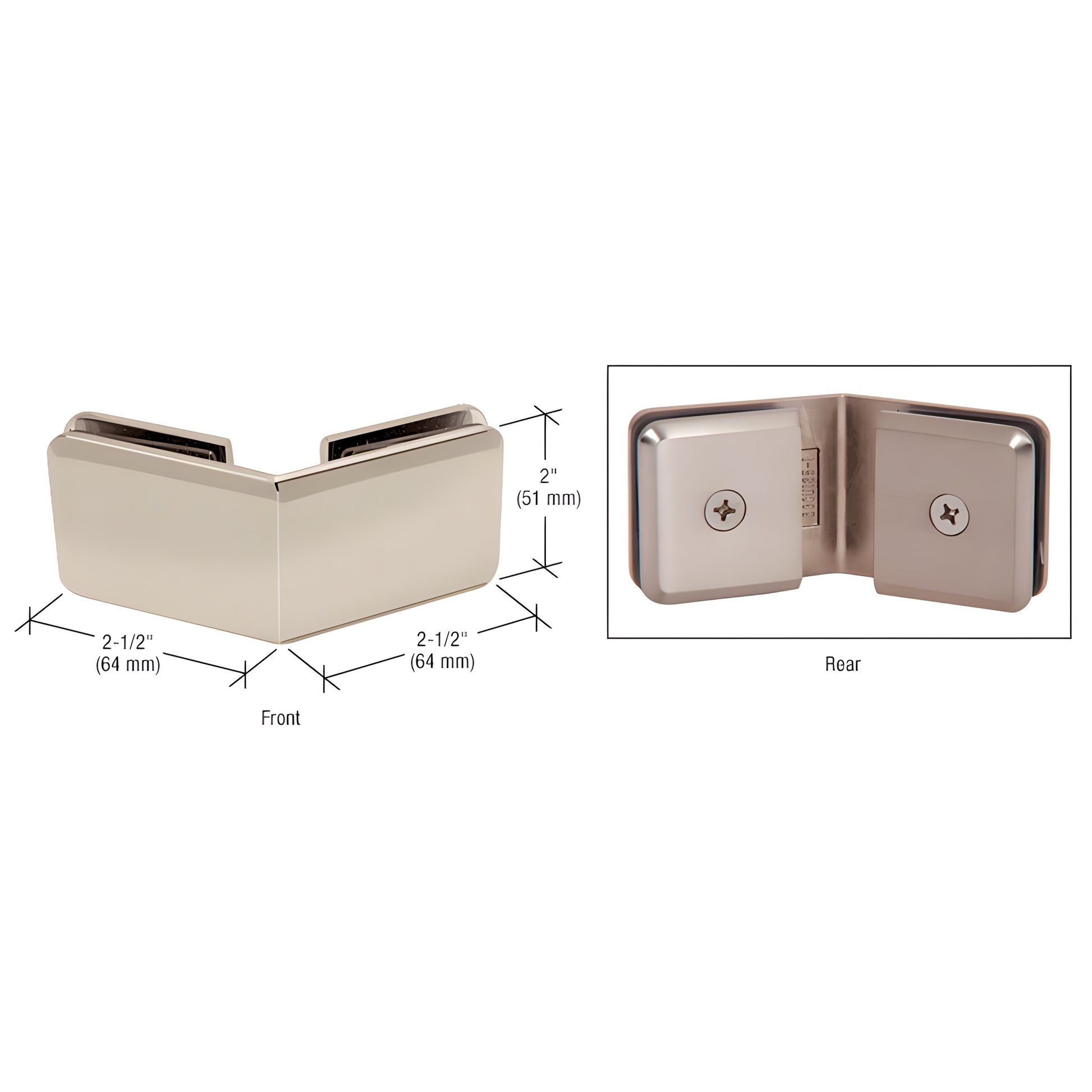

CRL Polished Nickel Beveled 135º Glass-to-Glass Clamp
Item # BGC135PN
$62.86
CAD
Finish (6)
-
Oil Rubbed Bronze -
Brushed Bronze -
Brushed Nickel -
Polished Chrome -
Matte Black -
Polished Nickel
Overview
| SKU | BGC135PN |
|---|---|
| Sold As | 1 Each |
| Design Style | Beveled |
| Enclosure Type | Tailor Made Solutions |
| Finish/Color | Polished Nickel |
| Glass To Glass Angle | 135 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Description
- For 3/8" to 1/2" (10 to 12 mm) Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
- Use Monolithic Tempered Glass
CRL Beveled Style 135º Glass-to-Glass Clamps have slightly rounded corners and a beautiful beveled edge. These Clamps have many uses, and are typically utilized in the fabrication of custom showcase displays, trophy cases, partitions, and 'all-glass' enclosures. Available in a variety of popular finishes and styles to match designer hardware. Made of solid brass, these Clamps are engineered to remain beautiful for years with proper care and cleaning. Drawings and templates are available. Replacement Gasket is Cat. No. BGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
