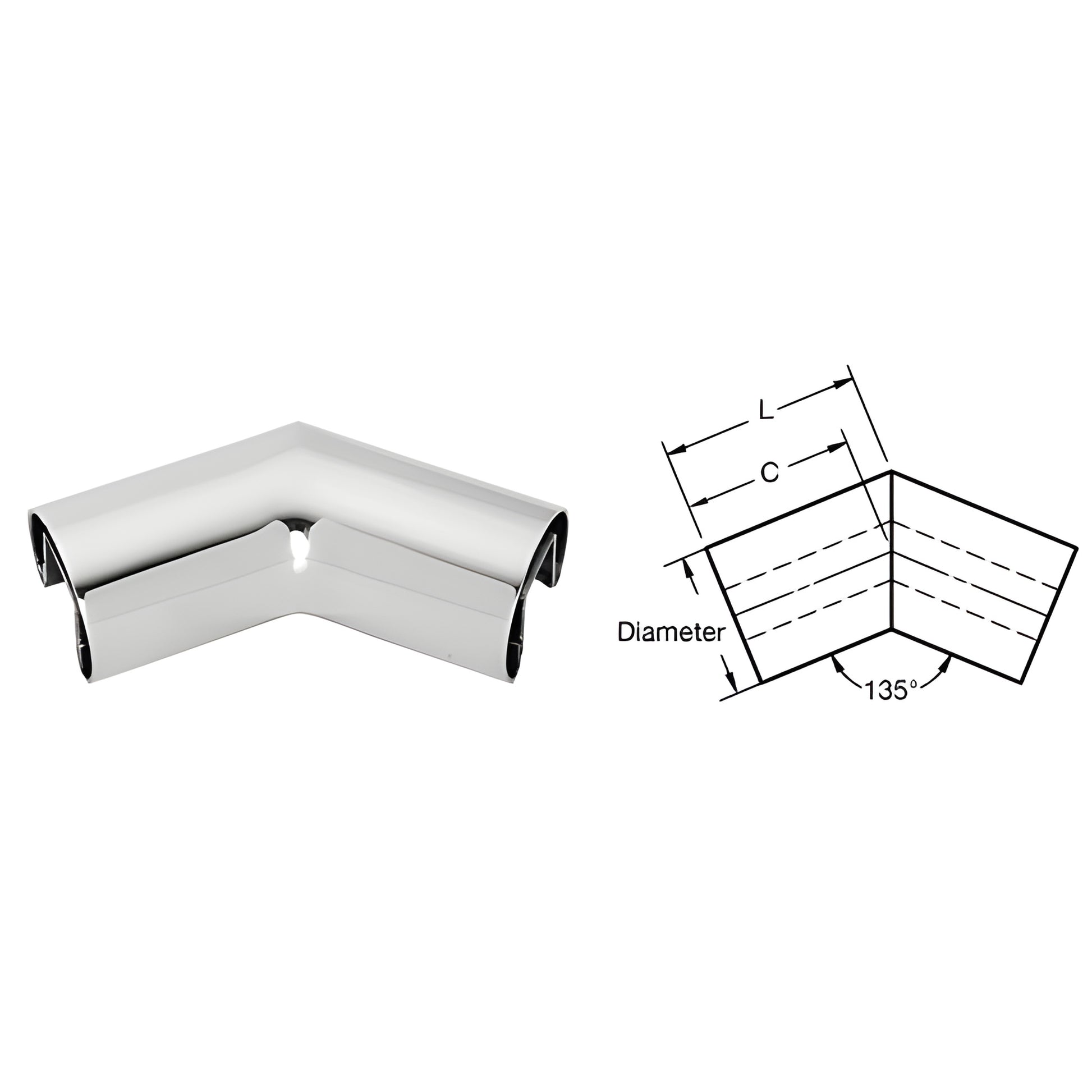

CRL Polished Stainless 135° Corner Fitting 1.66" for 1/2–5/8" Glass

• Welded and finished
• Ready-to-install interior slip-fit horizontal corner
• Available in several architectural finishes
• Requires two connector sleeves (not included)

This CRL Interior Slip-Fit Horizontal Corner (SKU: GR16H3PS) fits 1/2" or 5/8" (12 or 16 mm) glass and enables hairline joint assemblies with straight lengths of cap rail for glass railing and storefront applications. Use CRL Metal Contact Cement 32629 to achieve a secure, permanent bond. Two connector sleeves are required for each corner (not included).

Each horizontal corner is fabricated, finished, and individually packed. Standard stainless alloy is 304; stainless alloy 316 is available by special order—contact Technical Sales for pricing or lead times.

Installation notes: When used with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. When used with 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.

Stainless Steel Advisory:

Ready to order or need a quote? Contact CRL Customer Service or Technical Sales for pricing, finish options, and special-order 316 stainless availability.
