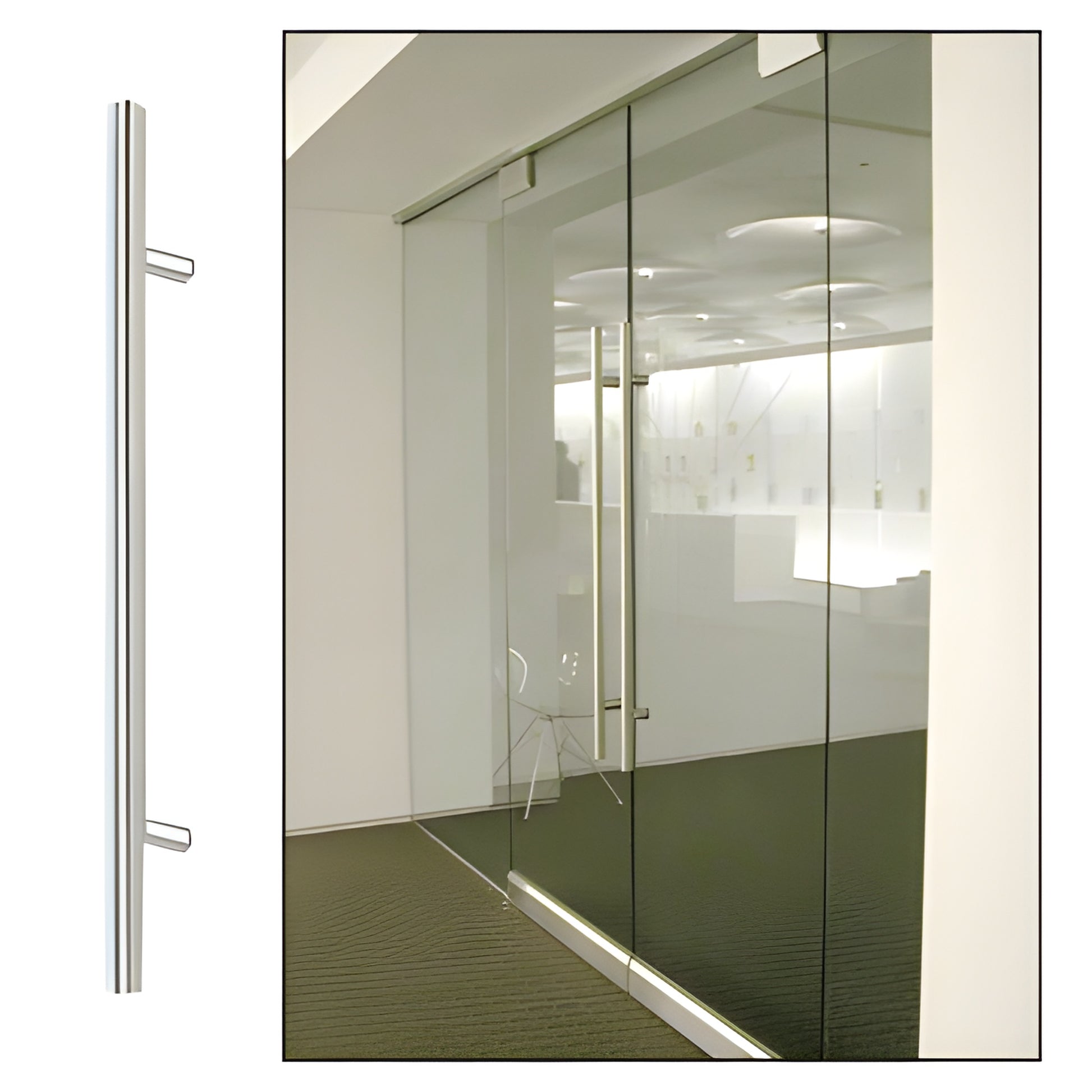

CRL 24 in Polished Stainless Ladder-Style Single-Sided Door Pull
CRL 24 in Polished Stainless Ladder-Style Single-Sided Door Pull
Regular price
$260.87 CAD
Regular price
Sale price
$260.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 24LPSPS
Shipping Weight: 4.123 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.123 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Single Sided
Overall Length
24 in. (610 mm)
Overview
- Five sizes: 24" to 48" overall height (610 mm to 1.22 m)
- Finishes: Brushed Stainless, Polished Stainless, Matte Black
- Custom lengths, designs, and finishes available on special order
- Click Here for custom pull order forms
- Material: 304 Grade Stainless Steel
CRL back-to-back straight style ladder pulls (SKU: 24LPSPS) include two mid-posts and mounting fasteners for tempered glass doors 3/8" to 3/4" (10–19 mm) thick. Fasteners for 1-3/4" (44 mm) wood or aluminum doors are sold separately. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum mid-post spacing is 72" (1.83 m). Ideal for commercial glass doors and heavy-duty storefront applications where a durable glass door ladder pull is required.
SPECIFICATIONS:
3/8" to 3/4" (10–19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes
NOTE: Click Here to view our back-to-back ladder pulls in all available sizes and finishes.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For custom sizes or technical assistance with glass door ladder pulls (SKU 24LPSPS), contact CRL or request a quote today.
