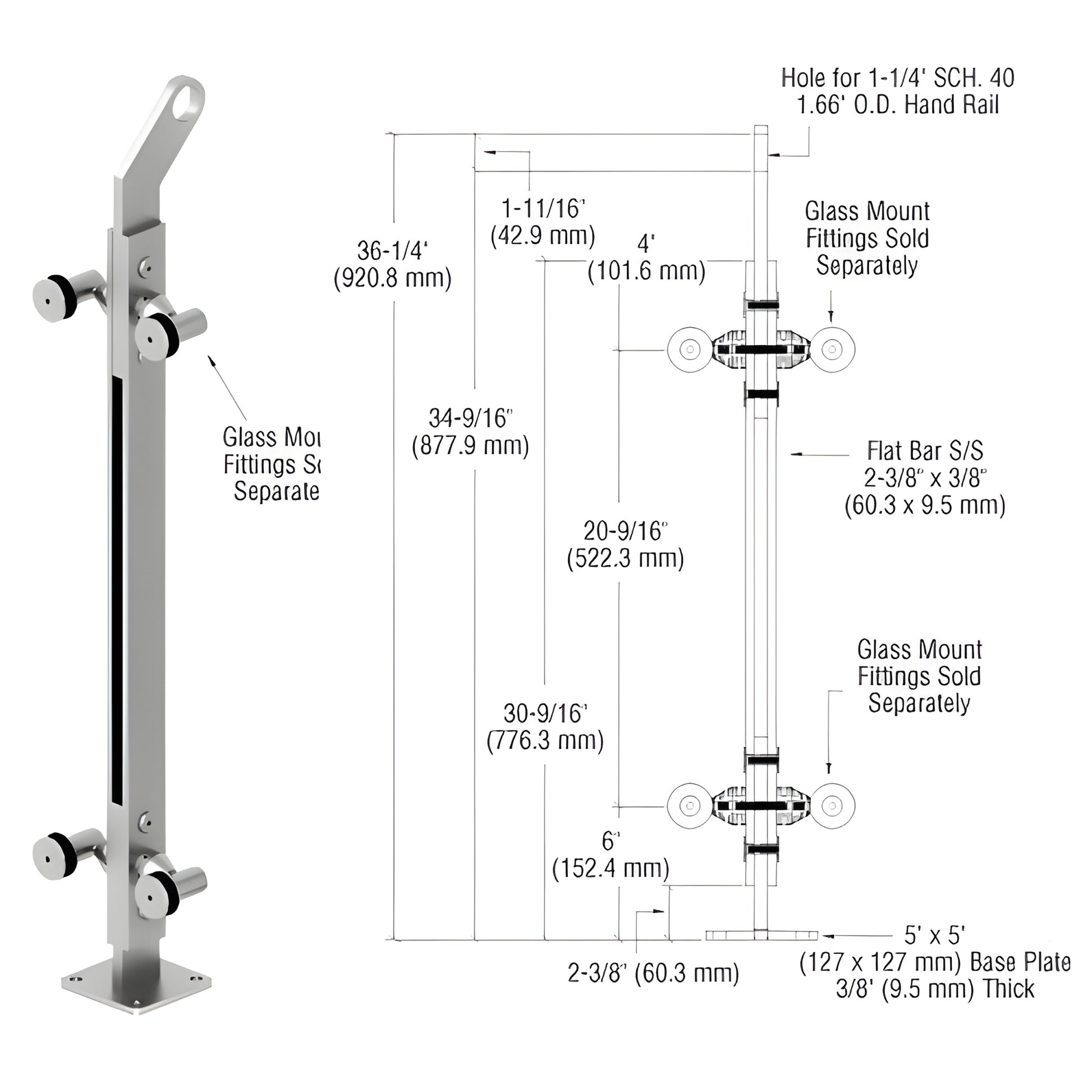

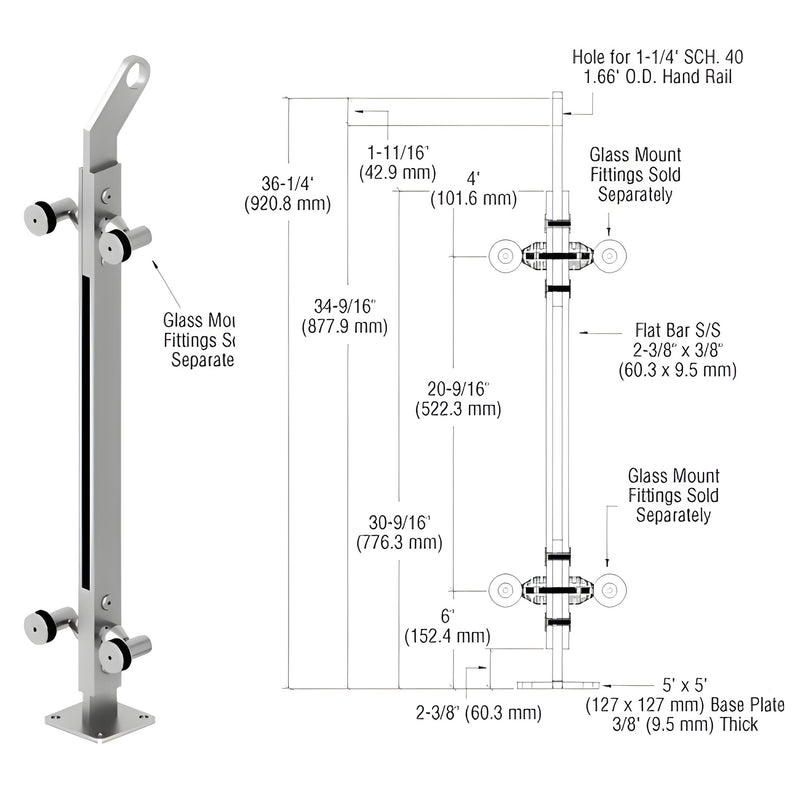

CRL P2 Series Polished Stainless Steel 180° Center Post Railing Kit
CRL P2 Series Polished Stainless Steel 180° Center Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P236CPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Angle
180
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
36 in. (914 mm)
Material
Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail code standards
- Supports 1-1/4" (32 mm) Schedule 40 horizontal tubing (1.66" OD)
- Standard post heights: 36" (914 mm) and 42" (1067 mm) — custom heights available
- Two standard stainless finishes; custom powder coat finishes available
CRL P2 Post Railing Kits (SKU: P236CPSC) are engineered for commercial and residential glass railing projects requiring code-compliant surface-mounted posts. These stainless steel P2 surface-mounted post railing kits include base plates and are prepped for CRL standard glass mount fittings, providing a durable solution for glass panel installations and horizontal handrail systems.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL P2 surface-mounted post railing kit (SKU: P236CPSC) for code-compliant stainless steel glass railing—contact us to configure custom heights or finishes.
