Product Details
- Sleek and Modern Design
- Use Monolithic Tempered Glass
- Radius Mounting Base for 1" (25.4 mm) and 1-1/2" (38 mm) Diameter Round Tubing
- 1/4" to 3/8" (6 to 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw

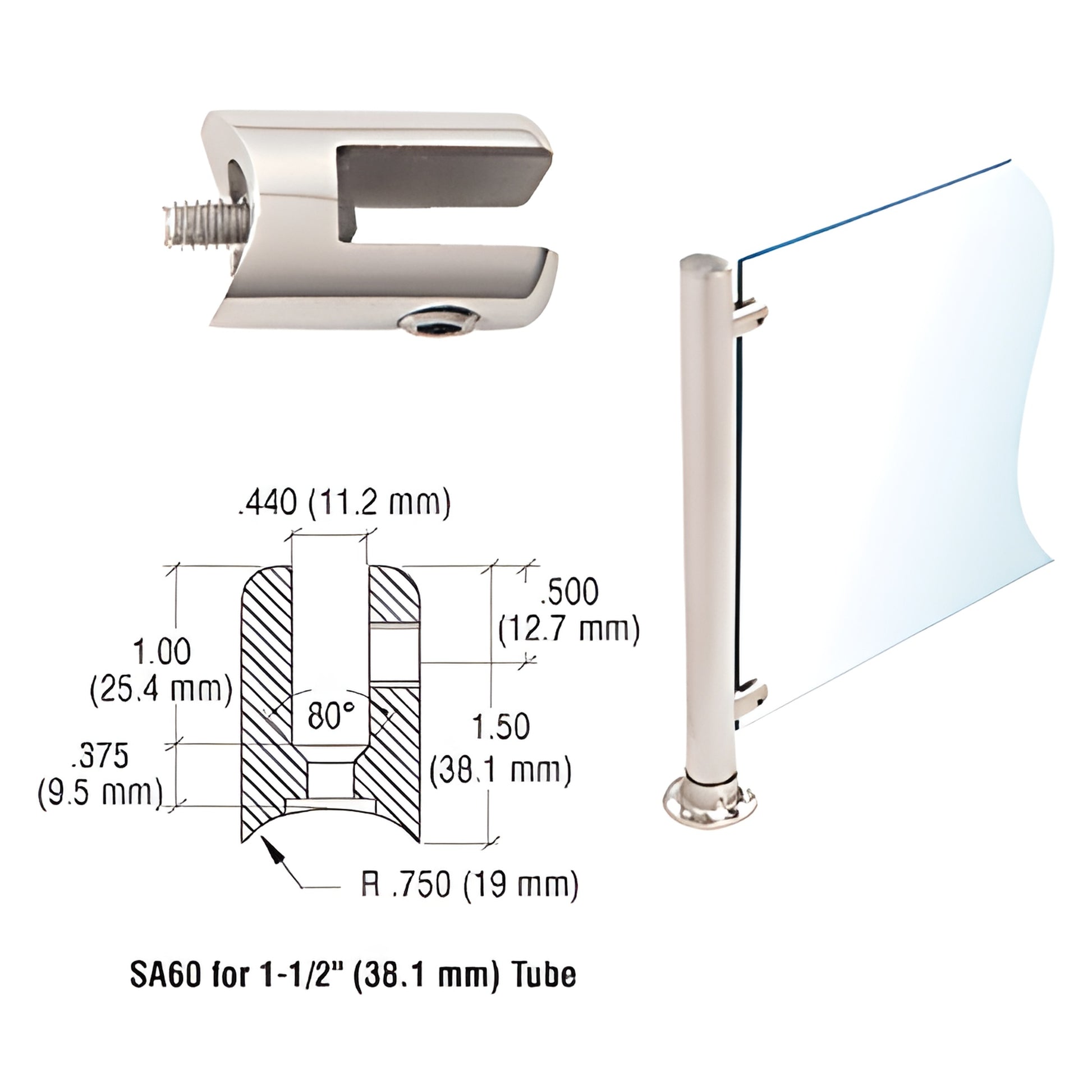

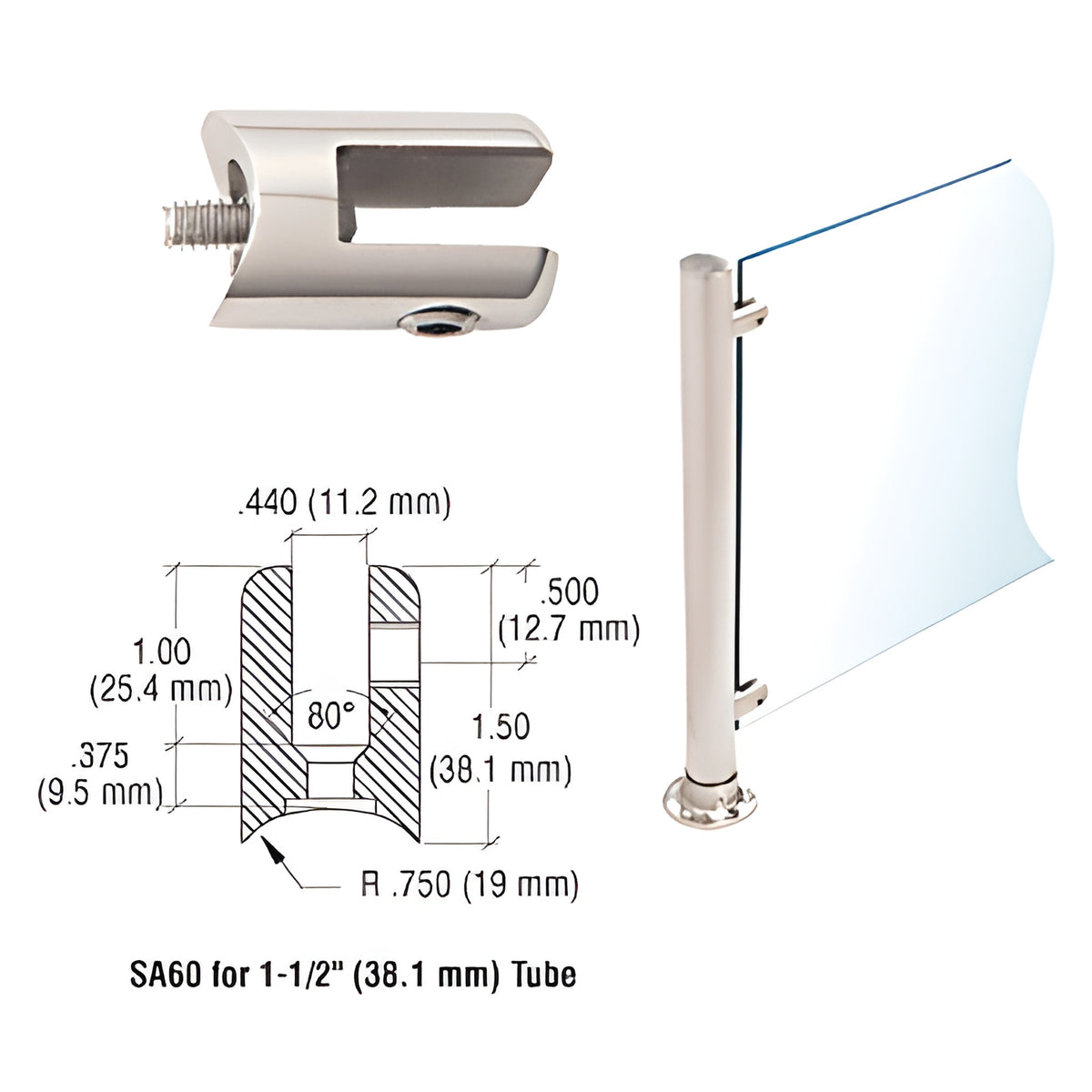

CRL Fixed Glass Fittings offer an easy yet attractive way to secure glass panels to Partition Posts and Sneeze Guards. After mounting to the Tubing the glass panel is simply secured in place with a clear vinyl gasket and a nylon tipped set screw. Works with both 1/4" to 3/8" (6 to 10 mm) glass. Can be used on 1" or 1-1/2" (25.4 or 38 mm) Tubing. Fitting for 1" (25.4 mm) tubing comes with a 10-24 Flat Head Screw; fitting for 1-1/2" (38 mm) tubing comes with a 1/4"-20 Flat Head Screw. Matching size Rivet-Nuts are available.
NOTE: Will not fit properly if installed on 2" (51 mm) diameter Round Tubing.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
