CRL 90Β° Hold-Open Glass Door Patch Fitting Polished Stainless 2-9/16"
CRL 90Β° Hold-Open Glass Door Patch Fitting Polished Stainless 2-9/16"
Regular price
$302.68 CAD
Regular price
Sale price
$302.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380HPS
Shipping Weight: 5.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)

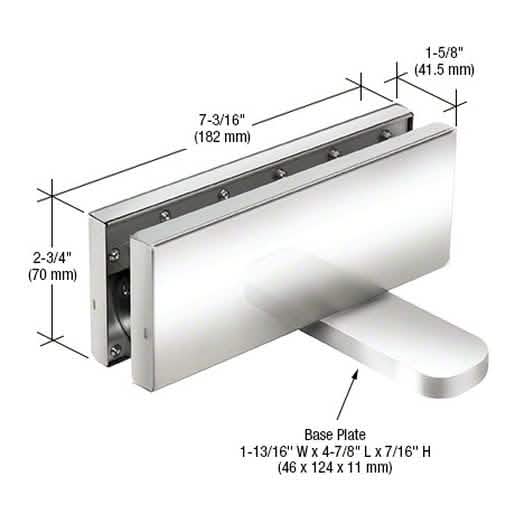

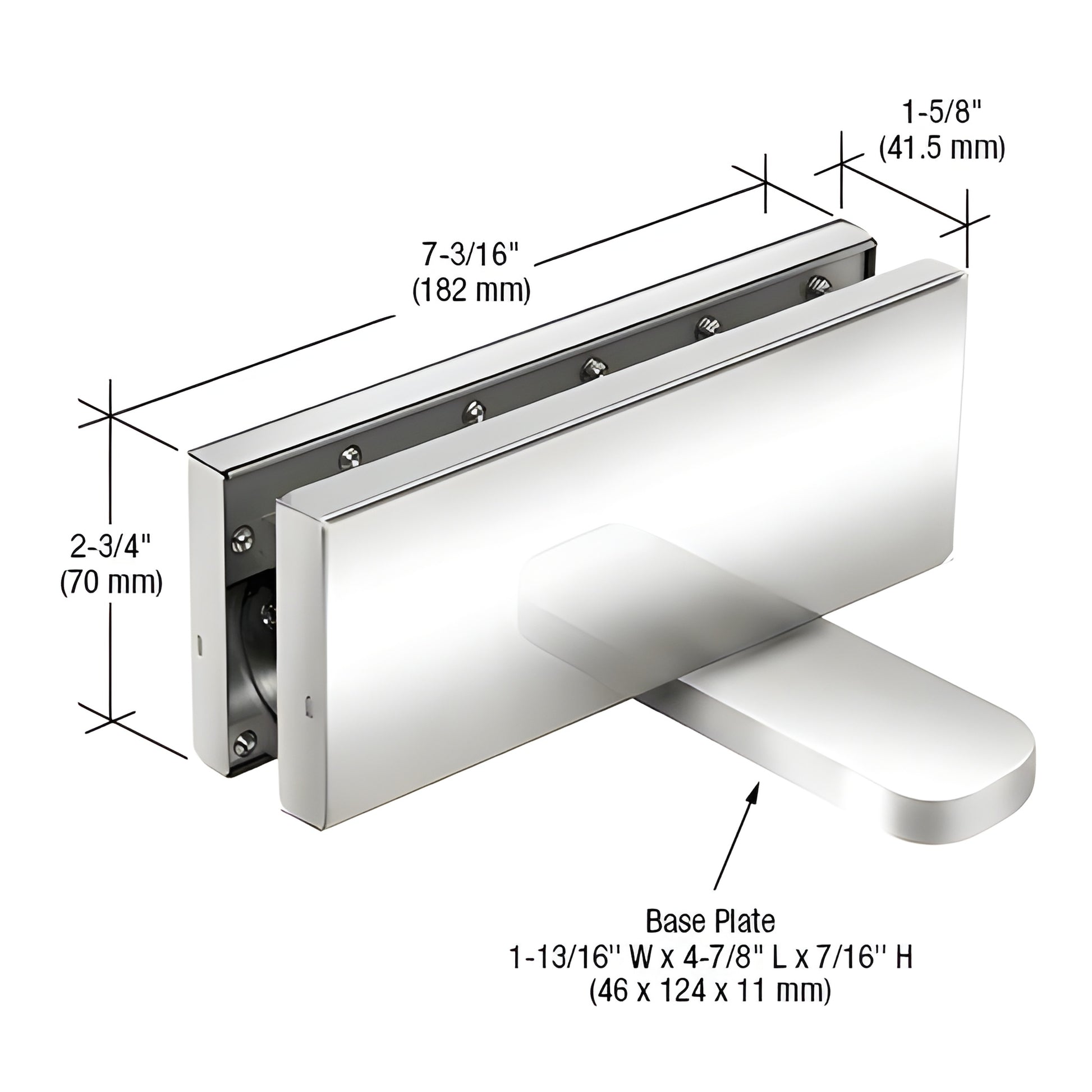

Height
2-3/4 in. (70 mm)
Hold Open
Yes
Length
7-3/16 in. (183 mm)
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Width
1-5/8 in. (41 mm)
Overview
- 2-9/16" (65 mm) pivot point
- Available in Brushed Stainless, Polished Stainless, Satin Anodized, and Matte Black finishes
- Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
- Flush mount β no hole required in the floor (ideal for no-floor-hole installations)
- For interior use only
- Must be used with PH21A top patches
CRL380 Series Hydraulic Patch Fittings (SKU: CRL380HPS) are medium-duty hydraulic patch fittings for interior tempered glass doors. This flush-mount glass door hinge includes two adjustment screws to fine-tune latching and swing speed and is designed to operate without additional floor or overhead closing devices. Supports maximum door width 39" (1 m) and maximum weight 220 lbs (100 kg). Requires glass fabrication (cut-out) for 3/8" (10 mm) or 1/2" (12 mm) tempered glass.
Product Warning:
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if needed. These fittings are not compatible with stock NH36xx and NH72xx headers.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For a reliable, no-floor-hole hydraulic patch fitting for interior tempered glass doors, order CRL380HPS or contact CRL for technical questions and custom header options.
