CRL Laguna Polished Stainless Top-Hung Sliding Door Tube End Cap
CRL Laguna Polished Stainless Top-Hung Sliding Door Tube End Cap
Regular price
$72.57 CAD
Regular price
Sale price
$72.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LS106PS
Shipping Weight: 13.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Overview
- Used for installations where top sliding tube terminates at wall

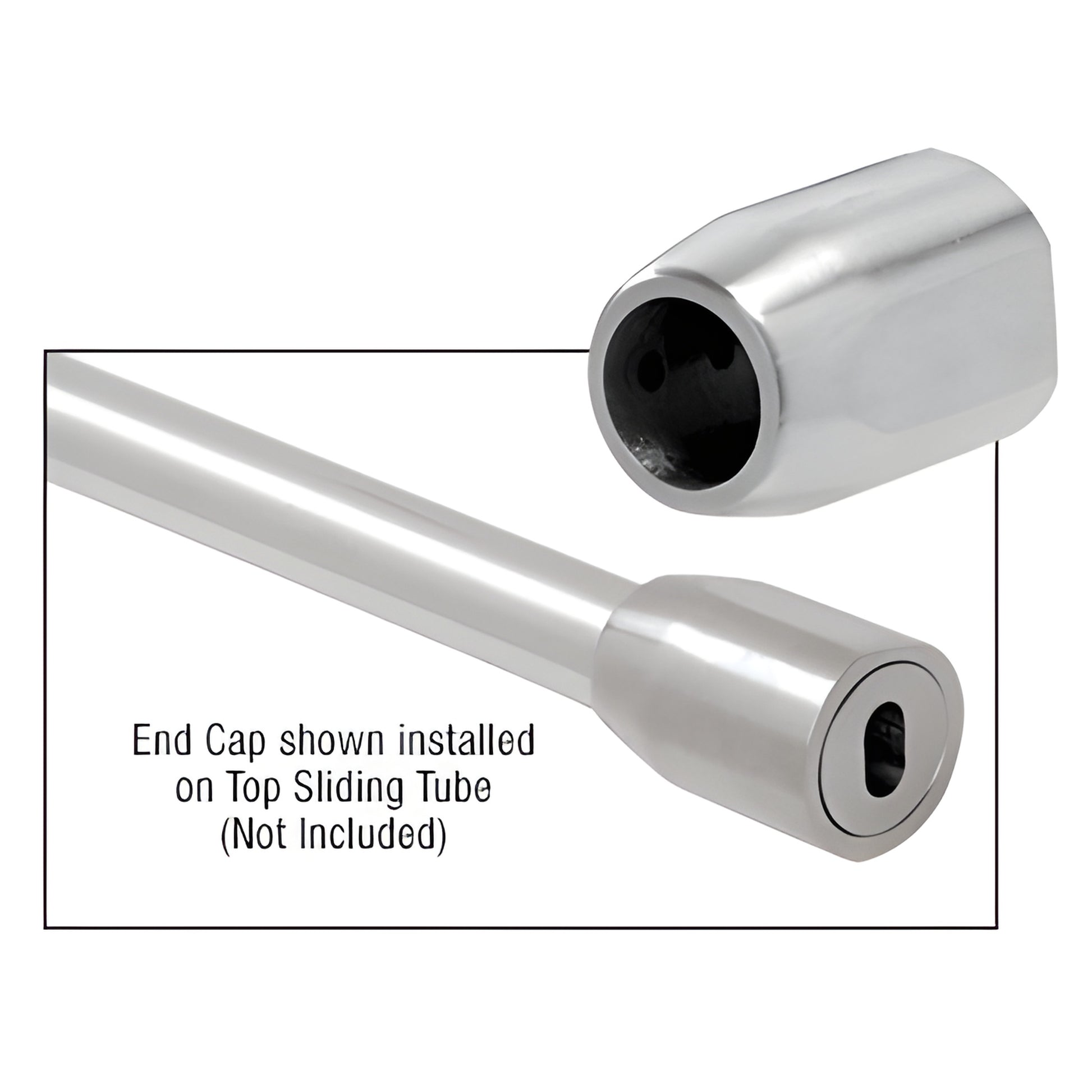

The CRL Top Sliding Tube Wall Mount End Cap (SKU: LS106PS) is a non-handed fitting designed for applications where the Cat. No. LS104BS top sliding tube terminates into a wall. The elongated adjustment slot and internal sleeve allow quick, precise final alignment for top sliding tube systems. Fastener to wall not included.
SYSTEM LIMITATIONS:
The following recommended limitations apply to this top sliding tube wall mount end cap system:
Minimum Panel Width: 37-13/16" (960 mm)
Maximum Panel Width: 53-9/16" (1.36 m)
Maximum Panel Weight: 220 Lbs. (100 kg)
Panel height should never exceed 2.5 times panel width. Maximum available top track length is 104" (2.64 m). Contact our Technical Sales Department if these limitations cannot be met.
Product Warning:
STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm product suitability for intended use and site conditions. Installers must be qualified and follow applicable local, state, and federal regulations, safety factors, and correct fixing materials and procedures.
NOTE: These fittings are not for use with laminated glass.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Why choose LS106PS? Durable, non-handed design for easy wall termination of top sliding tube systems, with adjustable mounting for precise alignment.
Contact CRL Technical Sales to confirm compatibility or request installation support.
