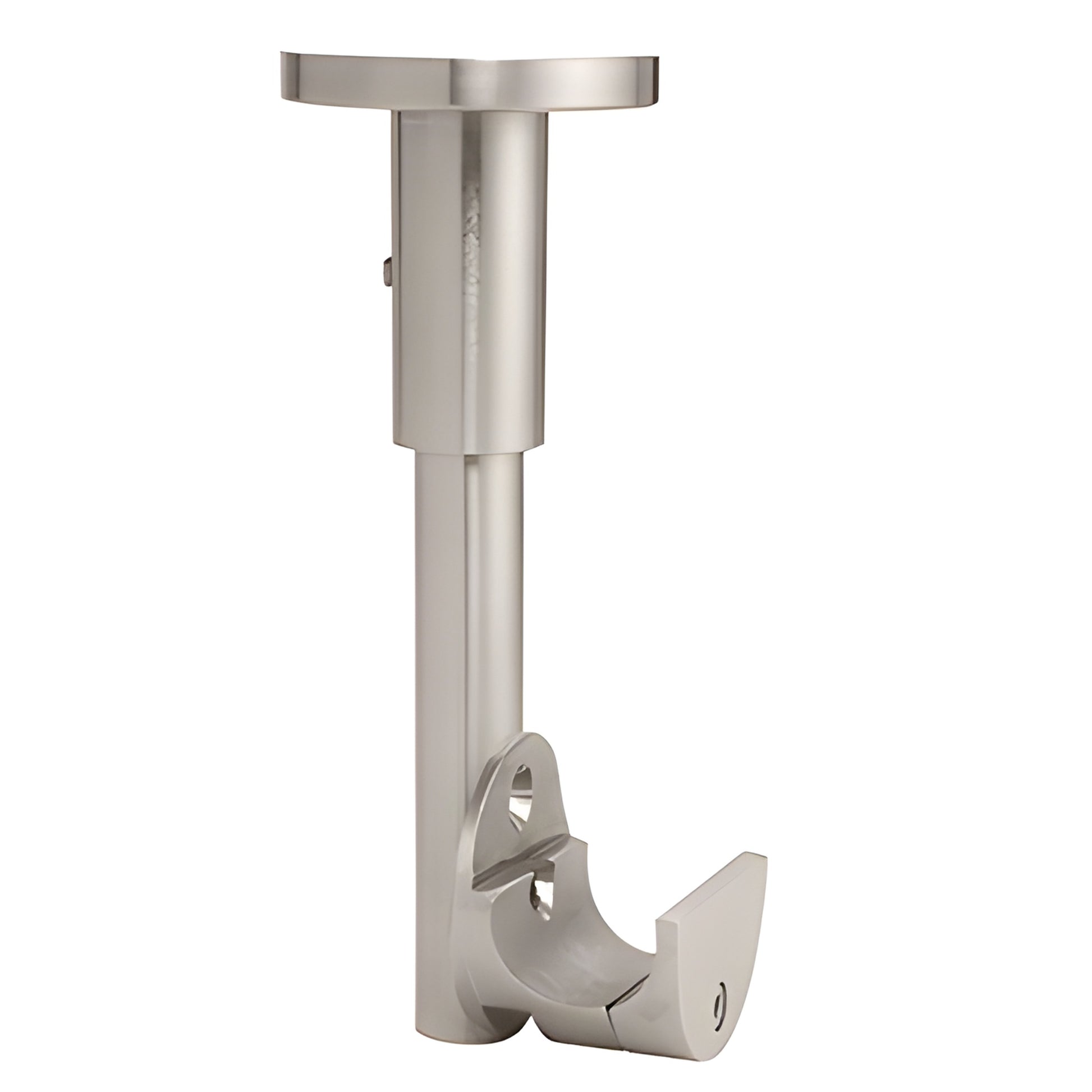

CRL Polished Stainless Laguna Top Sliding Tube Ceiling Mount Clamp
Item # LS412PS
$121.47
CAD
Finish (3)
-
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Overview
| SKU | LS412PS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Stainless Steel |
| Mounting Application | Ceiling |
| Top Hung | Yes |
Description
- Used in Laguna Ceiling Mount Applications
- Improved Anti-Lift System
This CRL Top Sliding Tube Ceiling Mount Clamp attaches to a structural ceiling sufficient to carry the loads of the Sliding Glass Doors. These are ordered separately from the kits and would replace the Wall Clamps included in any of the kits. This Clamp positions the Top Sliding Tube 4-11/16" (119 mm) down from the ceiling and has 3/16" (5 mm) of up or down adjustment to help with leveling the Top Sliding Tube during installation. Comes with four fasteners for mounting, and has a snap-on cover to finish the installation.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
