- Beautifully Enhanced Aesthetics Including Concealed Mounting Hardware
- System Features One Sliding Door and One Fixed Panel
- Specially Designed Roller Bearings for Quiet Door Movement
- Fixed and Sliding Panels May Be Reversed for Installation
- For 5/16" to 3/8" (8 to 10 mm) Thick Tempered Glass (Not Included)
- U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately
- One - 78-3/4" (2 m) Length Header Bar
- Four - Rollers
- One - Stopper

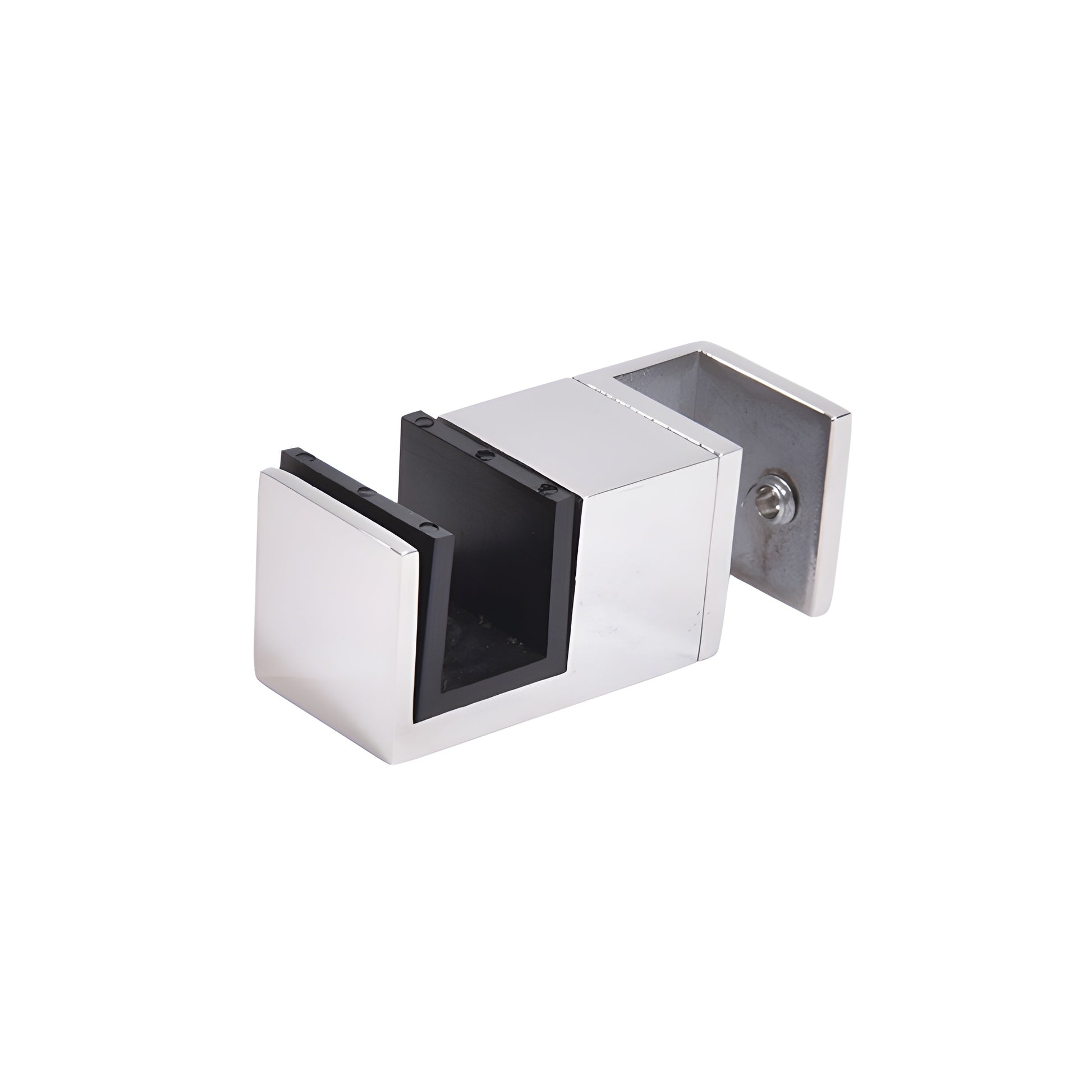

- Two - Track Holder Fittings for Wall
- Two - Track Holder Fittings for Fixed Panel
- One - Thru-Glass Pull
- One - Door Guide
- One - 85" (2.16 m) Clear L-Jamb SPECIFICATIONS:
- Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
- Material: Stainless Steel
- Maximum Door Size: Do Not Exceed Either 37" (939.9 mm) Wide or 98 lbs. (44.5 kg)
- Fabrication: Holes Required in Both Door and Fixed Panel A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in polished or brushed stainless steel, matte black, brushed bronze, or satin brass finishes, the Premium Cavoli Series Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included). Do not exceed either 37" (939.9 mm) Wide or 98 Pounds (44.5 kg)for the door size. Glass fabrication is required in both the door and fixed panel. Product Warning: U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Our

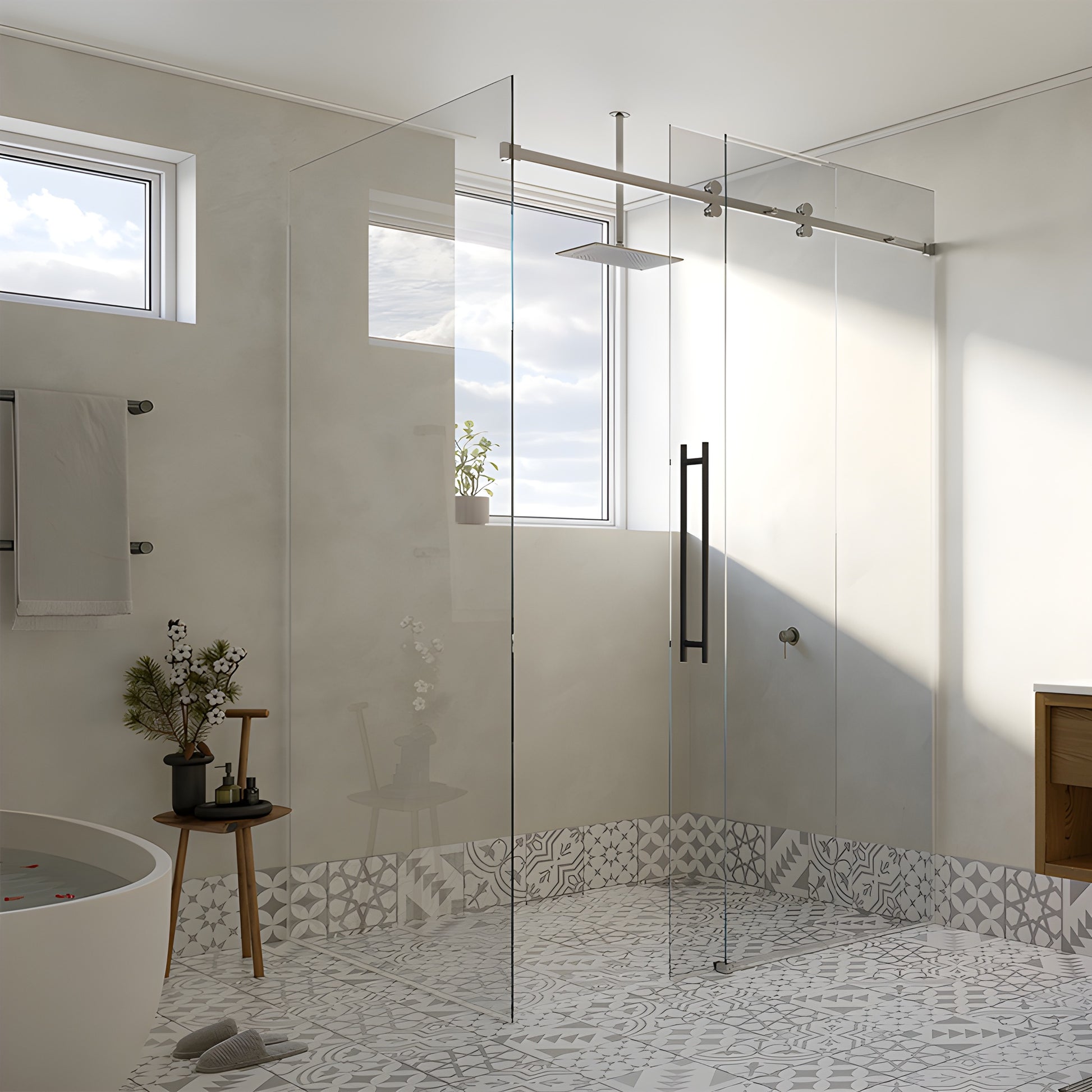

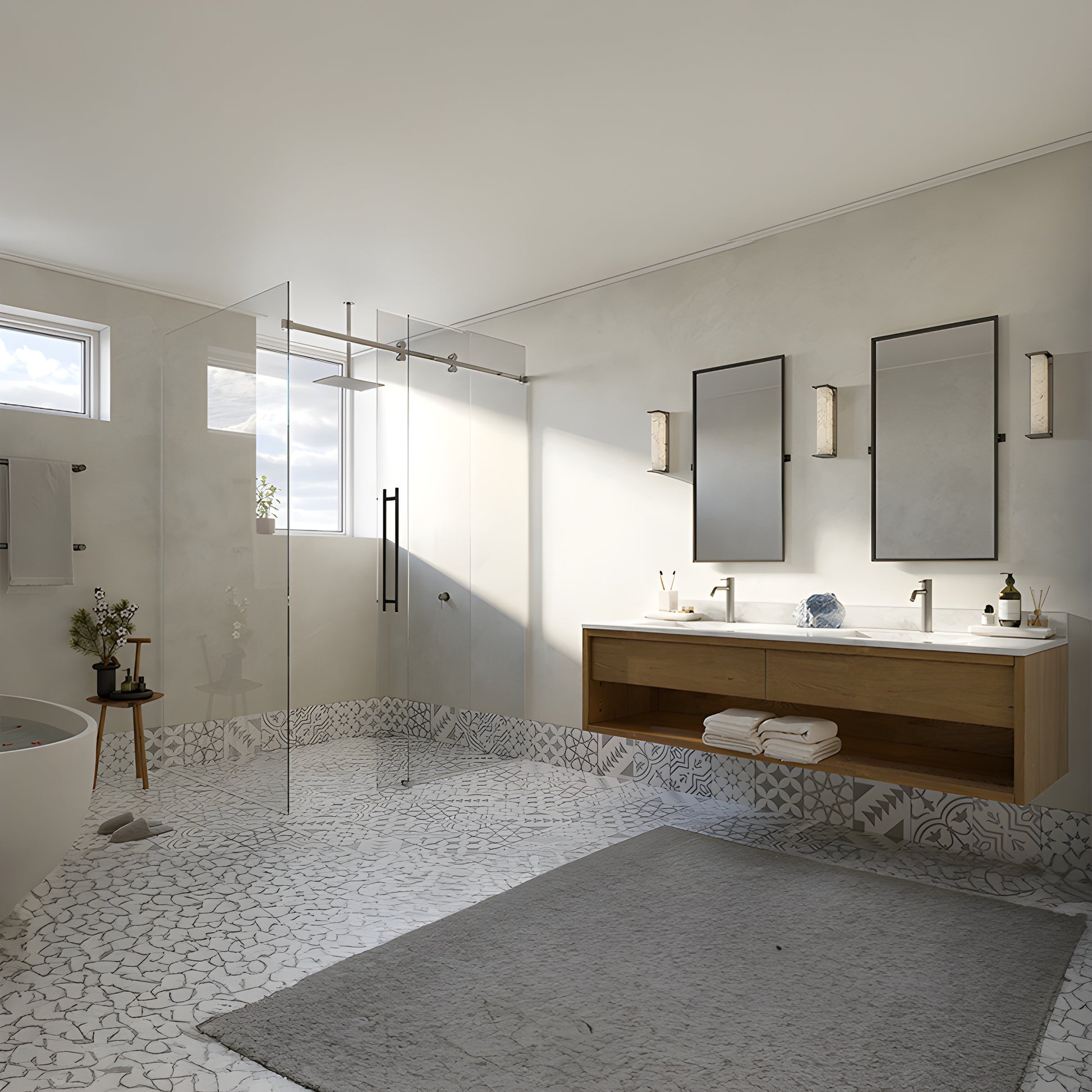

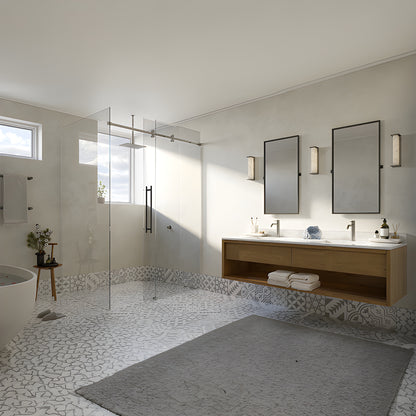

CRL Premium 180 Degree Cavoli Series Sliding System
has an entirely different look from traditional sliding systems. The use of minimal hardware with concealed installation provides a frameless look that gives the enclosure an almost floating appearance. Specially designed roller bearings allow for quiet and easy opening and closing of the door. One sliding panel and one fixed panel make the Premium Cavoli Series both practical and beautiful.

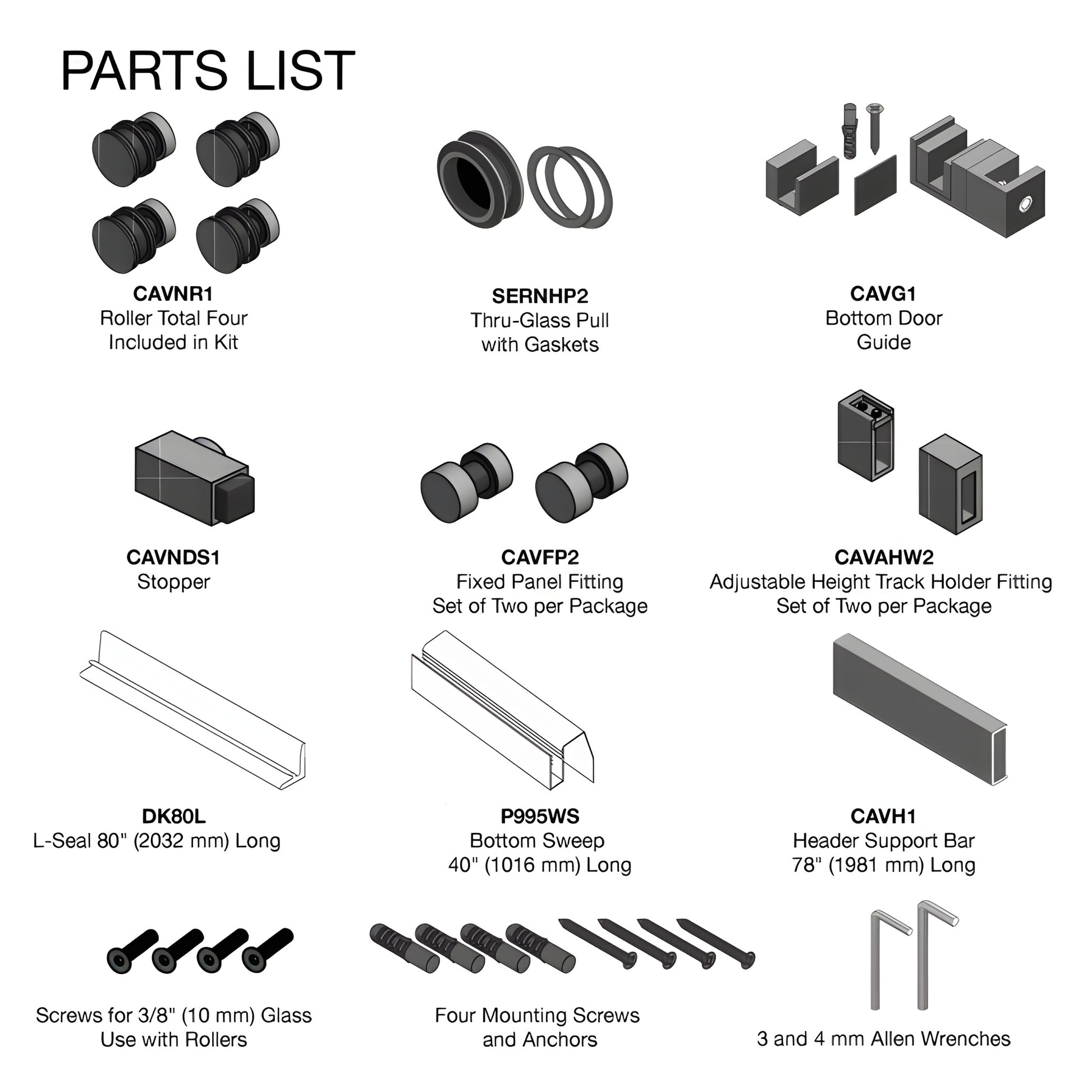

The Deluxe Kit Includes
One - 78-3/4" (2 m) Length Header Bar

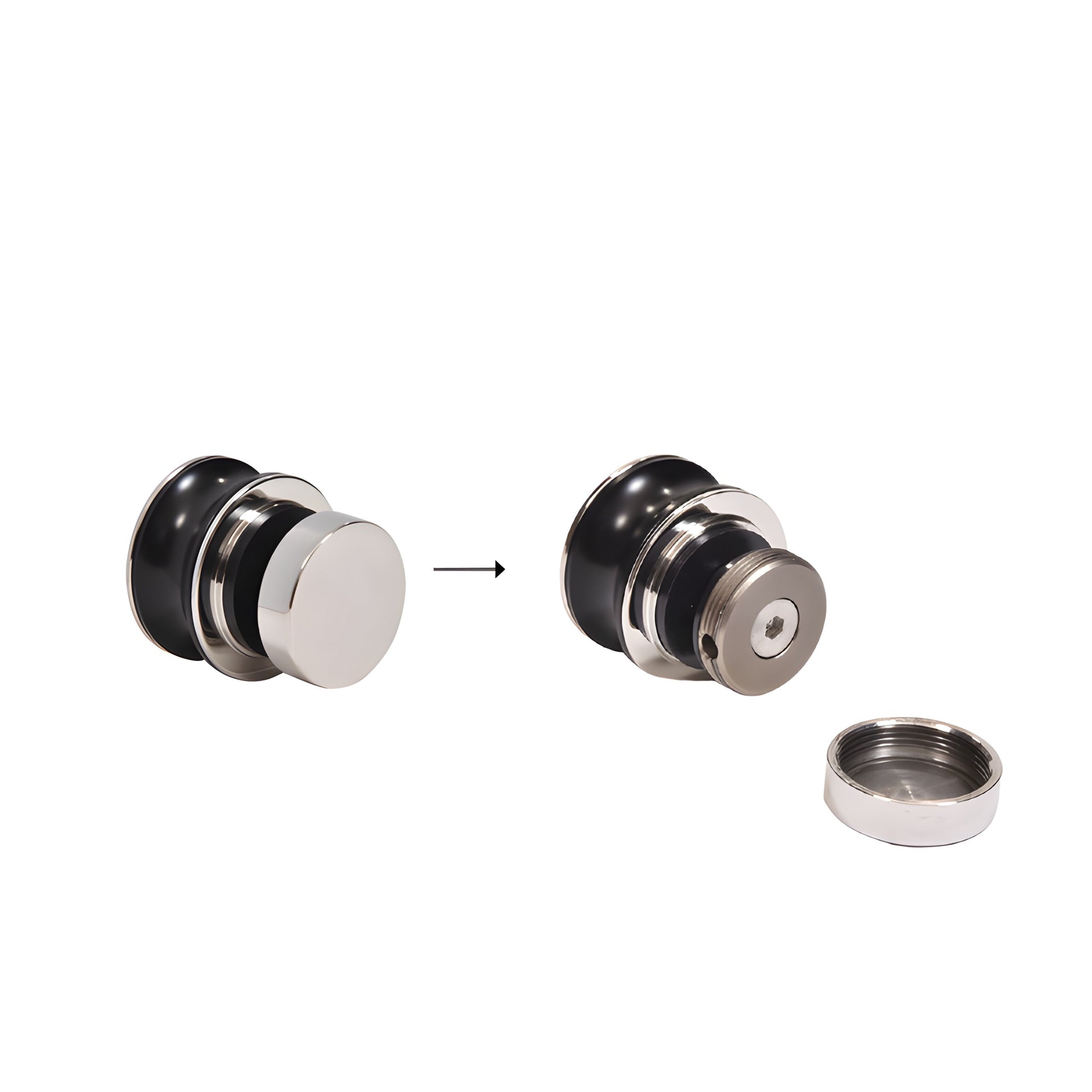

Four - Rollers

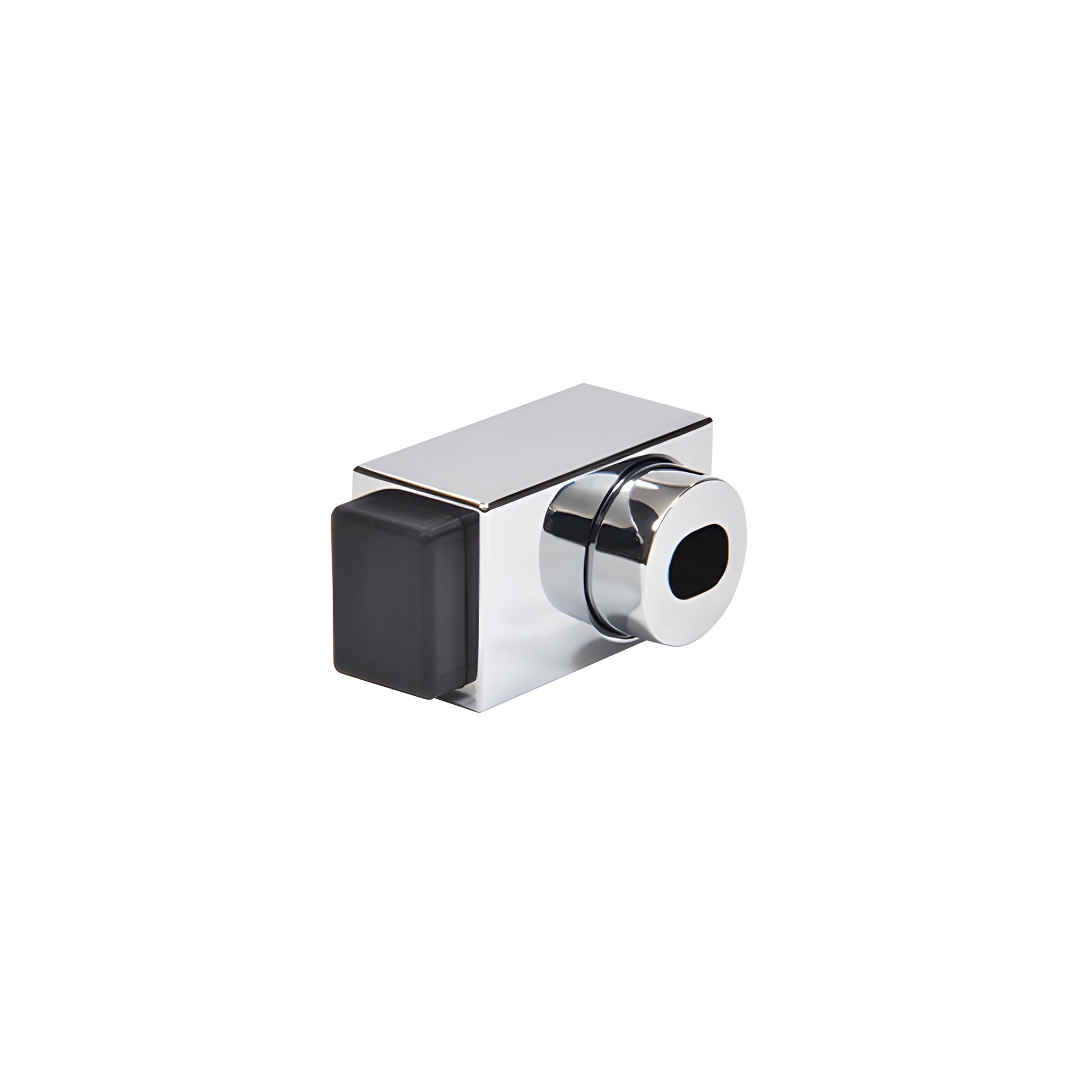

One - Stopper

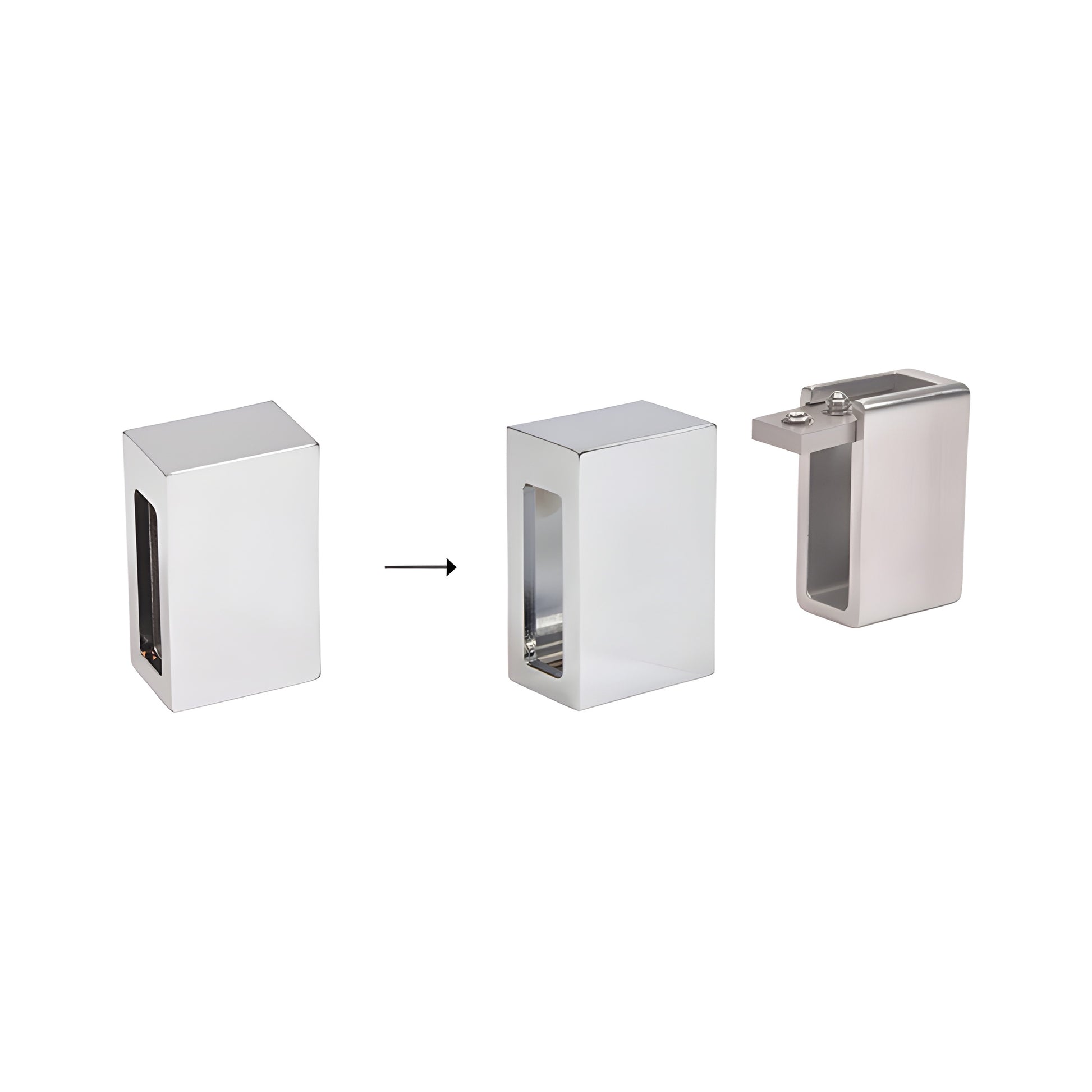

Two - Track Holder Fittings for Wall

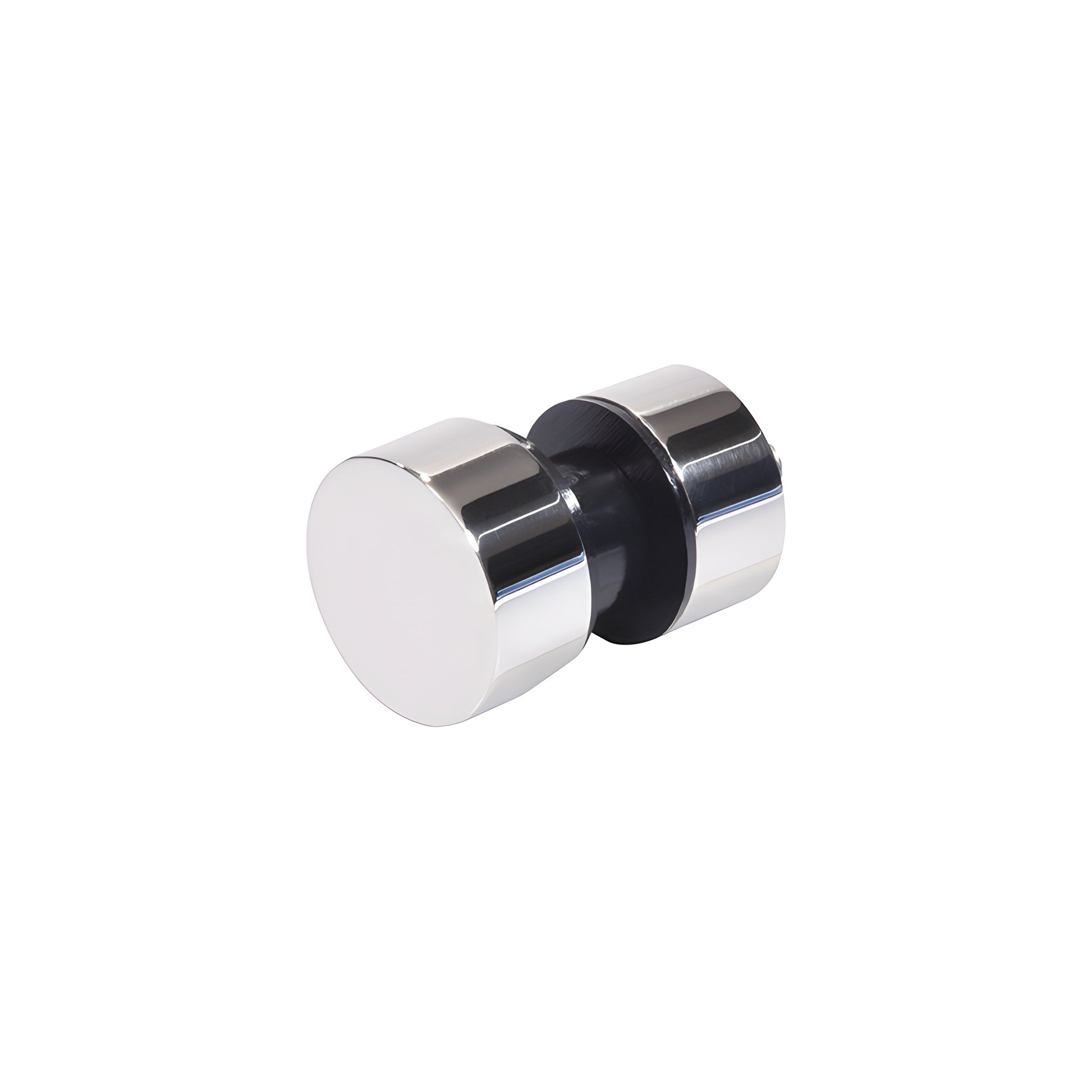

Two - Track Holder Fittings for Fixed Panel

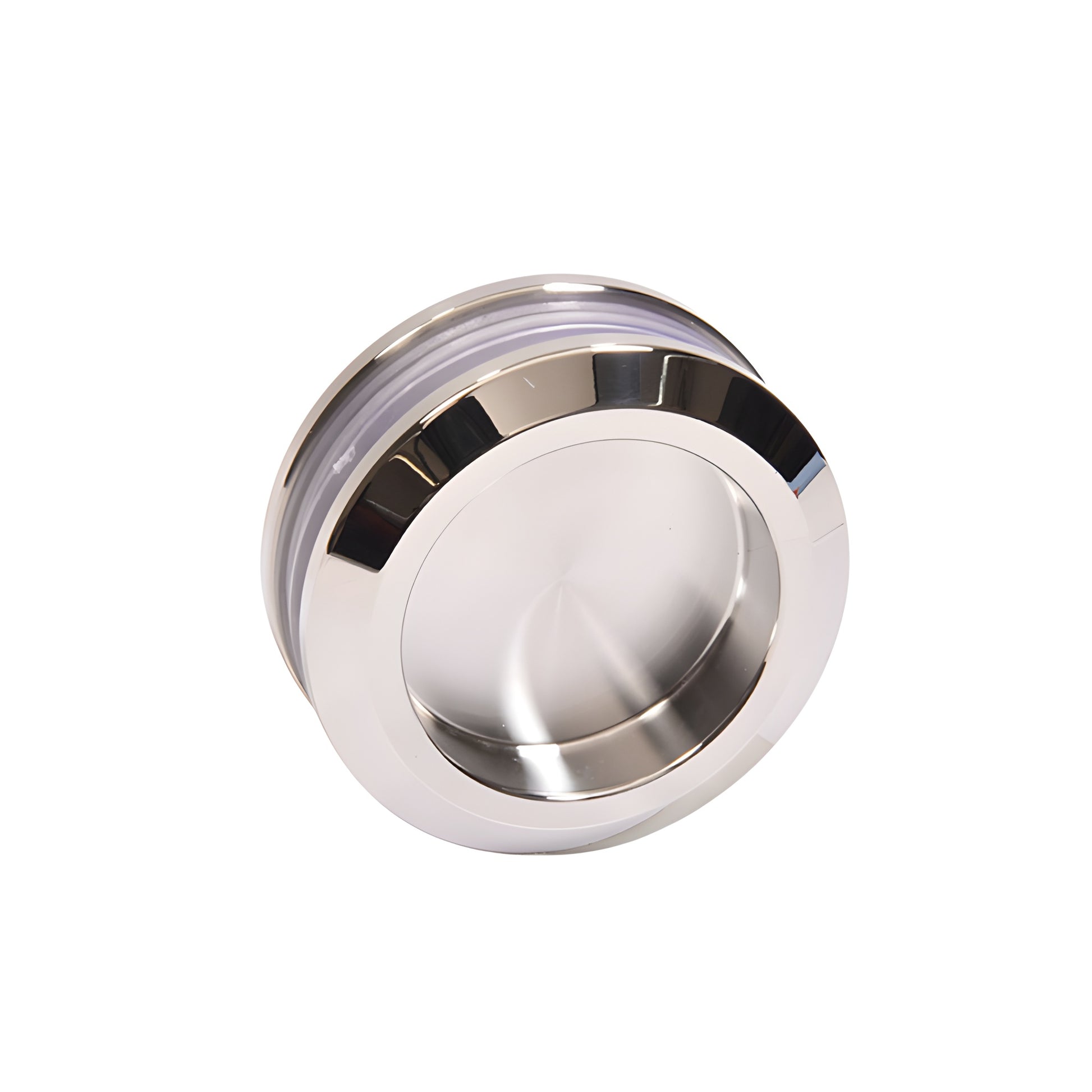

One - Thru-Glass Pull
One - Door Guide
One - 85" (2.16 m) Clear L-Jamb
SPECIFICATIONS
Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
Material: Stainless Steel
Maximum Door Size: Do Not Exceed Either 37" (939.9 mm) Wide or 98 lbs. (44.5 kg)
Fabrication: Holes Required in Both Door and Fixed Panel
A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in polished or brushed stainless steel, matte black, brushed bronze, or satin brass finishes, the Premium Cavoli Series Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included). Do not exceed either 37" (939.9 mm) Wide or 98 Pounds (44.5 kg)for the door size. Glass fabrication is required in both the door and fixed panel.
Product Warning
U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
