CRL Cavoli 180° Satin Brass Sliding Door Hardware - Premium

• Beautifully enhanced aesthetics with concealed mounting hardware for a frameless look
• System includes one sliding door and one fixed panel
• Specially designed roller bearings for quiet, smooth door movement
• Fixed and sliding panels may be reversed for left- or right-hand installation
• For 5/16" to 3/8" (8 to 10 mm) thick tempered glass (glass not included)
• U-channel or glass clamps for fixed panel must be ordered separately

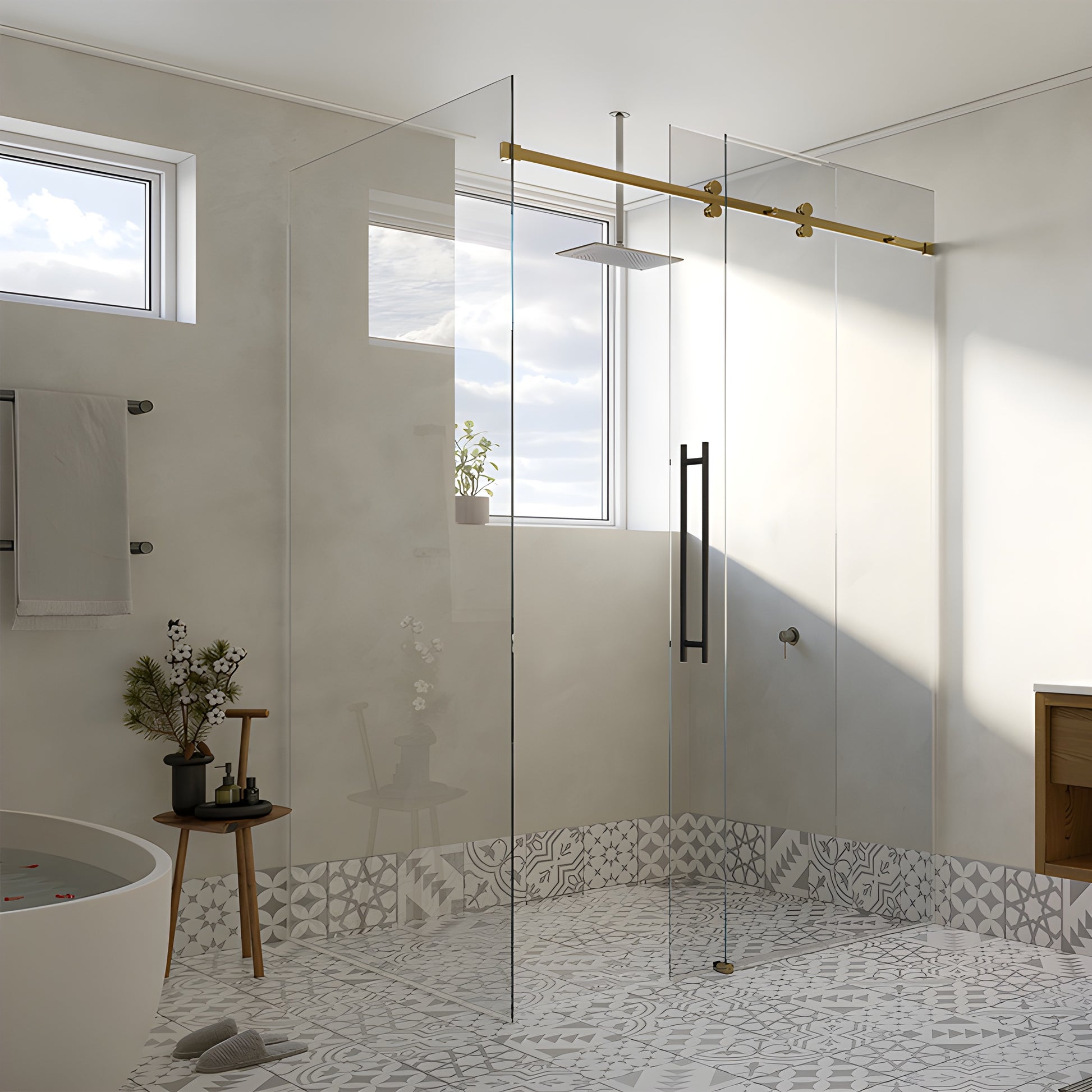

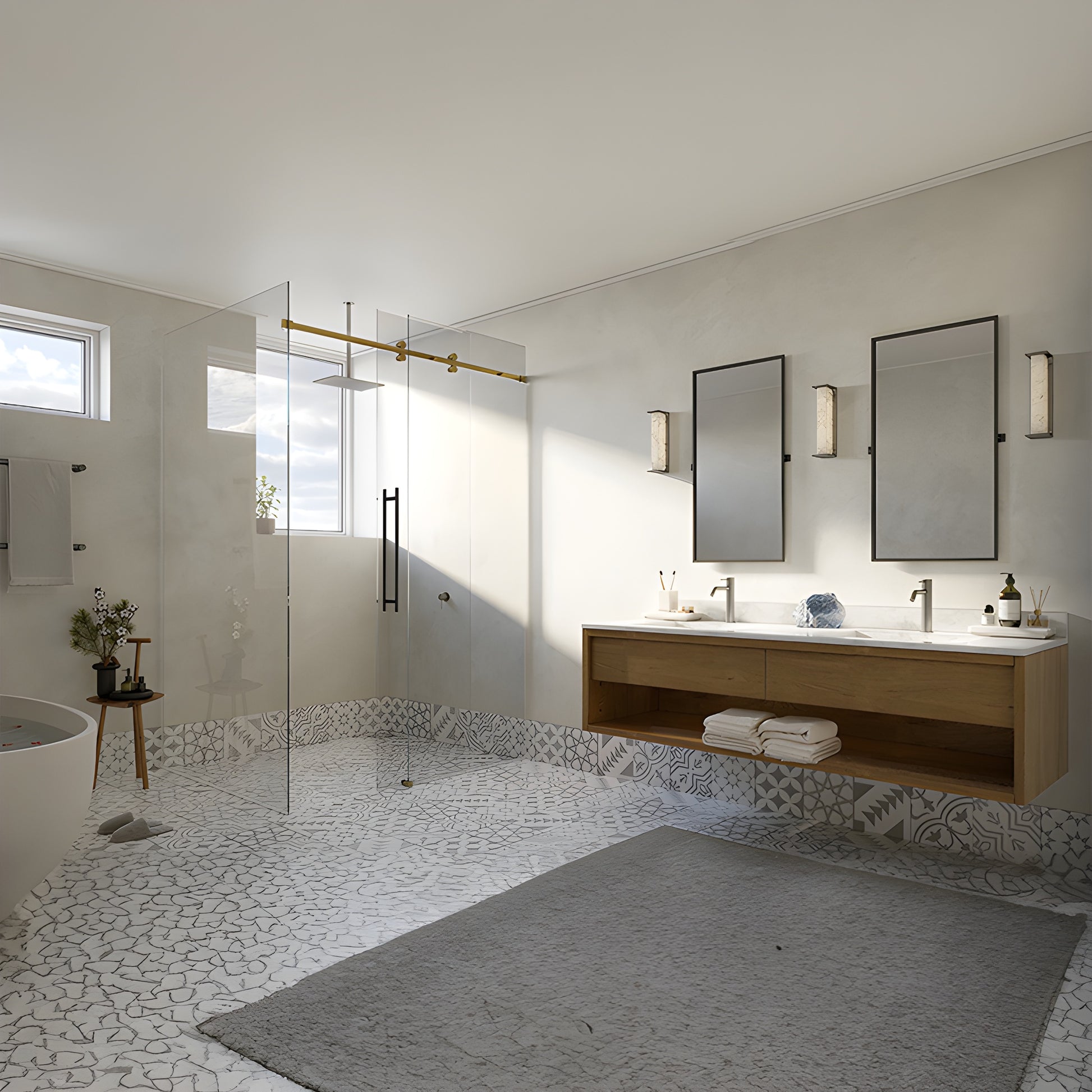

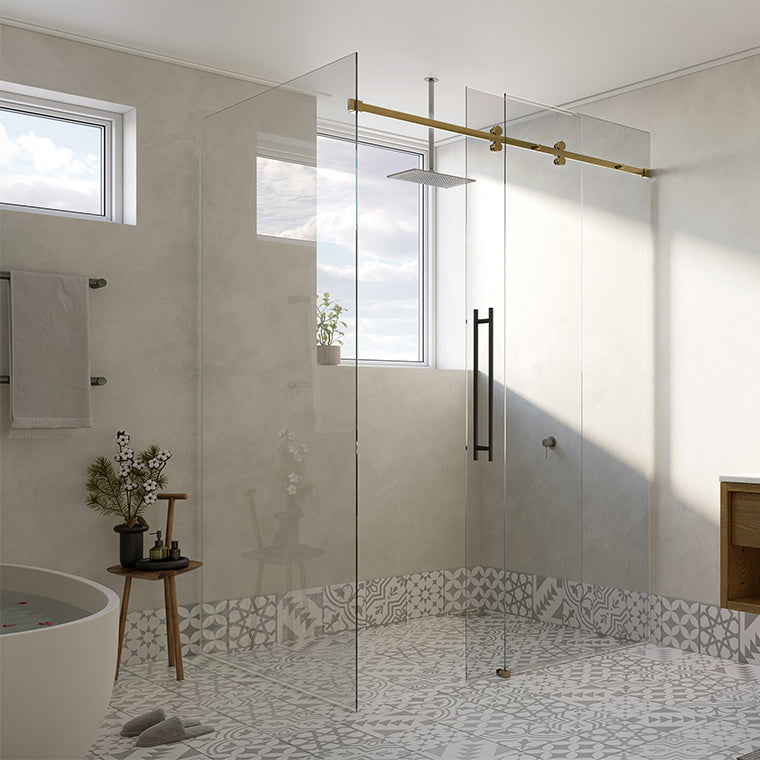

CRL Premium 180 Degree Cavoli Series Sliding System (SKU: CAV78SB) — a frameless glass shower sliding door system that uses minimal, concealed hardware to create an almost floating appearance. The deluxe kit combines modern, low-profile design with durable stainless steel components and quiet roller bearings for reliable, smooth operation.

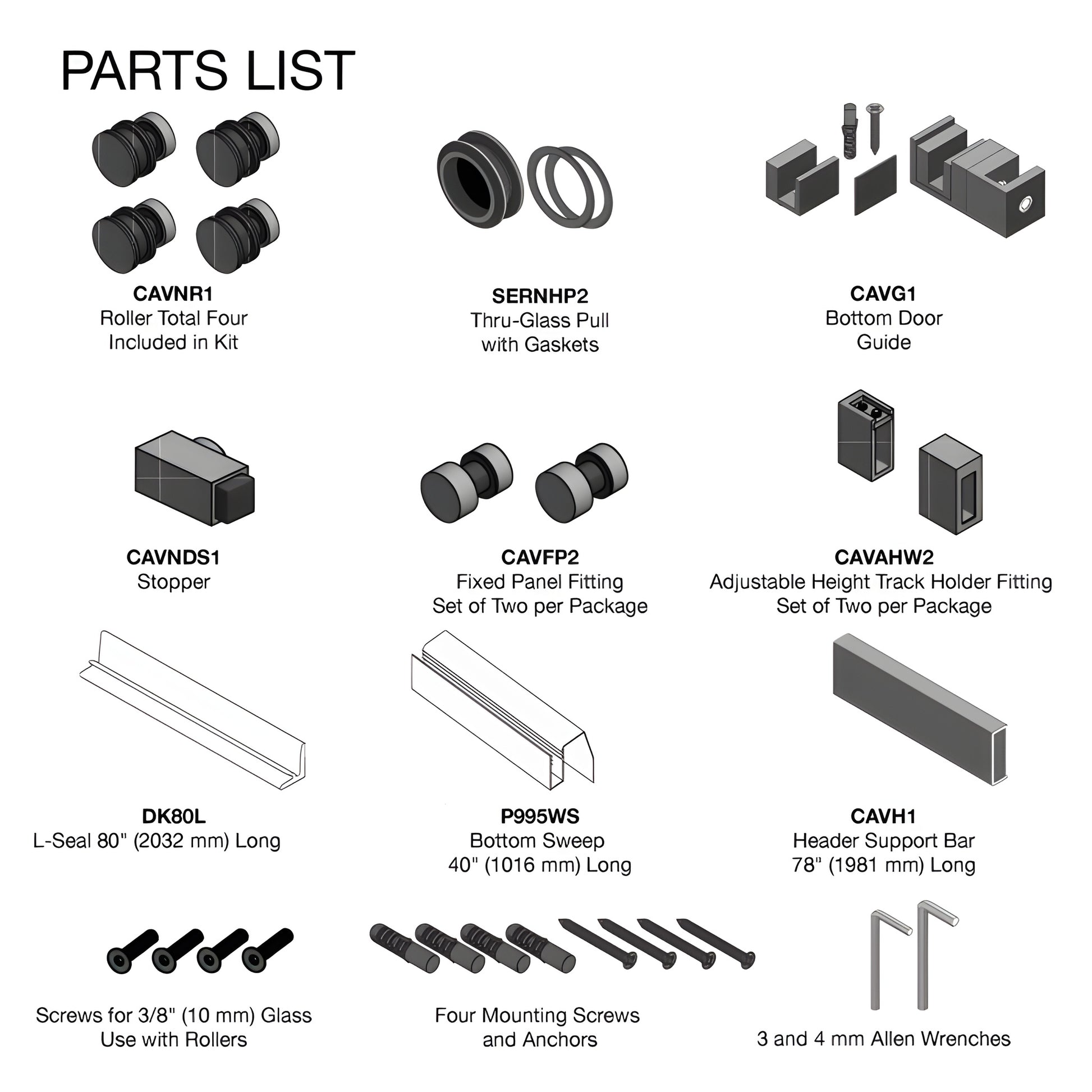

• One - 78-3/4" (2 m) length header bar

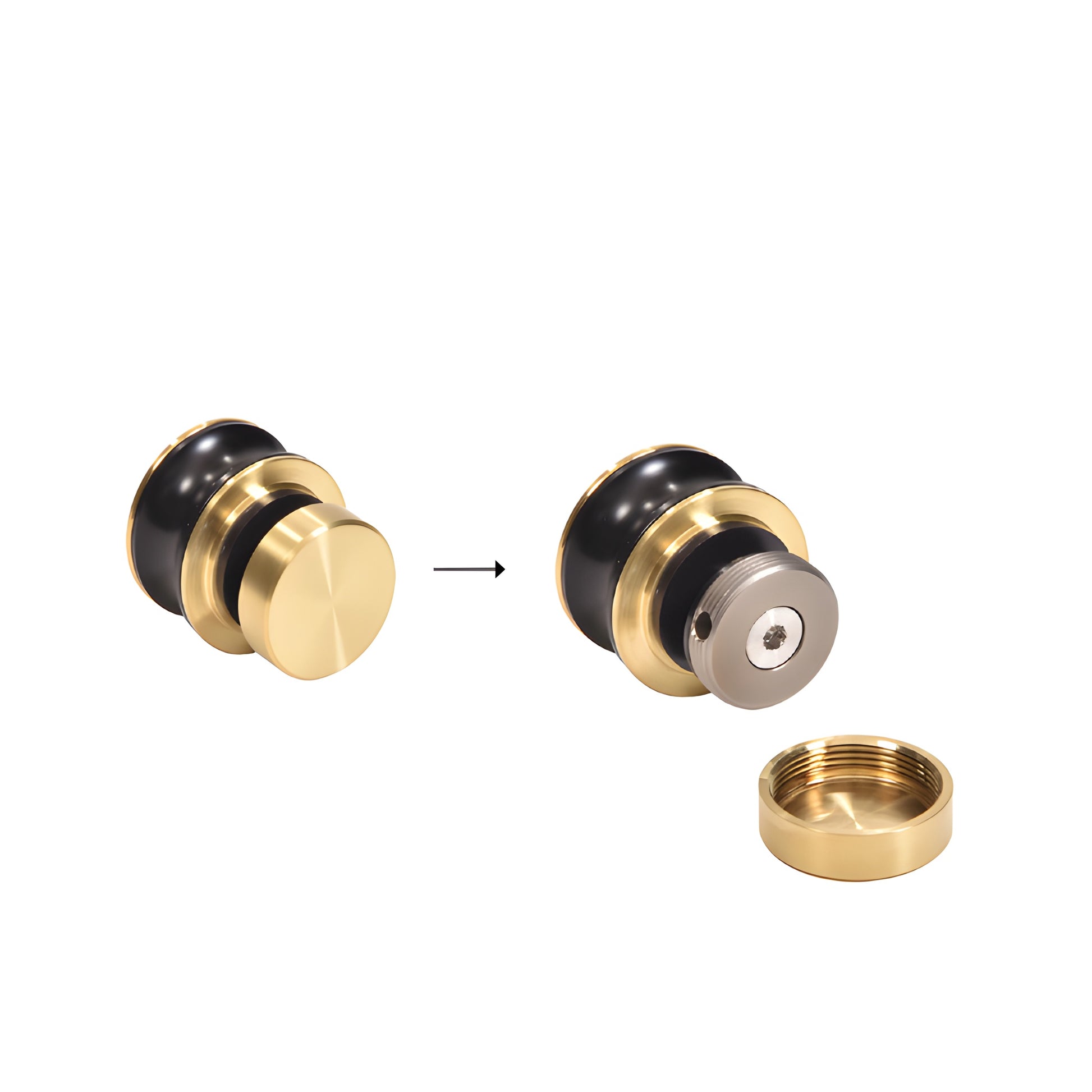

• Four - rollers

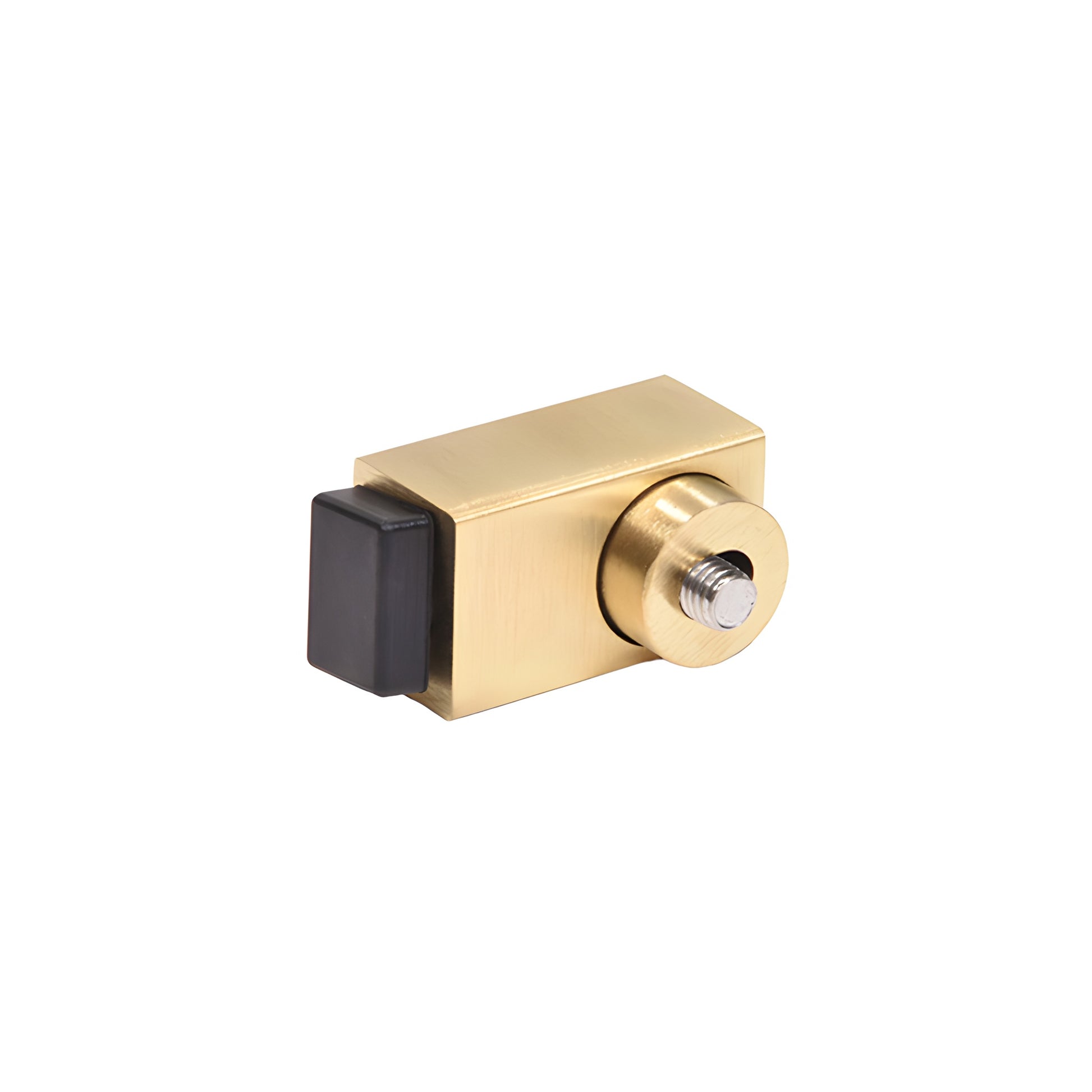

• One - stopper

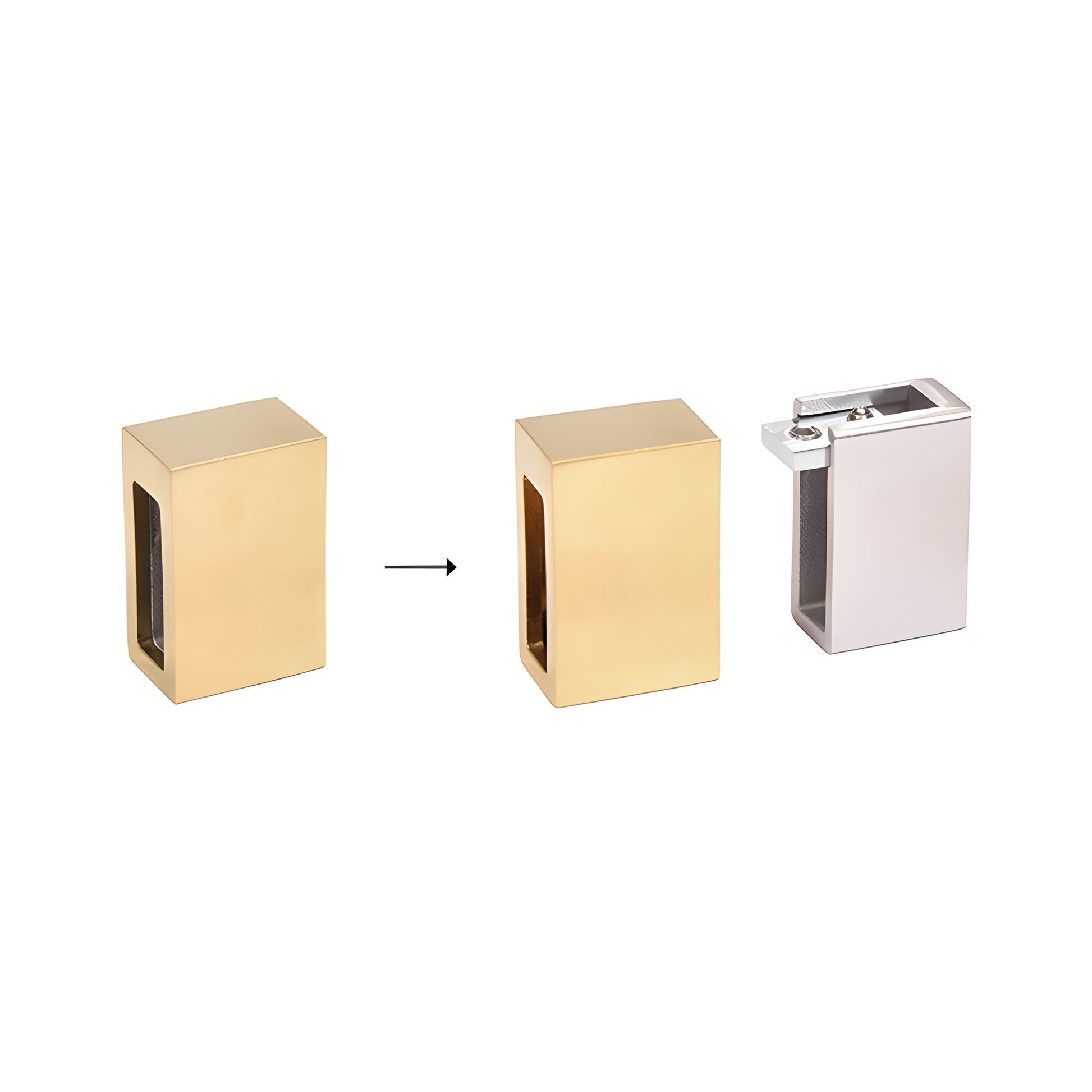

• Two - track holder fittings for wall

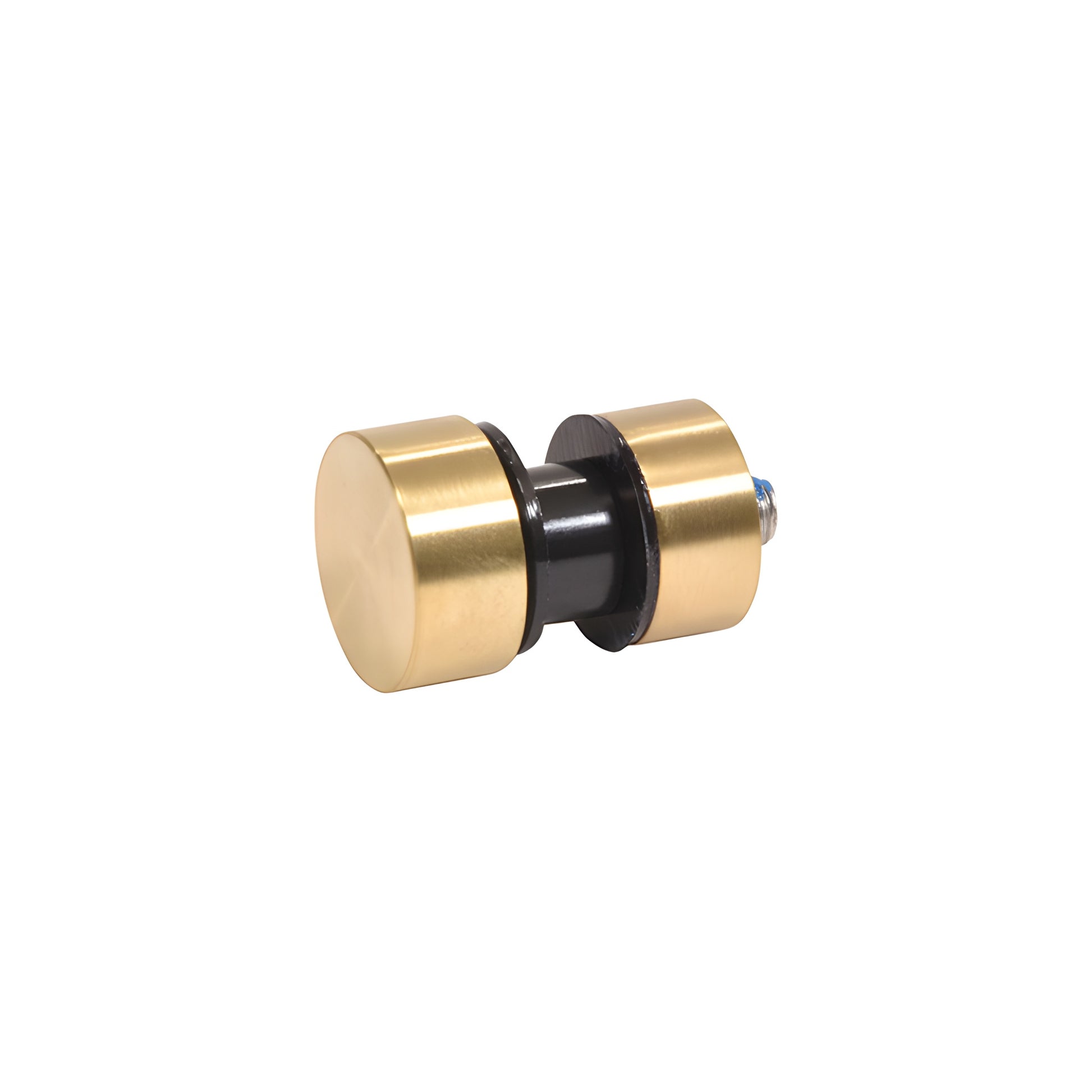

• Two - track holder fittings for fixed panel

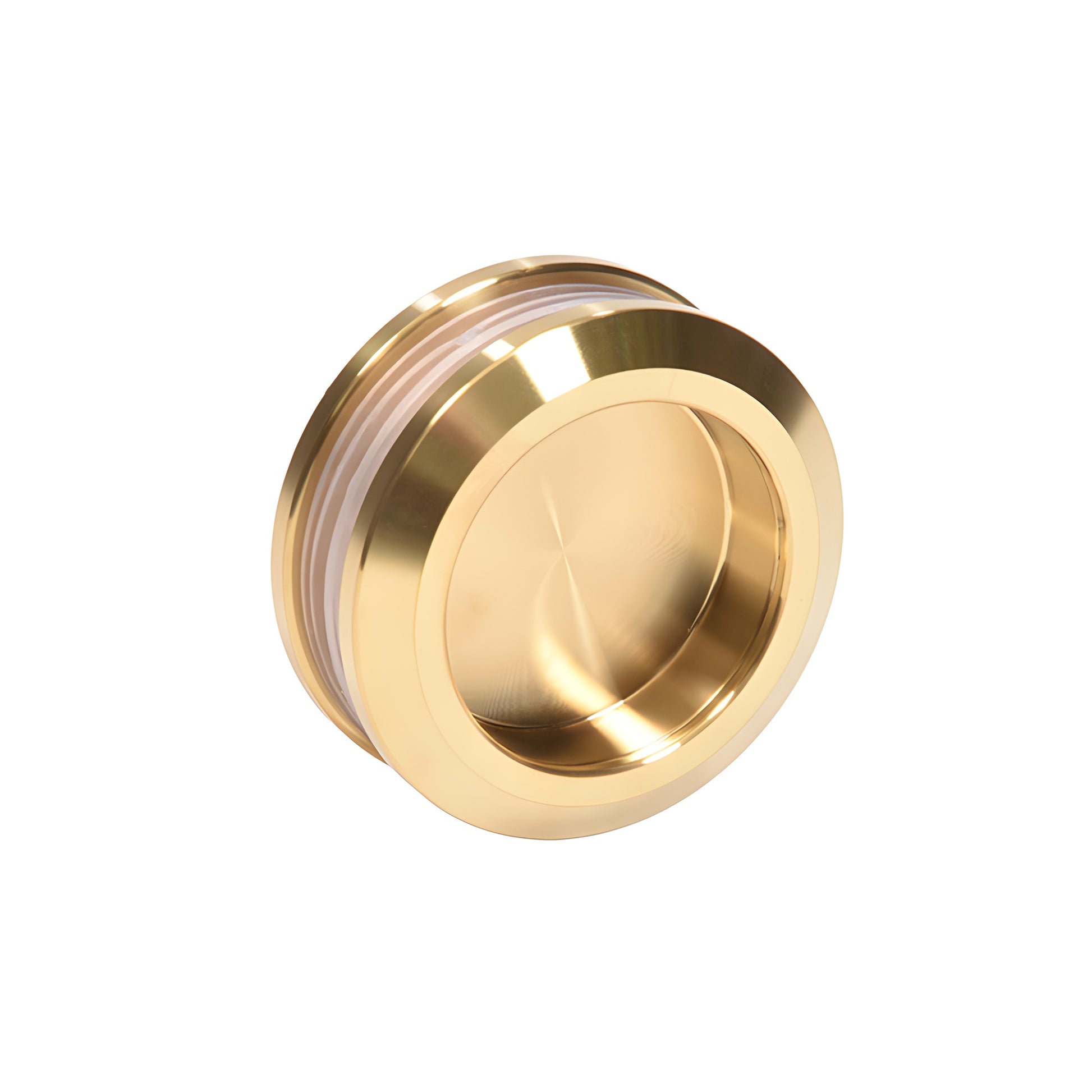

• One - thru-glass pull

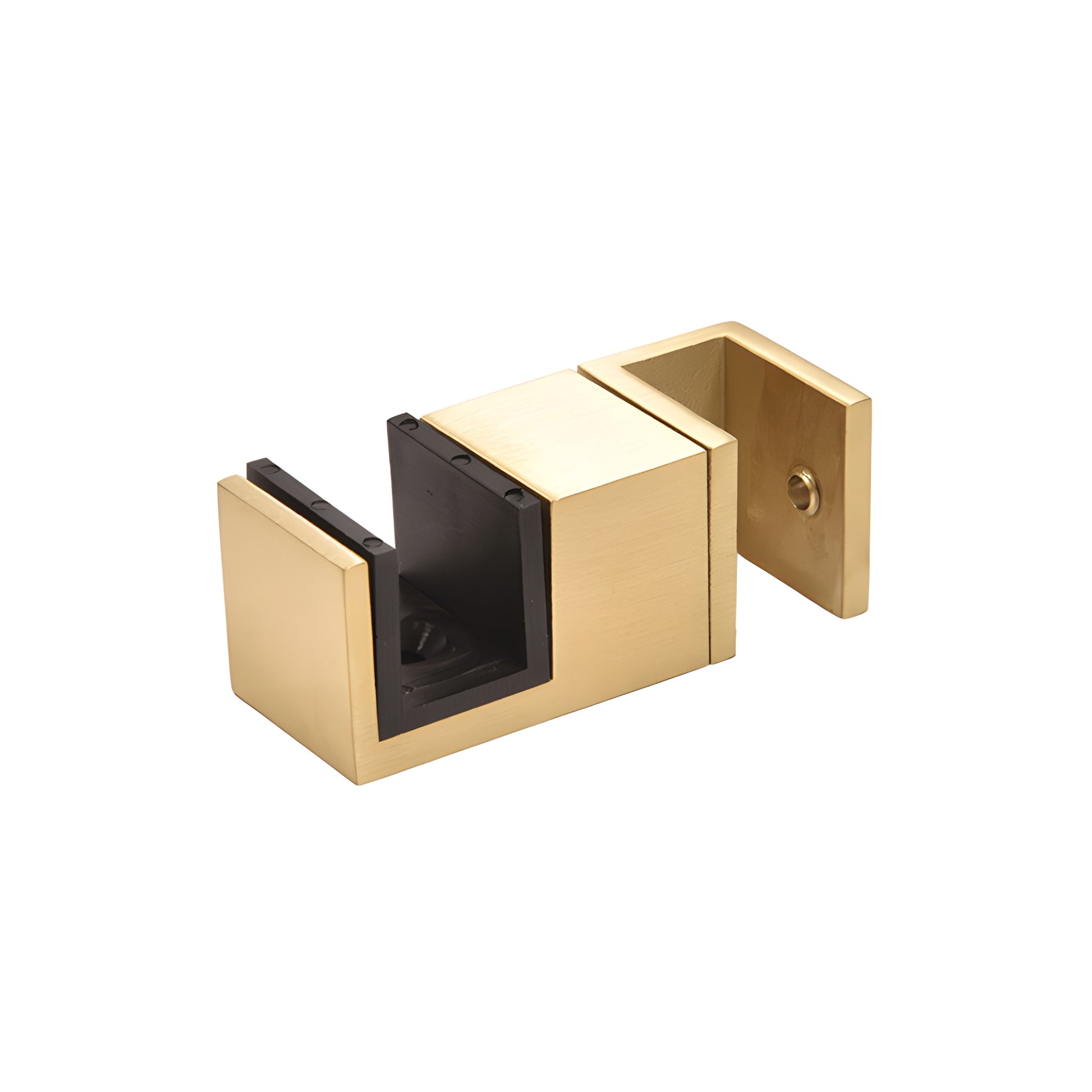

• One - door guide
• One - 85" (2.16 m) clear L-jamb

• Glass thickness range: 5/16" to 3/8" (8 to 10 mm) tempered safety glass (not included)
• Material: stainless steel
• Maximum door size: do not exceed either 37" (939.9 mm) wide or 98 lbs. (44.5 kg)
• Fabrication: holes required in both door and fixed panel

A 90 Degree Accessory Kit is available separately for use with 90° return panels. Available finishes: polished or brushed stainless steel, matte black, brushed bronze, or satin brass. Works with 3/8" or 5/16" (10 or 8 mm) tempered glass (not included). Glass fabrication is required in both the door and fixed panel.

U-channel or glass clamps for fixed panel must be ordered separately.

Brass Finish Advisory:
