CRL Cavoli Series Matte Black 180° Sliding Door Hardware

• Beautifully enhanced aesthetics with concealed mounting hardware for a frameless look
• System includes one sliding door and one fixed panel (panels reversible for installation)

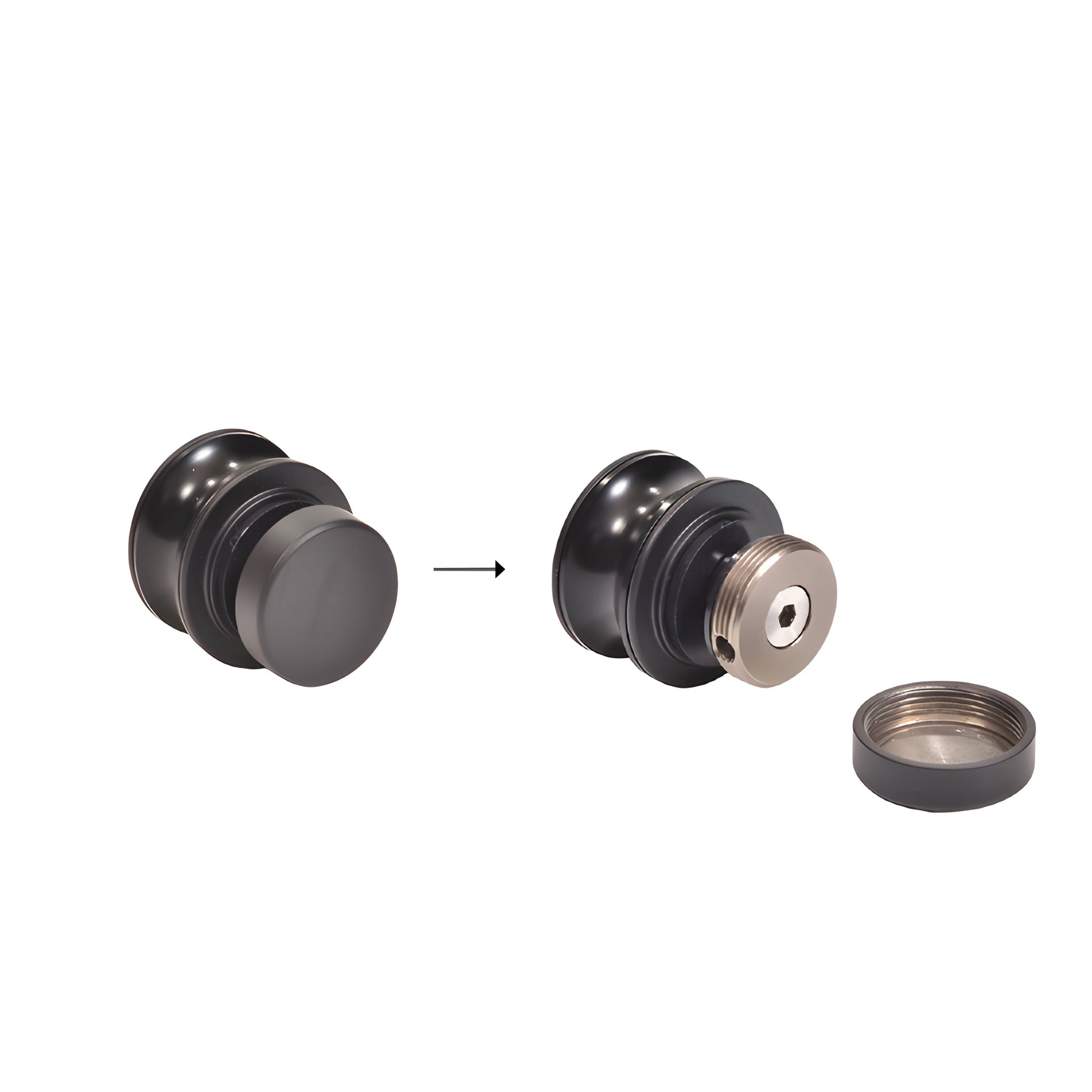

• Specially designed roller bearings for quiet, smooth door movement
• Fits 5/16" to 3/8" (8 to 10 mm) thick tempered safety glass (glass not included)
• U-channel or glass clamps for fixed panel must be ordered separately

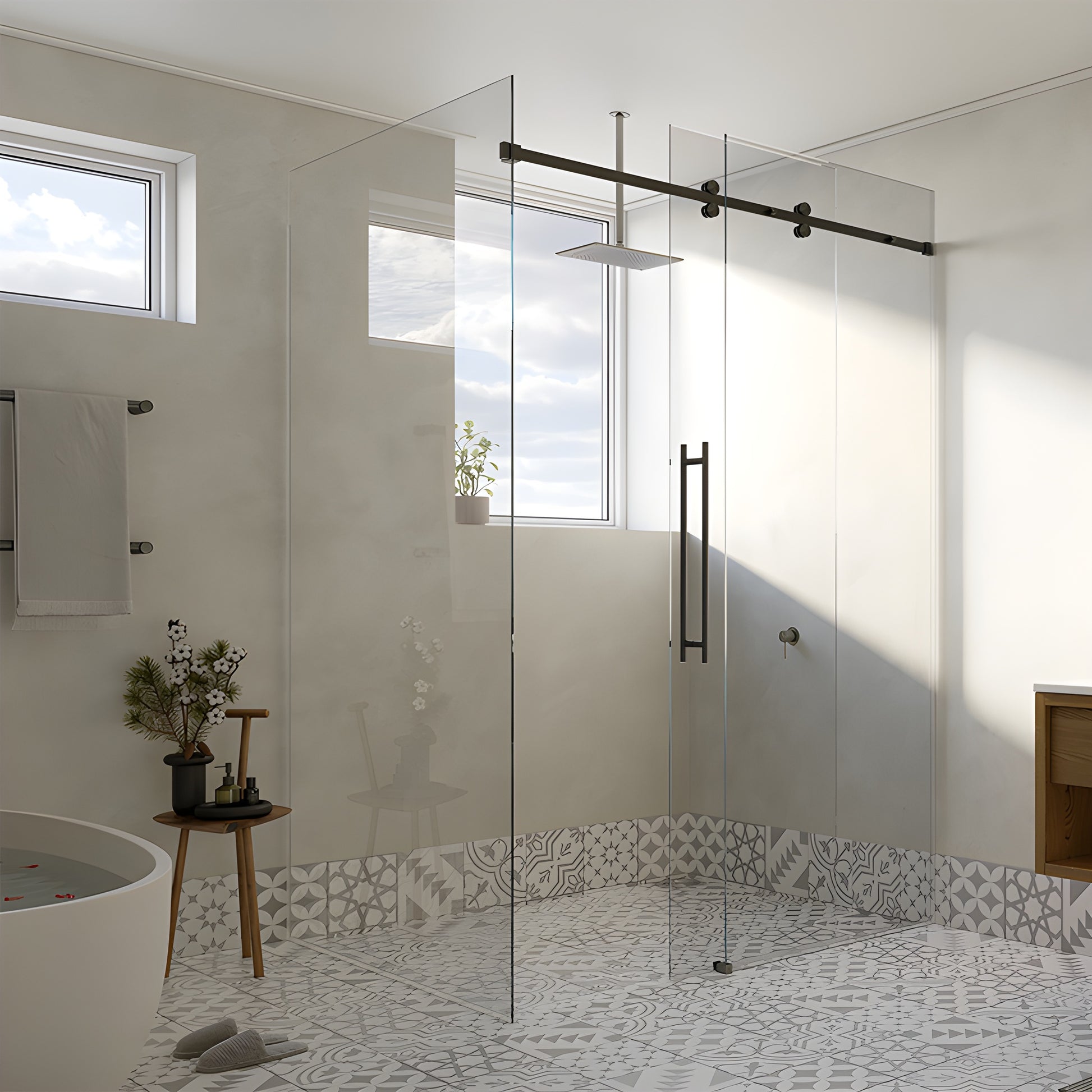

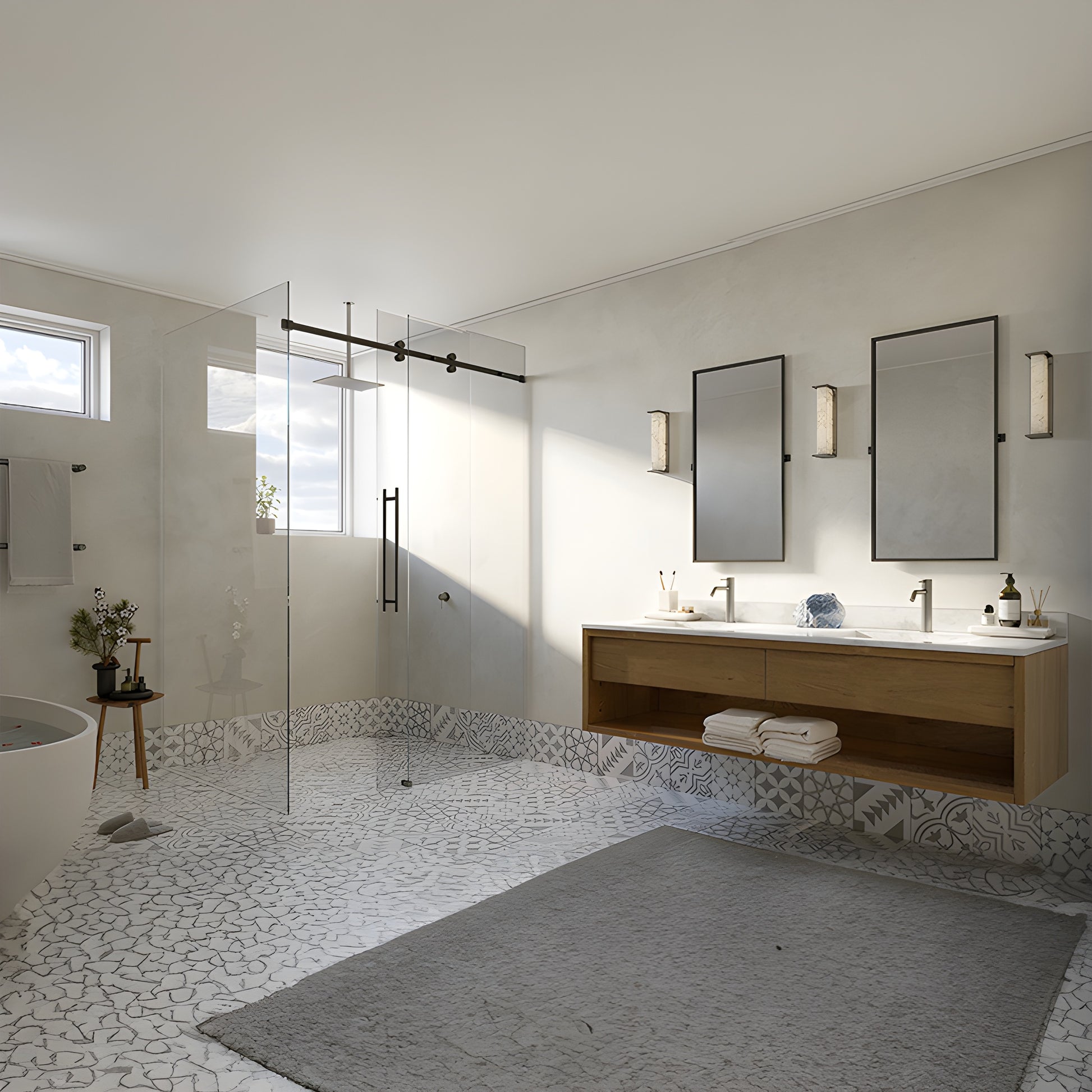

CRL Premium 180 Degree Cavoli Series Sliding System (SKU: CAV78MBL) delivers a minimalist, floating appearance for frameless sliding shower doors and glass enclosures. Concealed hardware and a low-profile header create a modern aesthetic while stainless steel construction and precision rollers ensure long-lasting, quiet operation. Ideal for residential and commercial tempered glass shower projects where a sleek, minimalist look is required.

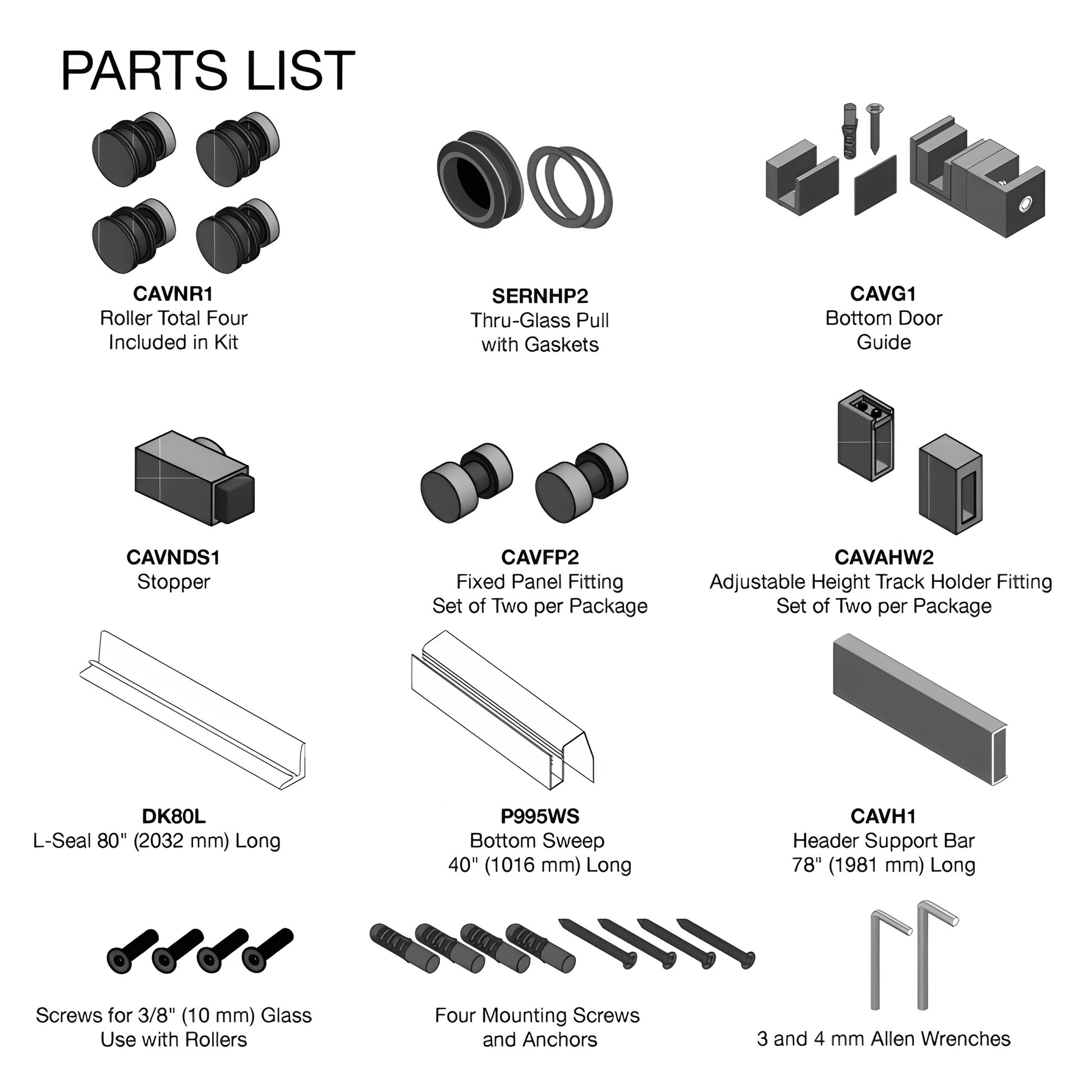

The Deluxe Kit Includes:

• One — 78-3/4" (2 m) length header bar

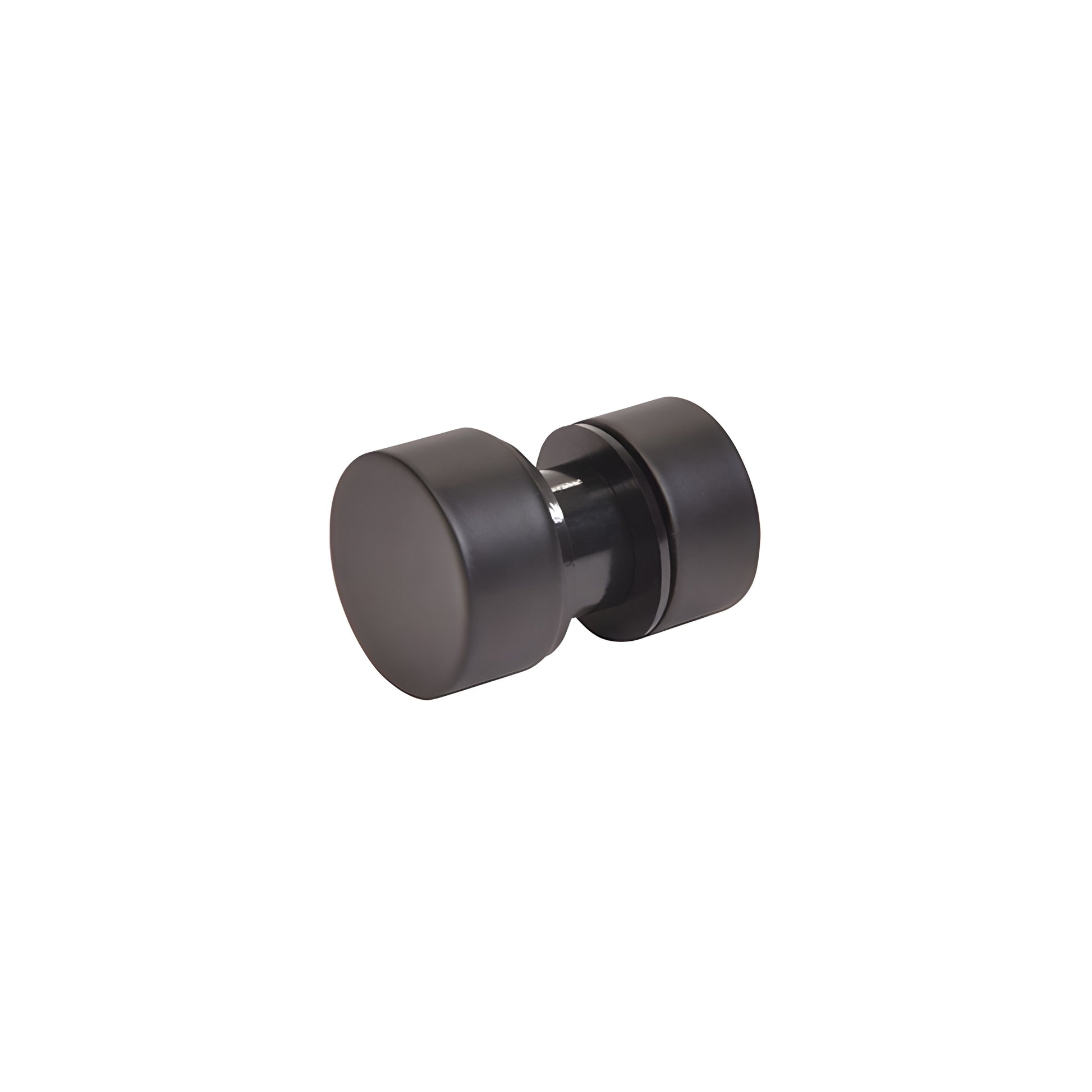

• Four — Rollers

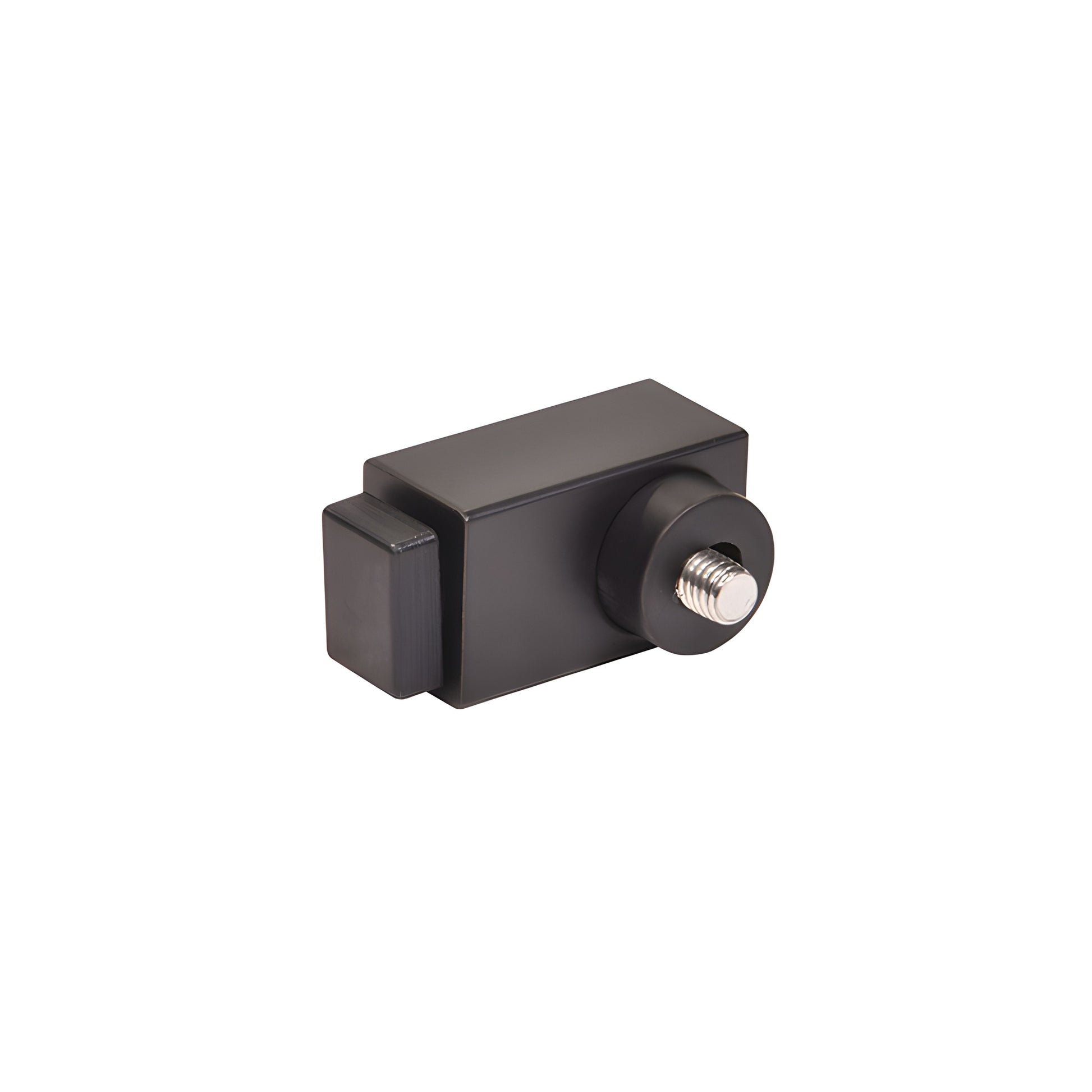

• One — Stopper

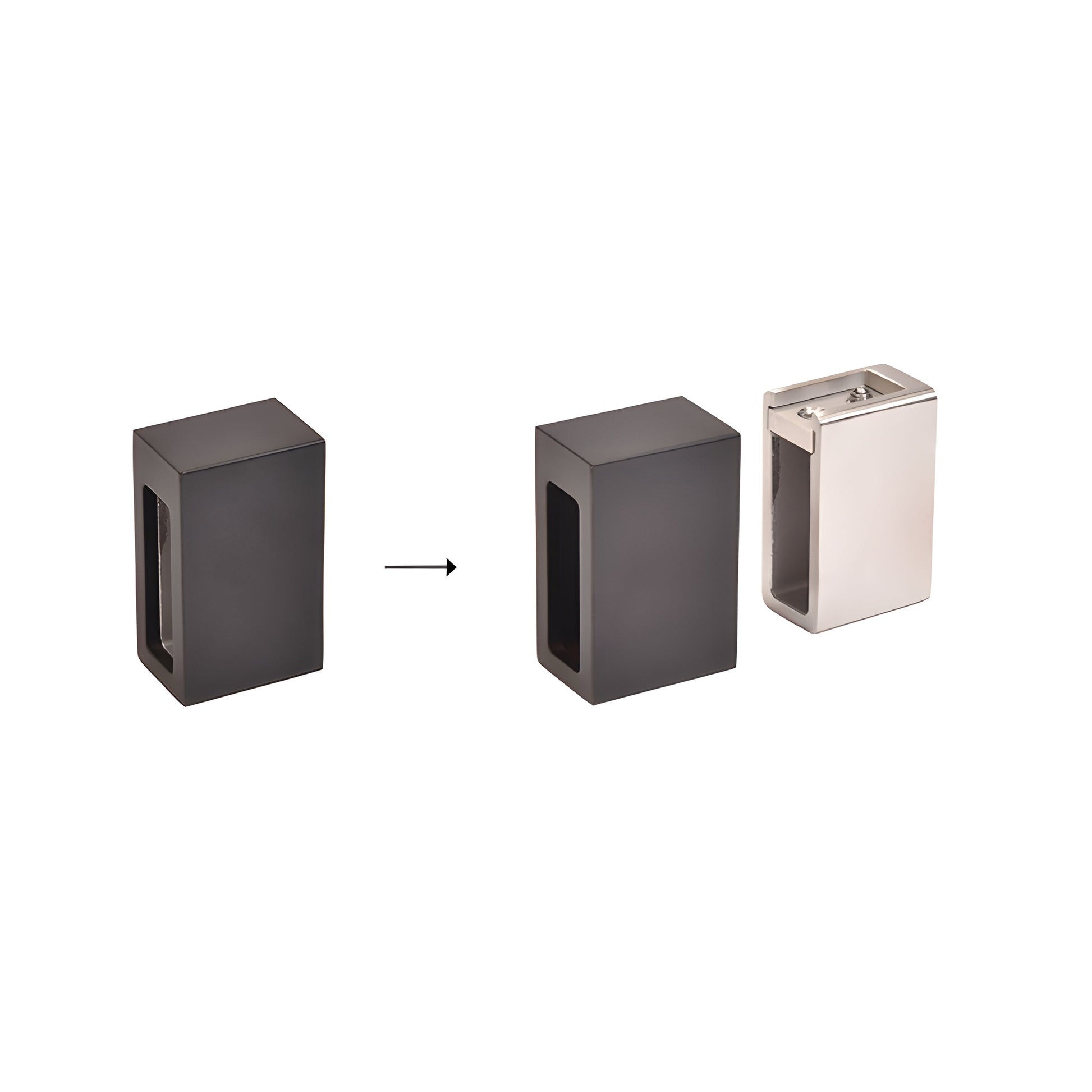

• Two — Track holder fittings for wall
• Two — Track holder fittings for fixed panel

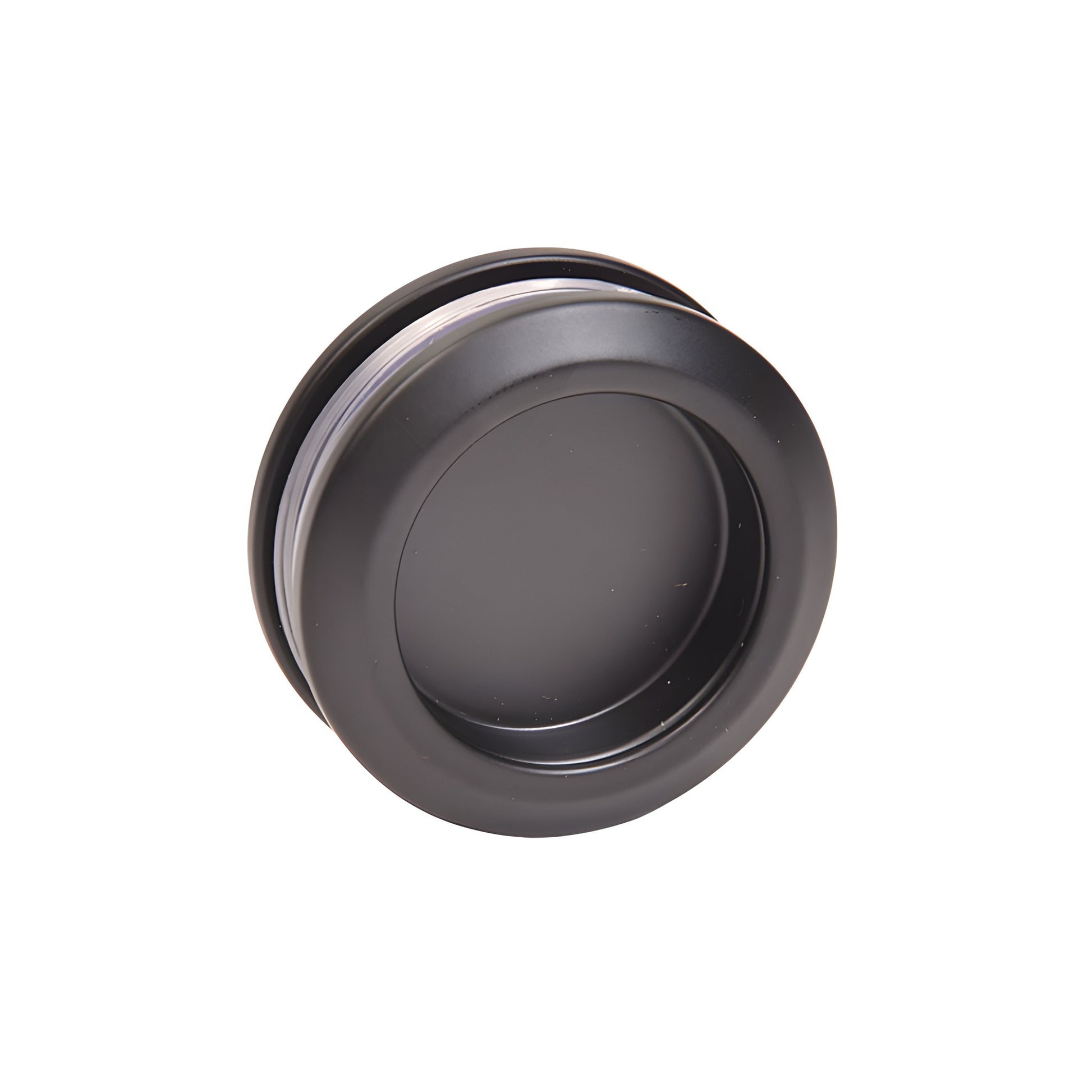

• One — Thru-glass pull

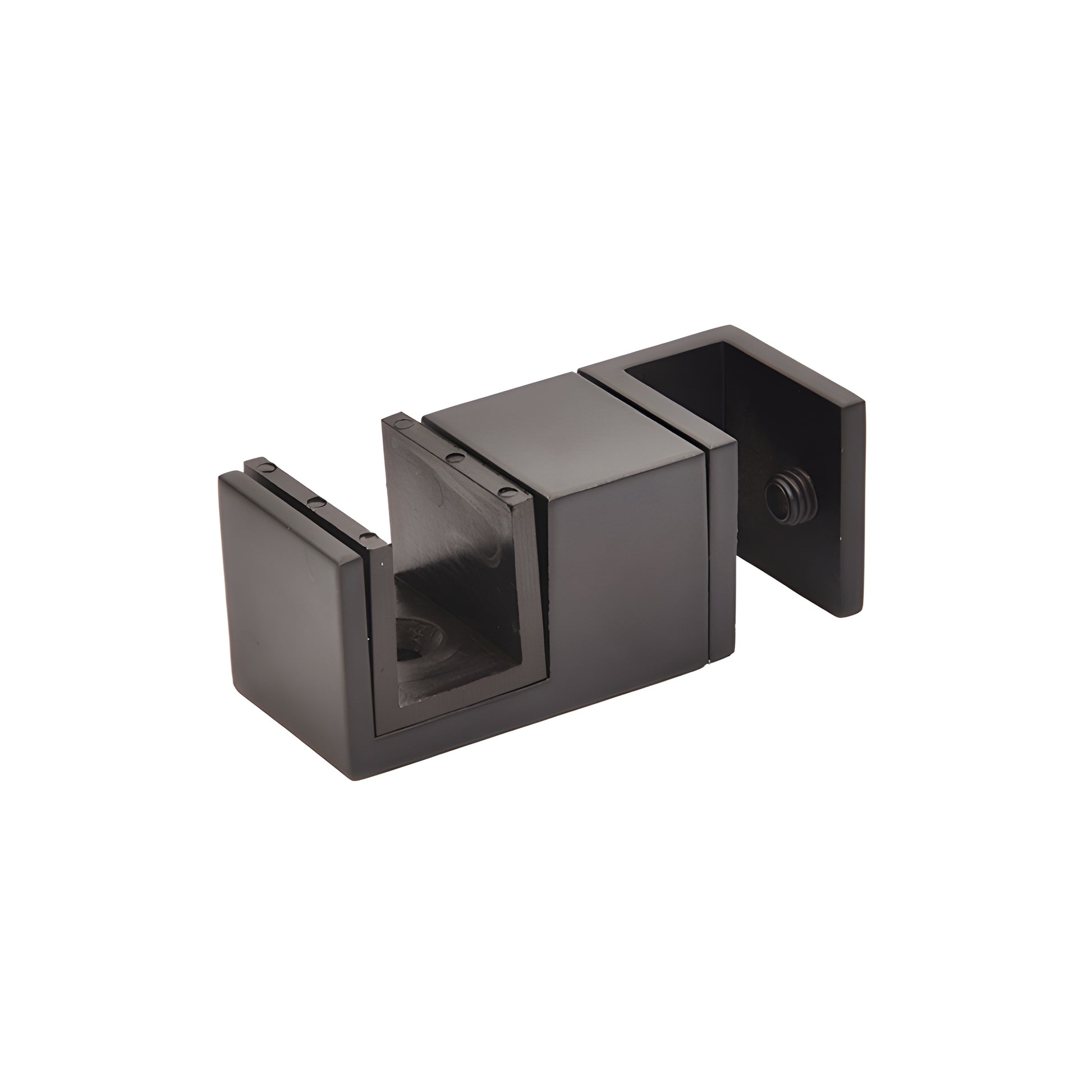

• One — Door guide
• One — 85" (2.16 m) clear L-jamb

SPECIFICATIONS:

• Glass thickness: 5/16" to 3/8" (8–10 mm) tempered safety glass (not included)
• Material: Stainless steel
• Maximum door: Do not exceed 37" (939.9 mm) wide or 98 lb (44.5 kg)
• Fabrication: Holes required in both door and fixed panel

A 90 degree accessory kit is available separately for use with 90° return panels. Finish options include polished or brushed stainless steel, matte black, brushed bronze, or satin brass. Compatible with 3/8" or 5/16" (10 or 8 mm) tempered glass; glass fabrication is required for both door and fixed panel.

Product Warning:
U-channel or glass clamps for fixed panel must be ordered separately.

Order the CRL Premium Cavoli frameless sliding shower door system (SKU: CAV78
