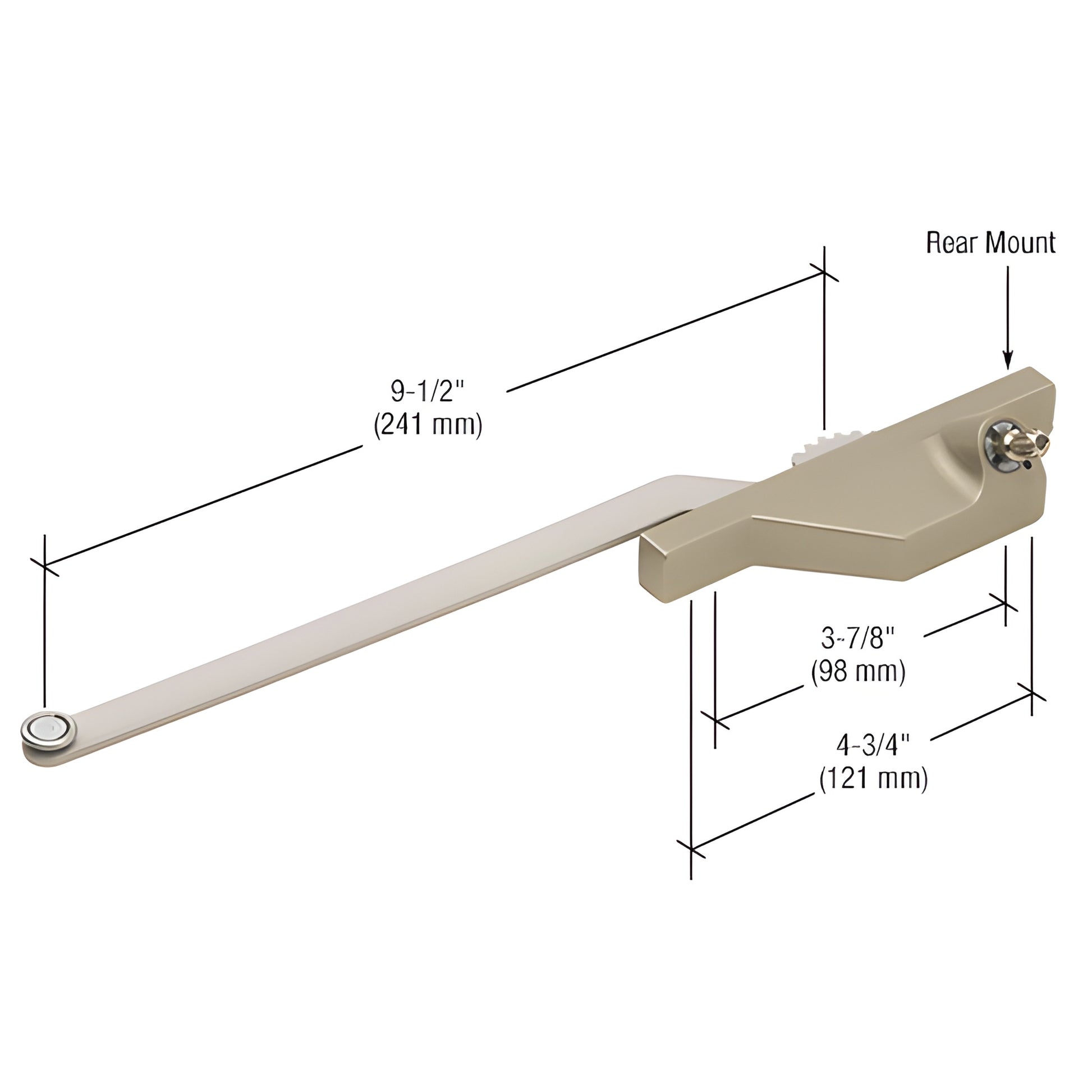

CRL Champagne Right Hand Single Arm Roto Operator
Item # WH30115R
$75.38
CAD
Finish (10)
Overview
| SKU | WH30115R |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Clear Anodized Class 1 |
Description
- Available in Face Mount and Rear Mount
- Single Arm Roto Operator
CRL Face Mount Single Arm Casement Window Operators have a zinc diecast body, and a steel arm with hardened steel gears. The arm has a stainless steel roller button for smooth operation, and will open a sash a full 90 degrees. For replacement Track see Cat. No. EP22825. The crank handle for this operator is sold separately, see Cat. No. WH24515.
Specifications
Brochures & Literature
Installation Instructions
Quote Request Forms
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
- PDFSeries 7200 7300 Outswing Casement NFRC Simulations Report 96062.04-116-45
- PDFAAMA Test Report Expiration Statement
- PDFSeries 7200 7300 Project In Awning NFRC Simulations Report 96068.03-116-45
- PDFSeries 7200 7300 Project Out Awning NFRC Simulations Report 96067.03-116-45
- PDFSeries 7200 AAMA WDMA CSA 101 I.S.2 A440-08 Report CCLI 10-167
- PDFSeries 7200 ASTM E 90 Sound Transmission Loss Test Report
- PDFSeries 7200 Casement Out-Swing Window - AAMA WDMA CSA 101 I.S.2 A440-08 Report CCLI-10-168
- PDFSeries 7200 PI - AAMA Class CW-PG 75-AP 60 X 32 - E0631.01-301-47-R0
- PDFSeries 7200 PO - AAMA Class CW-PG 75-AP 60 X 32 - E0632.01-301-47-R0
- PDFSeries 7200 Project-out Bottom NFRC Simulations Report 85597.01-116-45
Glazing Charts
Numbering Keys
