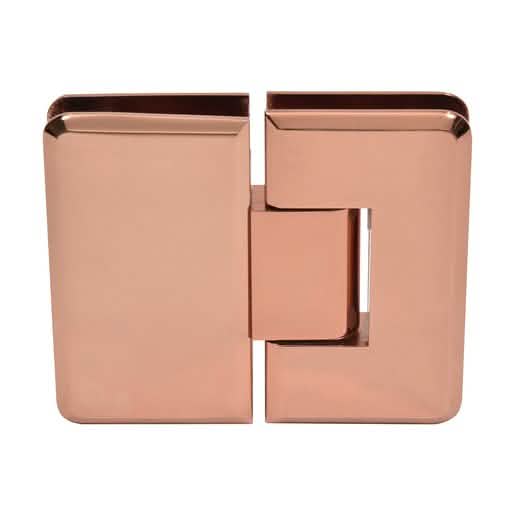

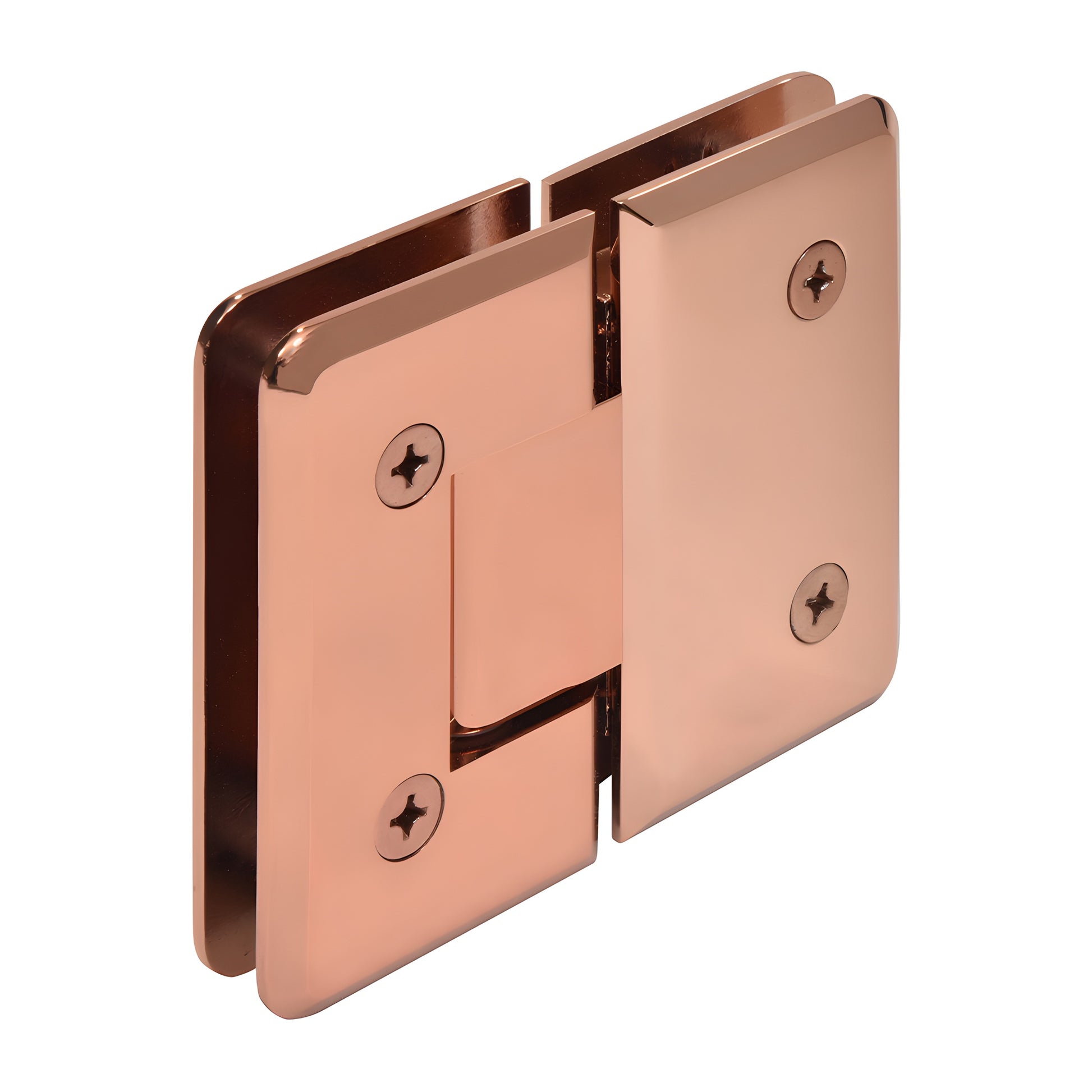

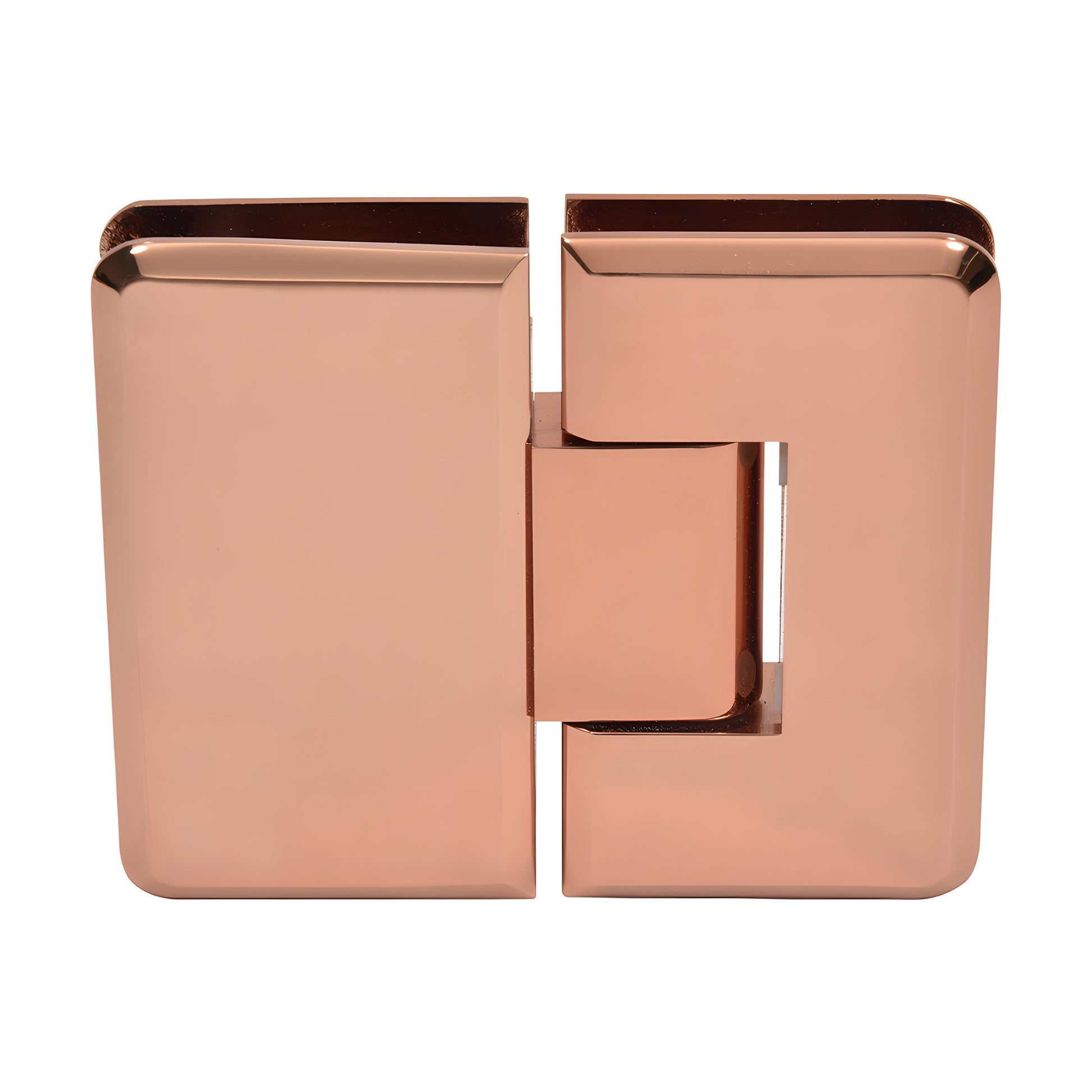

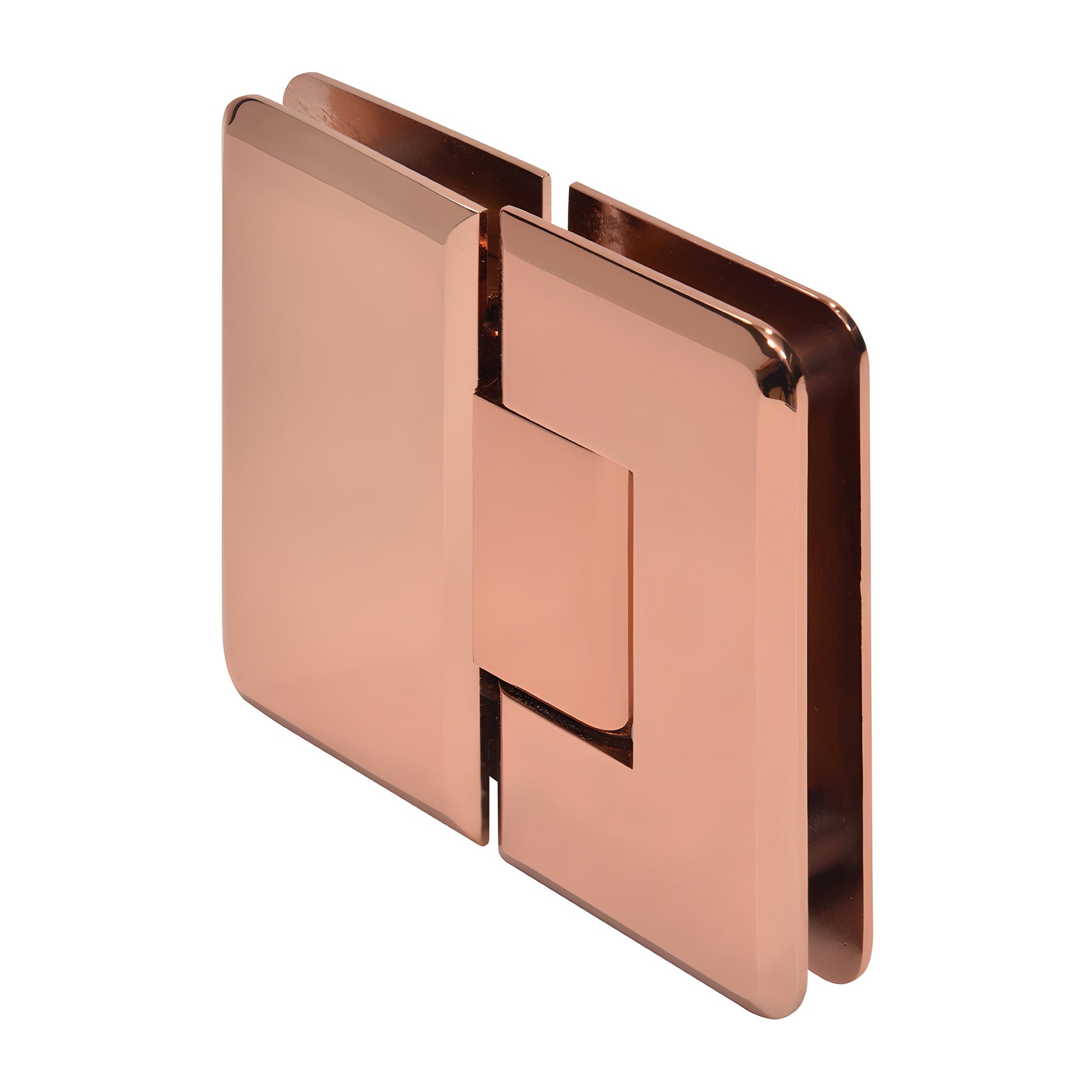

CRL Rose Gold Cologne 180° Frameless Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several beautiful finishes, including custom finishes on request
• 180º glass-to-glass hinge — ideal for frameless shower doors
• Use monolithic tempered safety glass

CRL Cologne Hinges are a radius‑corner, beveled‑edge alternative to Vienna hinges, delivering a sleek appearance and superior strength for wider, heavier frameless shower doors. Built from solid brass with two internal steel pins, the design offers mounting flexibility: leave the pins in for CRL "mouse‑ears" cut‑outs or remove them for rectangular, square‑corner cut‑outs (may also fit some competitive cut‑outs). Cologne Hinges are engineered for reliable performance in glass shower door installations requiring robust, decorative hardware.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90º and 85º markings. Standard models ship set to 90º. Rotate the pin to engage the 85º side for a 5º tighter closure into the shower interior. Pre‑set models arrive configured to 85º.

CUSTOM PIVOT PIN: Custom pivot pins are available for off‑angle walls (specify up to 45º) to achieve precise door closing when a standard 5º option is insufficient.

Load Capacity:

• Two hinges (3/8"–1/2" glass): holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).
• Three hinges (3/8"–1/2" glass): holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

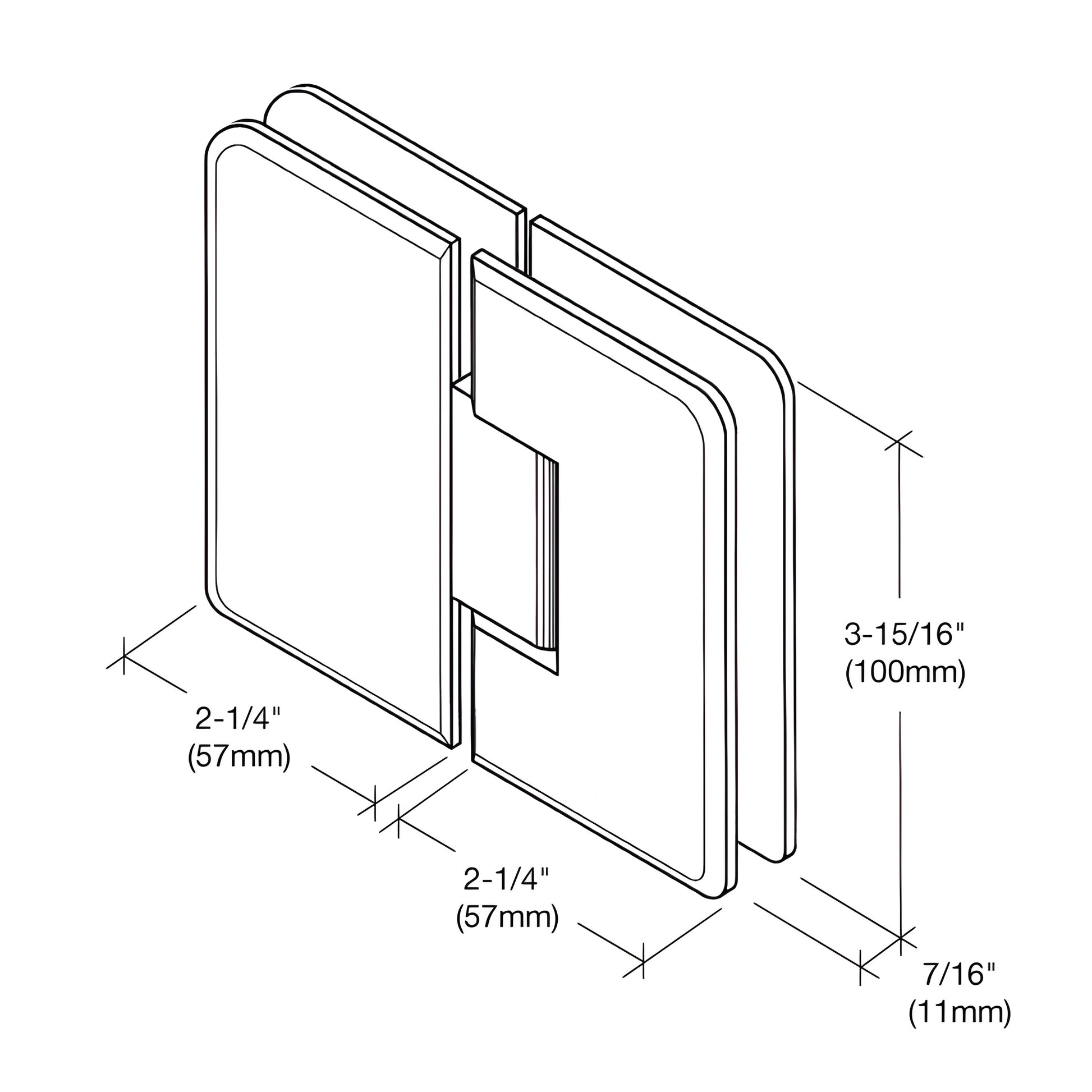

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and longevity
Hinge Swings: 90º in and 90º out (180º total) — perfect for 180-degree glass-to-glass frameless shower doors
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Standard cut-out required (except C0L092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and specialized pivot pins available—contact CRL Technical Sales for details.

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use
