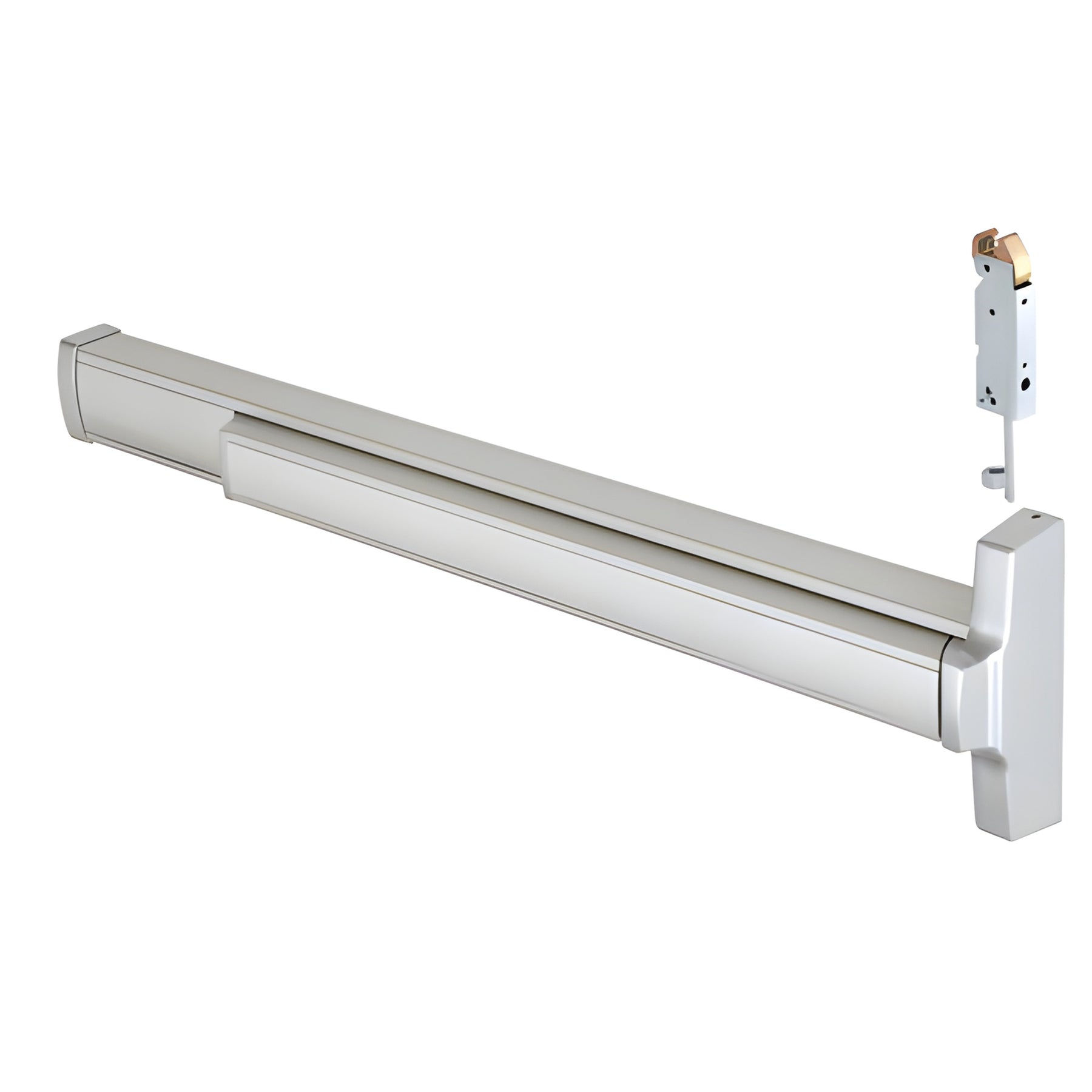

CRL Satin Aluminum 36" Jackson® 2085 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Item# 312085R37628
Shipping Weight: 11.75 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.75 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Certification
ANSI/BHMA 156.3, Grade1
Door Width
36 in. (914.4 mm)
Finish/Color
Satin Aluminum
Handing
Right Hand Reverse Bevel
Panic Bar Width Net
34-1/2 in. (876.3 mm)
Series
Jackson 2085 Concealed Vertical Rod Panics
Size
36
Type
Concealed Vertical Rod
- Designed for use with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors
- Concealed fastening for added security
- Complies with ANSI 156.3, Grade 1 specifications
- Can be cut to size; field sizeable to fit wider openings
- Standard for 36" (914 mm) wide door — field sizable up to 48" (1.22 m)
- Concealed, easy-to-use dogging system; optional cylinder dogging available
- Wear points insulated by nylon sleeves and rollers for long life
- Positive locking, spring-loaded top latch
- Standard height 84" (2.13 m)
- Requires mortise cylinder and Series 30821J mounting pad for keyed entry
