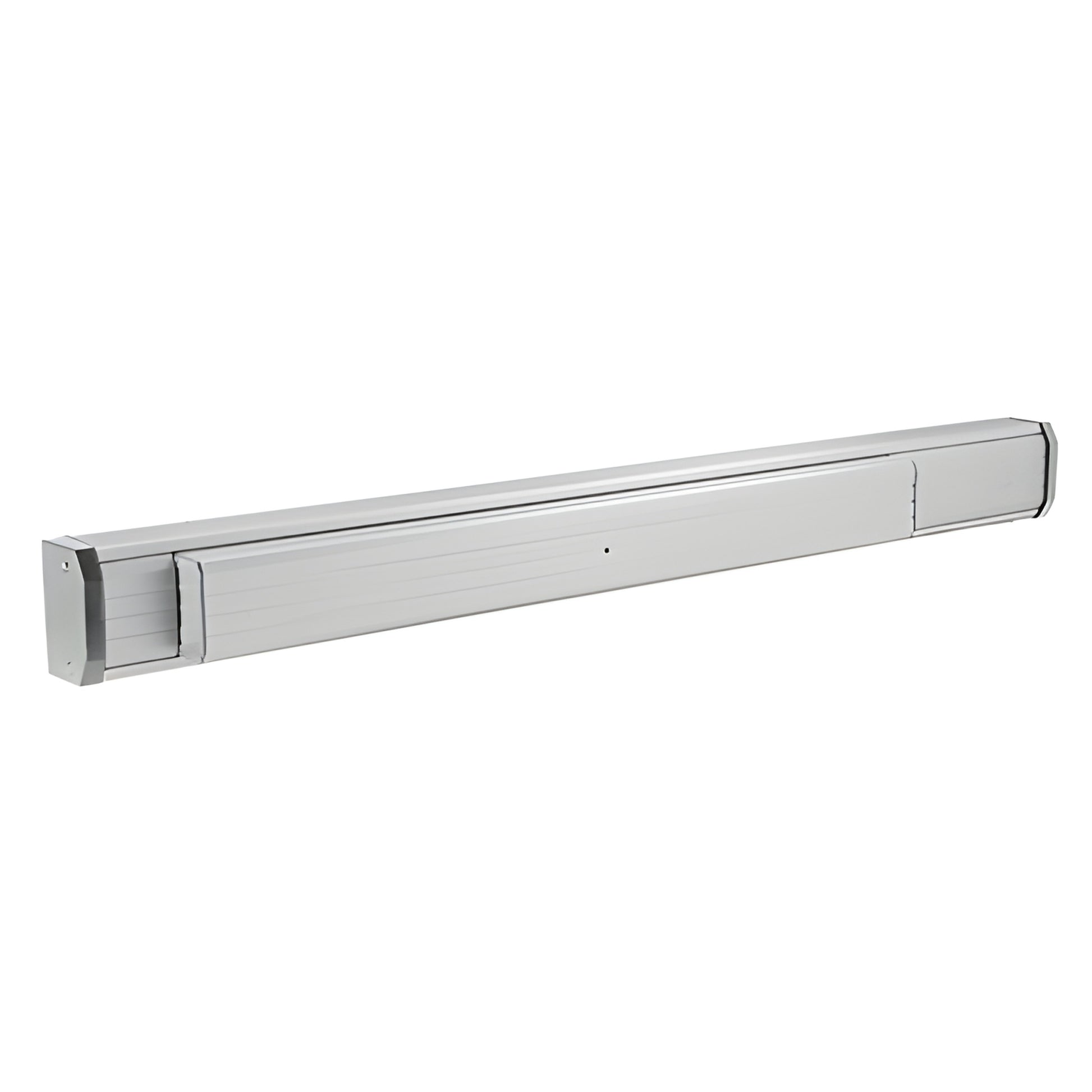

CRL Satin Aluminum 36" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device
CRL Satin Aluminum 36" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device
Regular price
$480.57 CAD
Regular price
Sale price
$480.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311285L37628
Shipping Weight: 6.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 6.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 36 in. | (914.4 mm) |
| Finish/Color | Aluminum |
| Handing | Left Hand Reverse Bevel (LHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 34-1/2 in. | (876.3 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Concealed Vertical Rods |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J628 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Exit Device seamlessly combines the trusted reliability of the 10 Series Crossbar Device with the modern aesthetics of a push-pad exit device, making it ideal for 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.
This versatile exit device is available in Rim, Concealed, and Surface Vertical Rod versions and can be cut to size for a perfect fit.
With features like the "Soft-Touch" smooth action push-pad, standard hex key dogging, and optional keyed cylinder dogging, this exit device ensures ease of use and security.
Additionally, active outside trim and various panic accessories are available to enhance functionality.
Ideal for doors up to 84" (2.13 m) tall, the device can also be extended for taller doors, making it a flexible solution for a wide range of applications.
This versatile exit device is available in Rim, Concealed, and Surface Vertical Rod versions and can be cut to size for a perfect fit.
With features like the "Soft-Touch" smooth action push-pad, standard hex key dogging, and optional keyed cylinder dogging, this exit device ensures ease of use and security.
Additionally, active outside trim and various panic accessories are available to enhance functionality.
Ideal for doors up to 84" (2.13 m) tall, the device can also be extended for taller doors, making it a flexible solution for a wide range of applications.
Specifications
CAD Drawings - pdf
