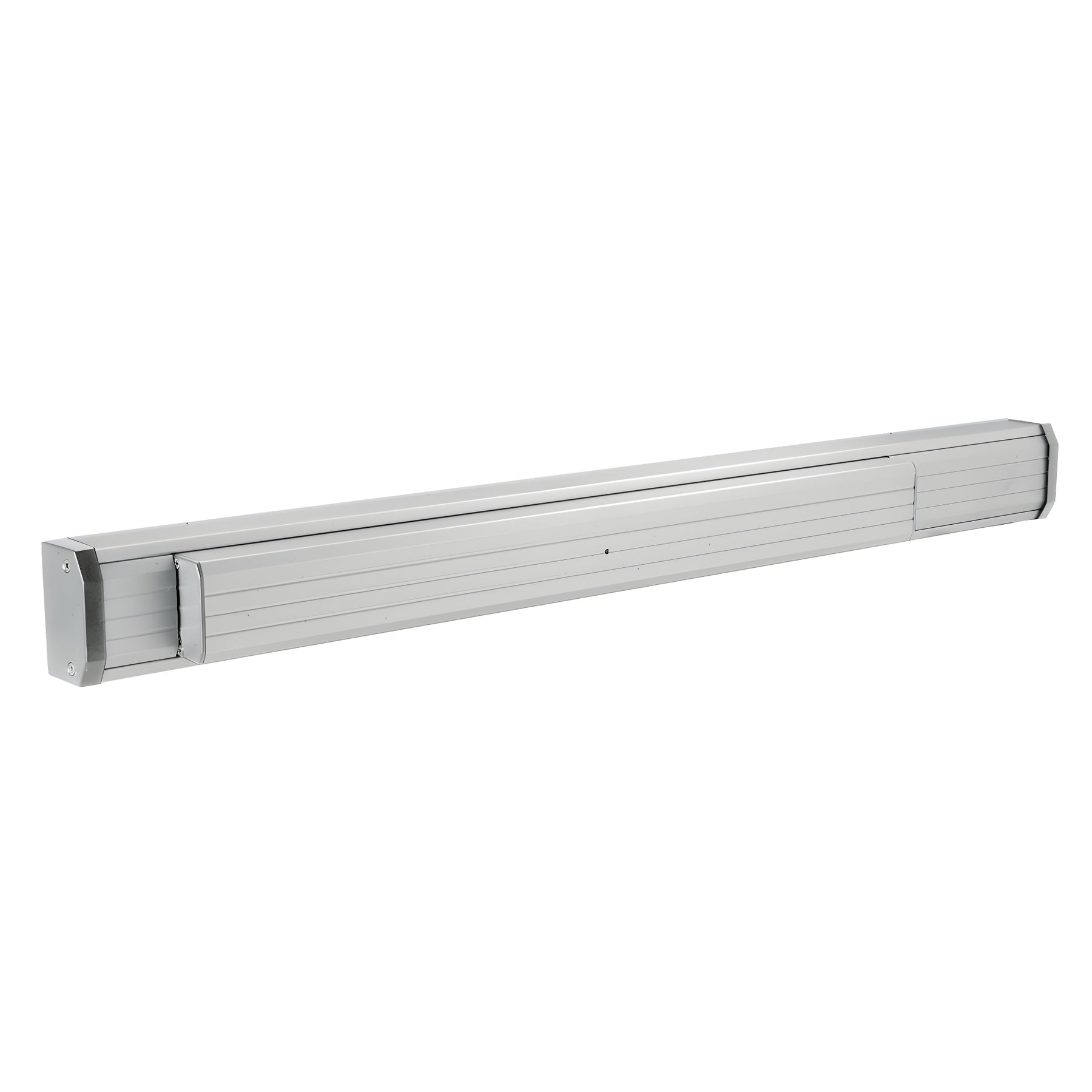

CRL Satin Aluminum 36" Jackson® 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device
Item # 311285L37628
$389.37
CAD
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 311285L37628 |
|---|---|
| Sold As | 1 Each |
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Height | 84 in. (2133.6 mm) |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Door Width | 36 in. (914.4 mm) |
| Finish/Color | Aluminum |
| Handing | Left Hand Reverse Bevel (LHR) |
| Includes | Mounting Hardware |
| Material - End Cap | Aluminum |
| Material - Housing | Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height | 3-3/16 in. (81 mm) |
| Panic Bar Projection | 2-7/8 in. (73 mm) |
| Panic Bar Width Net | 34-1/2 in. (876.3 mm) |
| Panic Dogging | Standard Hex Key Dogging |
| Panic Type | Concealed Vertical Rods |
| Push Pad Width | 24 in. (609.6 mm) |
| Recommended Door Type | Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J628 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| UL Listed | Yes |
Description
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning:
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
