CRL Satin Aluminum 48" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device with 7' Rod and Case
CRL Satin Aluminum 48" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device with 7' Rod and Case
Regular price
$648.24 CAD
Regular price
Sale price
$648.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311285L4628
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Left Hand Reverse Bevel (LHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Concealed Vertical Rods |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J628 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview

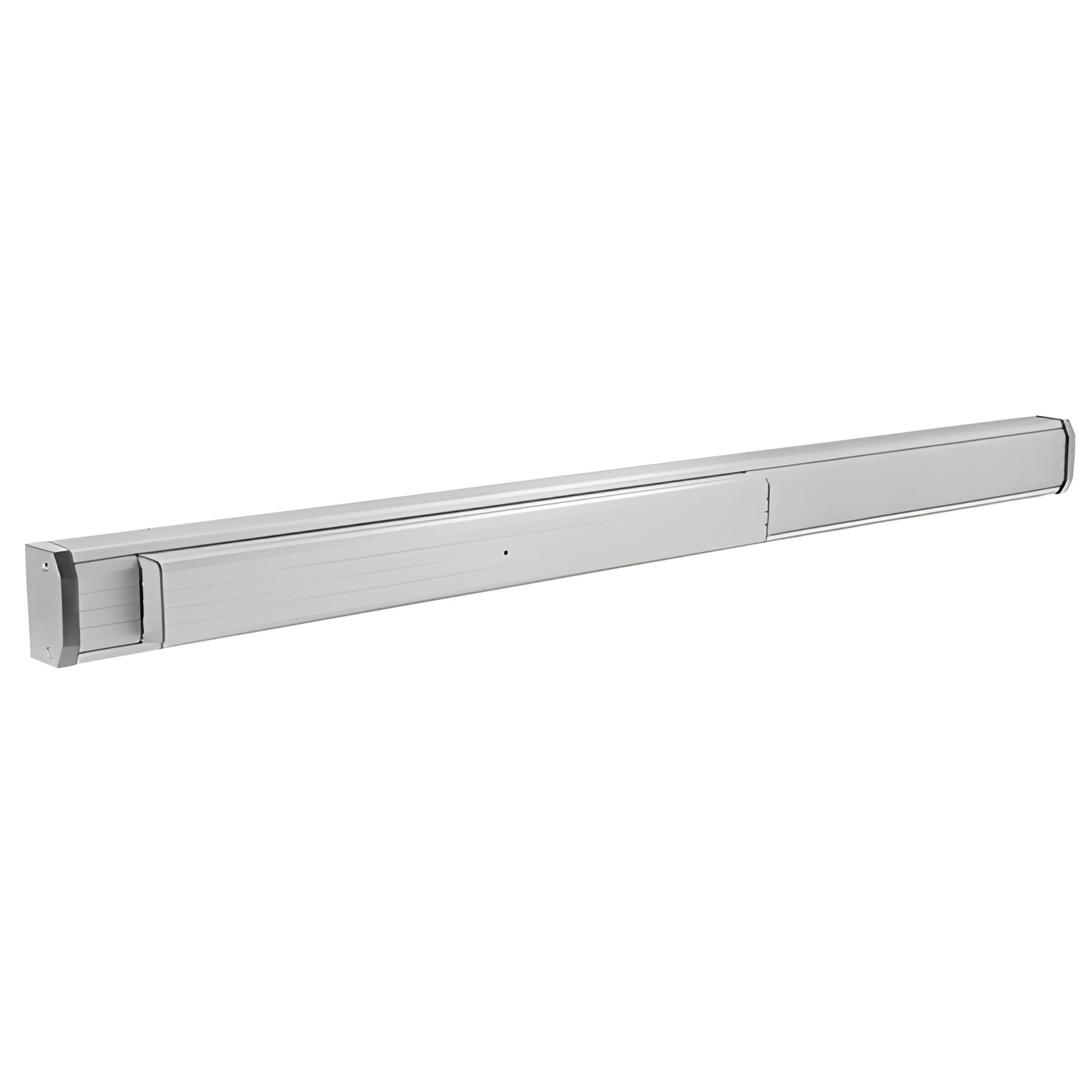

The CRL JacksonĀ® Concealed Vertical Rod Panic Exit Device is a versatile solution for 1-3/4" (44 mm) narrow stile aluminum doors and is also compatible with medium and wide stile aluminum and hollow metal doors.
Designed for standard 48" (1.22 m) openings, it can be trimmed to fit narrower door conditions, making it ideal for various applications.
This device features a soft-touch smooth action push-pad and includes standard hex key dogging for secure operation.
Perfect for commercial and residential projects, it offers a trigger action locking release with a top and bottom bolt throw of 5/8" (16 mm).
With extruded aluminum base and push-pad and stainless steel mechanical components, this panic exit device ensures durability and high performance.
Designed for standard 48" (1.22 m) openings, it can be trimmed to fit narrower door conditions, making it ideal for various applications.
This device features a soft-touch smooth action push-pad and includes standard hex key dogging for secure operation.
Perfect for commercial and residential projects, it offers a trigger action locking release with a top and bottom bolt throw of 5/8" (16 mm).
With extruded aluminum base and push-pad and stainless steel mechanical components, this panic exit device ensures durability and high performance.
