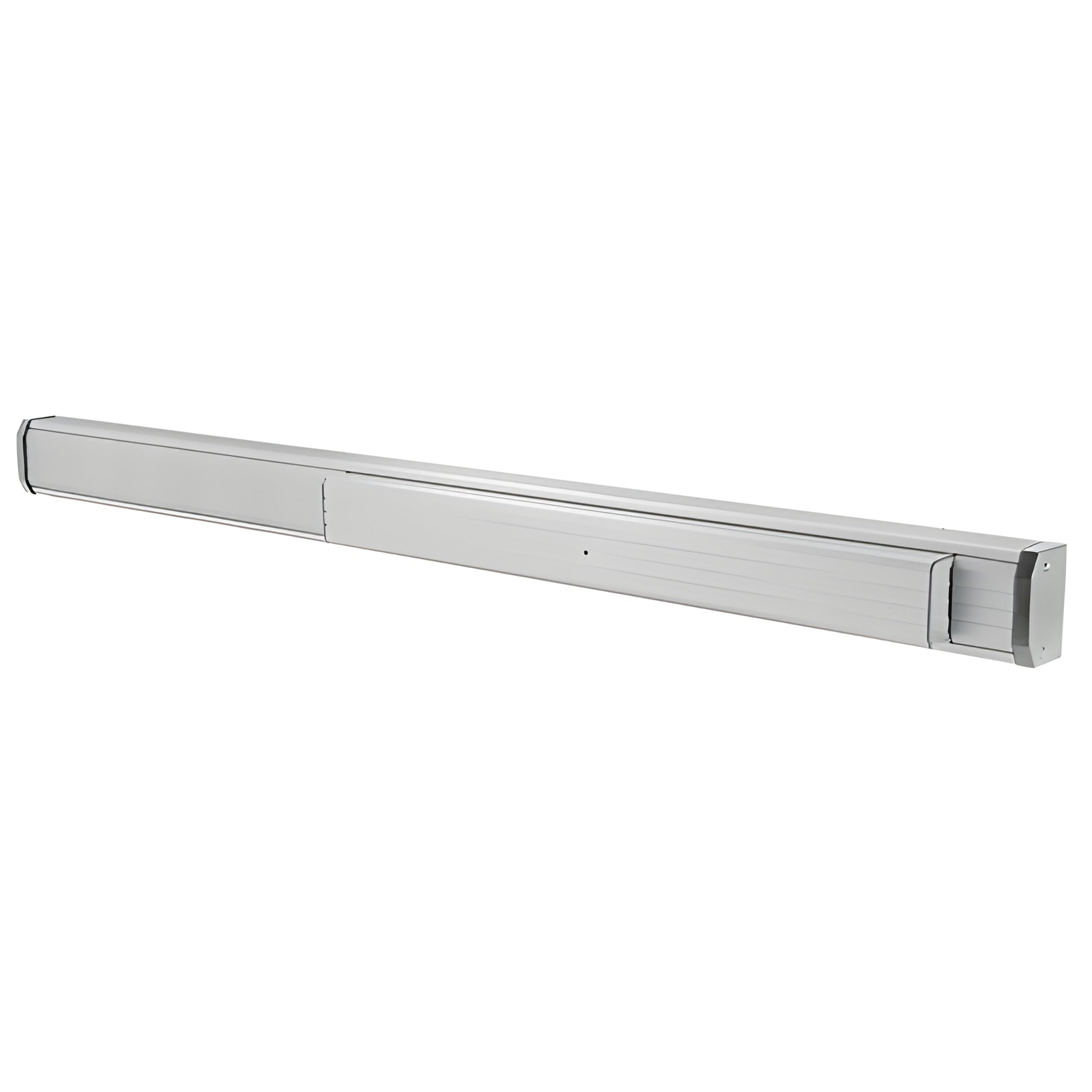

CRL Satin Aluminum 48" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
CRL Satin Aluminum 48" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Regular price
$648.24 CAD
Regular price
Sale price
$648.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311285R4628
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Concealed Vertical Rods |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J628 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Concealed Vertical Rod Panic Exit Device is a contemporary solution designed for 1-3/4" (44 mm) narrow stile aluminum doors, as well as medium and wide stile aluminum and hollow metal doors.
This sleek device features a soft-touch smooth action push-pad and can be cut to size for flexibility, making it perfect for standard 48" (1.22 m) openings.
With trigger action locking release and a robust 5/8" (16 mm) top and bottom bolt throw, it ensures reliable safety and performance.
Available in both 36" and 48" (914 mm and 1.22 m) widths, it offers versatility for various door configurations.
This sleek device features a soft-touch smooth action push-pad and can be cut to size for flexibility, making it perfect for standard 48" (1.22 m) openings.
With trigger action locking release and a robust 5/8" (16 mm) top and bottom bolt throw, it ensures reliable safety and performance.
Available in both 36" and 48" (914 mm and 1.22 m) widths, it offers versatility for various door configurations.
