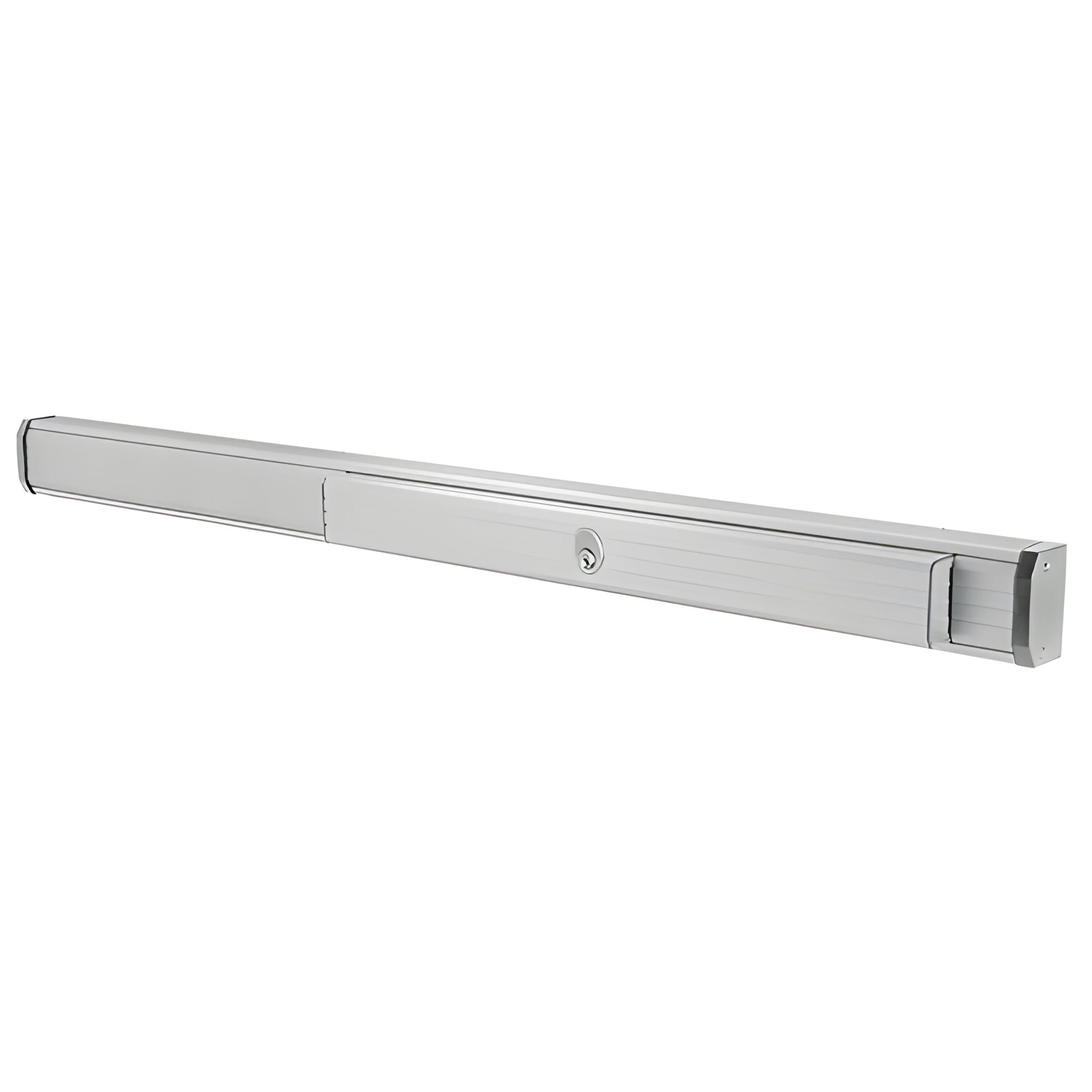

CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
Regular price
$694.32 CAD
Regular price
Sale price
$694.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311285CR4628
Shipping Weight: 10.175 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 10.175 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Prepped For Cylinder Dogging |
| Panic | Type Concealed Vertical Rods |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview
The CRL Jackson® Concealed Vertical Rod Panic Exit Device is an ideal choice for narrow, medium, and wide stile doors, offering a sleek and contemporary design.
This panic exit hardware is UL listed, ensuring safety and reliability for 1-3/4" (44 mm) narrow stile aluminum doors, as well as medium and wide stile aluminum and hollow metal doors.
It accommodates 48" standard openings and can be trimmed for narrower conditions, featuring a trigger action locking release with a 5/8" (16 mm) top and bottom bolt throw for secure closure.
For replacement parts, options include DC7205SCKADU, DC7205SCKDDU, 1CHDU, 1C01, 302630313, 302861, and 30821J313.
Please note that shipping weights are approximate; contact CRL Customer Service for precise shipping costs before placing your order.
This panic exit hardware is UL listed, ensuring safety and reliability for 1-3/4" (44 mm) narrow stile aluminum doors, as well as medium and wide stile aluminum and hollow metal doors.
It accommodates 48" standard openings and can be trimmed for narrower conditions, featuring a trigger action locking release with a 5/8" (16 mm) top and bottom bolt throw for secure closure.
For replacement parts, options include DC7205SCKADU, DC7205SCKDDU, 1CHDU, 1C01, 302630313, 302861, and 30821J313.
Please note that shipping weights are approximate; contact CRL Customer Service for precise shipping costs before placing your order.
