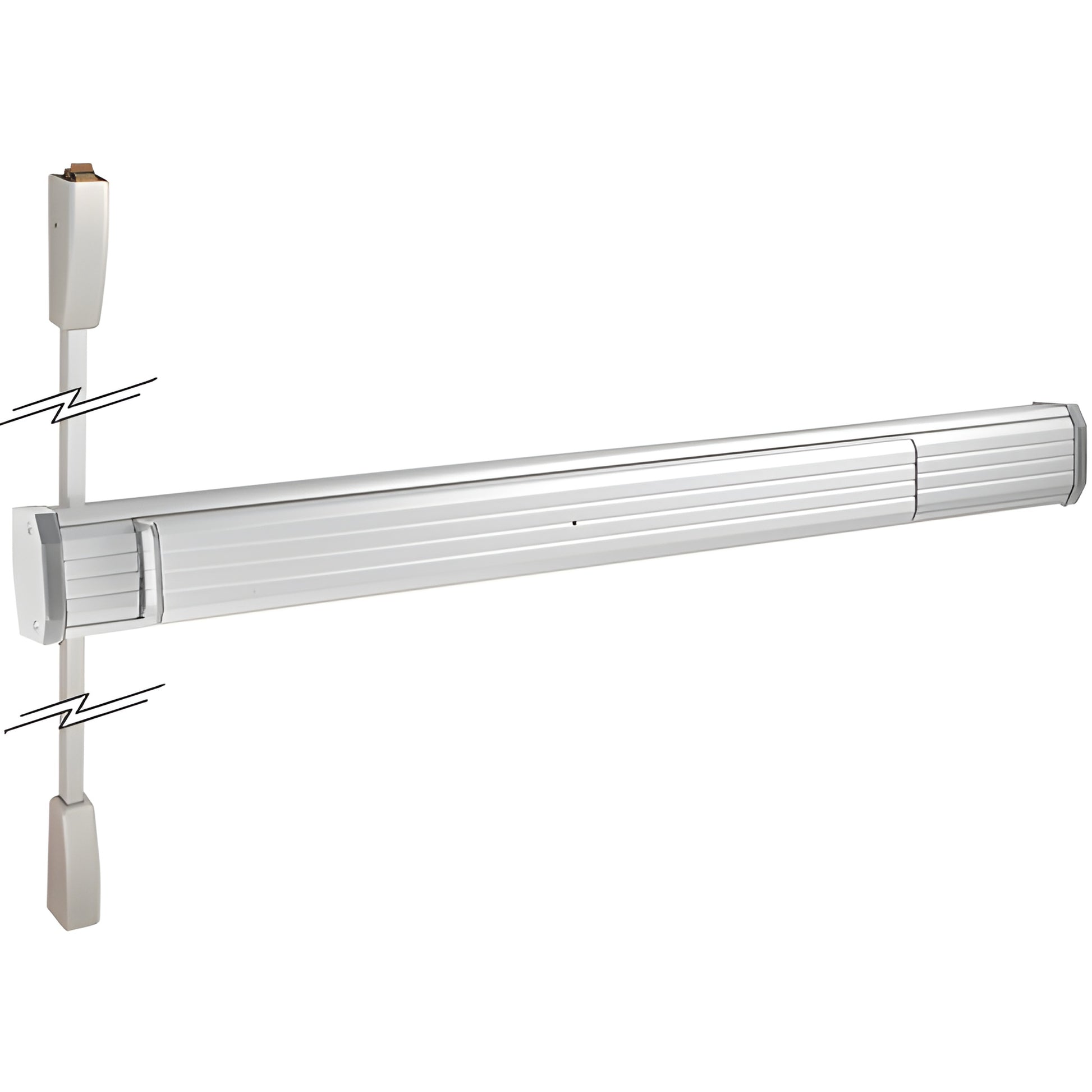

CRL Satin Aluminum 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device
CRL Satin Aluminum 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device
Regular price
$1,181.26 CAD
Regular price
Sale price
$1,181.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 31127548628
Shipping Weight: 11.8 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 11.8 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 96 in. | (2438.4 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing High Tensile Strength Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1275 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Surface Vertical Rod |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal |
| Replacement Parts | 302861 |
| Series | 1200 |
| Similar | 3327AE03626, 3327AE04626, 360L626 |
| U | L Listed Yes |
Overview
The CRL Jackson® Surface Vertical Rod Panic Exit Device is expertly designed for use with 1-3/4" narrow stile aluminum doors, as well as medium and wide stile aluminum and hollow metal doors, making it a versatile choice for various door types.
This device features a "Soft-Touch" smooth action push-pad for effortless operation and can be cut to size for customized installation.
With its standard hex key dogging and specially engineered Jackson® 'C' Top Latch, this panic exit device ensures enhanced security.
Suitable for doors up to 48" wide and 84" tall, the device's overall projection is less than 3" from the surface, offering a sleek and contemporary look.
This device features a "Soft-Touch" smooth action push-pad for effortless operation and can be cut to size for customized installation.
With its standard hex key dogging and specially engineered Jackson® 'C' Top Latch, this panic exit device ensures enhanced security.
Suitable for doors up to 48" wide and 84" tall, the device's overall projection is less than 3" from the surface, offering a sleek and contemporary look.
