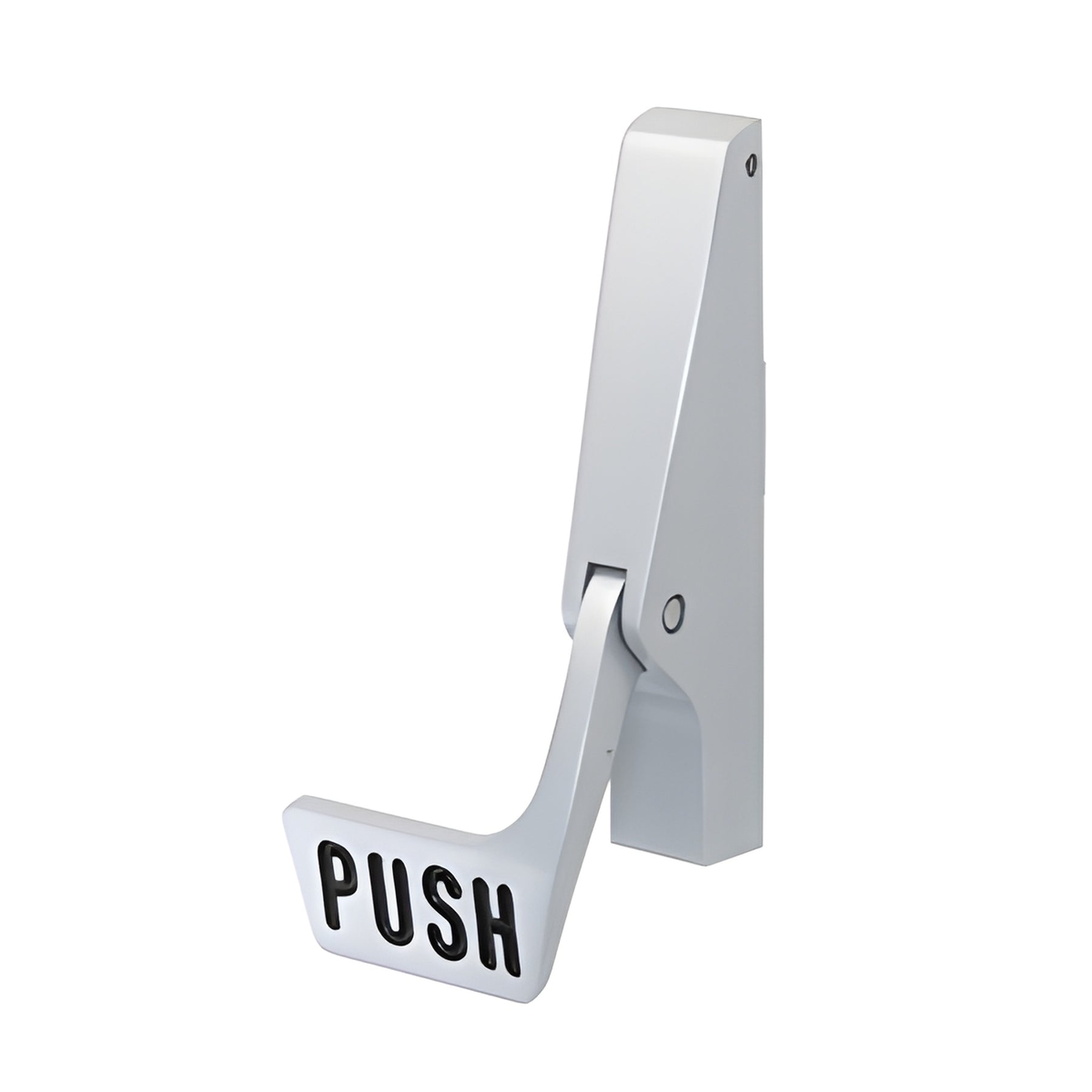

CRL Satin Aluminum Jackson® 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
Item # 311085PR7628
$364.73
CAD
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 311085PR7628 |
|---|---|
| Sold As | 1 Each |
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Height | 84 in. (2133.6 mm) |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material - Housing | Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1085 Paddle |
| Paddle Push Width | 3-3/8 in. (85.7 mm) |
| Panic Bar Projection | 4-5/8 in. (117.5 mm) |
| Panic Dogging | Screw Driver |
| Panic Head Base Width | 1-1/4 in. (31.8 mm) |
| Panic Head Height | 7-5/16 in. (185.7 mm) |
| Panic Type | Concealed Vertical Rods (Paddle) |
| Recommended Door Type | Narrow, Medium, Wide Stile, Aluminum, Hollow Metal |
| Replacement Parts | 30115, 301117628, 301117628, 301347, 301348, 30934628, 30320628, DL2170SCKDA, DL2070SCKAA |
| Series | 10 |
| UL Listed | Yes |
Description
- Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
1085 Concealed Vertical Rod Device
Mounting Pad for Keyed Entry
MATERIALS:
