CRL Satin Anodized 1/2" Glass 4" Square Door Rail With Lock - 41" Length
CRL Satin Anodized 1/2" Glass 4" Square Door Rail With Lock - 41" Length
Regular price
$703.28 CAD
Regular price
Sale price
$703.28 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CDR4SSA12SL
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Cylinder | Hole Prep Both Sides |
| Finish/Color | Satin Anodized |
| Glazing Thickness | 1/2 in. (12 mm) |
| Includes | Lock Yes |
| Length 41 in. | (1041 mm) |
| Material | Aluminum |
| Nominal Height 4 in. | (102 mm) |
| Profile | Square |
| Width 1-7/8 in. | (48 mm) |
Overview

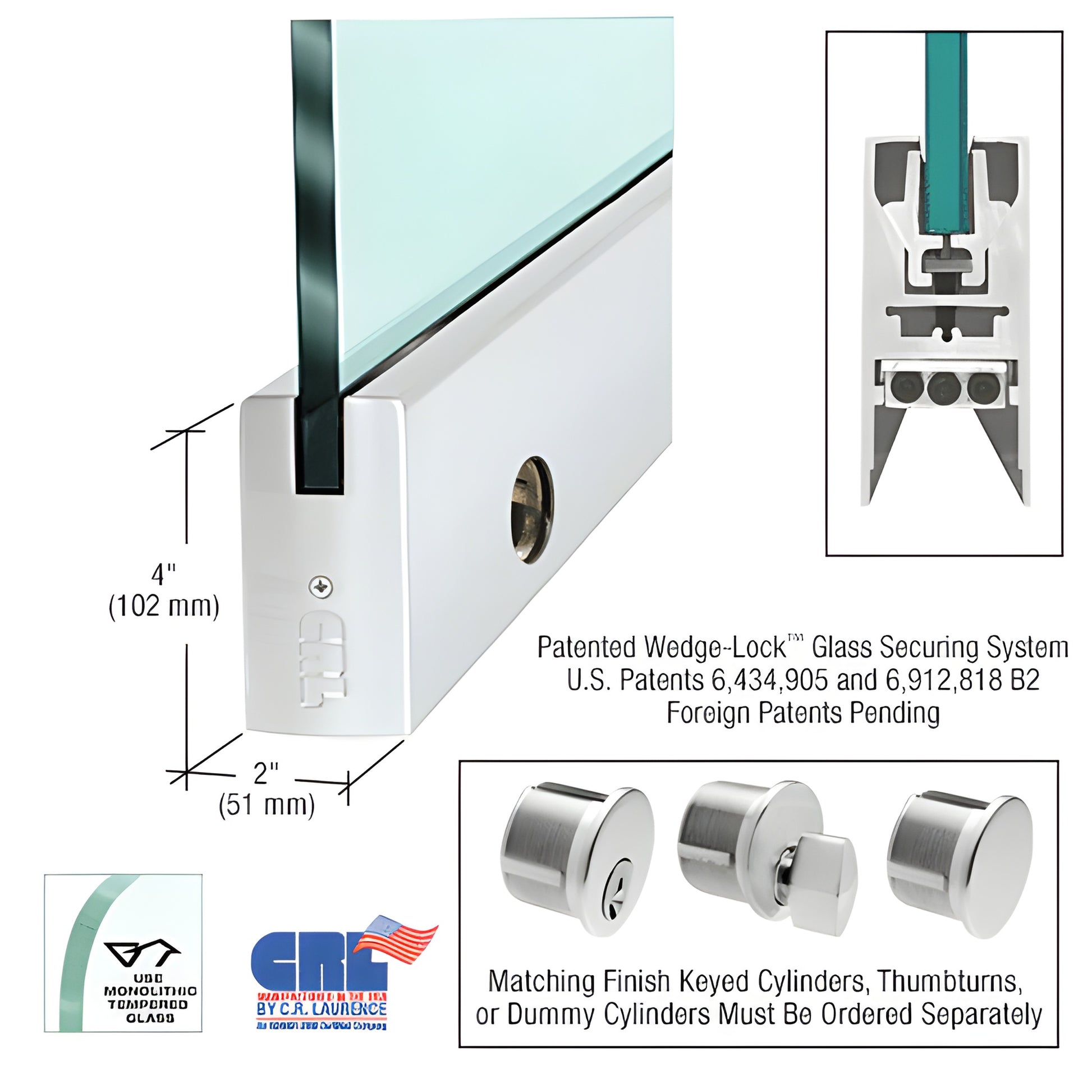

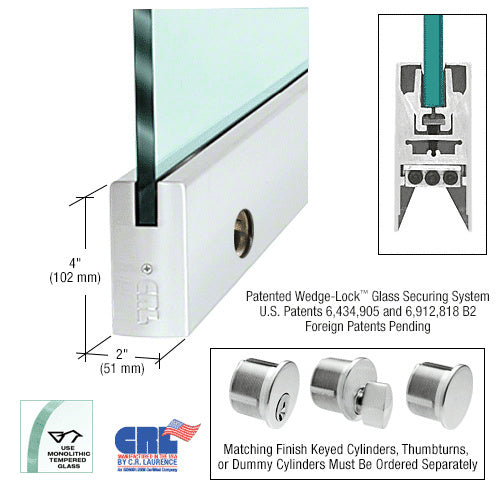

The CRL Wedge-Lock® Door Rail System is an innovative glass entrance solution, featuring a patented Wedge-Lock® Glass Securing System that offers unmatched force and secure attachment for glass panels.
Designed for quick installation, experienced installers can prepare a door in under ten minutes, thanks to the system's ready-to-install configuration.
Available for glass thicknesses ranging from 3/8" to 3/4", this system also includes an adjustable door alignment feature for precise fitting.
Choose from a variety of architectural finishes or request custom options to suit your project needs.
Enhance your installation with optional locks, matching sidelites, and a range of hardware packages from CRL Technical Sales.
Designed for quick installation, experienced installers can prepare a door in under ten minutes, thanks to the system's ready-to-install configuration.
Available for glass thicknesses ranging from 3/8" to 3/4", this system also includes an adjustable door alignment feature for precise fitting.
Choose from a variety of architectural finishes or request custom options to suit your project needs.
Enhance your installation with optional locks, matching sidelites, and a range of hardware packages from CRL Technical Sales.
