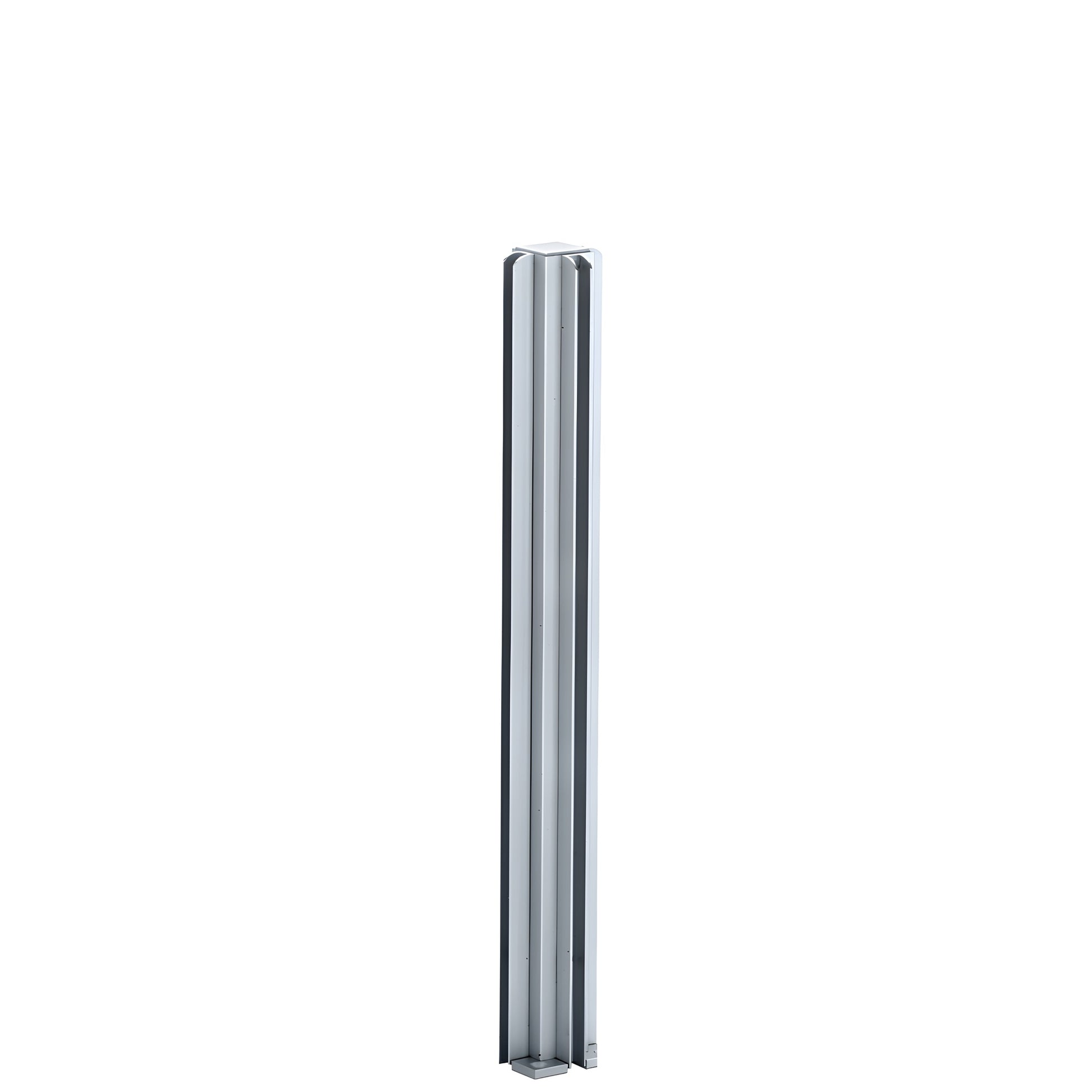

CRL 18 in Satin Anodized Aluminum 3-Way Partition Post
CRL 18 in Satin Anodized Aluminum 3-Way Partition Post
Regular price
$147.28 CAD
Regular price
Sale price
$147.28 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990A183W
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
3-Way Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship — SKU: D990A183W
- Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
- Five configurations: end, center, corner, 3-way, and 4-way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; mounting hardware (4 wood screws) supplied
- Use monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are slim-profile, easy-to-install aluminum posts widely used in banks, offices, and restaurants. Their full-length glazing channels securely hold monolithic tempered glass and accept glazing vinyl; secure glass with Cat. No. 33SC Clear Silicone. Ready-to-ship stock sizes and easy mounting base make these posts a time-saving choice for glass partition installations. Custom 135° posts are available in select finishes and sizes.

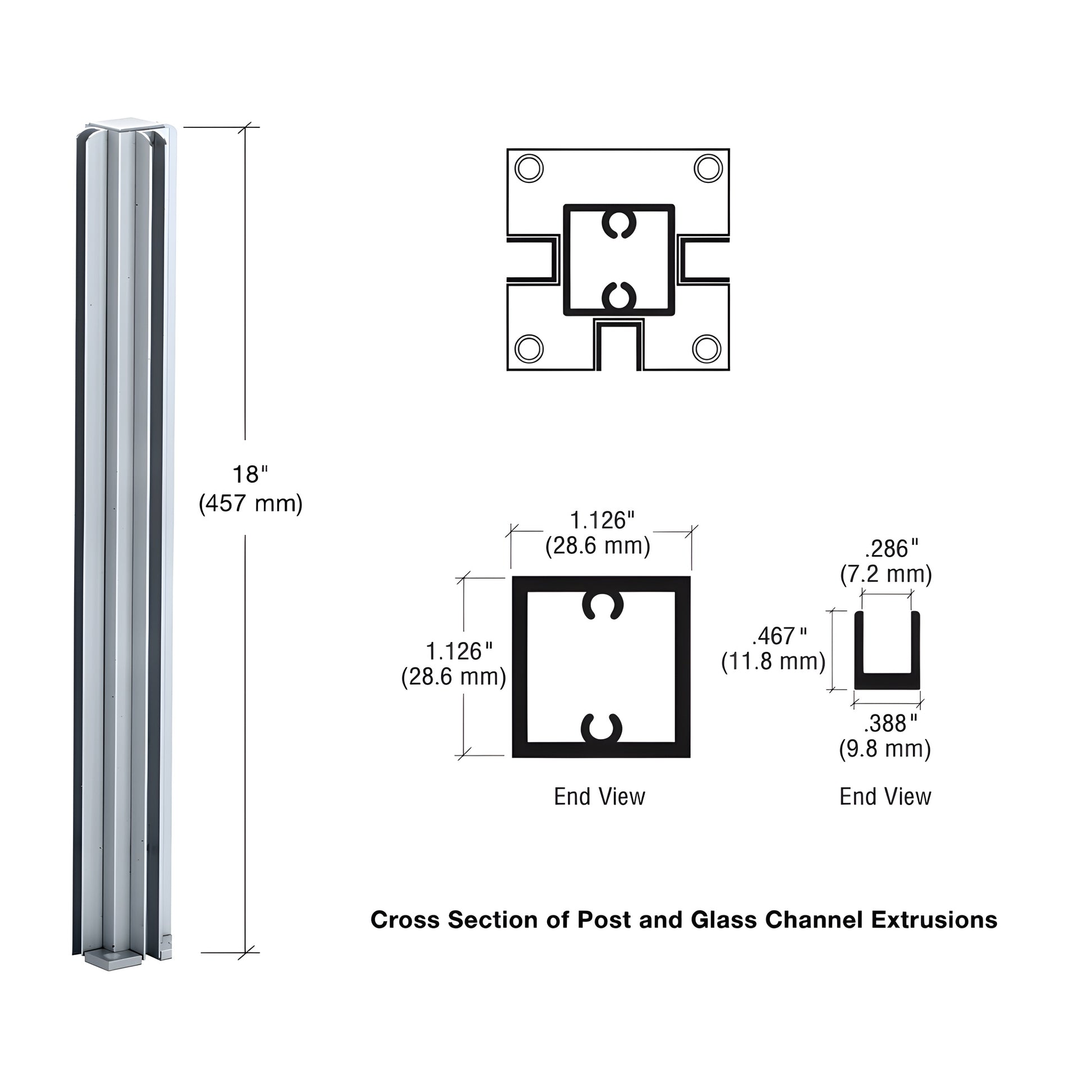

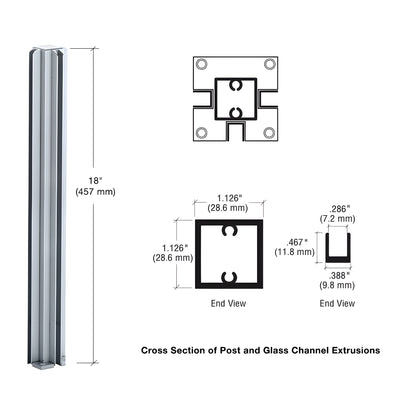

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface and run full length.
You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.
Product Warning:
Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.
Ready to specify and ship — order CRL Design Series Partition Posts (SKU D990A183W) today.
