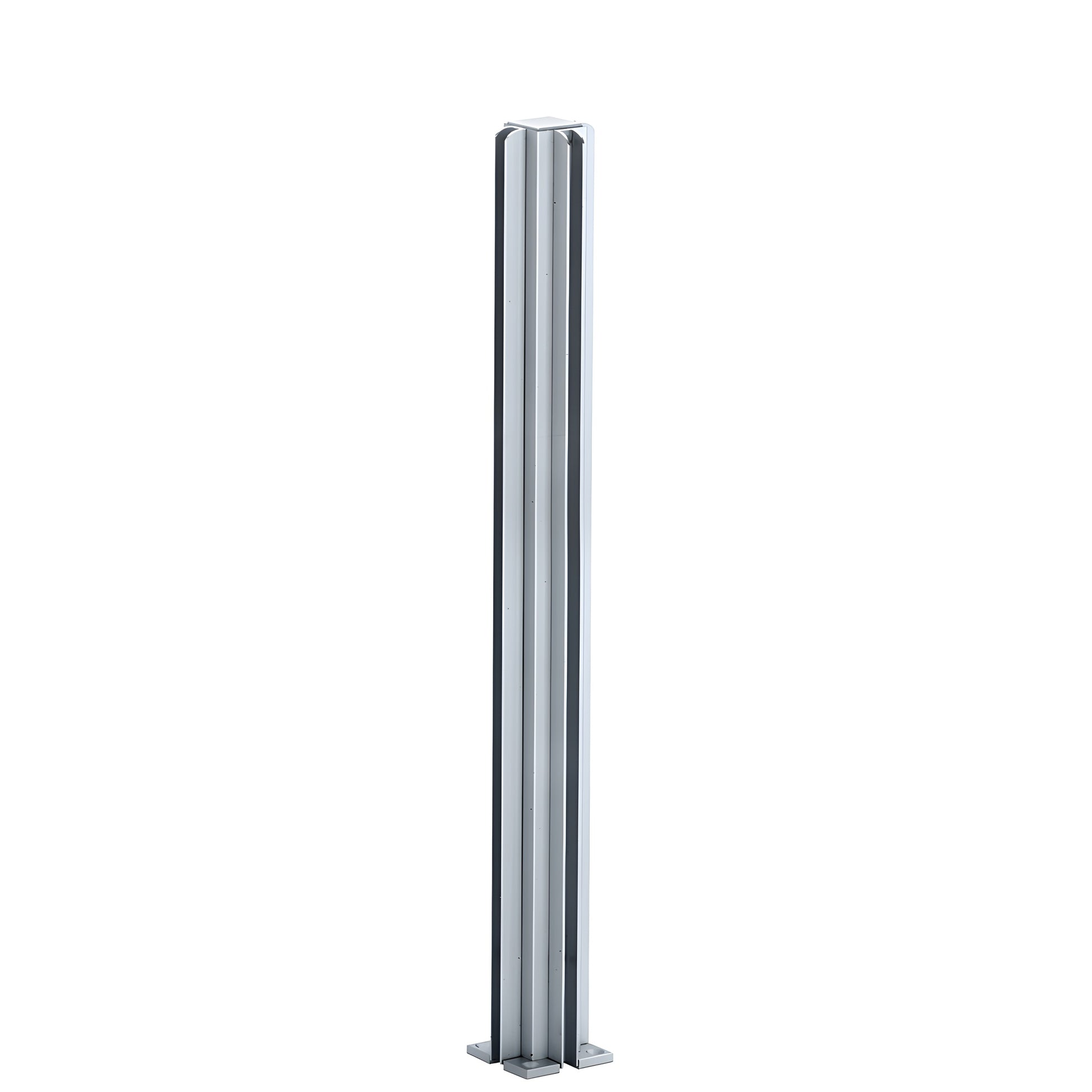

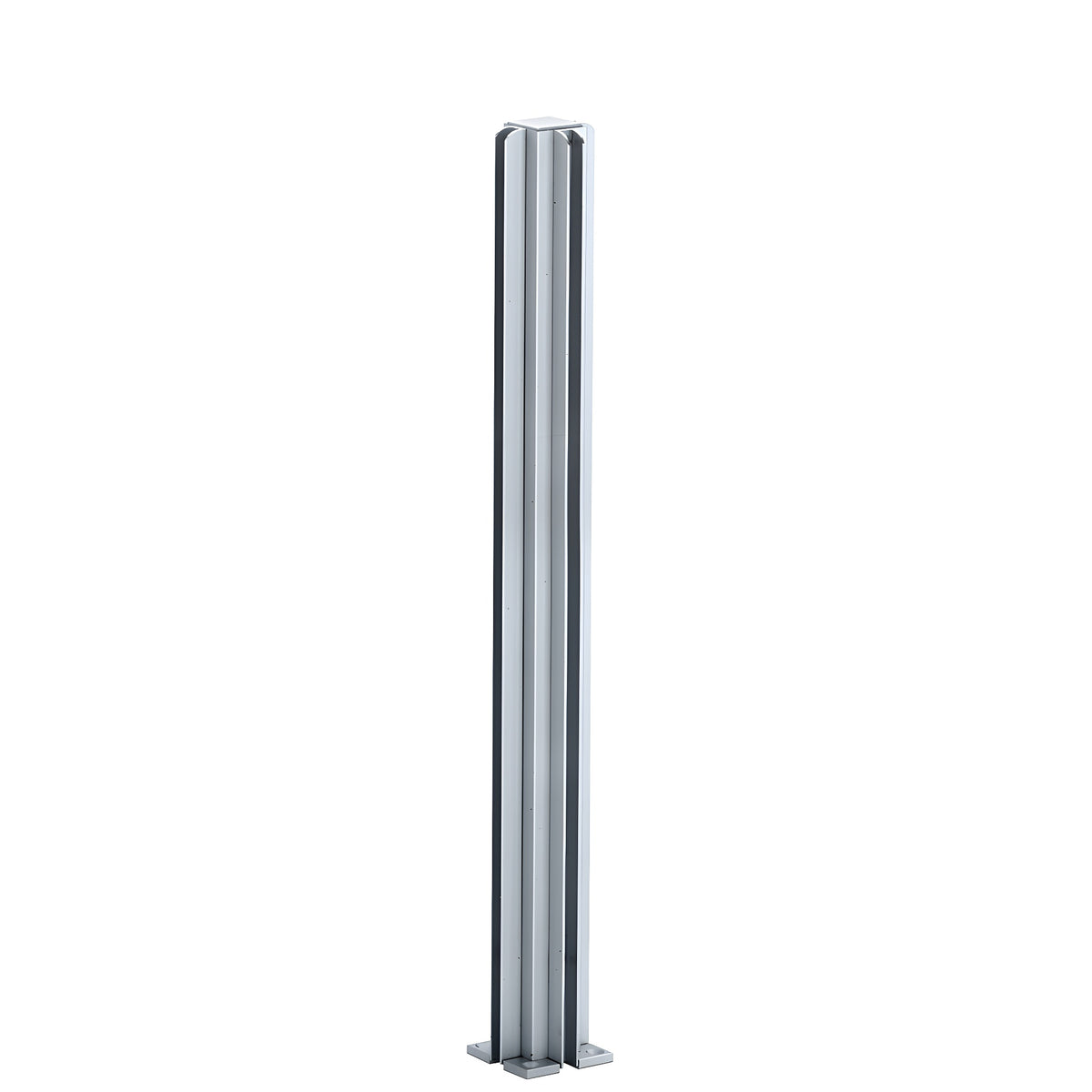

CRL 24" Satin Anodized 3-Way Restroom Partition Post

• Stock Post Sizes, RED-E to Ship
• Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) — Available in Four Finishes
• Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
• Aluminum Tubing with Full-Length Glazing Channels for 1/4" (6 mm) Glass
• Top Cap and Mounting Base Included
• Designed for Use with Monolithic Tempered Glass

CRL Design Series Partition Posts (SKU: D990A243W) are popular aluminum partition posts for glass panels, stocked in standard sizes for immediate delivery. These slim-profile, easy-to-install partition posts are widely used in banks, offices, restaurants, and commercial interiors where durable, low-profile glass partitions and office dividers are required. The full-length glazing channels securely accept 1/4" (6 mm) tempered glass; use Cat. No. 33SC Clear Silicone to seal glass in place. Some finishes and sizes are available as Custom 135° Posts. Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws for mounting.

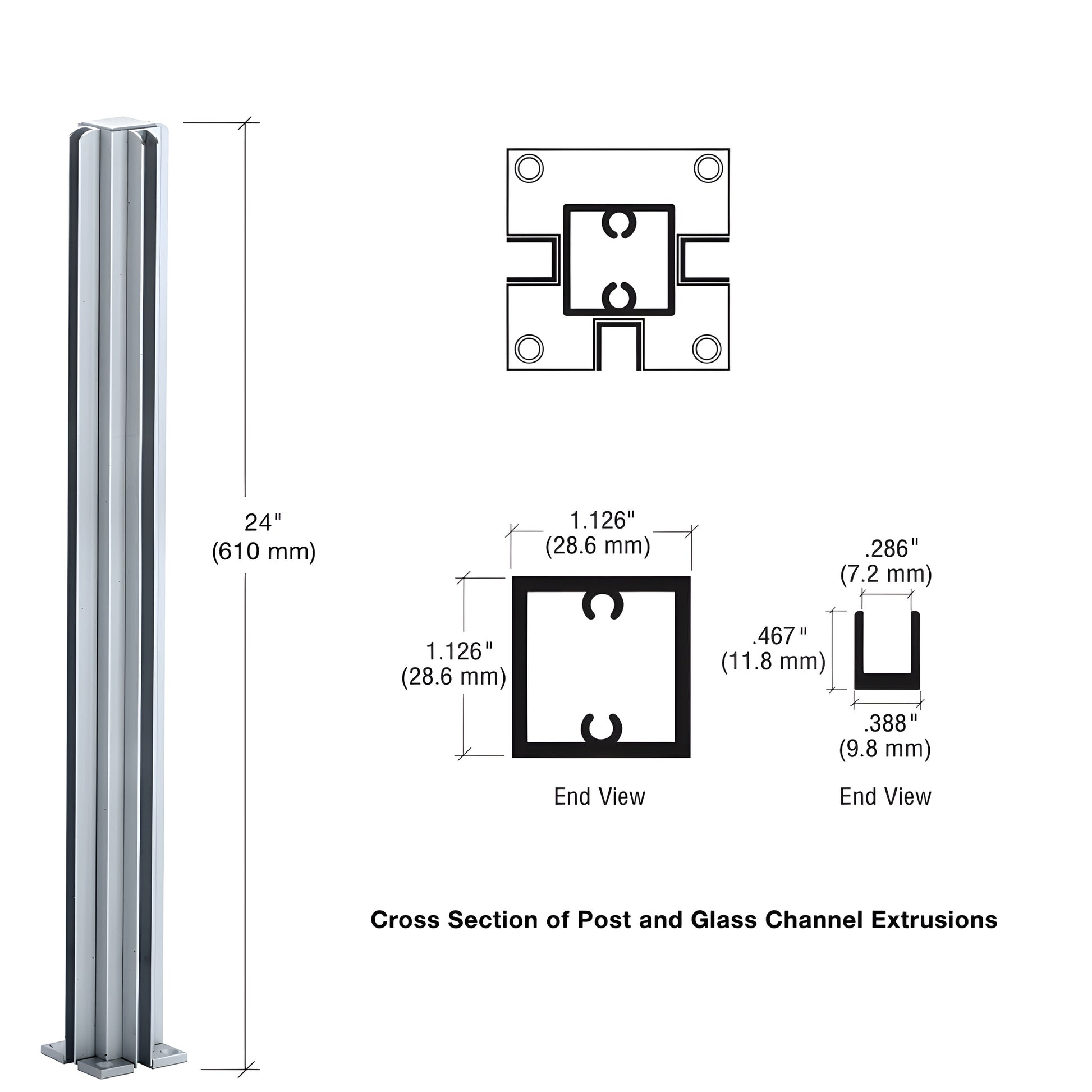

These Design Series Posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and project 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the glass channel.

You can also "Make Your Own" Design Series Partition Posts with CRL components — see instructions and requirements and the parts page.

Product Warning:

Secure the glass into the glazing channels using Cat. No. 33SC Clear Silicone.
