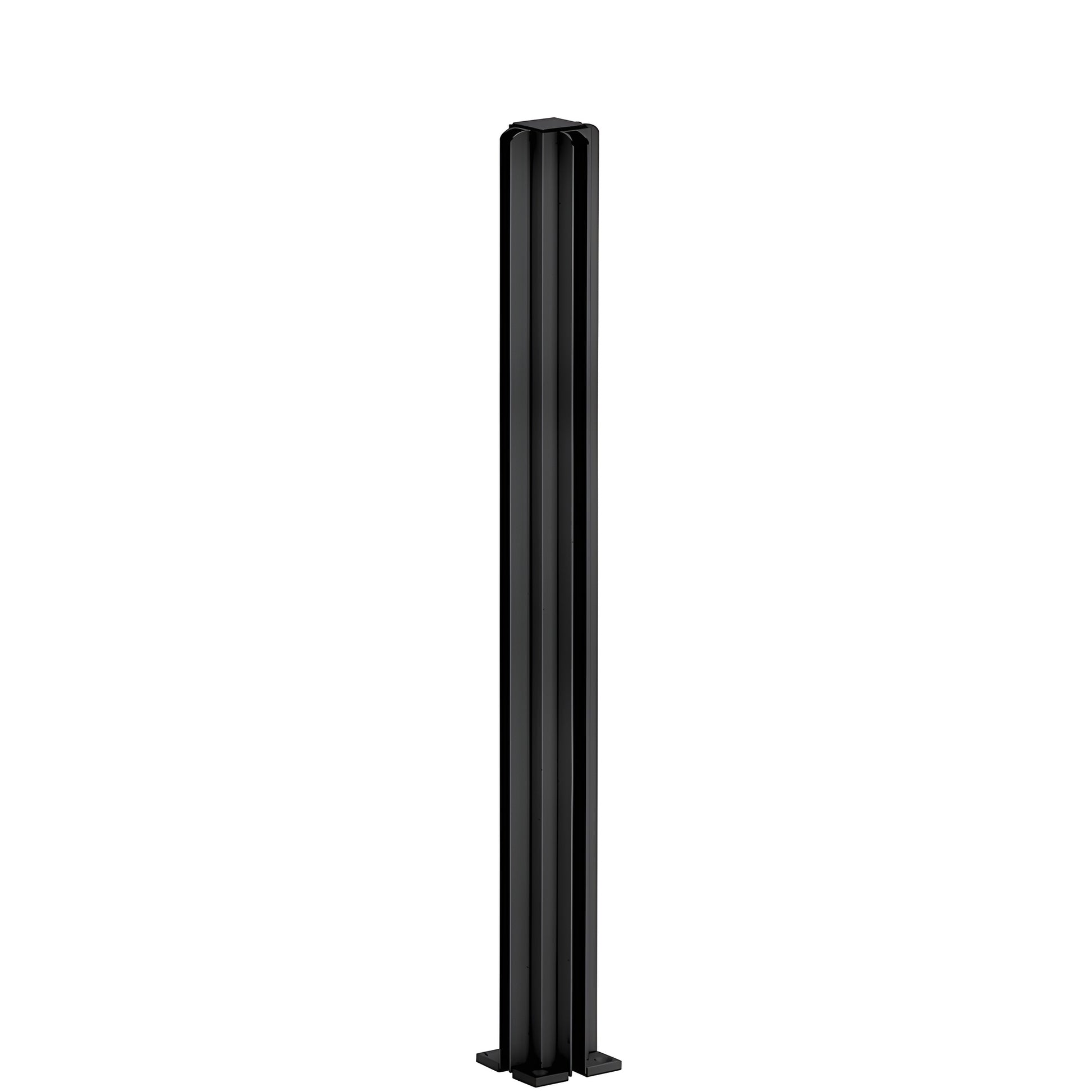

CRL Matte Black 24 in 3-Way Design Series Partition Post
CRL Matte Black 24 in 3-Way Design Series Partition Post
Regular price
$115.33 CAD
Regular price
Sale price
$115.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990MBL243W
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Diameter
2 in. (50.8 mm)
Configuration
3-Way Post
Finish/Color
Matte Black (PU19115)
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- SKU: D990MBL243W — Stock partition posts, RED-E to ship
- Standard heights: 12", 18", 24" (305, 457, 610 mm); available in four finishes
- Five standard configurations: end, center, corner, 3-way, and 4-way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; each post ships fully assembled with four wood screws
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are slimline aluminum posts for glass panels—popular in banks, offices, and restaurants. Ready-to-ship stock sizes and an easy-to-install mounting base make them a fast, reliable choice for commercial glass partitions. Full-length glazing channels secure 1/4" tempered glass panels; use Cat. No. 33SC clear silicone for final sealing. Custom 135° posts available in select finishes and sizes.

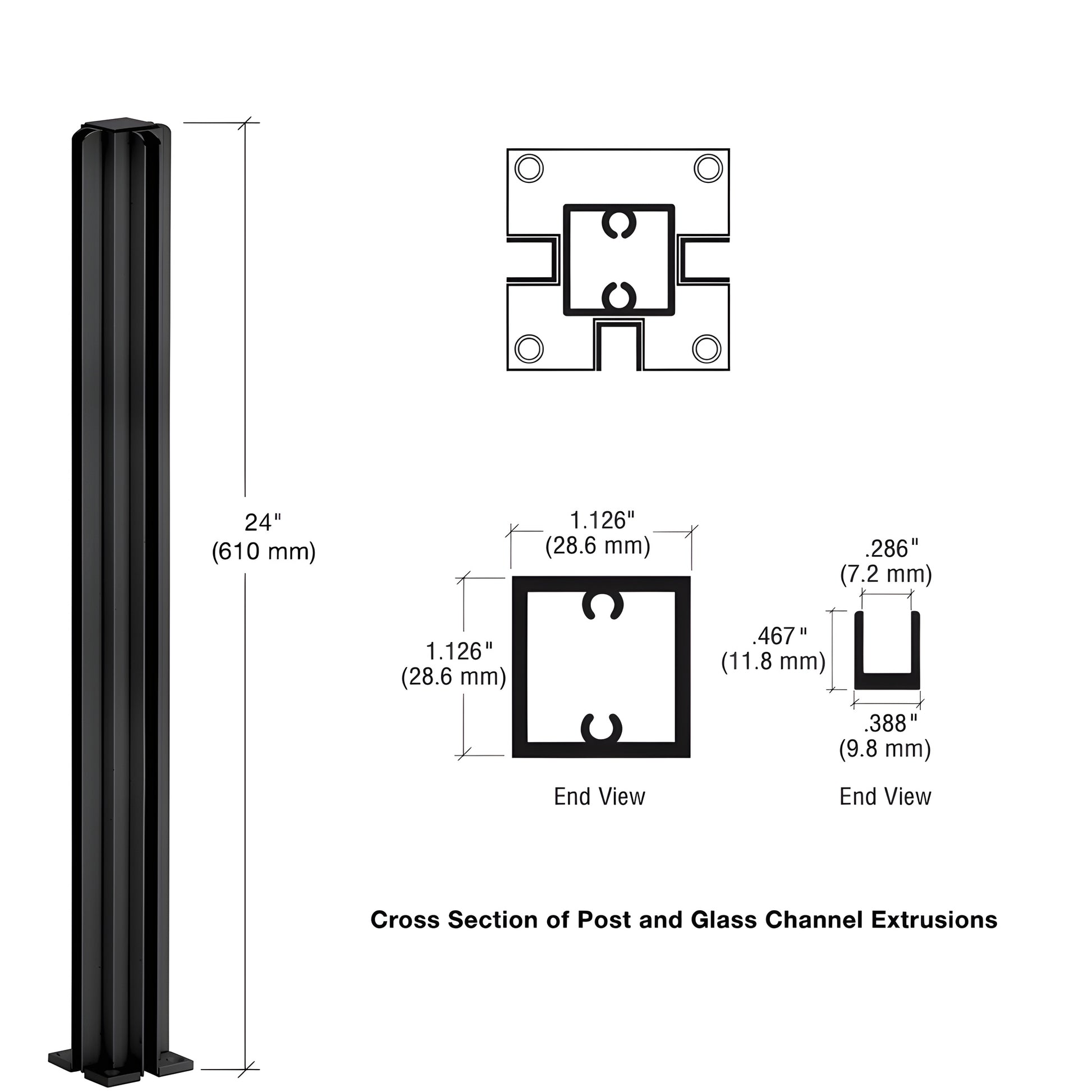

These fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.
Product warning:
Secure glass into the glazing channels using Cat. No. 33SC clear silicone.
Ready to order stock partition posts? Contact CRL Customer Service or add SKU D990MBL243W to your cart for fast shipping.
