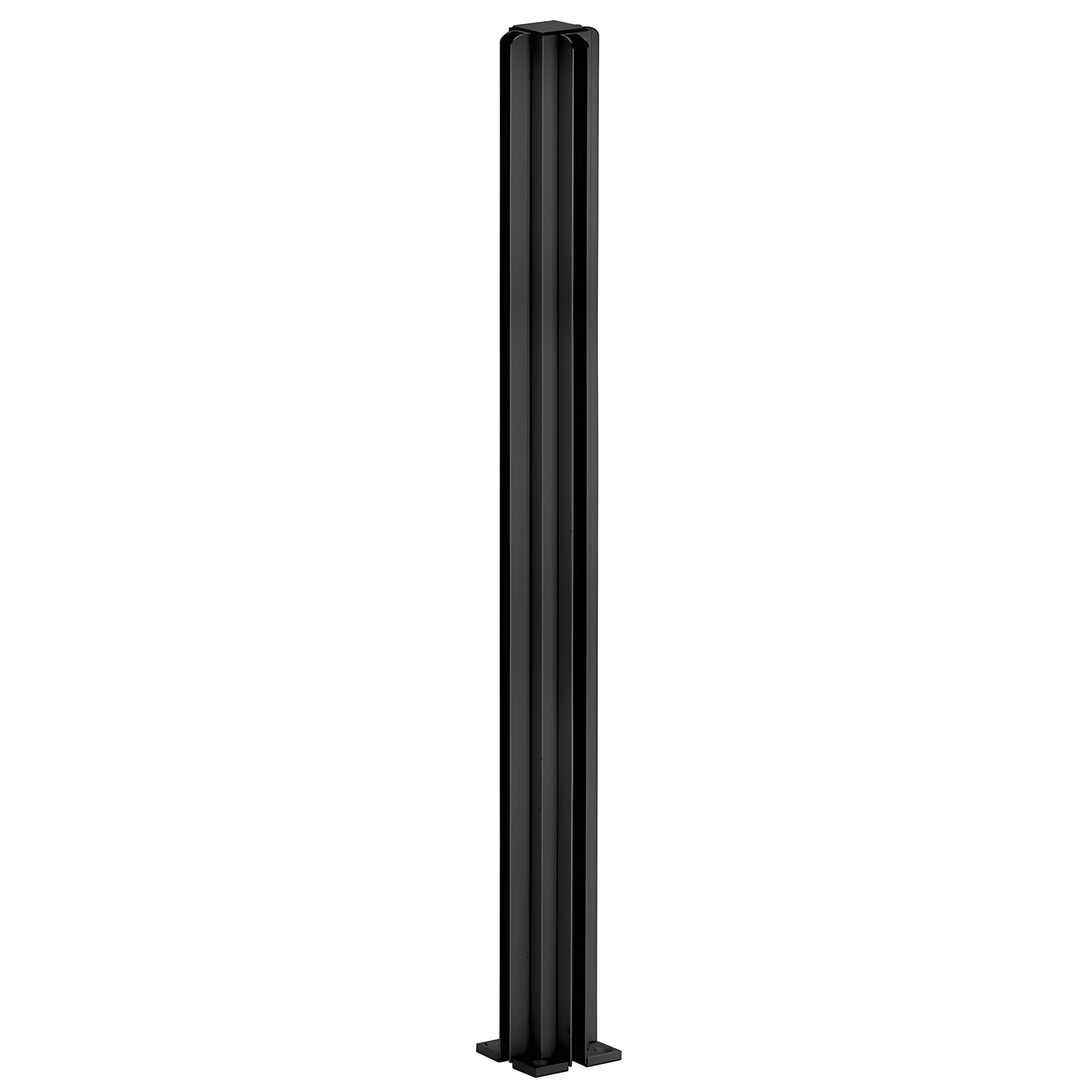

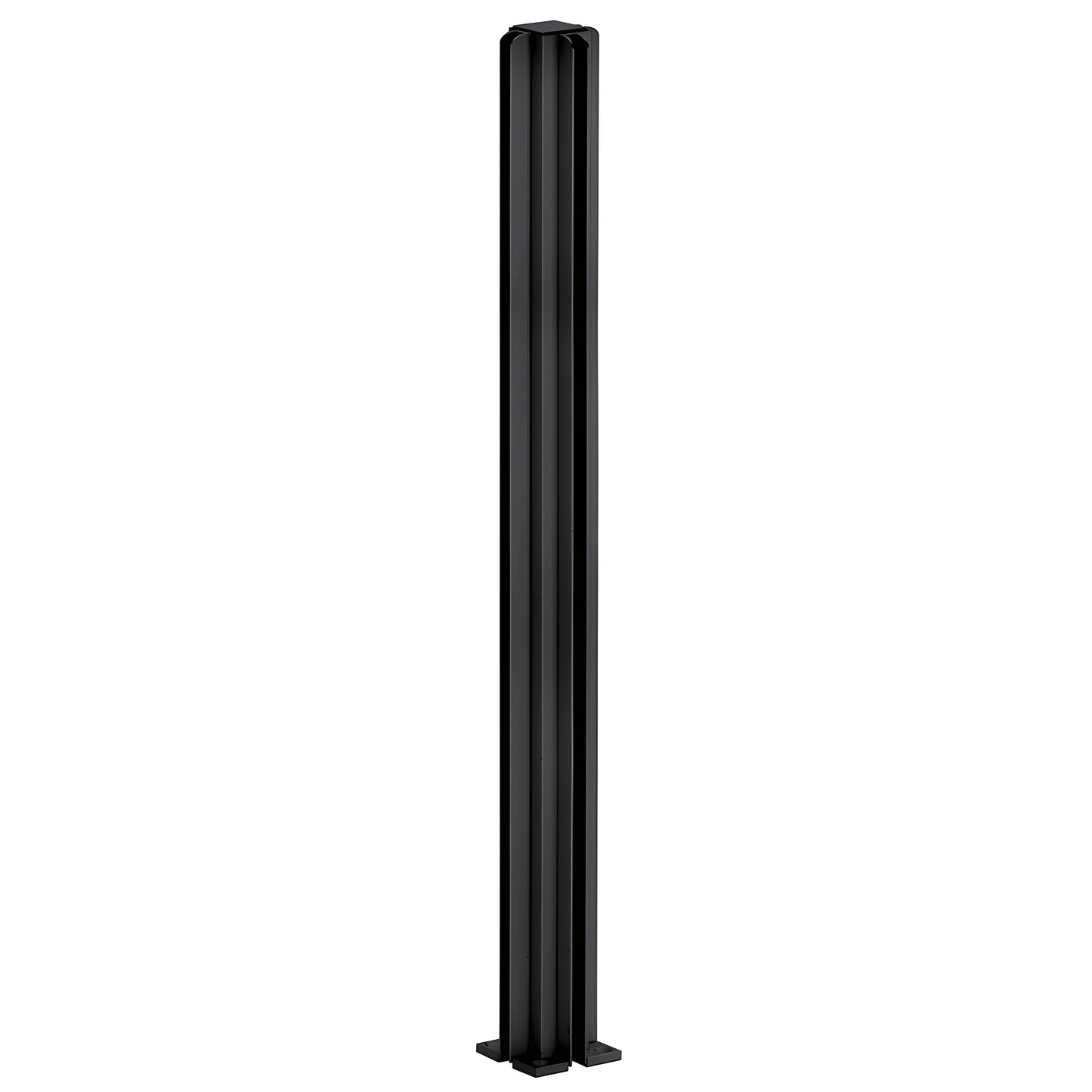

CRL 30in Semi-Gloss Black 3-Way Glass Partition Post - Design Series
CRL 30in Semi-Gloss Black 3-Way Glass Partition Post - Design Series
Regular price
$163.95 CAD
Regular price
Sale price
$163.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BL303W
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
3 Way
Finish/Color
Semi-Gloss Black (PSP290005)
Glazing Thickness
3/16 in. & 1/4 in. (5 mm & 6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; use with monolithic tempered glass
CRL Design Series partition posts are popular aluminum partition posts for glass installations, stocked in standard sizes and ready for immediate delivery. Widely used in banks, offices, and restaurants, these slim-profile posts feature an easy-to-install mounting base and full-length glazing channels that secure 1/4" (6 mm) glass with Cat. No. 33SC Clear Silicone. Custom 135° posts are also available in select finishes and sizes. Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws for mounting.

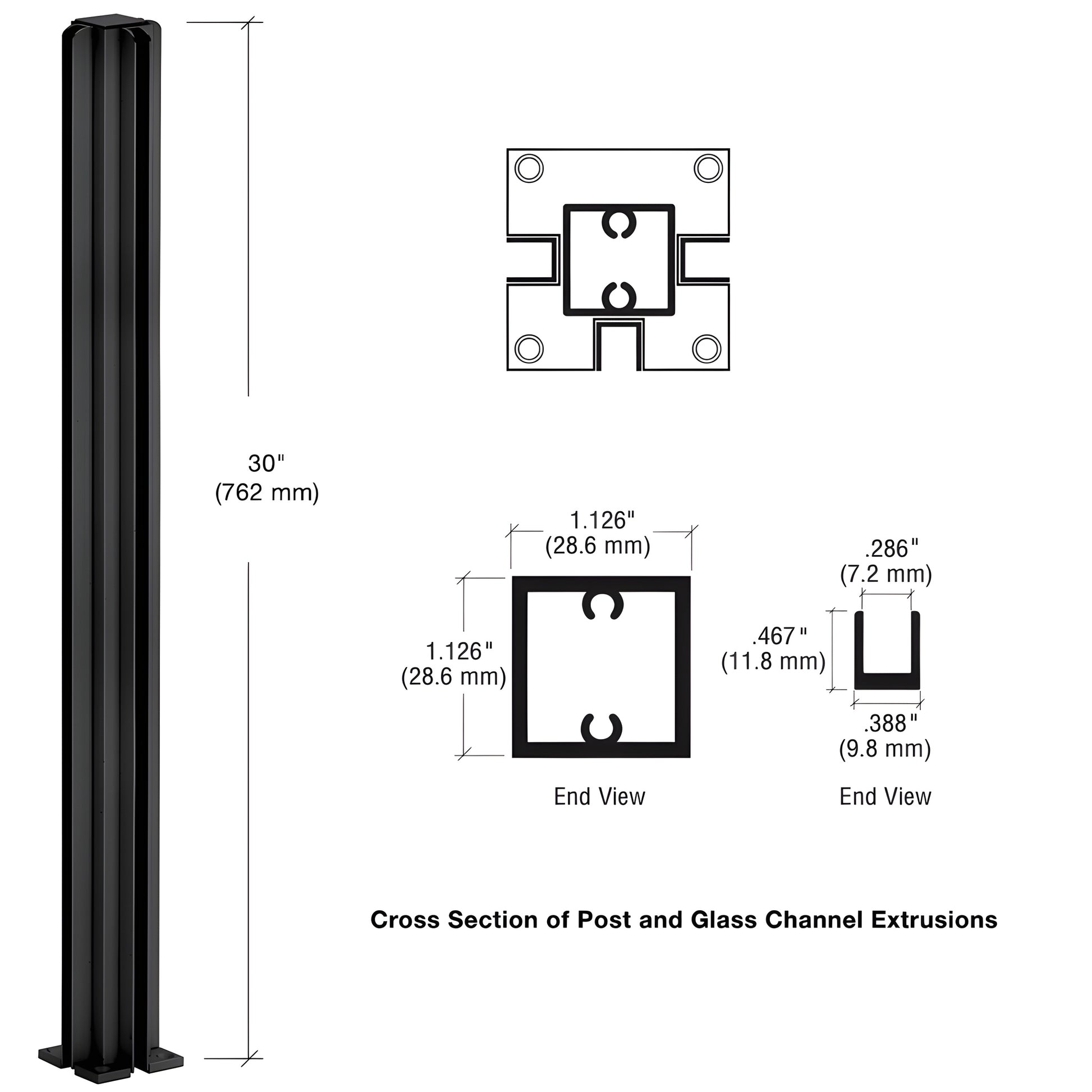

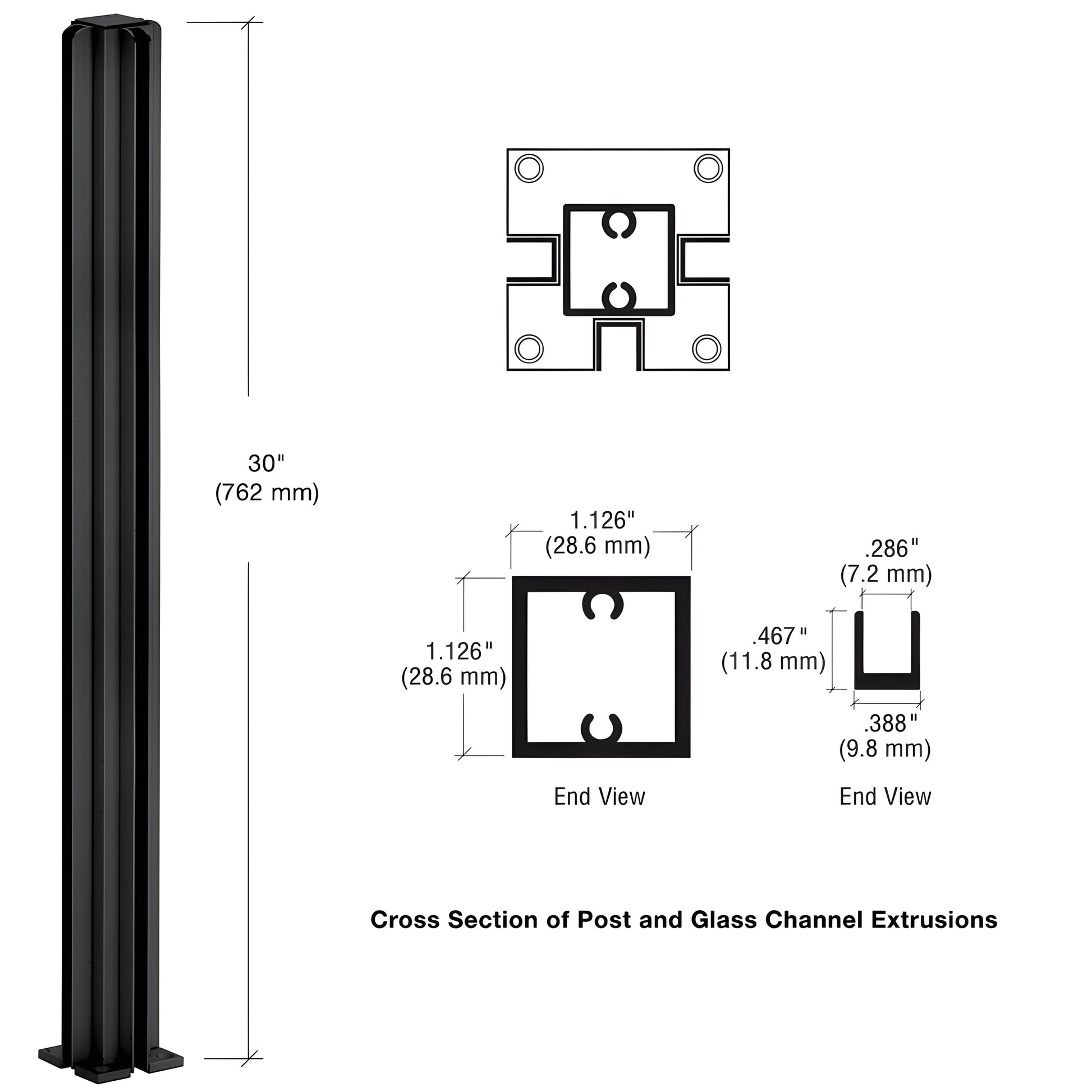

These posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.
You can also "Make Your Own" Design Series partition posts with CRL components.
Product Warning:
Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.
SKU: D990BL303W — Order now for fast shipping.
