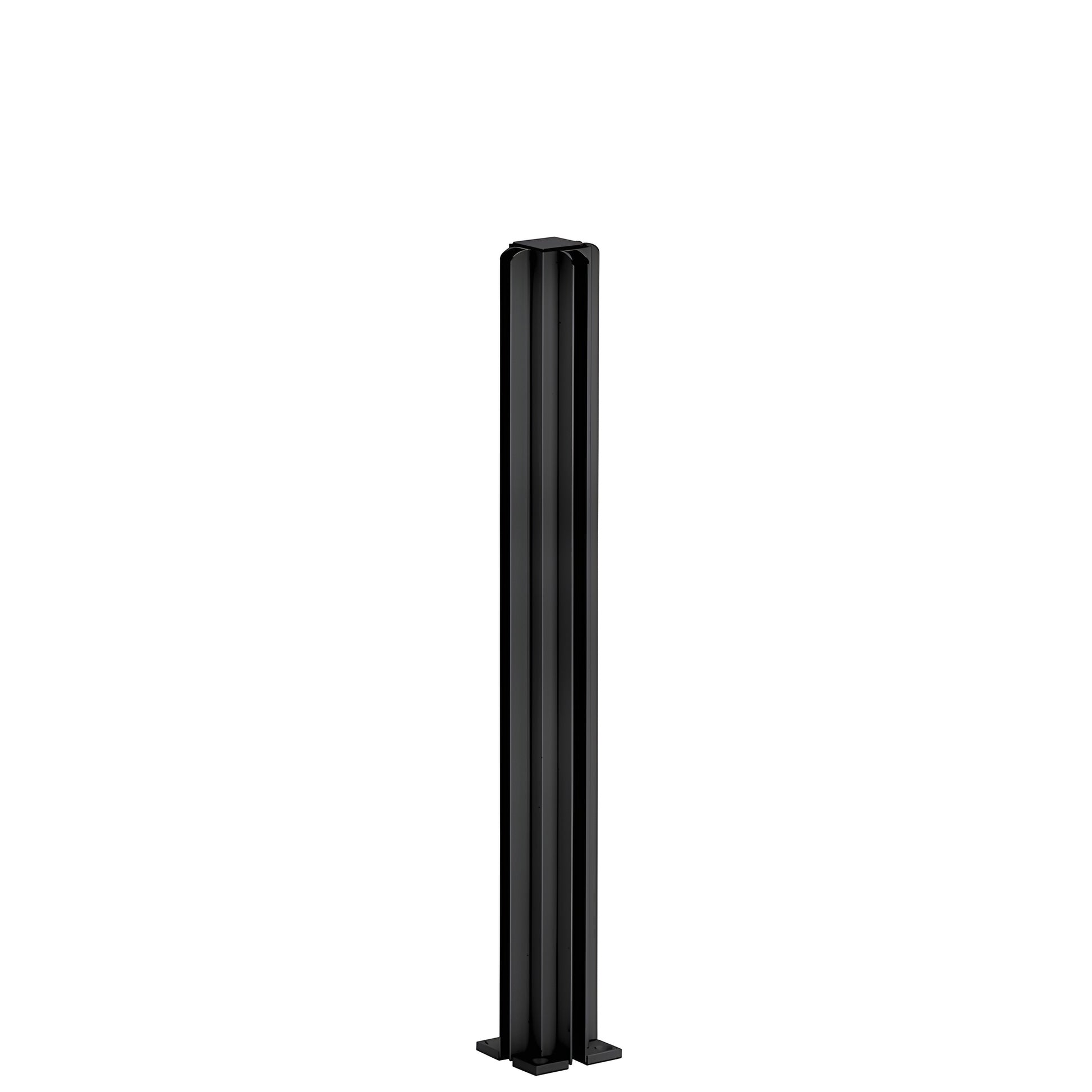

CRL Matte Black 18" 3-Way Partition Connector Post

CRL Matte Black 18" 3-Way Partition Connector Post

$129.21 CAD
$129.21 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D990MBL183W
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Diameter
2 in. (50.8 mm)
Configuration
3-Way Post
Finish/Color
Matte Black (PU19115)
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6mm)
Tube Type
Square

Overview

  • SKU: D990MBL183W — Stock partition posts, RED-E to ship
  • Standard heights: 12", 18", and 24" (305, 457, and 610 mm); available in four finishes
  • Five configurations: End, Center, Corner, 3-Way, and 4-Way
  • Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
  • Top cap and mounting base included; four wood screws supplied for mounting
  • Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts are widely used for glass partitions in banks, offices, restaurants, and other commercial interiors. These slim-profile aluminum posts feature full-length glazing channels and an easy-to-install mounting base for faster installation of tempered glass office partitions and interior glass dividers. Stock sizes are ready for immediate delivery and are popular with contractors and architects specifying aluminum partition posts for 1/4" glass.

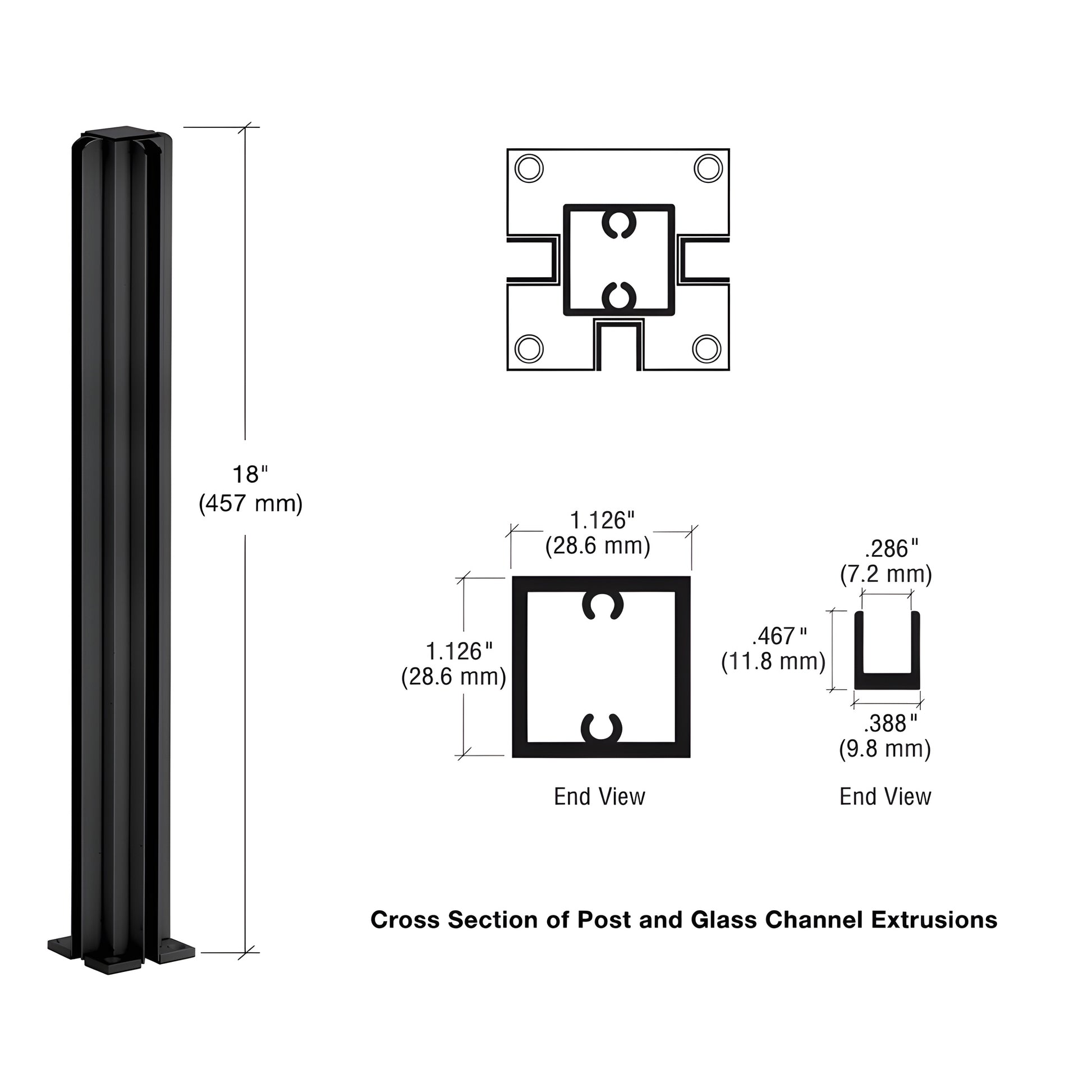

Fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface.

You can also "Make Your Own" Design Series partition posts with CRL components: Instructions and requirements, parts page.

Product Warning:

Glass is secured into the glazing channels using Cat. No. 33SC Clear Silicone.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.



Order SKU D990MBL183W today to get RED-E stock delivery for your next glass partition project.
