CRL Satin Anodized 2-5/16" x 120" Length Low Profile Sidelite Rail With Saddle
CRL Satin Anodized 2-5/16" x 120" Length Low Profile Sidelite Rail With Saddle
Regular price
$755.76 CAD
Regular price
Sale price
$755.76 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR2SSA12SL
Shipping Weight: 18.28 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 18.28 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Finish/Color | Satin Anodized |
Floor Mount Saddle Included FMS | 2SA |
Glazing Thickness | 3/8 in. or 1/2 in. (10 mm or 12 mm) |
Length 120 in. | (3048 mm) |
Material | Aluminum |
Nominal Height 2-5/16 in. | (59 mm) |
Width 2-1/4 in. | (57 mm) |
Overview

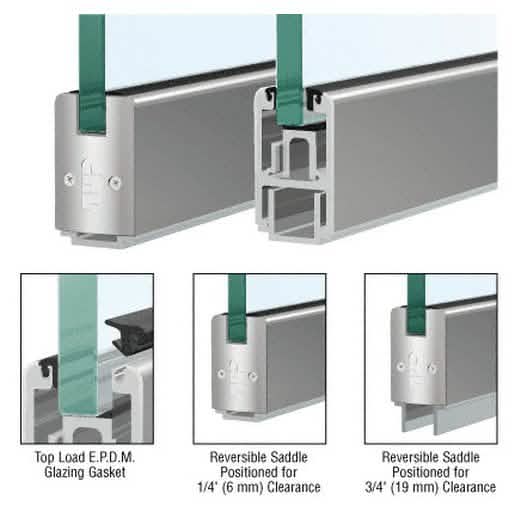

CRL Low Profile Sidelite Rails are designed with a sleek, low-profile look, measuring just 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, perfectly complementing our DR2S Series Low Profile Door Rails.
The reversible extruded saddle accommodates door clearances of 1/4" (6 mm) or 3/4" (19 mm), ensuring an even sight line.
These rails come with vinyl for 1/2" (12 mm) tempered glass and are available in eight architectural finishes or can be custom painted.
Ready-to-ship models can be found in the CRL inventory, and for detailed inquiries, you can contact our Commercial Hardware Technical Sales team.
The reversible extruded saddle accommodates door clearances of 1/4" (6 mm) or 3/4" (19 mm), ensuring an even sight line.
These rails come with vinyl for 1/2" (12 mm) tempered glass and are available in eight architectural finishes or can be custom painted.
Ready-to-ship models can be found in the CRL inventory, and for detailed inquiries, you can contact our Commercial Hardware Technical Sales team.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
