CRL
CRL 350 Series Satin Anodized 95-in Concealed Continuous Hinge
CRL 350 Series Satin Anodized 95-in Concealed Continuous Hinge
Regular price
$307.36 CAD
Regular price
Sale price
$307.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 35095A
Shipping Weight: 8.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Includes
Pack of Screws
Length
95 in. (2413 mm)
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
RSP300A
Series
350
Width

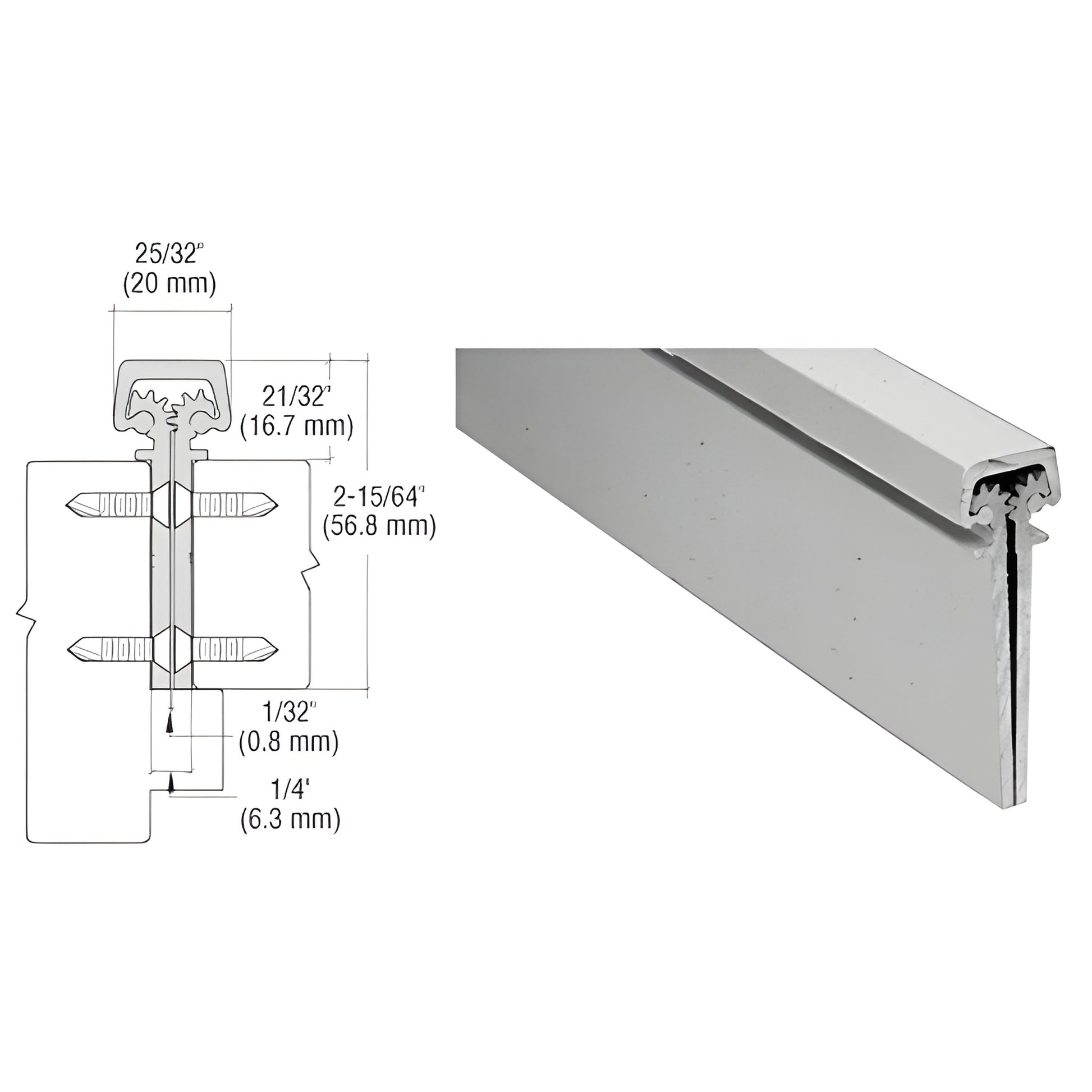

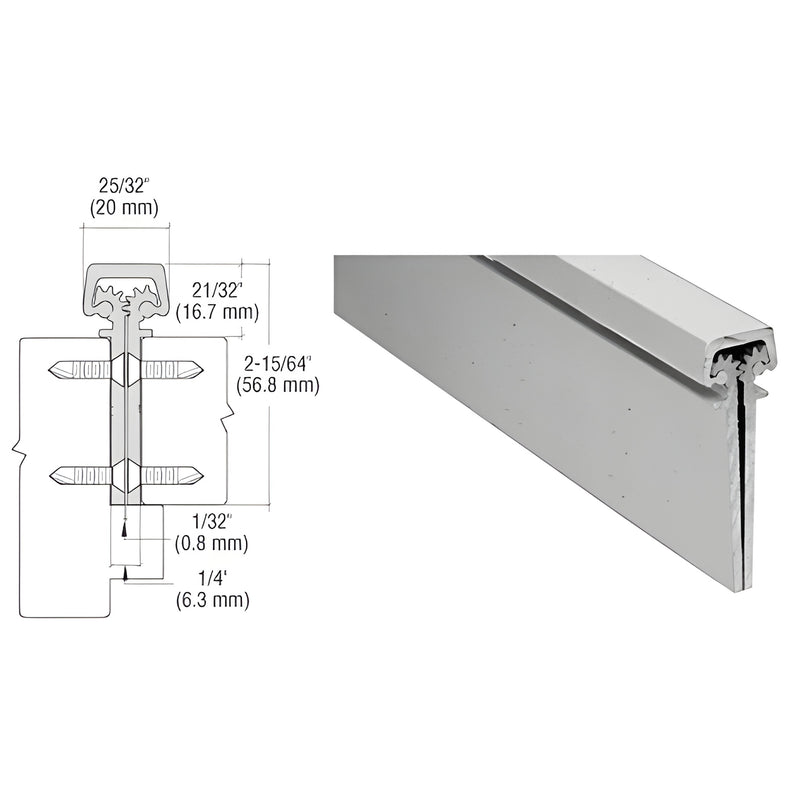

2-15/64 in. (56.8 mm)
Overview
- Standard Duty concealed leaf continuous hinges for doors up to 200 lbs (90 kg)
- Heavy-Duty concealed leaf continuous hinges for doors up to 600 lbs (272 kg)
- Available in satin anodized and dark bronze anodized finishes
These CRL Concealed Leaf Continuous Hinges (SKU: 35095A) feature load-bearing blocks spaced every 5-1/8" (130.2 mm) on the Standard Duty model and every 2-9/16" (65.1 mm) on the Heavy-Duty model for reliable weight distribution. Stocked in 83" (2.11 m) lengths, these 83-inch continuous hinges are ideal for full-length door support. A pack of installation screws is included with each hinge; replacement screw packs are available separately. These concealed continuous hinges are suited for commercial and residential doors where a flush, tamper-resistant hinge is required.
Order SKU 35095A today to secure heavy-duty concealed hinge performance and finishes — contact CRL to buy or request a quote.
Specifications
Installation Instructions
