CRL 36in Satin Anodized Sliding Door Track Kit D603/D601 Nylon Wheels

• Available in three pre-cut lengths: 36", 48", 72"
• Combination bottom track matches the upper channel for consistent performance
• Finishes: Satin Anodized and Brushed Nickel—ideal for modern sliding glass doors

The CRL Deluxe Track Assembly (SKU D2301A36) is a smooth-working, reliable pre-cut sliding glass door track assembly designed for easy installation. Offered in 36", 48", and 72" (914 mm, 1.22 m, 1.83 m) lengths, these cut-to-length extrusions reduce installation time and minimize material waste. The 'H' Bar is cut to permit a 1-1/2" (38 mm) overlap, and the combination lower channel matches the upper channel for a consistent fit and finish.

CRL Cat. No. D332 end caps for the 'H' Bar extrusion are sold separately. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately). CRL also offers a range of ratchet and plunger-type locks to secure sliding doors.

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

General glass cutting guideline:
Glass Height = Opening Height minus 1-3/8" (35 mm).

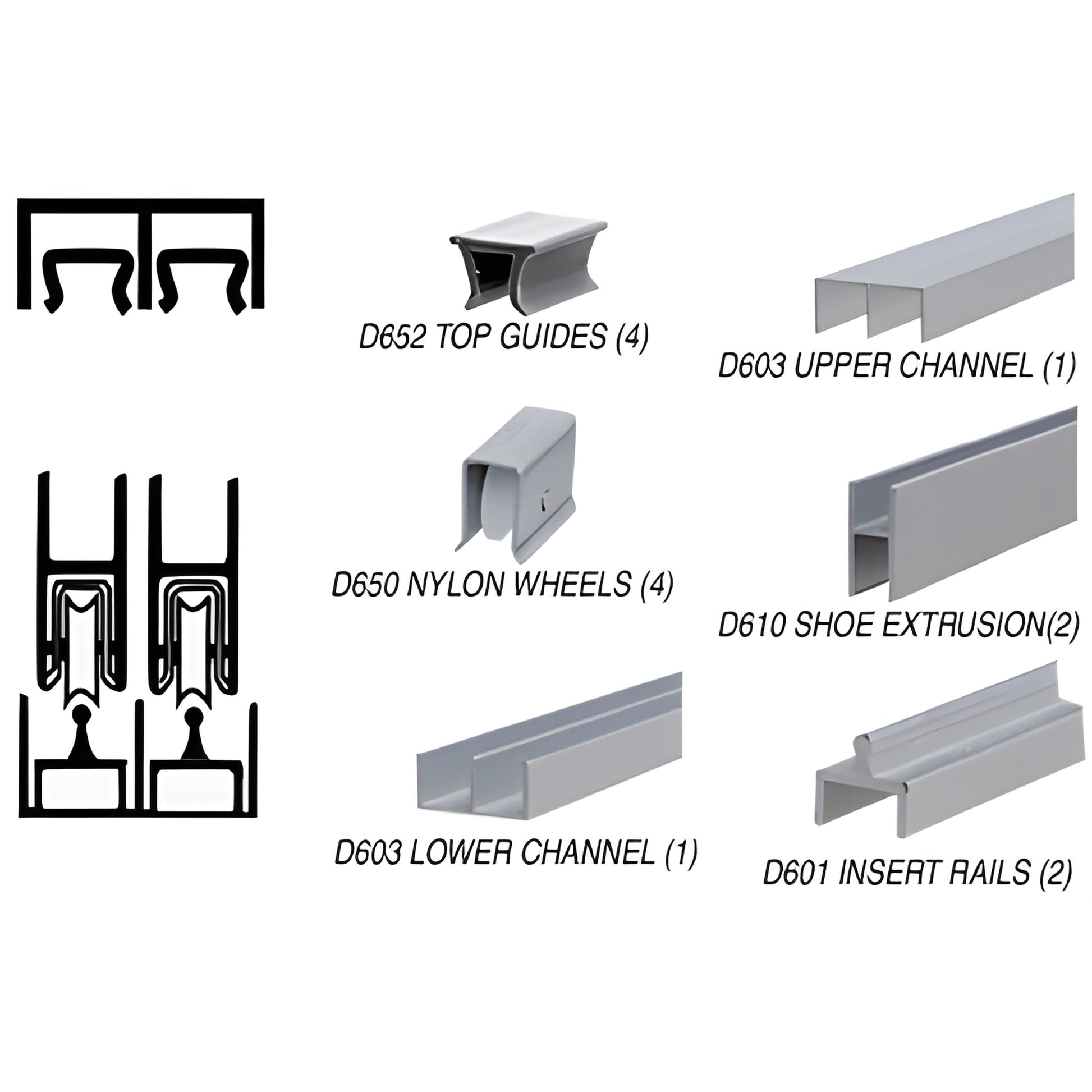

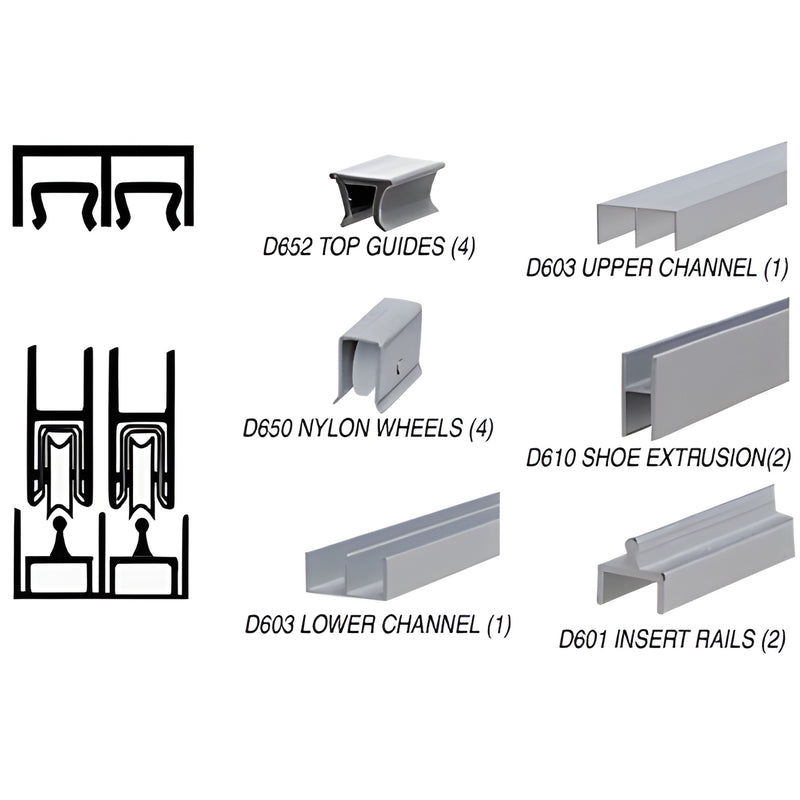

Components for D2301A

D601 (x2)
D603 (x2)
D610 (x1)
D650 (x12)
D652 (x12)
D9650 (x1)

Product warning:

If a very tight fit is required, verify and calculate your own final dimensions. The dimensions shown are general guidelines suitable for most installers.
