CRL 36 in Satin Anodized Anti-Lift Security Track for Sliding Doors

• These Pre-Cut Assemblies are a CRL Exclusive
• Anti-Lift H-Bar and Lower Track Provide an Extra Measure of Security

CRL supplies Security Anti-Lift Aluminum Extrusions for fabrication of sliding track assemblies used in display showcases and retail display cases. These anti-lift extrusions prevent lift-out when paired with typical upper channel and ratchet or plunger-type locks, adding tamper-resistant protection to glass display cases. They accept 3/16" to 1/4" (5 to 6 mm) glass and install with the same ease as standard lower track assemblies while providing enhanced theft-deterrent security.


For convenience, CRL offers ready-to-install security track assemblies in pre-cut lengths of 36", 48", and 72" (914 mm, 1.22 m, and 1.83 m). These pre-cut security track assemblies reduce labor and material waste and ship complete with all required components. CRL Cat. No. TA30 end caps for use with Cat. No. S710A Security H-Bar can be ordered separately. SKU: S710A36.

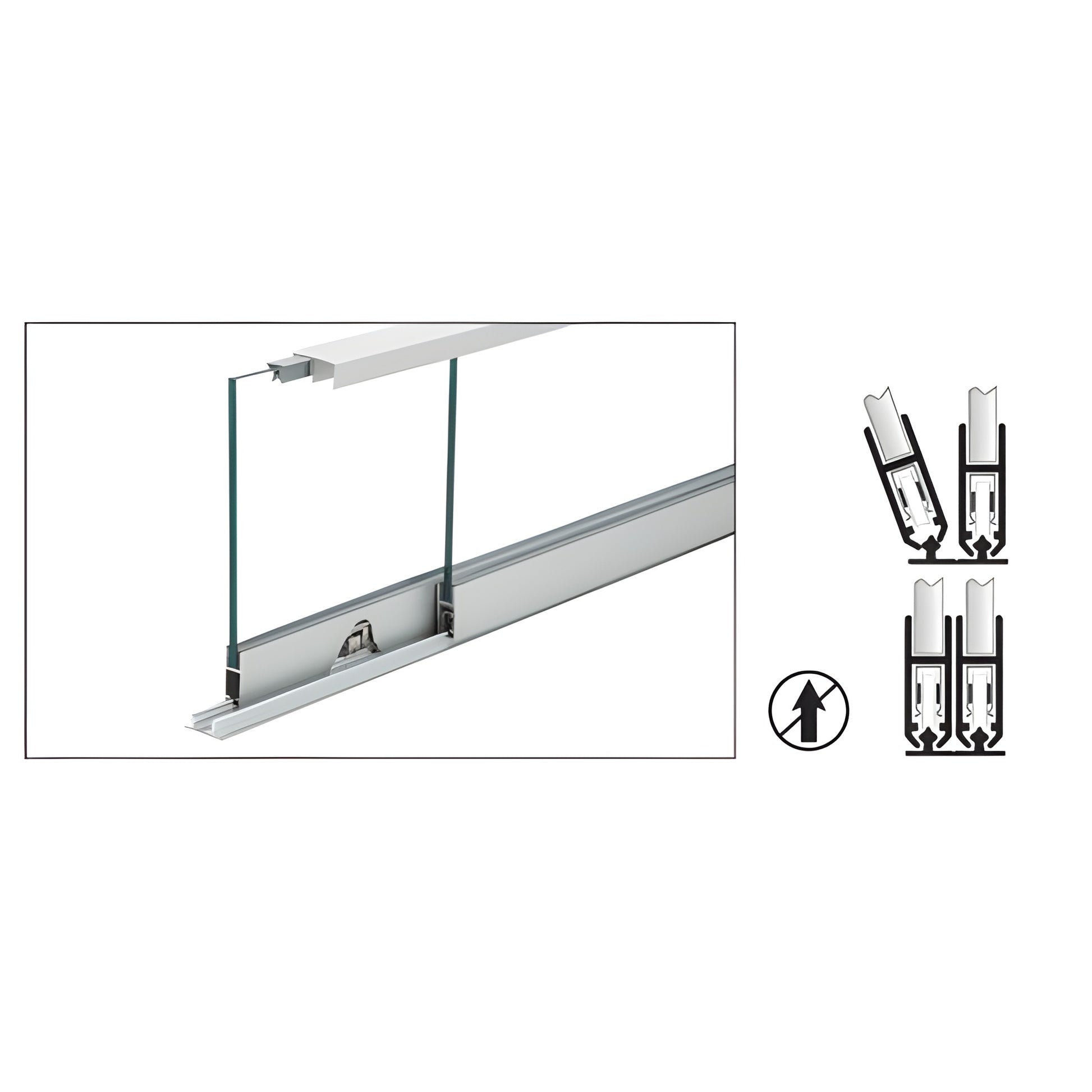

How it Works: The Security H-Bar installs onto the security lower rails by tilting the sliding panel to a 70° angle, placing the ball-bearing wheel assembly onto the lower rail, then returning the panel to 90° vertical. This procedure must be completed before permanently mounting the upper double channel in the opening.

The Result: The shaped bottom of the Security H-Bar prevents it from being lifted off the specially designed lower rails into the upper channel once permanently mounted—simple, effective anti-lift security for sliding glass cases.

General Glass Cutting Guidelines:
Glass Height = Opening Height minus 1-3/8" (35 mm)


Product Warning:

Maximum suggested panel size is 36"W x 48"H (914 mm x 1.22 m).
