CRL 48 in Satin Anodized Anti-Lift Track Assembly for Sliding Doors

• These Pre-Cut Assemblies are a CRL Exclusive
• Anti-Lift H-Bar and Lower Track Provide an Extra Measure of Security

CRL supplies Security Anti-Lift Aluminum Extrusions for fabrication of sliding track assemblies used in retail and museum display showcases. Designed to prevent lift-out, these anti-lift H-bar assemblies add security when paired with typical upper channel and ratchet or plunger-type locks. They accept 3/16" to 1/4" (5 to 6 mm) glass and install with the same ease as standard track assemblies while offering enhanced protection against panel removal.


For convenience, CRL ships ready-to-install Security Track Assemblies in pre-cut lengths: 36", 48", and 72" (914 mm, 1.22 m, and 1.83 m). Pre-cut security track assemblies (SKU S710A48) reduce labor, minimize waste, and arrive with all required components. CRL Cat. No. TA30 end caps for use with Cat. No. S710A Security H-Bar are sold separately.

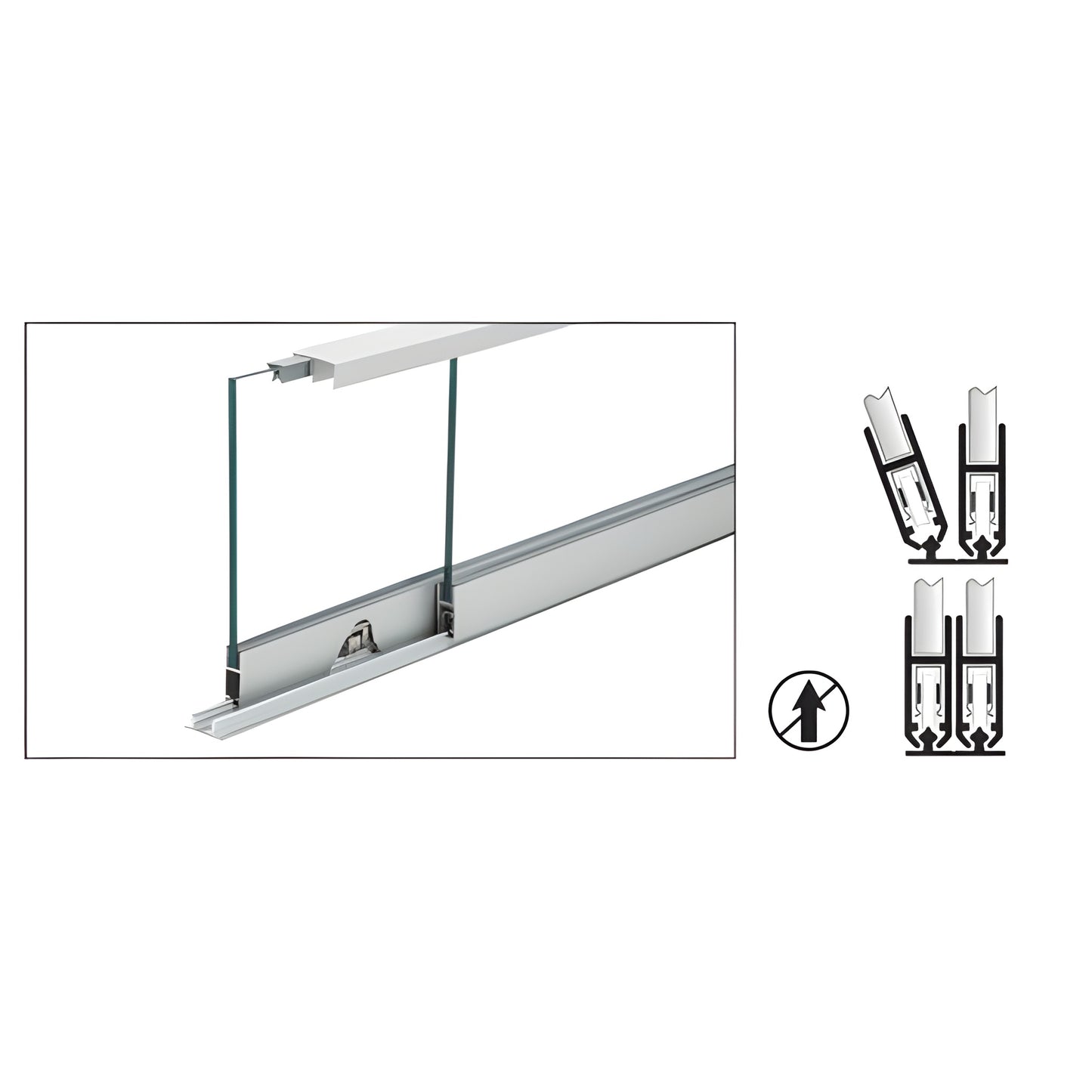

How it Works: The Security H-Bar installs only on the Security Lower Rails by tilting the sliding panel to about 70°, lifting the ball-bearing wheel assembly onto the lower rail, then moving the panel to a full 90° vertical. This must be completed before permanently mounting the upper double channel in the opening.

The Result: The bottom profile of the Security H-Bar prevents lift-off from the specially designed lower rails into the upper channel once permanently mounted—providing a simple, effective anti-lift solution for sliding showcase panels.

General Glass Cutting Guidelines:
Glass Height = Opening Height minus 1-3/8" (35 mm)


Product Warning:

Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

SKU: S710A48 — Order pre-cut security track assemblies now to simplify installation and increase showcase security.
