CRL Satin Anodized 6"x10" LH Center Push-Button Door Lock w/ Housing
CRL Satin Anodized 6"x10" LH Center Push-Button Door Lock w/ Housing
Regular price
$6,246.41 CAD
Regular price
Sale price
$6,246.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL610LCSC
Shipping Weight: 17.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
1/2 in. (12 mm)
Handing
Left Hand
Height
10 in. (254 mm)
Width
6 in. (152 mm)
Overview
- Requires no electrical connections
- Complies with A.D.A. standards
- Five finishes available
- Use with monolithic tempered glass

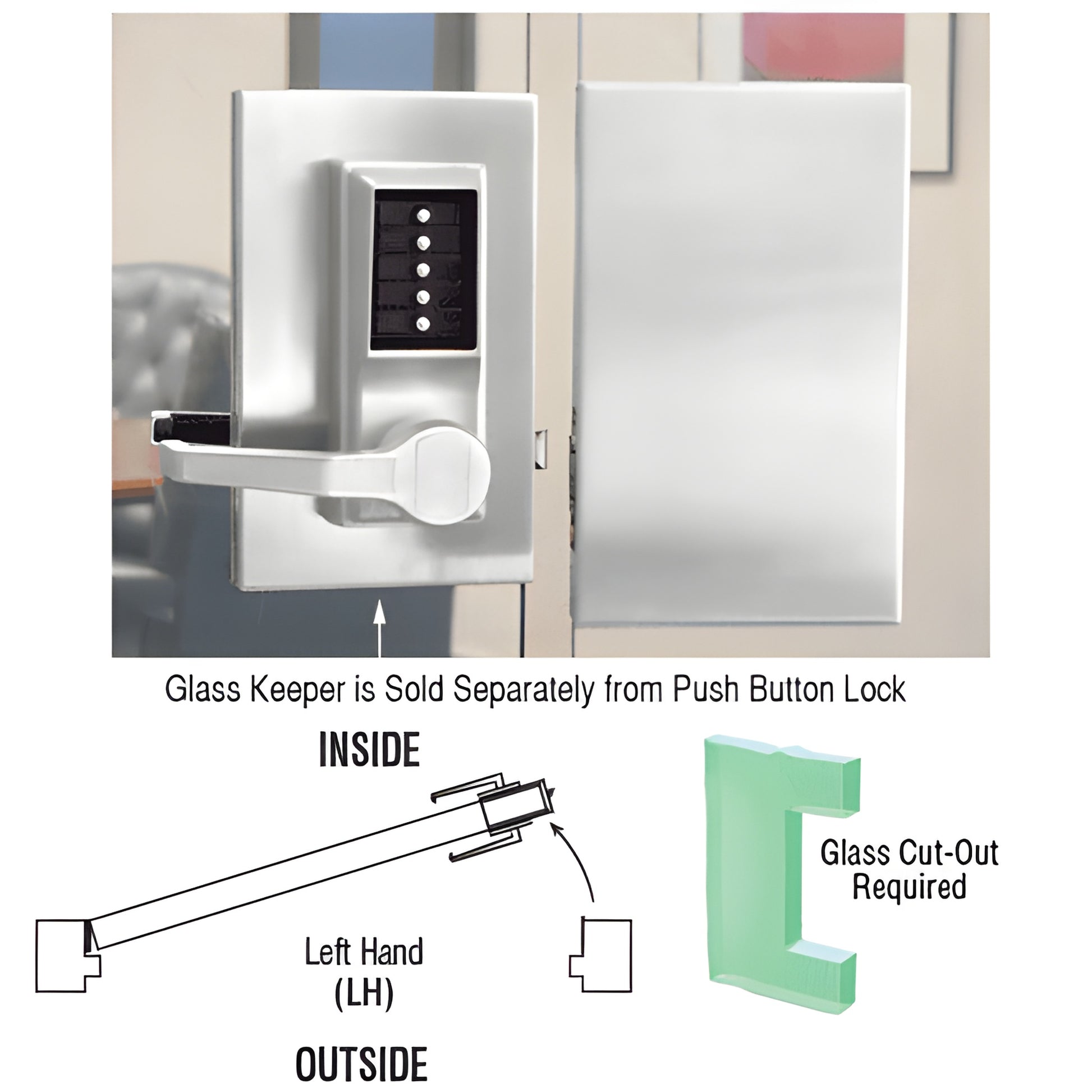

CRL Push Button Lock and Glass Keeper (SKU: DL610LCSC) assemblies are mechanical 6" x 10" (152 x 254 mm) center locks designed for push-button access on glass doors. The exterior keypad features five vertical sequential push buttons; the interior lever always operates the latchbolt for reliable egress. Because no wiring is needed, installation matches other 6" x 10" center locks and speeds retrofit or new installations on commercial glass doors.
This ADA-compliant push button glass door lock is built for high-frequency use in hospitals, commercial and industrial building entrances, apartments, condominiums, and schools. Use the specially machined Center Lock Glass Keeper (sold separately) to accept the lock strike; a jamb strike plate is supplied when a glass keeper is not required.
Highlights: mechanical push button lock · no power required · ADA-compliant · fits 6" x 10" center cutouts · compatible with monolithic tempered glass
Order the DL610LCSC push button lock for secure, low-maintenance access control on glass doors. Contact sales to purchase or request a quote.
