CRL Satin Anodized Aluminum 6x10 Center Lock RHR w/ Deadlatch Office

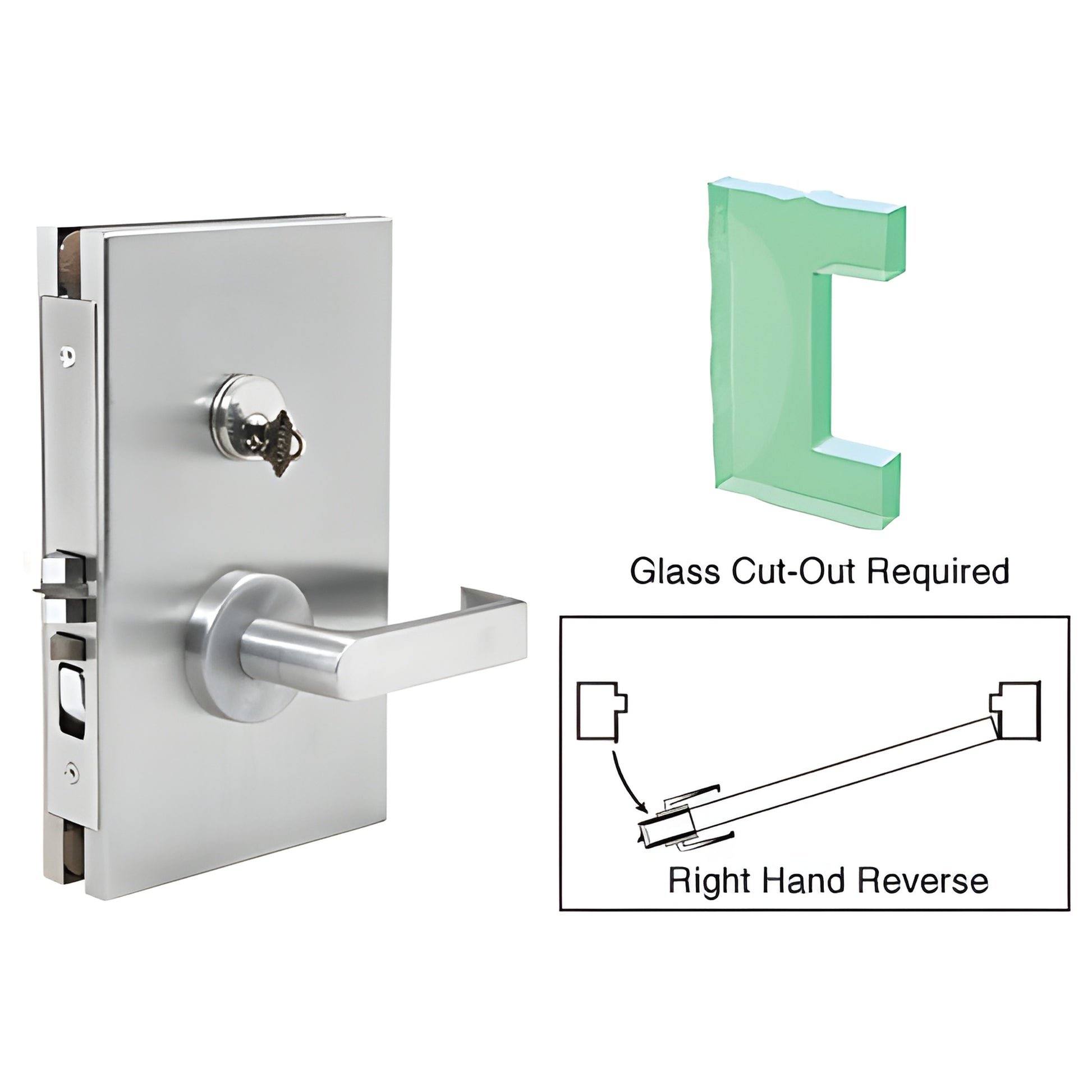

• SKU: DL611R0SC — CRL 6" x 10" Center Lock with Deadlatch for 1/2" (12 mm) tempered glass doors
• Five lock functions: Office, Entrance, Passage, Storeroom, and Classroom — choose the function for your application
• Fits 1/2" (12 mm) monolithic tempered glass; custom units for other glass thicknesses available on special order
• Available in five finishes
• Ships in under a week
• Hassle-free installation — no cement or silicone required; simple glass cut-out installation
• Jamb-mount strike plates available on special order
• Available left- and right-handed

CRL 6" x 10" Center Locks with Deadlatch provide versatile security for commercial and institutional tempered glass doors. Designed for 1/2" (12 mm) heavy glass, these center locks offer multiple long-tail solutions like "tempered glass door center lock DL611R0SC" and "6x10 center lock deadlatch for 1/2 inch tempered glass." A simple cut-out in the glass is all that's required for installation—no messy cement or silicone—making them ideal for retrofit and new-construction projects.

Office Lock Function: Latchbolt operates by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always retracts for egress.

Entrance Lock: Latchbolt operates by lever on either side (except when deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latch and deadbolt for egress.

Passage Lock: Latchbolt operates by lever on either side. Inside lever always retracts for egress.

Storeroom Lock: Latchbolt operated by inside lever and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks main latchbolt to prevent jimmying. Inside lever always retracts for egress. Commonly used with electric strikes.

Classroom Lock: Latchbolt operates by lever on either side except when outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever always operable.
