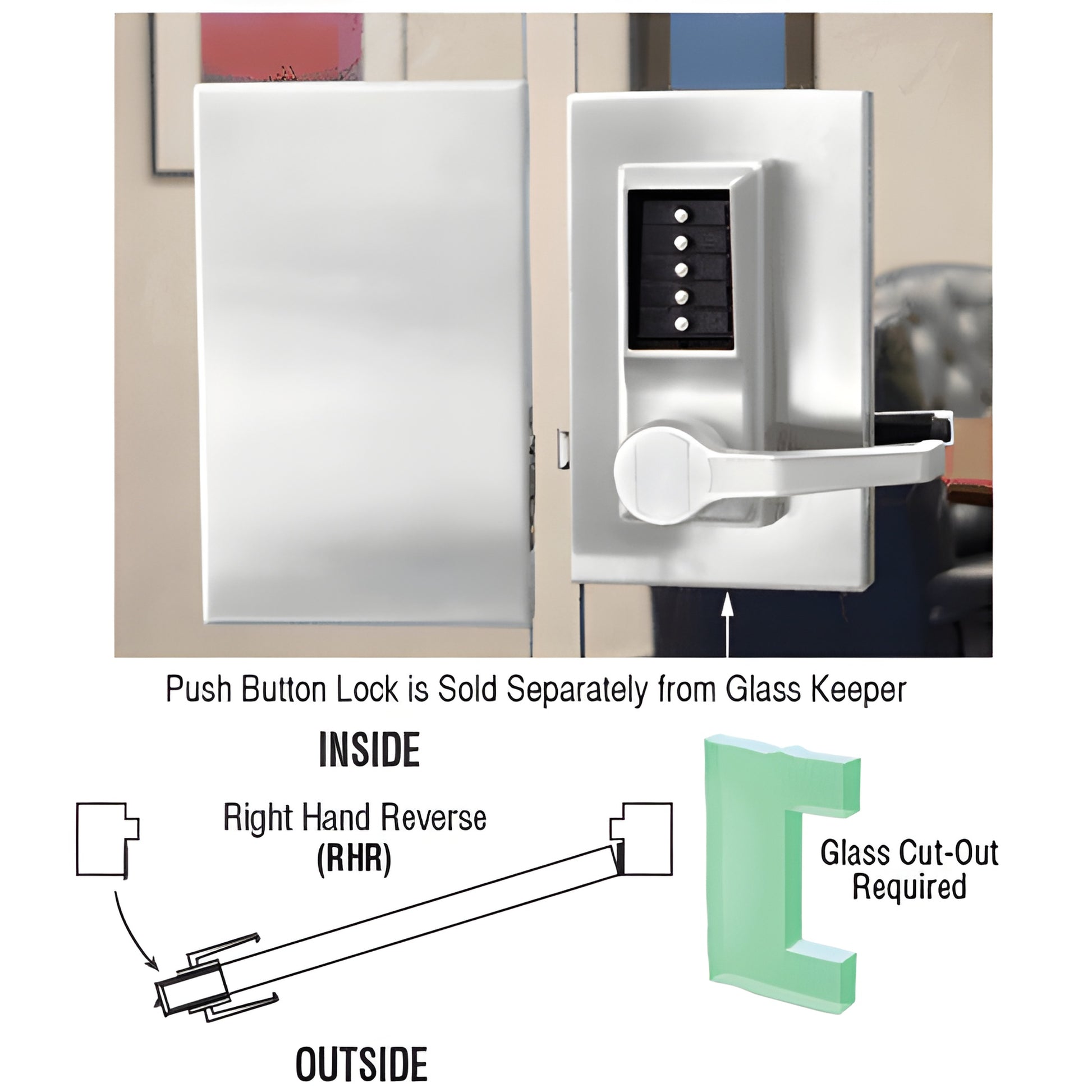

CRL Satin Anodized 6" x 10" RHR Center Push-Button Door Lock w/housing

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch (SKU: DL611RCSC) provide versatile lock functions and reliable security for 1/2" (12 mm) heavy glass doors. Available left- and right-handed in five attractive finishes, these center locks install with a simple glass cut-out—no cement or silicone required. Ideal for monolithic tempered glass doors and ADA-compliant commercial glass entryways.

Office Lock Function: Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Turning inside lever always retracts the lock to allow exiting.

Entrance Lock: Latchbolt is operated by lever on either side (except when deadbolt is projected). Deadbolt is operated by key outside and thumbturn inside. Turning inside lever retracts both latchbolt and deadbolt to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever always retracts the locking mechanism to allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Turning inside lever always retracts the lock. Commonly used with electric strikes.

Classroom Lock: Latchbolt is operated by lever on either side except when outside lever is locked by key outside. Key operates latch and unlocks outside lever; inside lever is always operable for egress.

Shop the CRL DL611RCSC center lock for secure, easy-install glass door locking—available now.
