CRL Satin Anodized 72in Security Anti-Lift Sliding Door Track

• CRL Exclusive pre-cut Security Anti-Lift Sliding Track Assemblies (SKU: S710A72)
• Anti-Lift H-Bar and specially designed Lower Track for added tamper-resistant security

CRL supplies Security Anti-Lift Aluminum Extrusions for fabricating sliding track assemblies for display showcases and retail cases. These anti-lift extrusions prevent panel lift-out and increase security when paired with typical upper channel and ratchet or plunger locks. Suitable for glass thicknesses 3/16" to 1/4" (5 to 6 mm). Installation is as straightforward as standard track assemblies but delivers superior theft-deterrent performance.


Available as ready-to-install, pre-cut Security Track Assemblies in 36", 48", and 72" (914 mm, 1.22 m, 1.83 m) lengths to reduce labor and material waste. Assemblies ship complete with required components. CRL Cat. No. TA30 end caps for use with Cat. No. S710A Security H-Bar are sold separately.

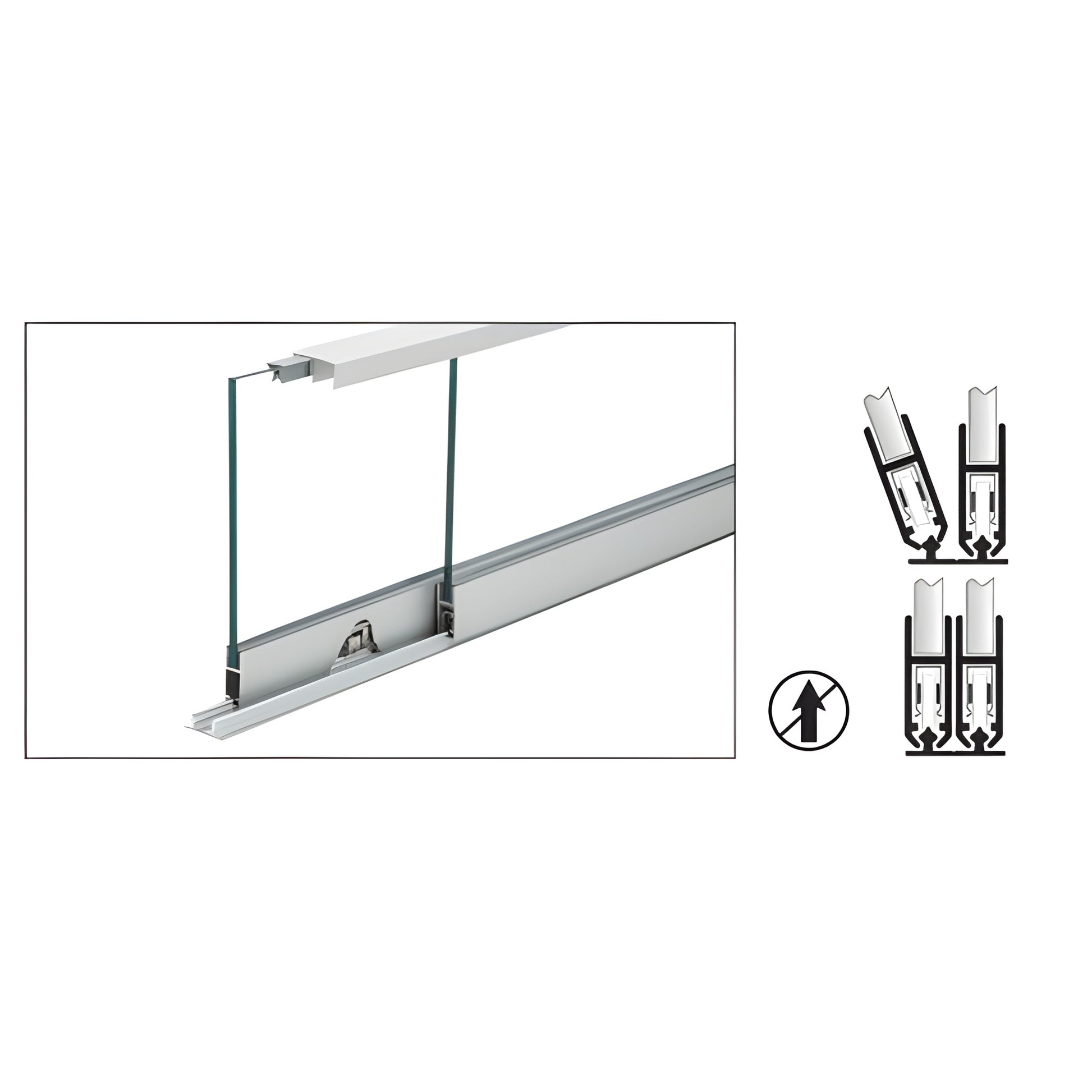

How it works: The Security H-Bar installs only on the Security Lower Rails by tilting the sliding panel to approximately 70°, setting the ball bearing wheel assembly onto the lower rail, then returning the panel to 90° vertical. Perform this step before permanently mounting the upper double channel.

The result: The H-Bar’s bottom profile prevents lift-off from the specially designed lower rails into the upper channel once permanently mounted, creating a simple, effective anti-lift barrier for display cases and glass showcases.

General glass cutting guideline:
Glass Height = Opening Height minus 1-3/8" (35 mm)

Product warning:

Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m)

Order SKU S710A72 pre-cut security track assemblies now to simplify installation and increase display-case security.
