• CRL Roton 157HD83A satin-anodized aluminum continuous hinge, 83 in, heavy-duty, supports up to 600 lb doors.
1 1

CRL

CRL Roton 157HD 83" Satin Anodized Full-Surface Continuous Hinge

CRL Roton 157HD 83" Satin Anodized Full-Surface Continuous Hinge

$656.57 CAD
$656.57 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 157HD83A
Shipping Weight: 10.32 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
64611SA
Series
Roton 157HD
Width
3-9/32 in. (83.3 mm)

Overview

  • Specified everywhere for long service life
  • Straight hole pattern for consistent alignment
  • Available in standard or heavy-duty models
  • Standard duty: supports doors up to 200 lbs (90 kg)
  • Heavy duty: supports doors up to 600 lbs (272 kg)

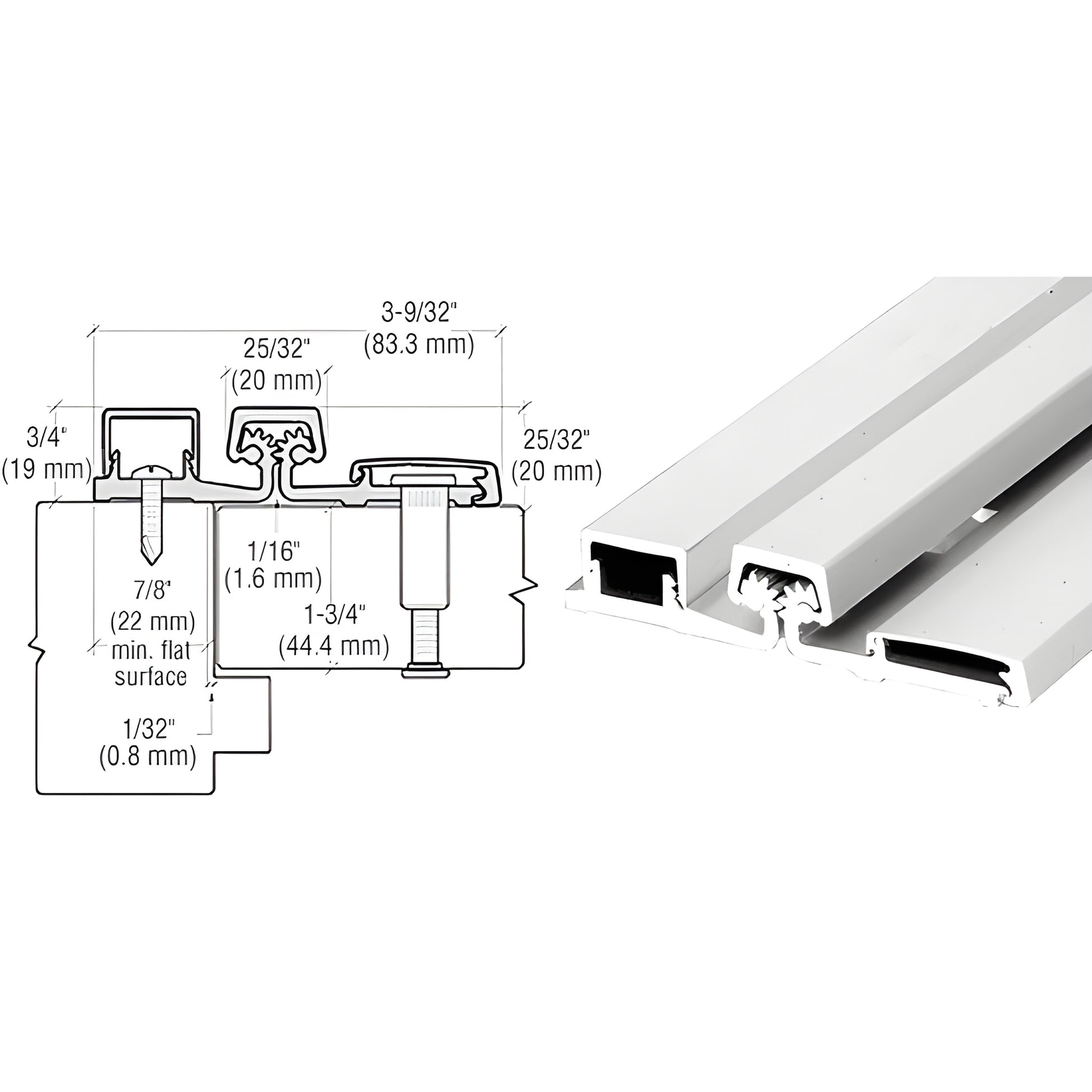

CRL Roton Hinges (SKU: 157HD83A) are high-strength aluminum hinges with a full-length rolling gear profile that aligns doors perfectly from top to bottom. Self-lubricating polyacetal load-bearing blocks provide smooth, near-floating operation—even on very heavy doors. Concealed mounting hardware creates a clean, secure appearance and reduces tampering risk. Easy to install, each hinge ships with complete instructions and all necessary mounting hardware; replacement screw packs are also available. These precision aluminum door hinges are ideal for commercial and residential applications requiring durable, long-lasting performance.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order CRL Roton Hinges (157HD83A) today for reliable, heavy-duty door performance.
