CRL Satin Anodized Heavy-Duty Concealed Hinge w/ Lip for 1-3/4" Door
CRL Satin Anodized Heavy-Duty Concealed Hinge w/ Lip for 1-3/4" Door
Regular price
$336.22 CAD
Regular price
Sale price
$336.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 45095A
Shipping Weight: 9.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Includes
Pack of Screws
Length
95
Lip
1-3/4
Material
Aluminum
Maximum Door Weight
600
Replacement Screw Pack
RSP400A
Series
450
Width
1-15/16
Overview

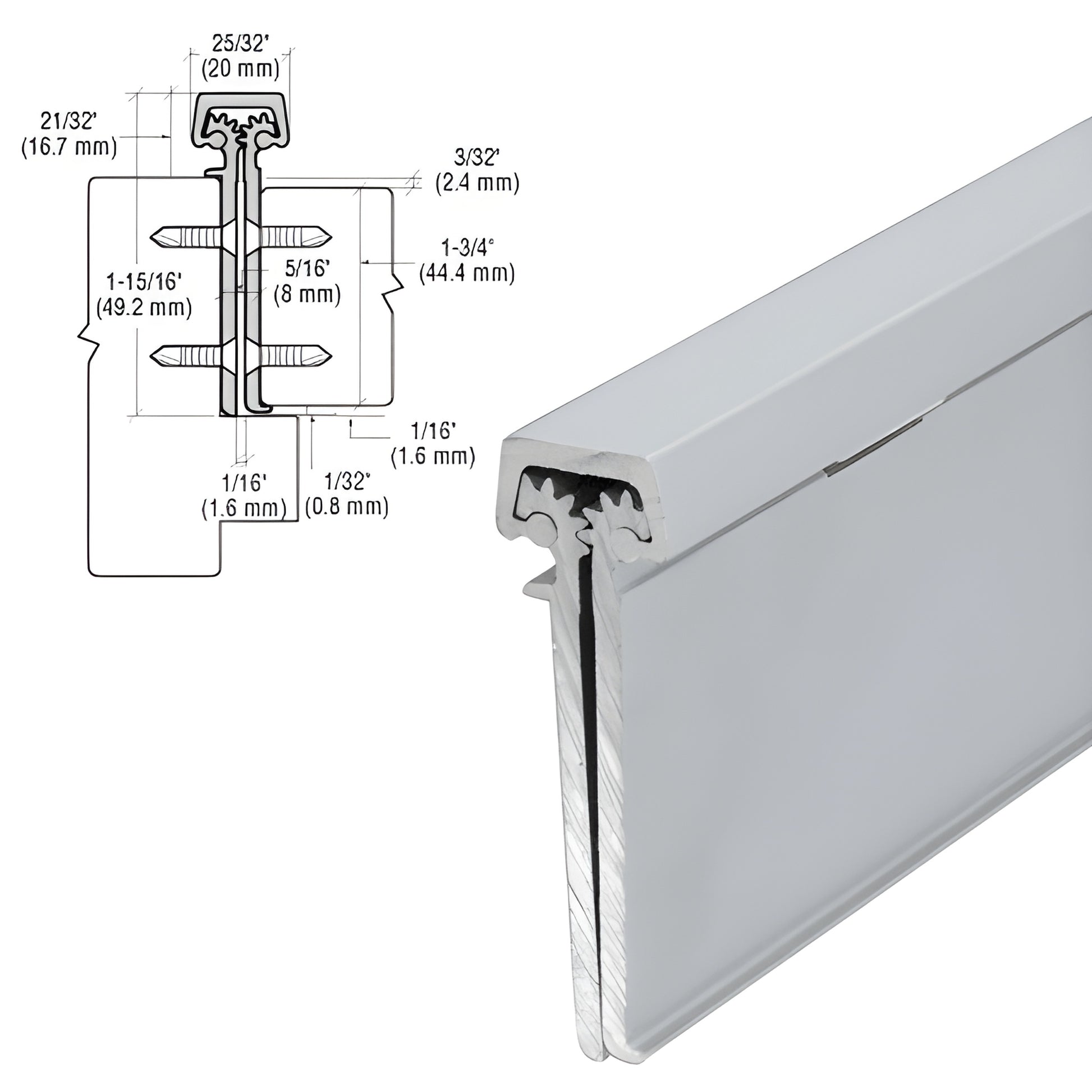

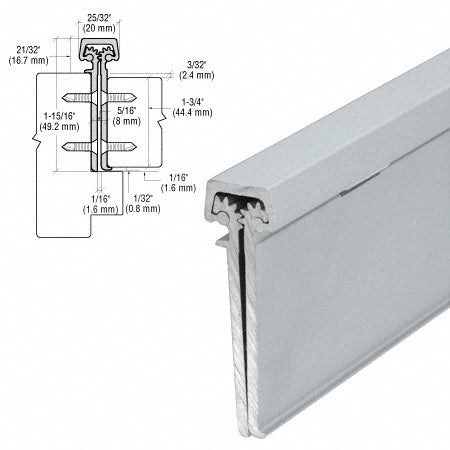

- Heavy-duty concealed hinge for 1-3/4" (44 mm) entry doors — supports up to 600 lb (272 kg)
- Full-length rolling gear profile for precise door alignment from top to bottom
- Self-lubricating polyacetal load-bearing blocks for smooth, near-floating operation
- Concealed mounting hardware for a clean, secure appearance
- Available finishes: Satin Anodized (clear) and Dark Bronze Anodized
- Stocked lengths: 83" (2.1 m), 95" (2.4 m), 120" (3.05 m)
- Includes installation instructions and all necessary mounting hardware
- SKU: 45095A
CRL Heavy-Duty Concealed Leaf Hinge designed for commercial and residential 1-3/4" entry doors. Constructed from high-strength aluminum with a full-length rolling gear profile to align doors perfectly and distribute load evenly. Durable, self-lubricating polyacetal blocks ensure smooth operation even on the heaviest doors up to 600 lb (272 kg). Concealed mounting hardware delivers a flush, finished look and added security. Easy to install with included instructions and hardware. Available in satin anodized (clear) and dark bronze duranodic finishes and stocked in 83", 95", and 120" lengths.
Order SKU 45095A today for heavy-duty, concealed continuous hinge performance — contact CRL for pricing and lead times.
