CRL Roton 210HD 95" Satin Anodized Heavy-Duty Continuous Door Hinge
CRL Roton 210HD 95" Satin Anodized Heavy-Duty Continuous Door Hinge
Regular price
$763.37 CAD
Regular price
Sale price
$763.37 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 210HD95A
Shipping Weight: 19.978 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.978 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
95 in. (2413 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
26469SA
Series
Roton 210HD
Width
3-3/16 in. (81 mm)
Overview
- Long service life — specified everywhere
- Straight hole pattern for consistent mounting
- Available in standard or heavy-duty models
- Standard duty: supports doors up to 200 lbs (90 kg)
- Heavy-duty: supports doors up to 600 lbs (272 kg)

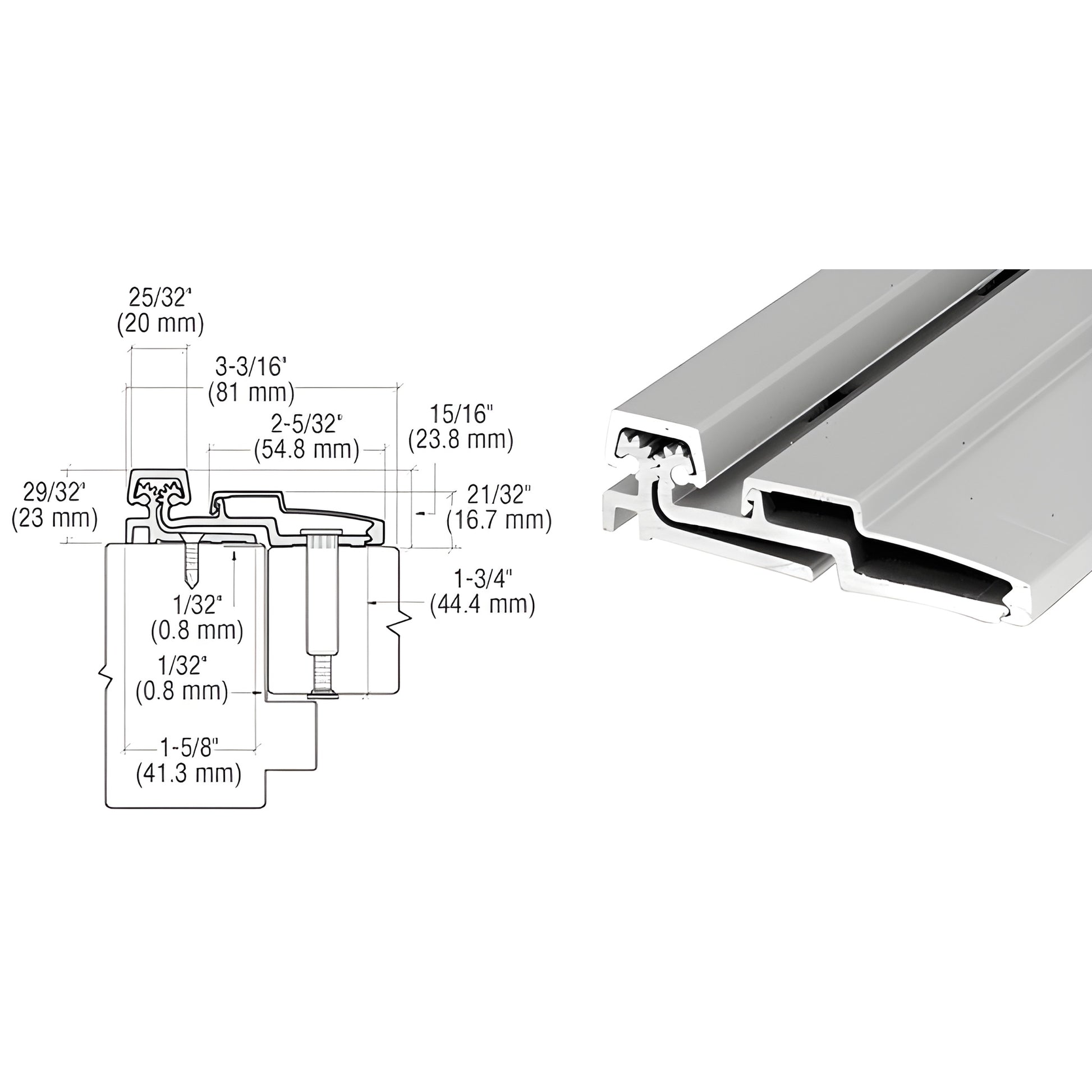

The CRL Heavy-Duty Full Surface Roton Hinges (SKU 210HD95A) are extruded from high‑strength aluminum and feature a full-length rolling gear profile that aligns doors top to bottom. These full surface Roton hinges use twice the standard number of special self‑lubricating polyacetal load‑bearing blocks for smooth, near‑floating operation on very heavy doors. All mounting hardware is concealed after installation for a clean appearance and enhanced security. Hinges include installation instructions and all necessary hardware.
Finishes: clear satin anodized or dark bronze duranodic. Stocked lengths: 83" and 95" (2.10 and 2.41 m). Replacement screw packs available.
Order the heavy-duty full surface Roton hinge (SKU 210HD95A) today to ensure durable, smooth operation on high-capacity doors.
Specifications
Templates
