CRL Satin Anodized Aluminum Narrow Inset Glazed Door Vision Window

• Narrow inset frame vision window—ideal for walk-up installations and above built-in exchange or transaction drawers
• Drawings and specifications available online

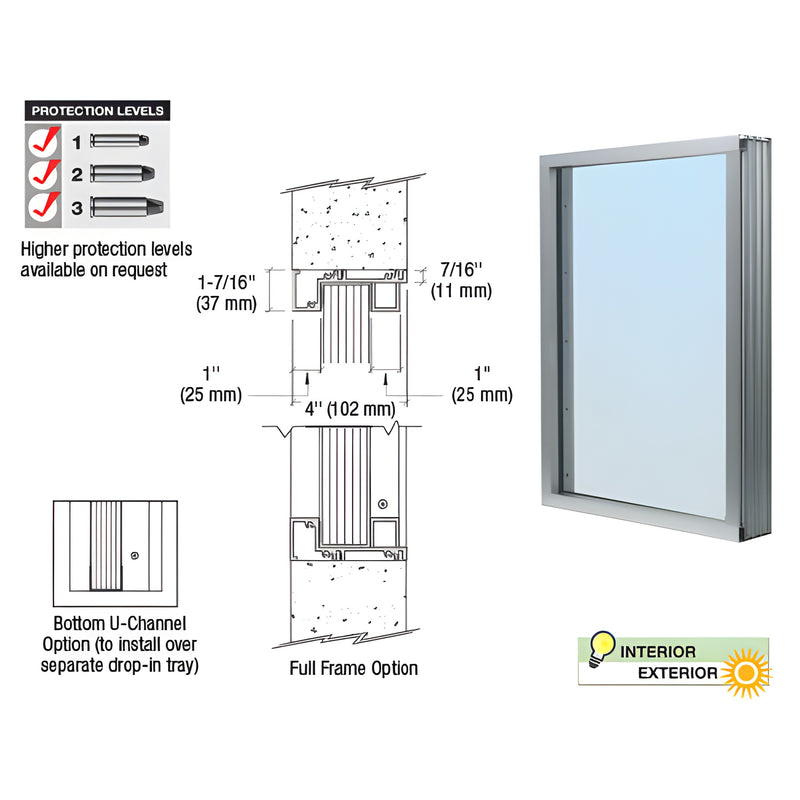

CRL Narrow Inset Frame Vision Windows (SKU: N1VEA) are engineered for installation in wall openings 4" (102 mm) or thicker. The uniform four‑side frame permanently seals the selected glazing for a weathertight, tamper‑resistant installation. Common applications include sidelites for multi‑lite exchange windows, above built‑in transaction drawers, and package receivers in walk‑up or drive‑up teller environments. Installer affixes the frame to the wall opening and seals glazing with included glazing tape. Optional U‑Channel under glazing is available to enable access to drop‑in deal trays—useful for secure exchange applications and modular teller systems.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL powder coat colors or custom KYNAR® paint colors.
Instructions Included

Order the CRL Narrow Inset Frame Vision Window (SKU: N1VEA) for reliable, secure walk‑up and transaction‑drawer installations — contact us to request drawings, weights, or a quote.
